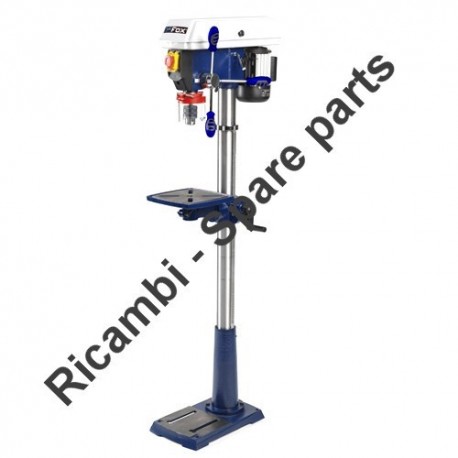

Fox Spare Parts for Bench Drill Press F12-941

Name: Fox Spare Parts for Bench Drill Press F12-941
Brand: Femi
SKU: Fox F12-941
Availability: InStock

SKU: Fox F12-941

€32.47

VAT included

Fox Spare Parts for Drill Press F12-941

Fox genuine original spare parts for to replace broken parts for to fix Floor Drill Press F12-941.

Fix Your Drill Press. All Spares can be supplyed at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

- Spare parts for FEMI SPA DISTRIBUTION - NOT Suitable for DELTA FRANCE MACHINES

40 spare parts

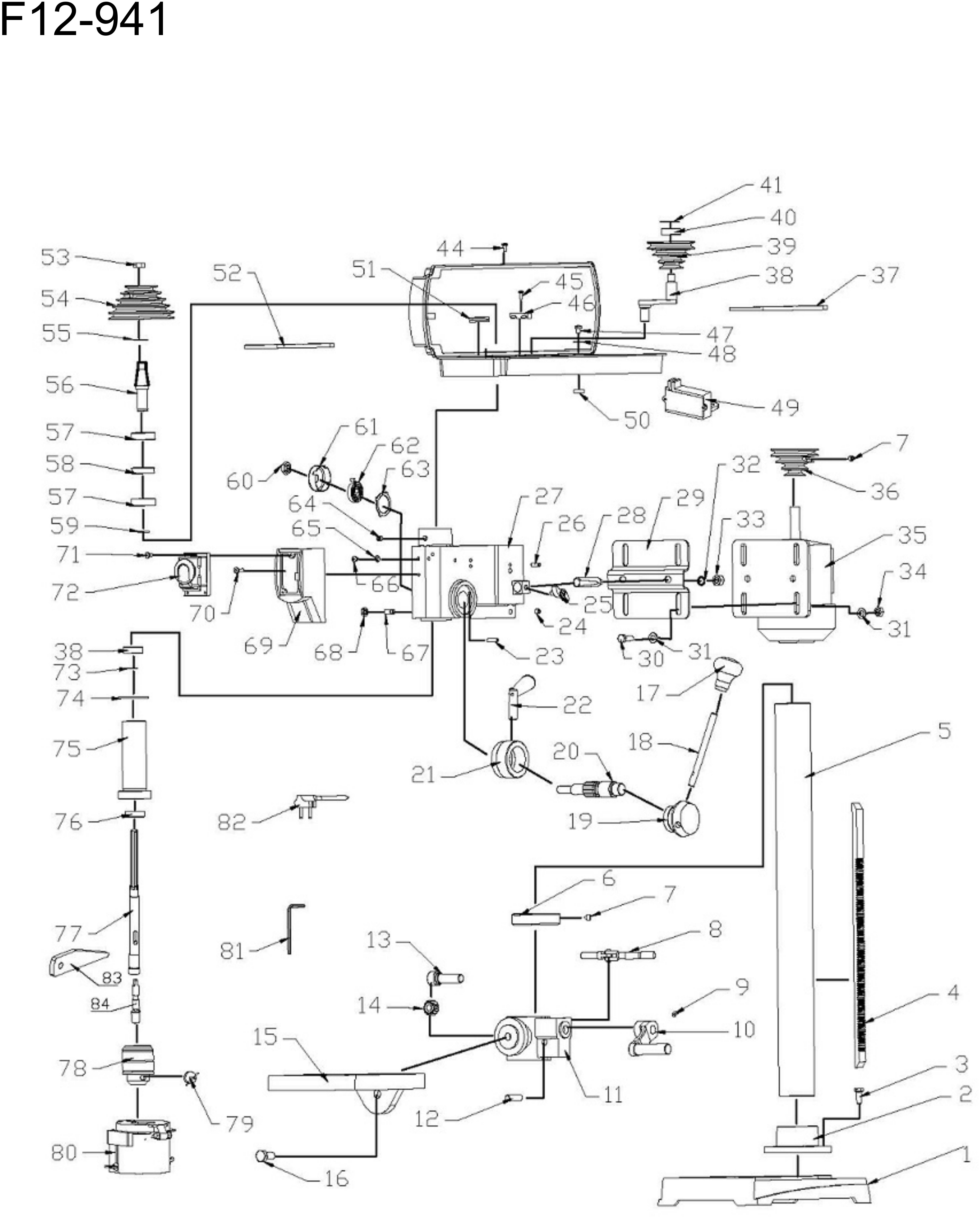

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Pos.		Item	Price
1		F12941-1 FEMI DP12-941 Base	€79.05
2		F12941-2 FEMI DP12-941 Stand Holder	€32.47
4		F12941-4 Rack for Floor Bench Drill Fox F12-941	€45.80
5		F12941-5 FEMI DP12-941 Stand	€49.64
8		F12941-8 FEMI DP12-941 Working Table Clamp	€10.58
10		F12941-10 FEMI DP12-941 Table Crank Lever	€21.76
11		F12941-11 FEMI DP12-941 Working Table Holder	€53.74
13		F12941-13 Rack Pin for Bench Floor Drill Fox F12941	€13.16
14		F12941-14 Rack Gear for Bench Floor Drill Fox F12941	€6.51
15		F12941-15 FEMI DP12-941 Working Table	€61.90
17		F12941-17 FEMI DP12-941 Lever Knob	€7.71
18		F12941-18 FEMI DP12-941 Lever	€8.39
19		F12941-19 Fox F12-941 Hub	€18.11
20		F12941-20 Shaft Pinion (Long) for Drill Press Fox F12-941	€25.12
21		F12941-21 FEMI DP12-941 Depth Stop Ring	€15.23
22		F12941-22 FEMI DP12-941 Wing Screw	€7.31
29		F12941-29 Femi DP12-941 Motor Holder	€16.46
35		F12941-35 Motor for Drill Press Fox F12-941	€151.58
36		F12941-36 Motor Pulley for Drill Press Fox F12-941	€11.29
37		F12941-37 Trapezoidal Belt K508 for Bench Drill Fox F12941	€18.46
38		F12941-38 Pulley Shift Shaft for Bench Drill Press Fox F12-941	€19.29
39		F12941-39 Shift Shaft Pulley for Bench Drill Press Fox F12-941	€13.41
40		F12941-40 Shift Shaft Pulley Bearing for Drill Press Fox F12-941	€5.67
49		F12941-49 FEMI DP12-941 Micro Switch	€12.22
52		F12941-52 Trapezoidal Belt K19 for Bench Drill Fox F12941	€13.16
54		F12941-54 Driven Pulley for Floor Bench Drill Fox F12941	€24.05
56		F12941-56 FEMI DP12-941 Pulley Insert	€22.79
60		F12941-60 Spring Retaining Nut for Drill Press FEMI DP12-941	€2.91
61	Image coming soon	F12941-61 CAP SPRING	€11.71
62		F12941-62 Spring Chuck for Floor Bench Drill Fox F12-941	€10.08
63		F12941-63 Spring Locking Ring for Drill Press Fox F12-941	€2.64
69		F12941-69 Femi DP12-941 Switch Box	€5.14
72		F12941-72 Switch Start/Stop KJD12 for Floor Bench Dril Fox F12-941	€43.55
75		F12941-75 Chuck Holder for Drill Press FOX F12-941	€33.10
76	Image coming soon	F12941-76 BEARING BALL GB279-89	€6.47
77		F12941-77 Chuck Spindle for Bench Drill Press FOX F12-941	€38.94
78		F12941-78 Chuck Complete for Bench Drill Press Fox F12-941	€77.17
79		F12941-79 Femi DP12-941 Chuck Key	€6.70
80		F12941-80 Chuck Guard for Bench Drill FOX F12-941	€21.13
204		F12941-204 Fox Spring Chuck for F12-941	€13.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Fox Spare Parts for Drill Press F12-941

Fix Your Drill Press Drill Press F12-941. All Spares can be supplyed at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

- Spare parts for FEMI SPA DISTRIBUTION - NOT Suitable for DELTA FRANCE MACHINES

In the following table, look for the model of the Drill Presses and the respective parts of the code.

Bench Drill Press Fox F12-941
#	Part Num.	Description
1	F12941-1	BASE
10	F12941-10	CRANK
11	F12941-11	TABLE SUPPORT
13	F12941-13	PIN
14	F12941-14	GEAR
15	F12941-15	TABLE
17	F12941-17	KNOB
18	F12941-18	FEED HANDLE ROD
19	F12941-19	HUB
2	F12941-2	SUPPORT COLUMN
20	F12941-20	SHAFT PINION SYNTAGM
21	F12941-21	DEPTH STOP RING
22	F12941-22	DEPTH LOCK WING SCREW
29	F12941-29	MOTOR SUPPORT
35	F12941-35	MOTOR
36	F12941-36	MOTOR PULLEY
37	F12941-37	V-BELT
38	F12941-38	WHEEL SHAFT
39	F12941-39	MIDDLE PULLEY
40	F12941-40	WHEEL BEARING 6201 ZZ
4	F12941-4	RACK
49	F12941-49	MICRO SWITCH
5	F12941-5	CULUMN TUBE
52	F12941-52	V-BELT
54	F12941-54	CHUCK PULLEY
56	F12941-56	PULLEY INSERT
57	F12941-57	BALL BEARING 6203 ZZ
60	F12941-60	SPRING RETAINING
61	F12941-61	CAP SPRING
62	F12941-62	TORSION SPRING
63	F12941-63	RING
69	F12941-69	BOX-SWITCH
72	F12941-72	SWITCH
75	F12941-75	TUBE QUILL
76	F12941-76	BEARING BALL GB279-89
77	F12941-77	CHUCK SHAFT
78	F12941-78	CHUCK
79	F12941-79	CHUCK KEY
8	F12941-8	TABLE CLAMP
80	F12941-80	EYE SHIELD
204	F12941-204	SPRING ASSY'

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Fox F12-941

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

Condition New

Download

Diagram Fox F12-941

Download (184.4KB)
