Fox Spare Parts for Wood Lathe Machines F46-255

SKU: Fox F46-255
€201.98
VAT included

Fox Spare Parts for Wood Lathe Machines F46-255

Fox original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and issues for Wood Lathe Machines F46-255.

- SPARE PARTS ONLY FOR FEMI MACHINES NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
Fox Spare Parts for Wood Lathe Machines F46-255
  • Fox Spare Parts for Wood Lathe Machines F46-255
  • Fox Spare Parts for Wood Lathe Machines F46-255

Fox Spare Parts for Wood Lathe Machines F46-255

SKU: Fox F46-255 Condition: New
€201.98
VAT included

Fox Spare Parts for Wood Lathe Machines F46-255

Fox original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and issues for Wood Lathe Machines F46-255.

- SPARE PARTS ONLY FOR FEMI MACHINES NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND
settings 40 spare parts

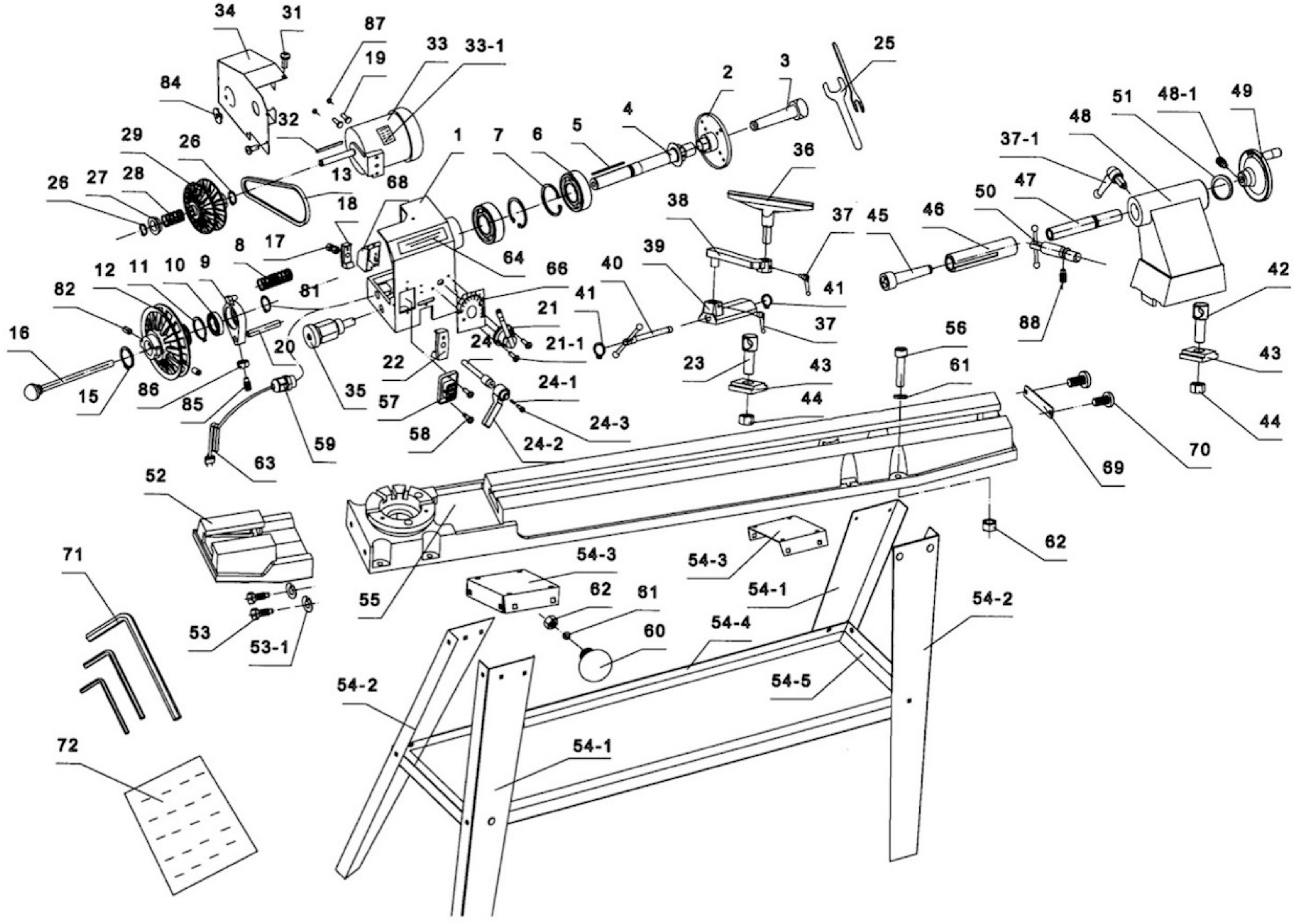

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon F46255-1 TESTATA TORNIO €184.85
2
Disc for Wood Lathe Machines Fox F46-255 F46255-2 Disc for Wood Lathe Machines Fox F46-255 €34.43
3
photo_cameraImage coming soon F46255-3 DRIVE CENTER €31.03
4
Wood Lathe Shaft for Wood Lathe Machine Fox F46-255 F46255-4 Wood Lathe Shaft for Wood Lathe Machine Fox F46-255 €105.98
6
photo_cameraImage coming soon F46255-6 BALL BEARING 6205Z €4.82
7
C-Ring S-52 for Wood Lathe Machine Fox F46-255 F46255-7 C-Ring S-52 for Wood Lathe Machine Fox F46-255 €1.42
8
Compression Spring for Wood Lathe Machine Fox F46-25 F46255-8 Compression Spring for Wood Lathe Machine Fox F46-25 €10.83
9
photo_cameraImage coming soon F46255-9 BRACKET—SHIFTING LEVER €19.77
10
photo_cameraImage coming soon F46255-10 BALL BEARING 6007 €25.61
17
Lock Nut for Wood Lathe Machine Fox F46-255 F46255-17 Lock Nut for Wood Lathe Machine Fox F46-255 €2.74
18
Left Clamp for Wood Lathe Machine Fox F46-255 F46255-18 Left Clamp for Wood Lathe Machine Fox F46-255 €10.21
19
photo_cameraImage coming soon F46255-19 HEX BOLT €1.54
21
photo_cameraImage coming soon F46255-21 GEAR ASSEMBLY €19.35
22
Right Clamp for Wood Lathe Machine Fox F46-255 F46255-22 Right Clamp for Wood Lathe Machine Fox F46-255 €10.21
23
photo_cameraImage coming soon F46255-23 SPECIAL SCREW €12.65
27
photo_cameraImage coming soon F46255-27 BEARING SLEEVE €1.40
32
photo_cameraImage coming soon F46255-32 KEY 4X4X82 €5.96
33
photo_cameraImage coming soon F46255-33 1800W AC MOTOR ASSY €352.93
34
photo_cameraImage coming soon F46255-34 MOTOR COVER €31.03
35
photo_cameraImage coming soon F46255-35 ANGULAR SETTING ASSEMBLY €32.31
36
photo_cameraImage coming soon F46255-36 TOOL REST €29.46
38
photo_cameraImage coming soon F46255-38 EXTENSION TOOL REST €39.57
39
photo_cameraImage coming soon F46255-39 TOOL REST BODY €35.30
40
photo_cameraImage coming soon F46255-40 ECCENTRIC ROD €37.86
41
C-Ring S-19 for Wood Lathe Machine Fox F46-255 F46255-41 C-Ring S-19 for Wood Lathe Machine Fox F46-255 €1.52
42
photo_cameraImage coming soon F46255-42 SPECIAL SCREW €2.11
43
Clamp for Wood Lathe Machine Fox F46-255 F46255-43 Clamp for Wood Lathe Machine Fox F46-255 €10.21
46
Tail Spindle for Wood Lathe Machine Fox F46-255 F46255-46 Tail Spindle for Wood Lathe Machine Fox F46-255 €17.09 Not available for order
48
photo_cameraImage coming soon F46255-48 COUNTERPOINT SUPPORT €75.61
52
photo_cameraImage coming soon F46255-52 EXTENSION BED €47.12
54-1
photo_cameraImage coming soon F46255-54-1 STAND LEG, LEFT €38.72
54-2
photo_cameraImage coming soon F46255-54-2 STAND LEG, RIGHT €38.72
54-3
photo_cameraImage coming soon F46255-54-3 STAND UPPER COVER €20.77
54-4
photo_cameraImage coming soon F46255-54-4 STAND LONG-CROSS SUPPORT €38.72
54-5
photo_cameraImage coming soon F46255-54-5 STAND SHORT-CROSS SUPPORT €20.77
57
photo_cameraImage coming soon F46255-57 CONTROL SWITCH €35.30
59
photo_cameraImage coming soon F46255-59 PLASTIC JAM NUT M20 X 1.5 €1.40
68
photo_cameraImage coming soon F46255-68 SWITCH BOX €5.96
81
photo_cameraImage coming soon F46255-81 C-RING S-35 €1.40
84
photo_cameraImage coming soon F46255-84 ADAPTER COVER €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Fox Spare Parts for Wood Lathe Machines F46-255

Fox original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Wood Lathe Machines F46-255.

Fix Your Wood Lathe Machines F46-255. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

- SPARE PARTS ONLY FOR FEMI MACHINES NOT SUITABLE FOR MACHINES WITH THE DELTA FRANCE BRAND

In the following table, look for the model of the Wood Lathe Machines and the respective parts of the code.
Fox F46-255

Wood Lathe Machines F46-255
Pos. Code Descrition
1 F46255-1 HEADSTOCK
10 F46255-10 BALL BEARING 6007
11 F46255-11 C-RING S-62
12 F46255-12 CHUCK PULLEY SET R & L
13 F46255-13 V-BELT
15 F46255-15 C-RING S-16
16 F46255-16 PIN-INJECTION
17 F46255-17 LOCK NUT
18 F46255-18 CLAMP LEFT
19 F46255-19 HEX BOLT
2 F46255-2 DISC
20 F46255-20 RACK
21 F46255-21 GEAR ASSEMBLY
22 F46255-22 CLAMP RIGHT
23 F46255-23 SPECIAL SCREW
24 F46255-24 HANDLE GROUP
26 F46255-26 C-RING S-16
27 F46255-27 SLEEVE
28 F46255-28 SPRING
29 F46255-29 MOTOR PULLEY SET, L & R
3 F46255-3 DRIVE CENTER
32 F46255-32 KEY 4X4X82
33 F46255-33 MOTOR
34 F46255-34 MOTOR COVER
35 F46255-35 ANGULAR SETTING ASSEMBLY
36 F46255-36 TOOL REST
37 F46255-37 HANDLE ASSEMBLY FOR TOOL REST
38 F46255-38 EXTENSION TOOL REST
39 F46255-39 TOOL REST BODY
4 F46255-4 WOOD LATHE SHAFT
40 F46255-40 ECCENTRIC ROD
41 F46255-41 C-RING S-19
42 F46255-42 SPECIAL SCREW
43 F46255-43 CLAMP
45 F46255-45 CENTER
46 F46255-46 TAIL SPINDLE
47 F46255-47 TAILSTOCK SCREW
48 F46255-48 TAILSTOCK
49 F46255-49 HANDWHEEL
5 F46255-5 KEY 4 X 4 X 80
50 F46255-50 LOCK HANDLE-TAILSTOCK
51 F46255-51 SPECIAL WASHER
52 F46255-52 EXTENSION BED
54-1 F46255-54-1 STAND LEG, LEFT
54-2 F46255-54-2 STAND LEG, RIGHT
54-3 F46255-54-3 STAND UPPER COVER
54-4 F46255-54-4 STAND LONG-CROSS SUPPORT
54-5 F46255-54-5 STAND SHORT-CROSS SUPPORT
55 F46255-55 BED
57 F46255-57 SWITCH
59 F46255-59 PLASTIC JAM NUT M20 X 1.5
6 F46255-6 BALL BEARING 6205Z
68 F46255-68 SWITCH BOX
7 F46255-7 C-RING S-52
8 F46255-8 COMPRESSION SPRING 23X109
81 F46255-81 C-RING S-35
84 F46255-84 COVER
9 F46255-9 BRACKET—SHIFTING LEVER
