Fox Spare Parts for Chop Saw with Abrasive Disk F20-140A
Fox original spare parts for the replacement of motor parts or parts of the frame or to fix damaged and worn components of the
Chop Saw with Abrasive Disk F20-140A.

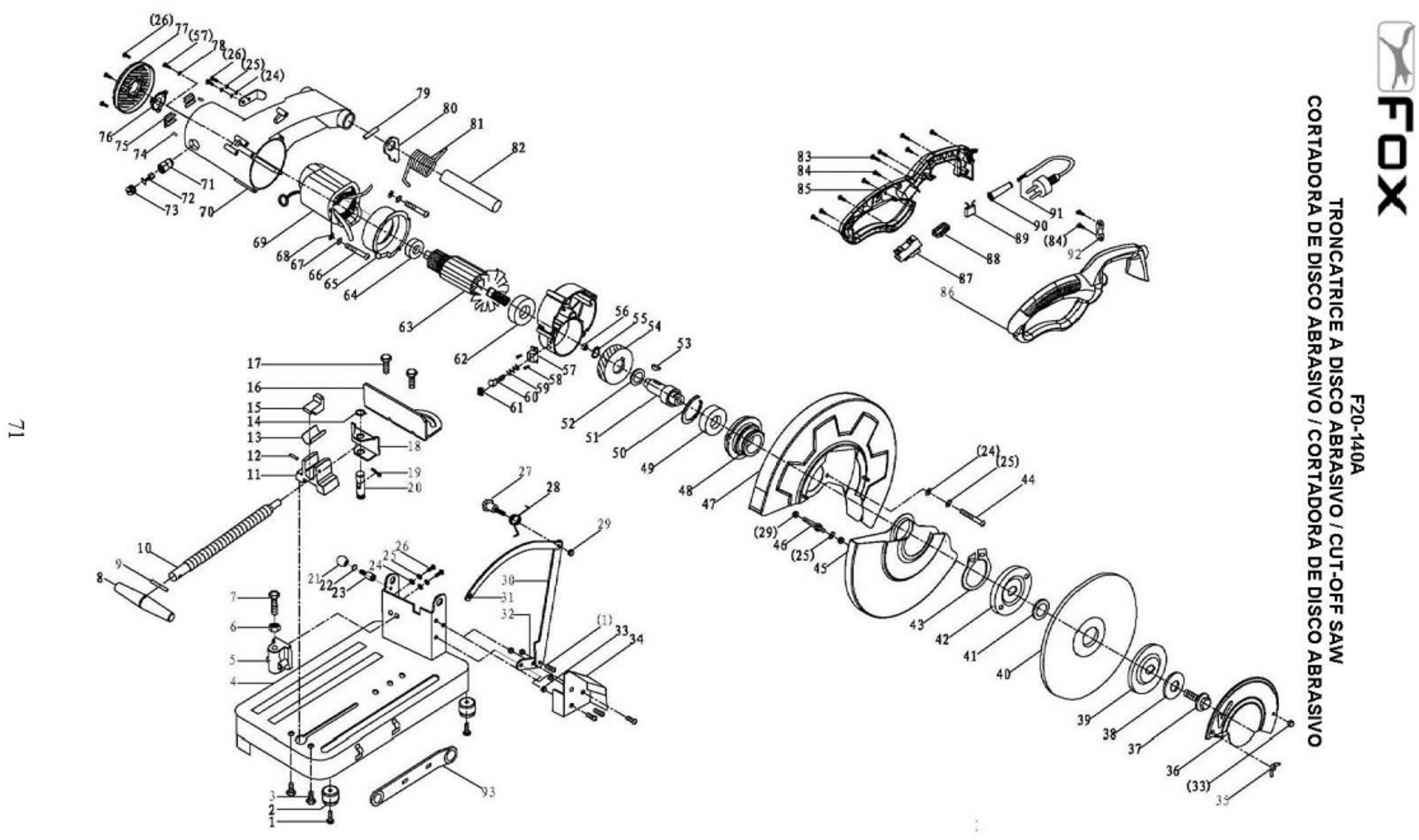

- SPARE PARTS NOT SUITABLE FOR MADE IN DELTA FRANCE MARKED MODELSIn the following table, look for the model of the Mitre Saw and the respective parts of the code.
| Miter Saw Fox F20-140A |
| # |
Part Num. |
Description |
| 10 |
F20140A-10 |
VICESCREW |
| 11 |
F20140A-11 |
VICE SCREW SUPPORT |
| 2 |
F20140A-2 |
RUBBER FOOT |
| 21 |
F20140A-21 |
SPHERE |
| 30 |
F20140A-30 |
LEVER |
| 31 |
F20140A-31 |
CONNECTING LEVER |
| 36 |
F20140A-36 |
PROTECTION COVER |
| 39 |
F20140A-39 |
FLANGE |
| 42 |
F20140A-42 |
INNER FLANGE |
| 45 |
F20140A-45 |
LOWER BLADE PROTECTION |
| 47 |
F20140A-47 |
UPPER BLADE PROTECTION |
| 48 |
F20140A-48 |
BEARING HOUSING |
| 500 |
F20140A-500 |
COMPLETE VICE |
| 51 |
F20140A-51 |
BLADE SHAFT |
| 54 |
F20140A-54 |
WHEEL GEAR |
| 56 |
F20140A-56 |
BUSHING |
| 62 |
F20140A-62 |
BALL BEARING |
| 63 |
F20140A-63 |
ARMATURE ASSY |
| 69 |
F20140A-69 |
STATOR |
| 70 |
F20140A-70 |
MOTOR BODY |
| 71 |
F20140A-71 |
BRUSH SUPPORT |
| 72 |
F20140A-72 |
CARBON BRUSH |
| 73 |
F20140A-73 |
BRUSH COVER |
| 77 |
F20140A-77 |
MOTOR COVER |
| 8 |
F20140A-8 |
VICE HANDLE |
| 81 |
F20140A-81 |
TORSION SPRING |
| 82 |
F20140A-82 |
JOINT SHAFT |
| 85 |
F20140A-85 |
LEFT HANDLE |
| 86 |
F20140A-86 |
RIGH THANDLE |
| 87 |
F20140A-87 |
SWITCH |
| 88 |
F20140A-88 |
INDUCTANCE |
