Flex Spare Parts for Polisher L 1503 VR

SKU: Flex L 1503 VR - 01.01.2016
€0.79
VAT included

Flex Spare Parts for Polisher L 1503 VR

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher L 1503 VR - 01.01.2016.
Flex Spare Parts for Polisher L 1503 VR
  • Online only
  • Flex Spare Parts for Polisher L 1503 VR
  • Flex Spare Parts for Polisher L 1503 VR

Flex Spare Parts for Polisher L 1503 VR

SKU: Flex L 1503 VR - 01.01.2016 Condition: New
€0.79
VAT included

Flex Spare Parts for Polisher L 1503 VR

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher L 1503 VR - 01.01.2016.
settings 42 spare parts

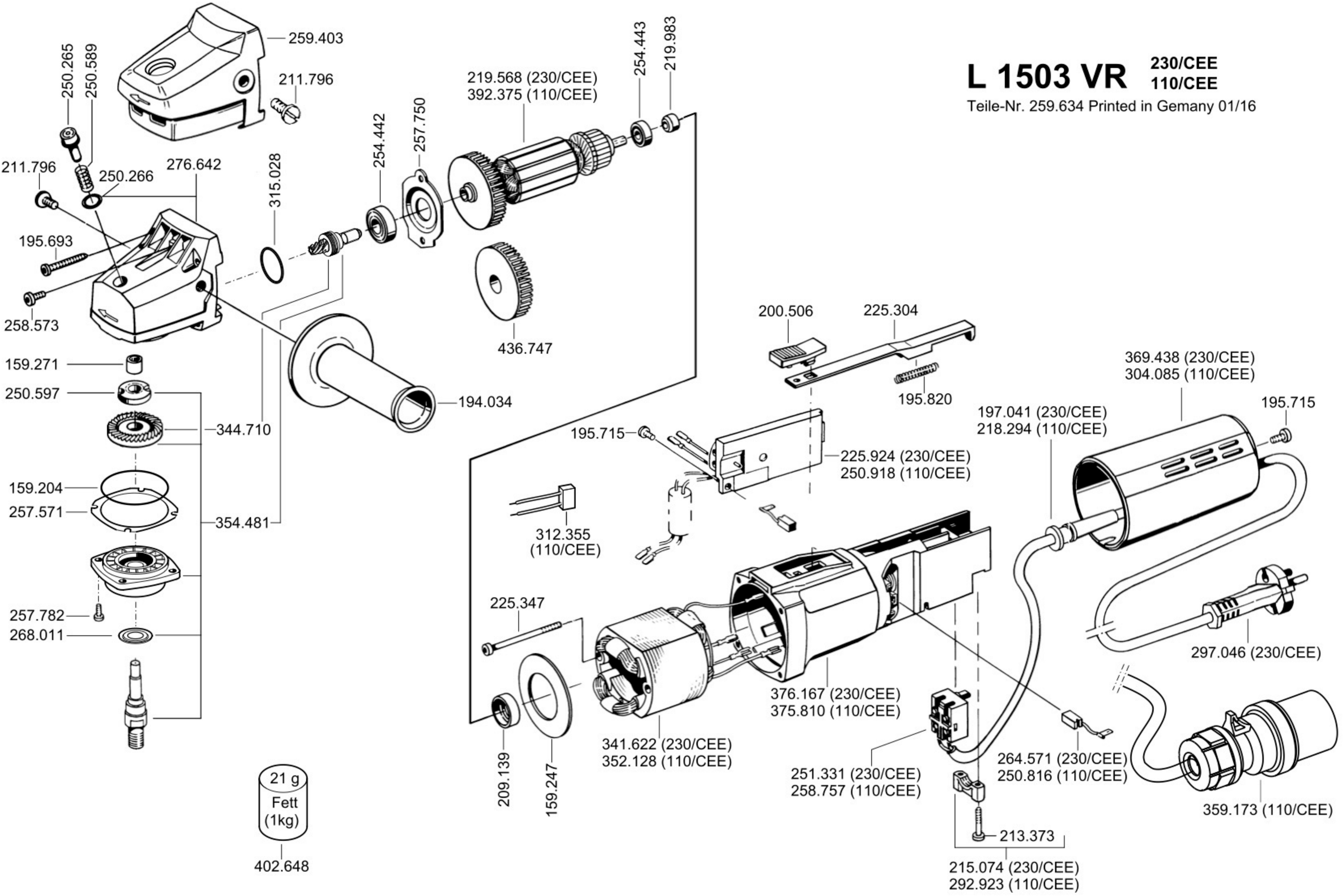

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
O-Ring Spacer for Angle Grinder Flex L 1506 VR 159204 O-Ring Spacer for Angle Grinder Flex L 1506 VR €0.80
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
photo_cameraImage coming soon 159271 BEARING ROLLERS HEAD MINIS €9.03
photo_cameraImage coming soon 194034 GS-K M8 €12.63
Cord Grommet 8,3 mm for Power Tools Flex 197041 Cord Grommet 8,3 mm for Power Tools Flex €3.28
photo_cameraImage coming soon 200506 BUTTON BREAK. (EX 211451) €3.25
photo_cameraImage coming soon 209139 RING - L 1109 €2.07
Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 211796 Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 €0.91
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 218294 PROTECTION CABLE 10.1 mm 110V €2.07
Armature for Burnishing Machine FLEX LP 1503 VR 219568 Armature for Burnishing Machine FLEX LP 1503 VR €98.49
photo_cameraImage coming soon 219983 DIODE MAGNETIC €10.11
Switch Rod for Angle Grinder Flex L 1710 FRA 225304 Switch Rod for Angle Grinder Flex L 1710 FRA €4.20
Electronic Board for Angle Grinder Flex L 1506 VR 225924 Electronic Board for Angle Grinder Flex L 1506 VR €143.57
photo_cameraImage coming soon 250265 BUTTON CROWN BLOCKING €5.69
photo_cameraImage coming soon 250597 DISC STOP CORONA L1503 / 6/9 €18.09
photo_cameraImage coming soon 250816 CARBON BRUSH K 44 110V €19.17
Switch for Angle Grinder Flex L 1710 FRA 251331 Switch for Angle Grinder Flex L 1710 FRA €27.21
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 257571 SPACERS THICKNESS 0.2 €1.67
photo_cameraImage coming soon 257750 COVERS HEAD €4.72
photo_cameraImage coming soon 258757 UNIVERSAL SWITCH 110V €29.25
Head Cover for Sander Flex LLK 1503 VR 259403 Head Cover for Sander Flex LLK 1503 VR €21.74
Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR 264571 Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR €23.04
photo_cameraImage coming soon 268011 6001 BEARING €4.44
photo_cameraImage coming soon 276642 GEAR BOX L 1506 €74.16
photo_cameraImage coming soon 292923 CABLE CLAMP C / 110V SCREW €2.62
photo_cameraImage coming soon 297046 CABLE COMPLETE H05RNF 2X1X4M €16.98
photo_cameraImage coming soon 304085 COVER 110V €30.92
photo_cameraImage coming soon 312355 CAPACITOR X2 0,22μF €4.21
photo_cameraImage coming soon 315028 O-RING 24X1 €1.64
Stator for Burnishing Machine Flex LP 1503 VR 341622 Stator for Burnishing Machine Flex LP 1503 VR €109.82
Crown Gear + Bevel Gear for Burnishing Flex LP 1503 VR 344710 Crown Gear + Bevel Gear for Burnishing Flex LP 1503 VR €95.52
photo_cameraImage coming soon 352128 STATOR 110V €92.26
photo_cameraImage coming soon 354481 GEAR KIT €158.88
photo_cameraImage coming soon 359173 CABLE COMPLETOGB4H; H07RN-F; 2X1,5X4 €45.56
photo_cameraImage coming soon 369438 MOTOR COVER €23.67
photo_cameraImage coming soon 375810 CASING MOTOR 1100V €18.23
photo_cameraImage coming soon 376167 MOTOR BODY €26.75
photo_cameraImage coming soon 392375 ARMATURE 110V / EEC L 1509 FR €125.43
Armature Fan for Polisher Flex LP 1503 VR 436747 Armature Fan for Polisher Flex LP 1503 VR €8.55

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Polisher L 1503 VR

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher L 1503 VR - 01.01.2016.

In the following table, look for the model of the Polisher and the respective parts of the code.
Flex L 1503 VR - 01.01.2016
Polisher L 1503 VR - 01.01.2016
Part Num. Description
159204 SPACER RUBBER
159247 FAN DISC
159271 BEARING ROLLERS HEAD
194034 HANDLE
195693 SCREW LK 604 4X30
195715 SCREW LK 604 4X12
195715 SCREW LK 604 4X12
195820 SPRING SWITCH
197041 SHEATH CABLE 8,3mm
200506 BUTTON SWITCH
209139 ELASTIC RING 1109
211796 SCREW HEAD COVER
211796 SCREW HEAD COVER
213373 SCREW 4 x 20/9
215074 CABLE CLAMP C / SCREW 230V
218294 PROTECTION CABLE 10.1 mm 110V
219568 ARMATURE 230V
219983 DIODE MAGNETIC
225304 ROD X SWITCH L 09/06/1503
225347 SCREW
225924 ELECTRONIC CARD VR-230
250265 BUTTON CROWN BLOCKING
250266 O-RING
250589 SPRING LOCK BUTTON CROWN
250597 DISC STOP CROWN L1503 / 6/9
250816 CARBON BRUSH K 44 110V
250918 ELECTRONIC CARD VR-110V
251331 UNIVERSAL SWITCH 230V
254442 BEARING 6000 2 RSD
254443 BEARING 607 2 RSD
257571 SPACERS 0.2
257750 COVERS HEAD N.T.X MINI
257782 SCREW X L1710 FRA
258573 INSIDE SCREW LK604 (EX 251851)
258757 UNIVERSAL SWITCH 110V
259403 HEAD COVER L 1506/1503
264571 CARBON BRUSHES K 53 230V
268011 WASHER 6001
276642 GEAR BOX
292923 CABLE CLAMP C / 110V SCREW
297046 CABLE 230V H05RNF 2x1x4m
304085 COVER 110V
312355 CAPACITOR X2 0,22μF
315028 O-RING 24x1
341622 STATOR 230V
344710 PINION AND CROWN
352128 STATOR 110V
354481 GEAR KIT
359173 CABLE 110V F; 2x1,5x4
369438 COVER 230V
375810 CASING MOTOR 1100V
376167 CASING MOTOR 230V
392375 ARMATURE 110V / EEC L 1509 FR
436747 FAN
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex L 1503 VR - 01.01.2016
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Flex L 1503 VR

Diagram Flex L 1503 VR

Download (346.89KB)
