Flex Spare Parts for Mixer R 600 VV
We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Mixer R 600 VV

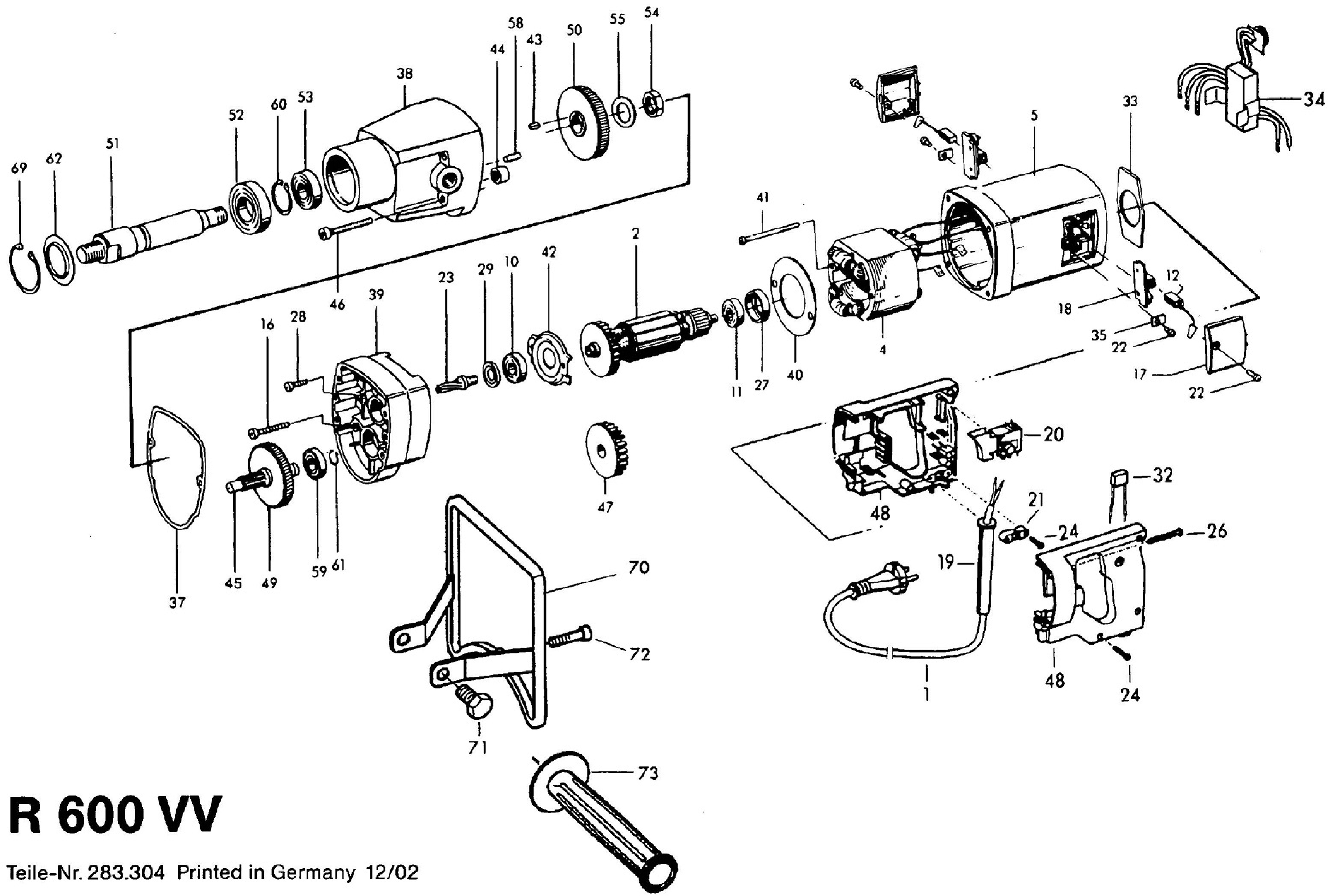

In the following table, look for the model of the Mixer and the respective parts of the code.
| Mixer R 600 VV |
| # |
Part Num. |
Description |
| 1 |
144037 |
COMPLETE CABLE H07RN-F 2X1QX4M |
| 2 |
285722 |
ARMATURE X R600 VV |
| 4 |
286834 |
STATOR 230 / EEC SR 602 VV |
| 5 |
213810 |
ENGINE SUPPORT |
| 10 |
254442 |
BEARING 6000 2 RSD |
| 11 |
254443 |
BEARING 607 2 RSD |
| 12 |
264598 |
CARBON BRUSHES K54 |
| 16 |
193488 |
SCREW 5x45-LG 1707 FR |
| 17 |
205834 |
PLUG BRUSH LK 302/604 |
| 18 |
205931 |
Brush holder LK 302/604/610 |
| 19 |
103519 |
SHEATH CABLE |
| 20 |
259009 |
SWITCH X BH 812 VV |
| 21 |
257380 |
CLAMP |
| 22 |
195715 |
SCREW LK 604 4X12 |
| 23 |
223190 |
PINION R 600 VE |
| 24 |
206245 |
40X20 SCREW |
| 26 |
193488 |
SCREW 5x45-LG 1707 FR |
| 21 |
257354 |
RUBBER bearing housing |
| 28 |
196738 |
Screws, DIN 7985 M 4x 16 |
| 29 |
100471 |
RING x R 600 VE |
| 32 |
260064 |
CAPACITOR X BH812 VV |
| 33 |
206903 |
SEAL |
| 34 |
295582 |
ELECTRONIC CARD 230V 6 VV ohne PTC |
| 35 |
194816 |
FIN |
| 37 |
229881 |
SEAL |
| 38 |
257694 |
GEAR BOX |
| 39 |
257460 |
GEAR HOLDER |
| 40 |
176648 |
FAN LK 302/604/610 |
| 41 |
196169 |
KA40X55 BOLTS FOR HEAD |
| 42 |
215821 |
BAFFLE |
| 43 |
111465 |
KEY |
| 44 |
252184 |
BUSH |
| 45 |
251592 |
SHAFT |
| 46 |
223352 |
SCREW M5x50 T25 |
| 48 |
259319 |
HANDLE BH 812 VV |
| 49 |
223174 |
GEAR MZ 0.9 x66 |
| 50 |
223182 |
GEAR X MIXER |
| 51 |
223166 |
SHAFT CHUCK R 600 |
| 52 |
223158 |
BEARING DIN 625 X LWW 2106 |
| 53 |
118702 |
BEARING DIN 625 6003-2Z / |
| 54 |
119490 |
NUT - M 16X1 |
| 55 |
107867 |
SNAP RING -, DIN 137 B 16 |
| 58 |
285153 |
PIN 4x16 M6 |
| 59 |
106615 |
BEARING 6000 ZZ |
| 60 |
223344 |
RING - DIN 471 25X1,2 |
| 61 |
111406 |
SEEGER X LB 1506 |
| 62 |
223123 |
SEAL X BDD 2101 / BDE 2101 |
| 69 |
111392 |
SEEGER -, J 47 x 1.75 |
| 70 |
257457 |
HOLDER R 600, verzinkt |
| 71 |
118591 |
SCREW DIN 933 M 14x 16 v |
| 72 |
217050 |
SCREW DIN 912 M 6x 25 v |
| 73 |
259538 |
HANDLE M14x22 |
