Flex Spare Parts for Mixer MXE 1102
Flex original spare parts for to replace broken parts or to fix
Mixer MXE 1102 - 01.10.2013.

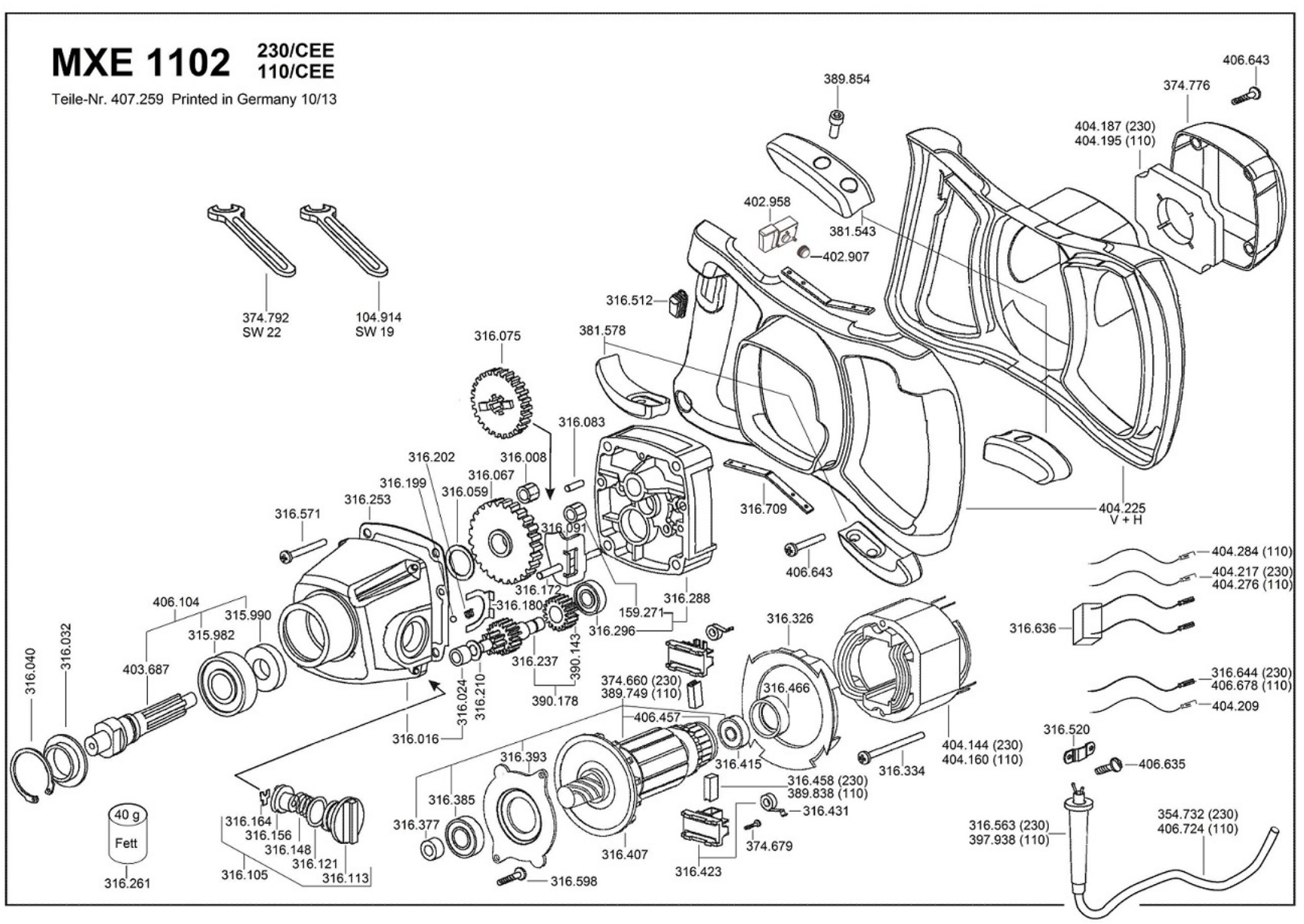

In the following table, look for the model of the Mixer and the respective parts of the code.
| Mixer MXE 1102/01.10.2013 |
| Part Num. |
Description |
| 104914 |
KEY |
| 159271 |
BEARING ROLLERS |
| 315982 |
BEARING 6003-2RS R500 / R502FR |
| 315990 |
Spacer R500 / 502FR |
| 316024 |
BUSH R500 / 502FR |
| 316032 |
RING R500 / 502FR |
| 316040 |
SAFETY RING R500 / 502FR |
| 316059 |
Spacer R502FR |
| 316067 |
GEAR R502FR |
| 316075 |
GEAR R502FR |
| 316083 |
PIN R500 / R502FR |
| 316091 |
R502FR SUPPORT |
| 316105 |
KIT LEVER R502FR |
| 316113 |
LEVER R502FR |
| 316121 |
O-Ring 17x1,5 R502FR |
| 316148 |
R502FR SPRING |
| 316156 |
RUBBER R502FR |
| 316164 |
R502FR FIXING |
| 316172 |
R502FR HOLDER |
| 316180 |
R502FR FIXING |
| 316199 |
R502FR BALL |
| 316202 |
R502FR SPRING |
| 316210 |
Spacer R500 / 502FR |
| 316237 |
R502FR SHAFT |
| 316253 |
SEAL R500 / 502FR |
| 316288 |
HOLDER GEAR R500 / 502FR |
| 316296 |
BEARING R500 / 502FR / S203 |
| 316326 |
BAFFLE R500 / R502FR |
| 316377 |
BUSH R500 / 502FR |
| 316385 |
BEARING 6000-2Z R500 / 502FR |
| 316393 |
HOLDER R500 / 502FR |
| 316407 |
FAN R500 / 502FR |
| 316415 |
BEARING 627-2Z R500 / 502FR |
| 316423 |
BRUSH HOLDER X R 502 FR |
| 316431 |
SPRING R500 / 502FR |
| 316458 |
BRUSHES X R 502 FR |
| 316466 |
PROTECTION BEARING R500 / 502FR / S203 |
| 316512 |
COVER-SWITCH X R 502 FR |
| 316520 |
CLAMP R500 / 502FR / S203 |
| 316563 |
PROTECTION CABLE R500 / 502 FR |
| 316571 |
SCREW K5x45 R500 / 502 FR |
| 316598 |
SCREW M4x12 R500 / 502FR |
| 316636 |
KIT CONNECTION R500 / 502VR |
| 316644 |
CABLE R500 / 502FR |
| 316709 |
Plate R500 / 502FR |
| 354732 |
CABLE (rot) H07RNF 2x1x4m |
| 374660 |
KIT ARMATURE MXE 1100/1102 |
| 374679 |
SCREW MXE900 / 1100/1102 |
| 374776 |
COVER MXE 900/1100/1102 |
| 374792 |
KEY MXE 900/1100/1102 |
| 381543 |
HOLDER SHORT kurz MXE |
| 381578 |
HOLDER LONG MXE |
| 389854 |
SCREW M6x16 MXE9 / 11/13 |
| 390143 |
MIDDLE GEAR MXE |
| 390178 |
SHAFT + GEAR MXE 1102/1302 |
| 402907 |
MXE CAP |
| 402958 |
SWITCH WITH LOCK MXE |
| 403687 |
POST MXE 2-Gang |
| 404144 |
STATOR MXE 1100/1102 230V |
| 404187 |
ELECTRONIC CARD 230V MXE |
| 404209 |
MXE CABLE |
| 404217 |
CABLE MXE 230 |
| 404225 |
CABLE MXE 230V / 110V |
| 406104 |
CHUCK MXE 1102/1302 |
| 406457 |
DISC MAGNETIC POLES 8 MXE |
