Flex Spare Parts for Mixer MXE 1100

SKU: Flex MXE 1100
€9.73
VAT included

Flex Spare Parts for Mixer MXE 1100

Flex genuine spare parts for replacing or repairing Mixer MXE 1100 - 01.10.2013.
Flex Spare Parts for Mixer MXE 1100
  • Flex Spare Parts for Mixer MXE 1100
  • Flex Spare Parts for Mixer MXE 1100

Flex Spare Parts for Mixer MXE 1100

SKU: Flex MXE 1100 Condition: New
€9.73
VAT included

Flex Spare Parts for Mixer MXE 1100

Flex genuine spare parts for replacing or repairing Mixer MXE 1100 - 01.10.2013.
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

39 spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 104914 KEY €7.86
photo_cameraImage coming soon 159271 BEARING ROLLERS HEAD MINIS €9.03
photo_cameraImage coming soon 315982 BEARING 6003-2RS R500 / R502FR €11.32
photo_cameraImage coming soon 315990 BUSH R500 / 502FR €1.62
photo_cameraImage coming soon 316024 BUSH R500 / 502FR €6.01
photo_cameraImage coming soon 316032 RING R500 / 502FR €1.96
photo_cameraImage coming soon 316040 SAFETY RING R500 / 502FR €1.96
photo_cameraImage coming soon 316083 PIN R500 / R502FR €2.89
photo_cameraImage coming soon 316253 SEAL R500 / 502FR €3.34
photo_cameraImage coming soon 316288 HOLDER GEAR R500 / 502FR €38.14
photo_cameraImage coming soon 316296 BEARING R500 / 502FR / S203 €11.32
photo_cameraImage coming soon 316326 BAFFLE R500 / R502FR €3.70
photo_cameraImage coming soon 316377 BUSH R500 / 502FR €3.00
photo_cameraImage coming soon 316385 BEARING 6000-2Z R500 / 502FR €11.32
photo_cameraImage coming soon 316393 HOLDER R500 / 502FR €3.34
photo_cameraImage coming soon 316415 BEARING 627-2Z R500 / 502 FR €11.67
photo_cameraImage coming soon 316423 BRUSH X R 502 FR €65.39
photo_cameraImage coming soon 316431 SPRING R500 / 502FR €5.08
Carbon Brushe Set 120 964 for Mixers FLEX Series MXE 316458 Carbon Brushe Set 120 964 for Mixers FLEX Series MXE €22.66
photo_cameraImage coming soon 316466 PROTECTION BEARING R500 / 502FR / S203 €1.96
photo_cameraImage coming soon 316571 SCREW K5x45 R500 / 502FR €3.34
photo_cameraImage coming soon 316644 CABLE R500 / 502FR €3.00
photo_cameraImage coming soon 316709 PLATE R500 / 502FR €7.86
photo_cameraImage coming soon 316768 GEARCASE R500FR €30.74
photo_cameraImage coming soon 316776 CROWN X R502 FR €16.06
photo_cameraImage coming soon 316792 SHAFT R500FR €12.37
Power Supply Cord 2x1x4m for Angle Grinder L 1710 FRA 354732 Power Supply Cord 2x1x4m for Angle Grinder L 1710 FRA €20.14
photo_cameraImage coming soon 374660 KIT ARMATURE MXE 1100/1102 €104.02
photo_cameraImage coming soon 374776 COVER MXE 900/1100/1102 €8.20
photo_cameraImage coming soon 374792 KEY MXE 900/1100/1102 €14.34
photo_cameraImage coming soon 381578 HOLDER LONG MXE €11.79
photo_cameraImage coming soon 402966 CHUCK LONG MXE €54.09
photo_cameraImage coming soon 404144 STATOR MXE 1100/1102 230V €87.26
photo_cameraImage coming soon 404187 ELECTRONIC CARD 230V MXE €120.20
photo_cameraImage coming soon 404209 MXE CABLE €4.85
photo_cameraImage coming soon 404217 CABLE MXE 230 €2.89
photo_cameraImage coming soon 404225 HANDLE UPPER + LOWER MXE 230V / 110V €108.64
photo_cameraImage coming soon 406090 KIT CHUCK MXE 900/1100/1300 €82.18
photo_cameraImage coming soon 406457 FLOPPY 8-PIN MXE €4.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Mixer MXE 1100

Flex genuine spare parts for replacing or repairing Mixer MXE 1100 - 01.10.2013.

In the following table, look for the model of the Mixer and the respective parts of the code.
Flex MXE 1100

Mixer MXE 1100/01.10.2013
Part Num. Description
104914 KEY SW19
159271 BEARING ROLLERS HEAD MINIS
315982 BEARING 6003-2RS R500 / R502FR
315990 Spacer R500 / 502FR
316024 BUSH R500 / 502FR
316032 RING R500 / 502FR
316040 SAFETY RING R500 / 502FR
316083 PIN R500 / R502FR
316210 Spacer R500 / 502FR
316253 SEAL R500 / 502FR
316288 HOLDER GEAR R500 / 502FR
316296 BEARING R500 / 502FR / S203
316326 BAFFLE R500 / R502FR
316377 BUSH R500 / 502FR
316385 BEARING 6000-2Z R500 / 502FR
316393 HOLDER R500 / 502FR
316407 FAN R500 / 502FR
316415 BEARING 627-2Z R500 / 502 FR
316423 BRUSH X R 502 FR
316431 SPRING R500 / 502FR
316458 BRUSHES X R 502 FR
316466 PROTECTION BEARING R500 / 502FR / S203
316512 COVER-SWITCH X R 502 FR
316520 CLAMP R500 / 502FR / S203
316563 PROTECTION CABLE R500 / 502FR
316571 SCREW K5x45 R500 / 502FR
316598 SCREW M4x12 R500 / 502FR
316644 CABLE R500 / 502FR
316709 Plate R500 / 502FR
316768 GEARCASE R500FR
316776 CROWN X R502 FR
316792 SHAFT R500FR
354732 CABLE (rot) H07RNF 2x1x4m
374660 KIT ARMATURE MXE 1100/1102
374679 SCREW MXE 900/1100/1102
374776 COVER MXE 900/1100/1102
374792 KEY MXE 900/1100/1102
381578 HOLDER LONG MXE
389854 SCREW M6x16 MXE9 / 11/13
390143 GEAR MXE
390151 GEAR + SHAFT MXE9 / 1100/1300
402958 SWITCH WITH LOCK MXE
402966 CHUCK LONG MXE
404144 STATOR MXE 1100/1102 230V
404187 ELECTRONIC CARD 230V MXE
404209 MXE CABLE
404217 CABLE MXE 230
404225 HANDLE UPPER + LOWER
406090 KIT CHUCK MXE 900/1100/1300
406457 FLOPPY 8-PIN MXE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex MXE 1100
5 Items

Specific References

New

Download

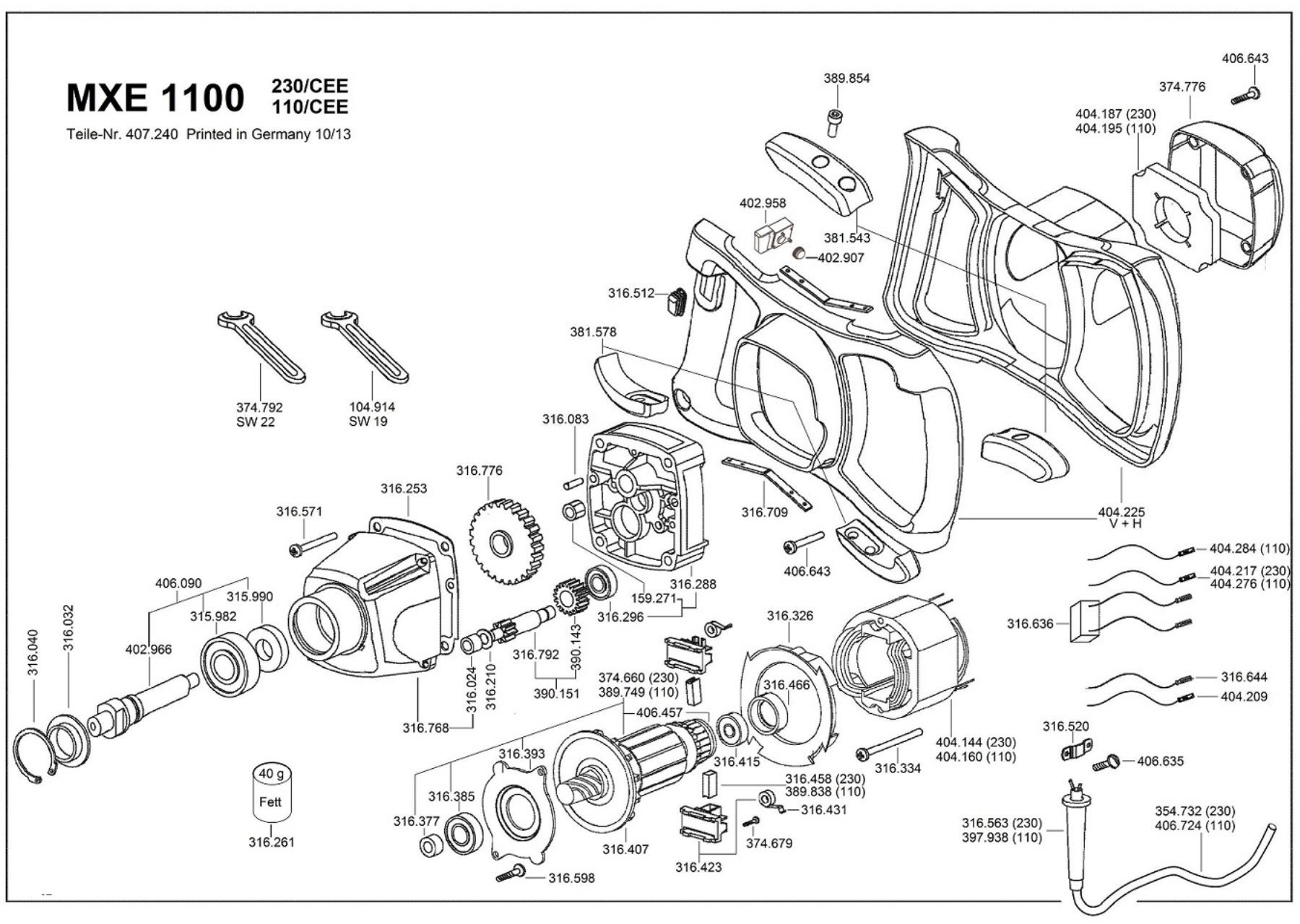

Diagram Flex MXE 1100

Diagram Flex MXE 1100

Download (359.92KB)
