Flex Spare Parts for Rotary Hammer CHE 4-32
Flex genuine spare parts or replacements parts for to fix

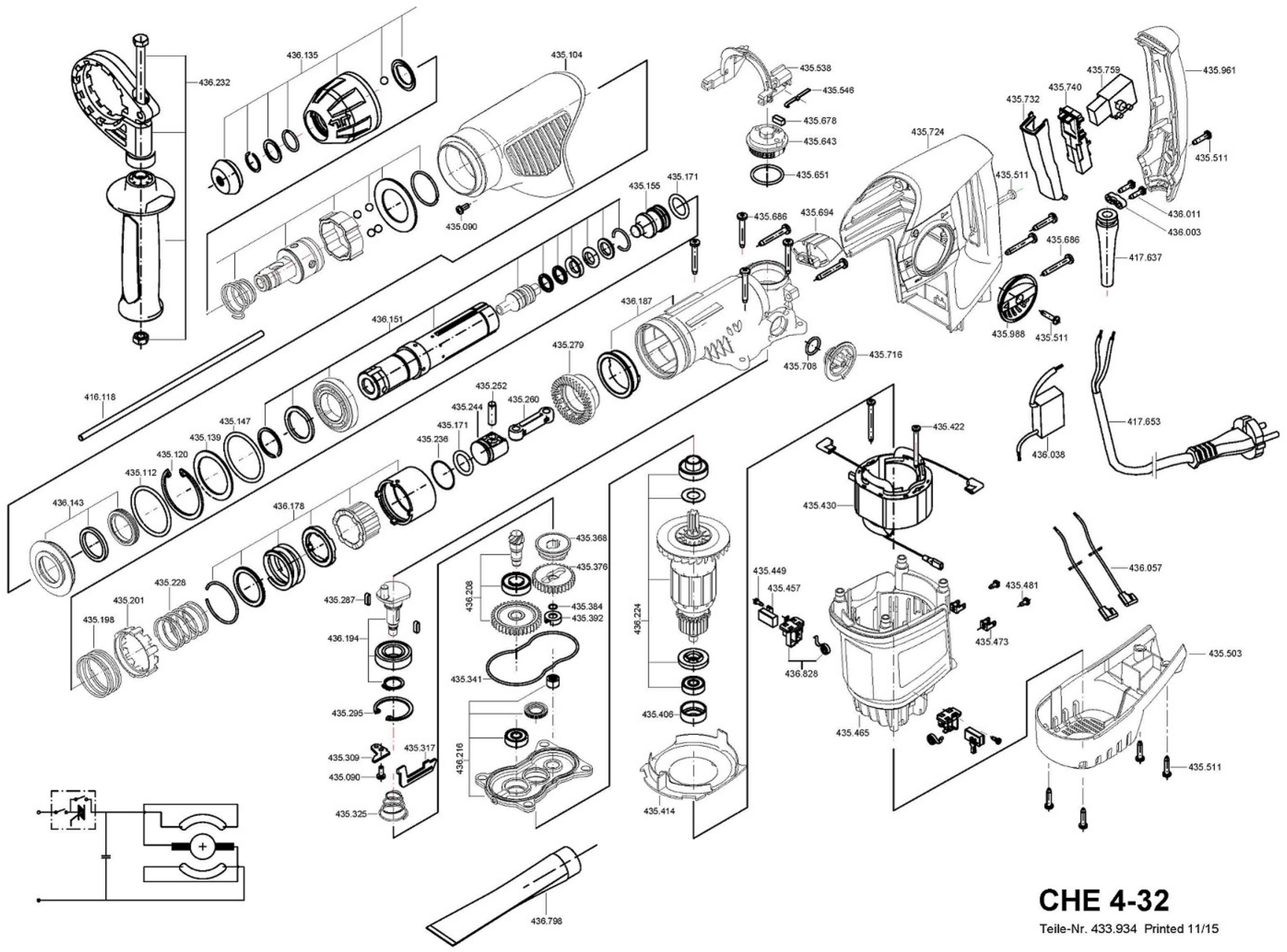

Rotary Hammer CHE 4-32.In the following table, look for the model of the Hammer and the respective parts of the code.
| Rotary Hammer CHE 4-32 |
|
Part Num. |
Description |
|
416118 |
RULER |
|
417637 |
CABLE PROTECTION |
|
417653 |
CABLE |
|
435090 |
SCREW M4 x 9 |
|
435104 |
GEAR COVER |
|
435112 |
O Ring THAT 4-32 |
|
435120 |
SNAP RING DIN 472 |
|
435139 |
SPACER |
|
435147 |
O Ring THAT 4-32 |
|
435155 |
SWING |
|
435171 |
O Ring THAT 4-32 SDS plus |
|
435198 |
SPRING |
|
435201 |
SLEEVE TOOTHED |
|
435228 |
SPRING |
|
435236 |
O Ring THAT 4-32 |
|
435244 |
PISTON |
|
435252 |
PIN |
|
435260 |
ROD |
|
435279 |
CROWN |
|
435287 |
KEY |
|
435295 |
SNAP RING DIN 472 |
|
435309 |
CHANGE |
|
435317 |
LEVER |
|
435325 |
SPRING |
|
435341 |
O Ring |
|
435368 |
CLUTCH |
|
435376 |
GEAR |
|
435384 |
O Ring |
|
435392 |
BUSH |
|
435406 |
PROTECTION PAD |
|
435414 |
BAFFLE |
|
435422 |
BOLTS |
|
435430 |
STATOR |
|
435449 |
BOLTS |
|
435457 |
CARBON BRUSHES |
|
435465 |
GEAR BOX |
|
435473 |
HOLDER |
|
435481 |
BOLTS |
|
435503 |
LOWER CARTER |
|
435511 |
BOLTS |
|
435538 |
HOLDER |
|
435546 |
SPRING |
|
435643 |
STOPPER |
|
435651 |
O Ring |
|
435678 |
FELT |
|
435686 |
SCREW M4 x 9 |
|
435694 |
RUBBER CAP |
|
435708 |
O Ring THAT |
|
435716 |
SWITCH |
|
435724 |
GEAR BOX |
|
435732 |
COVER |
|
435740 |
SWITCH |
|
435759 |
SWITCH |
|
435961 |
HANDLE |
|
435988 |
SELECTOR |
|
436003 |
CLAMP |
|
436011 |
BOLTS |
|
436038 |
CAPACITOR |
|
436135 |
CLUTCH KIT |
|
436143 |
KIT RINGS |
|
436151 |
SWING KIT |
|
436178 |
KIT SPRING BUSH + RINGS |
|
436194 |
ECCENTRIC |
|
436208 |
KIT CROWN GEAR |
|
436216 |
+ HOLDER BEARING |
|
436224 |
ARMATURE |
|
436232 |
IMPUGNATURA |
