Flex Spare Parts for Plaster Scouring Machine HPI 603
We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for
Plaster Scouring Machine HPI 603 - 01.03.2013.

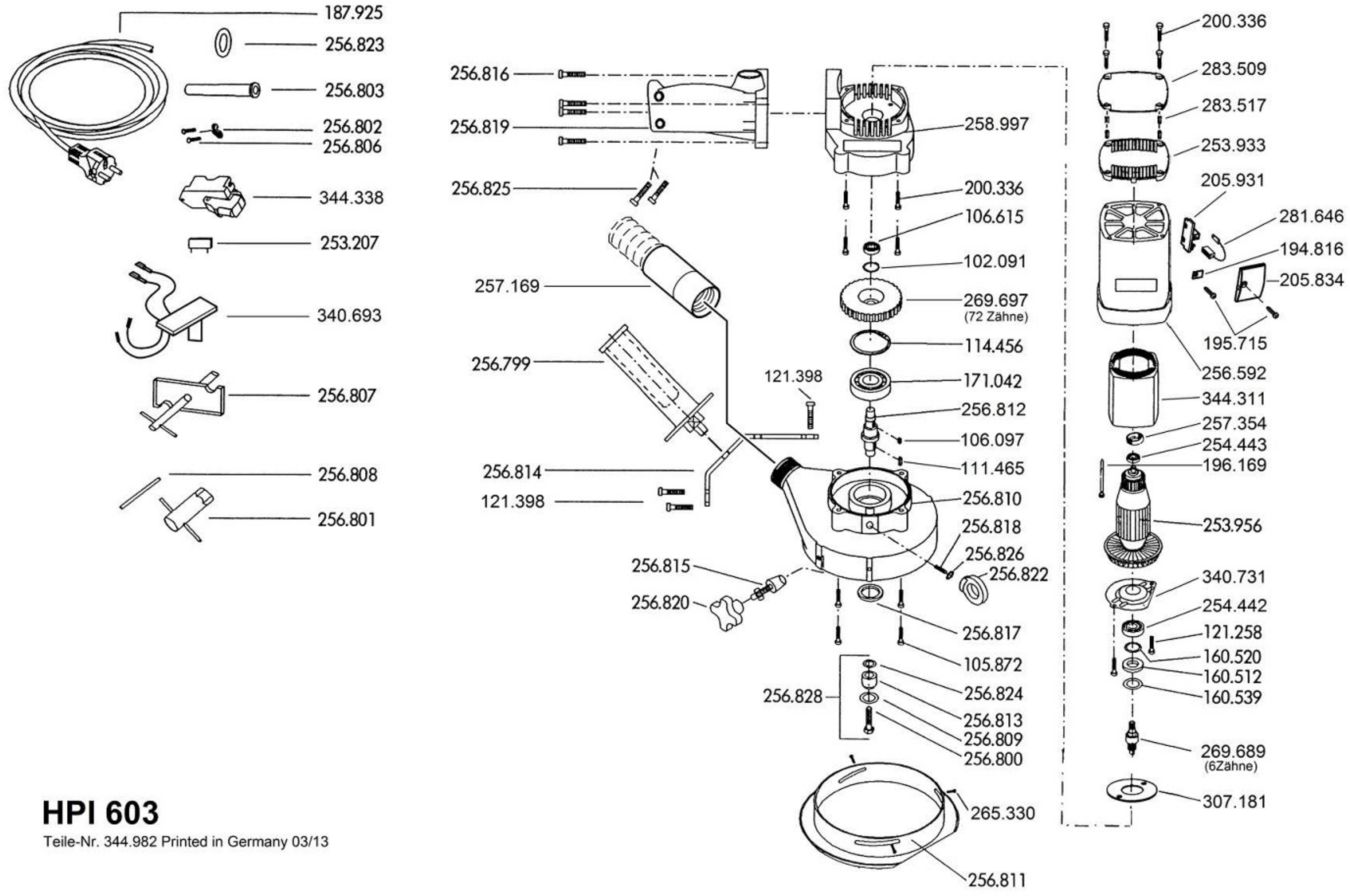

In the following table, look for the model of the
Plaster Scouring Machine and the respective parts of the code.
| Plaster Scouring Machine HPI 603 - 01.03.2013 |
| Part Num. |
Description |
| 102091 |
SEEGER L 3406 VRG |
| 105872 |
SCREW X LLK 1503 VR |
| 106097 |
SPRING DIN 6885 A3X3X8 |
| 106615 |
BEARING 6000 ZZ |
| 111465 |
KEY |
| 114456 |
SEEGER X BH 812 |
| 121258 |
4X10 SCREW |
| 121398 |
5X16 SCREW |
| 160512 |
FELT PARAGRASSO |
| 160520 |
WASHER LK 302/604/610 |
| 160539 |
WASHER LK 302/604/610 |
| 171042 |
BEARING 6203 2RS |
| 187925 |
CABLE PLUG ELETT.CON 2806-2106 |
| 194816 |
ROACH |
| 195715 |
SCREW LK 604 4X12 |
| 196169 |
KA40X55 BOLTS FOR HEAD |
| 200336 |
SCREW LK 2006 |
| 205834 |
STOPPER DOOR SWEEPS LK 302/604 |
| 205931 |
BRUSH HOLDER LK 302/604/610 |
| 253207 |
CAPACITOR X2 0,1ΜF LK 604 |
| 253933 |
SHELL X 603 HPI |
| 253956 |
ARMATURE X HPI 603 |
| 254442 |
BEARING 6000 2 RSD |
| 254443 |
BEARING 607 2 RSD |
| 256592 |
MOTOR BODY HPI X 603 |
| 256799 |
HANDLE HPI 603 |
| 256801 |
KEY HPI 603 |
| 256802 |
CLAMP CABLE HPI 603 |
| 256803 |
PROTECTION CABLE HPI 603 |
| 256807 |
HOLDER HPI 603 |
| 256808 |
ROD 603 HPI |
| 256809 |
WASHER DIN A6 127 603 HPI |
| 256810 |
HOLDER HPI 603 |
| 256811 |
BASE HPI 603 |
| 256812 |
SHAFT HPI 603 |
| 256813 |
Spacer HPI 603 |
| 256814 |
HOLDER HANDLE HPI 603 |
| 256815 |
RUBBER HPI 603 |
| 256816 |
SCREW DIN 84 M 5X 25 |
| 256817 |
WASHER 3760 AS22 / 32 / |
| 256819 |
GRIP X HPI 603 |
| 256820 |
FLYER DIN 6335 KU32M6K |
| 256822 |
RING HPI 603 |
| 256823 |
WASHER CABLE HPI 603 |
| 256824 |
O-RING DIN 3771 5x25 HPI 603 |
| 256825 |
SCREW .- DIN 85 M5x25 |
| 256826 |
WASHER - HPI 603 |
| 256828 |
SCREW KIT HPI 603 |
| 257354 |
RUBBER bearing housing |
| 258997 |
GEAR BOX - HPI 603 |
| 265330 |
SCREW - M5X8 SML6 |
| 269689 |
PINION X HPI 603 |
| 269697 |
CROWN X HPI 603 |
| 281646 |
CARBON BRUSHE SET R600-LK604-LK610SK602 |
| 283509 |
SHELL X 603 HPI |
| 283517 |
SCREW X HPI 603 - |
| 307181 |
WASHER LW 603 110V GFCI |
| 340693 |
ANLAUFSTROMBEGRENZER HPI 603 |
| 340731 |
HOLDER BEARING HPI 603 |
| 344311 |
STATOR 230 / EEC HPI |
| 344338 |
SWITCH ON / OFF HPI 603 |
