Flex Spare Parts for Sander for Walls LD 3206 C
We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for

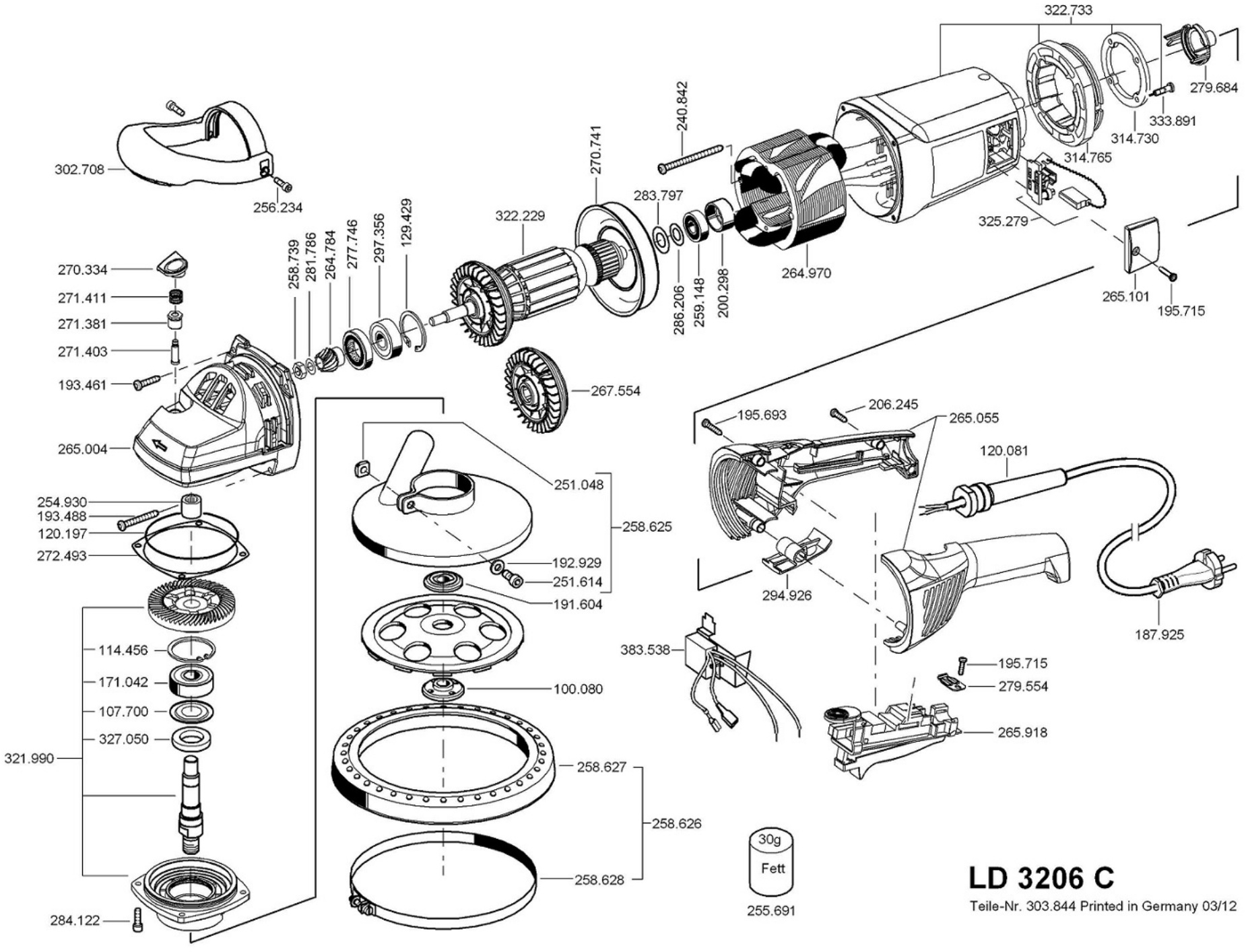

Sander for Walls LD 3206 C - 01.03.2012.
In the following table, look for the model of the Sander and the respective parts of the code.
| Sander for Walls LD 3206 C - 01.03.2012 |
| Part Num. |
Description |
| 100080 |
RING - M14 |
| 107700 |
SEAL - 6203JVS |
| 114456 |
SEEGER X BH 812 |
| 120081 |
SHEATH CABLE |
| 120197 |
SEAL GOM. L 2106/1206 |
| 129429 |
SEEGER - 37X1,5 DIN 472 |
| 171042 |
BEARING 6203 2RS |
| 187925 |
CABLE PLUG ELETT.CON 2806-2106 |
| 191604 |
FLANGE -SW 17 |
| 192929 |
NUT -, 8.2 DIN 6798 |
| 193461 |
SCREW |
| 193488 |
SCREW 5X45-LG 1707 FR |
| 195693 |
SCREW LK 604 4X30 |
| 195715 |
SCREW LK 604 4X12 |
| 200298 |
RUBBER BEARING |
| 206245 |
40X20 SCREW |
| 240842 |
5X70 SCREW |
| 251048 |
NUTS X BH 812 VV |
| 251614 |
SCREW DIN 912 M 8X 20 V |
| 254930 |
ROLLER BEARING |
| 256234 |
SCREW X CS 3455 6X20 |
| 258625 |
HEADSET X LD2806 |
| 258626 |
RING OF INTAKE LD 2806 |
| 258627 |
COLLAR LD 2806 SC |
| 258628 |
TIES |
| 258739 |
NUT PINION STOP X 2106 VT |
| 259148 |
BEARING 6001 2 RSD |
| 264970 |
STATOR X L 3206 |
| 265004 |
HEAD X L3206 |
| 265055 |
GRIP X L3206 |
| 265101 |
BRUSHES COVER LD 3206 C |
| 265918 |
SWITCH L3206 OHNE VERZÖG. |
| 267554 |
FAN X L 3206 |
| 270334 |
BUTTON X L 3206 |
| 270741 |
PARAVENTOLA X L 3206 |
| 271381 |
WASHER X L3206 |
| 271403 |
PIN X L3206 |
| 271411 |
SPRING X L 3206 |
| 272493 |
SPACERS MM.0,2 |
| 277746 |
RING X L 3206 |
| 279554 |
FAN L 3206 |
| 279684 |
BOTTOM THE X 3206 |
| 281786 |
WASHER X L 3206 |
| 283797 |
NUT X L3226 |
| 284122 |
SCREW, M 5X 12 DIN 912 |
| 286206 |
NUT X L3206 |
| 294926 |
INSERT |
| 297356 |
BEARING 6301-2RS-C3 |
| 302708 |
GB S-LD3206 |
| 314730 |
L3206 RING |
| 314765 |
SHOCK L3206 |
| 321990 |
KIT TRANSMISSION LD3206 |
| 322229 |
ARMATURE X L 3206 - DISCONTINUED |
| 322733 |
MOTOR BODY |
| 325279 |
CARBON BRUSHE X L 3206 C (EX279439) |
| 327050 |
RING AS 22X35X6 |
| 333891 |
SCREW KT 5X18 T20 |
| 383538 |
ELECTRONIC CARD |
