Flex Spare Parts for Sander for Concrete WST 1000 FV

SKU: Flex WST 1000FV - 01.05.2015
€4.14
VAT included

Flex Spare Parts for Sander for Concrete WST 1000 FV

Flex original replacement parts for to replace broken parts for to fix Sander for Concrete WST 1000FV - 01.05.2015.
Flex Spare Parts for Sander for Concrete WST 1000 FV
  • Online only
  • Flex Spare Parts for Sander for Concrete WST 1000 FV
  • Flex Spare Parts for Sander for Concrete WST 1000 FV
  • Flex Spare Parts for Sander for Concrete WST 1000 FV

Flex Spare Parts for Sander for Concrete WST 1000 FV

SKU: Flex WST 1000FV - 01.05.2015 Condition: New
€4.14
VAT included

Flex Spare Parts for Sander for Concrete WST 1000 FV

Flex original replacement parts for to replace broken parts for to fix Sander for Concrete WST 1000FV - 01.05.2015.
settings 49 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
Ring for Wall Sander FLEX WSE 7 100471 Ring for Wall Sander FLEX WSE 7 €4.14
photo_cameraImage coming soon 107638 NILOS RING €4.99
photo_cameraImage coming soon 119482 BEARING 6201 RS 2 €17.05
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 257246 RING OF INTAKE LD 1709 €127.76
photo_cameraImage coming soon 257247 COLLAR LD 1709 FR €99.90
photo_cameraImage coming soon 257250 CLAMP DM142 DIN3017 €27.81
photo_cameraImage coming soon 306479 SCHUTZSCHLAUCH GF L3410FR €5.56
photo_cameraImage coming soon 309567 TERMINAL TWO POLES TYP324 / 02 €6.14
photo_cameraImage coming soon 314404 HOUSING CABLE LE14-7 INOX €2.93
photo_cameraImage coming soon 319368 HANDLE TUBE X WST 700 VARIO €36.59
photo_cameraImage coming soon 319481 TUBE WST 1000 FV €117.70
photo_cameraImage coming soon 319503 SWITCH (W/COVER) €16.39
photo_cameraImage coming soon 319511 AUCTION LONG WST €8.87
photo_cameraImage coming soon 319651 HANDLE WST 700 VV €20.07
photo_cameraImage coming soon 319716 TERMINAL HANDLE €4.27
photo_cameraImage coming soon 319813 BLOCK BEARING €4.41
Short Flexible Hose 260 mm for Concrete Sander Flex WST 1000 FV 320021 Short Flexible Hose 260 mm for Concrete Sander Flex WST 1000 FV €11.44
photo_cameraImage coming soon 320056 CAP INTAKE X WST 1000 €32.99
photo_cameraImage coming soon 320072 SHAFT €65.31
photo_cameraImage coming soon 320137 SWITCH WST 700 VV €9.45
photo_cameraImage coming soon 320145 SWITCH COVER WST 700 VV €1.98
Ring for Sanders Flex WST 700 VV-WST 1000 FV 336351 Ring for Sanders Flex WST 700 VV-WST 1000 FV €31.74
photo_cameraImage coming soon 336378 ATTACHMENT LEVER €1.69
Felt Washer for Wall and Ceiling Sander Flex WST 700 VV 336386 Felt Washer for Wall and Ceiling Sander Flex WST 700 VV €2.14
Head Ring Scew for Sanders Flex WST 700 VV-WST 1000 FV 336408 Head Ring Scew for Sanders Flex WST 700 VV-WST 1000 FV €0.86
photo_cameraImage coming soon 336648 TERMINAL €14.60
photo_cameraImage coming soon 338672 NUT AGAINST €5.56
photo_cameraImage coming soon 341436 ARMATURE 230 / EEC WST1000 €83.54
photo_cameraImage coming soon 342556 CABLE H07 RN-F3G1 €29.12
photo_cameraImage coming soon 342564 LITZE, GE-GN AWG 18 €4.27
photo_cameraImage coming soon 344133 ENGINE SUPPORT €23.52
photo_cameraImage coming soon 347736 MOTOR COVER €5.56
photo_cameraImage coming soon 347752 ELECTRONIC CARD 230 / EEC WST 1000 €81.85
photo_cameraImage coming soon 348872 STATOR 230 / EEC WST1000 €119.14
photo_cameraImage coming soon 354120 LATCH HOSE EXTENSION €12.60
Steel Shaft for for Wall and Ceiling Sander Flex WST 700 VV 354759 Steel Shaft for for Wall and Ceiling Sander Flex WST 700 VV €118.35
photo_cameraImage coming soon 355208 BRACKET X WST 700 VV. €57.11
photo_cameraImage coming soon 355216 JOINT X WST 700 VV €20.79
photo_cameraImage coming soon 355232 COVER X BELL €15.62
photo_cameraImage coming soon 355240 CARTER RIGHT AND LEFT WST 1000 FV 2 Hälften €86.84
photo_cameraImage coming soon 355623 GEAR WST 1000 FV €200.99
photo_cameraImage coming soon 359297 CONTACT WST 700 €2.11
photo_cameraImage coming soon 394157 HOLDER SANDER BT €30.80
Carbon Brush Set K96 for Wall and Ceiling Sander Flex WST 700 VV 399647 Carbon Brush Set K96 for Wall and Ceiling Sander Flex WST 700 VV €19.55
photo_cameraImage coming soon 414247 BUSH GE5 €1.39
Ring Bolt for Sanders Flex WST 700 VV-WST 1000 FV 414255 Ring Bolt for Sanders Flex WST 700 VV-WST 1000 FV €7.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Sander for Concrete WST 1000 FV

Flex original replacement parts for to replace broken parts for to fix Sander for Concrete WST 1000FV - 01.05.2015.

In the following table, look for the model of the Sander and the respective parts of the code.
Sander for Concrete WST 1000 FV
Sander for Concrete WST 1000 FV - 01.05.2015
Part Num. Description
100471 RING x R 600 VE
102091 SEEGER X L 3406 VRG
107638 RING NYLON
111406 SEEGER X LB 1506
119482 BEARING 6201 RS 2
132470 WASHER DIN 125 4.3
194514 O-RING
195715 SCREW LK 604 4X12
206245 40X20 SCREW
215074 BOOT C / SCREW X MINISMER.
254442 BEARING 6000 2 RSD
254443 BEARING 607 2 RSD
254493 WASHER 6 DIN ISO 7089
257246 RING OF INTAKE LD 1709
257247 COLLAR LD 1709 FR
257250 CLAMP DM142 DIN3017
259357 SCREW
271845 SPRING X L 3206
291722 RUBBER L3309 / 3410
306479 DUCT GF L3410FR
309567 CLAMP SCREW 2-POLE TYP324 / 02
314404 SHEATH CABLE LE14-7 INOX
319368 HANDLE TUBE X WST700 VARIO
319406 WASHER, ST VZ 4,3X15X1,25
319481 TUBE WST 1000 FV
319503 CLAMP
319511 TUBE
319619 WASHER DIN 988 28X40X0,5
319627 WASHER
319651 HANDLE WST 700 VV
319716 TERMINAL HANDLE
319813 BLOCK BEARING
320021 TUBE 260MM WST1000
320056 CAP INTAKE X WST 1000
320072 SHAFT
320129 BUSH
320137 SWITCH WST 700 VV
320145 SWITCH COVER WST 700 VV
336351 RING
336378 ATTACHMENT LEVER
336386 SEAL TUBE CLEANER
336408 SCREW X RING HEAD
336648 LOCKING LEVER
338672 NUT
341436 ARMATURE 230 / EEC WST1000
342556 CABLE H07 RN-F3G1
342564 AUCTION AWG 18
344133 ENGINE SUPPORT
347264 SCREW, DIN 7500 M3,5X6
347736 MOTOR COVER
347752 ELECTRONIC CARD 230 / EEC WST 1000
348325 WASHER - DIN988 26X19X1
348872 STATOR 230 / EEC WST1000
354120 LATCH TUBE EXTENSION
354759 FLEXIBLE DRIVE SHAFT WST 700 VV
355208 BRACKET X WST 700 VV.
355216 JOINT X WST 700 VV
355232 COVER X BELL
355240 CARTER RIGHT AND LEFT WST 1000 FV 2 Hälften
355623 GEAR WST 1000 FV
359297 CONTACT PLATE WST 700
394157 HOLDER SANDER BT
399647 CARBON BRUSHES K96 6X8X15,9 L26F12T1
414247 GE5 SUPPORT
414255 SCREW CYLINDER GE5
421200 WASHER 10X18,4
421219 WASHER 26X16,1
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex WST 1000FV - 01.05.2015
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

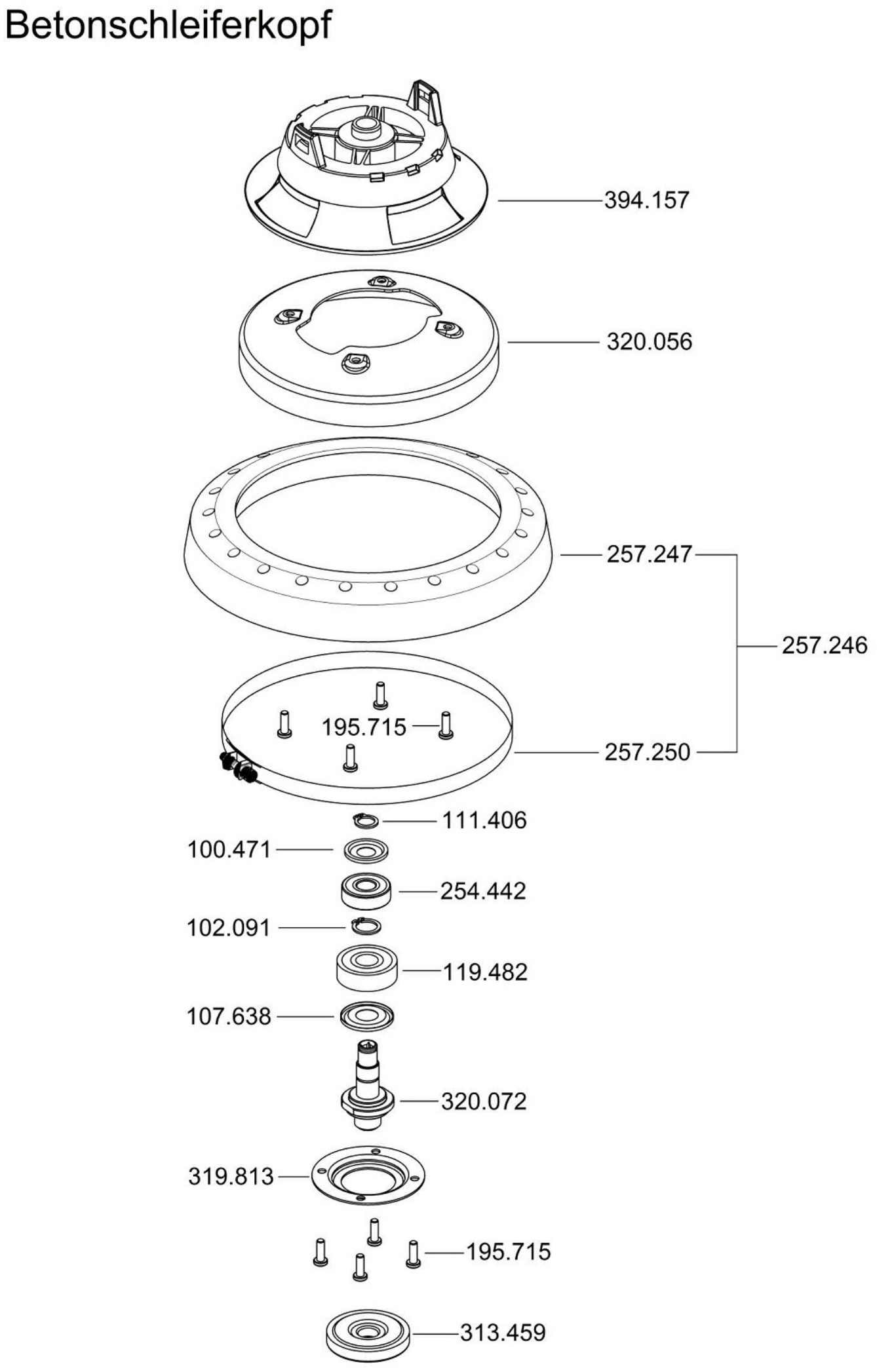

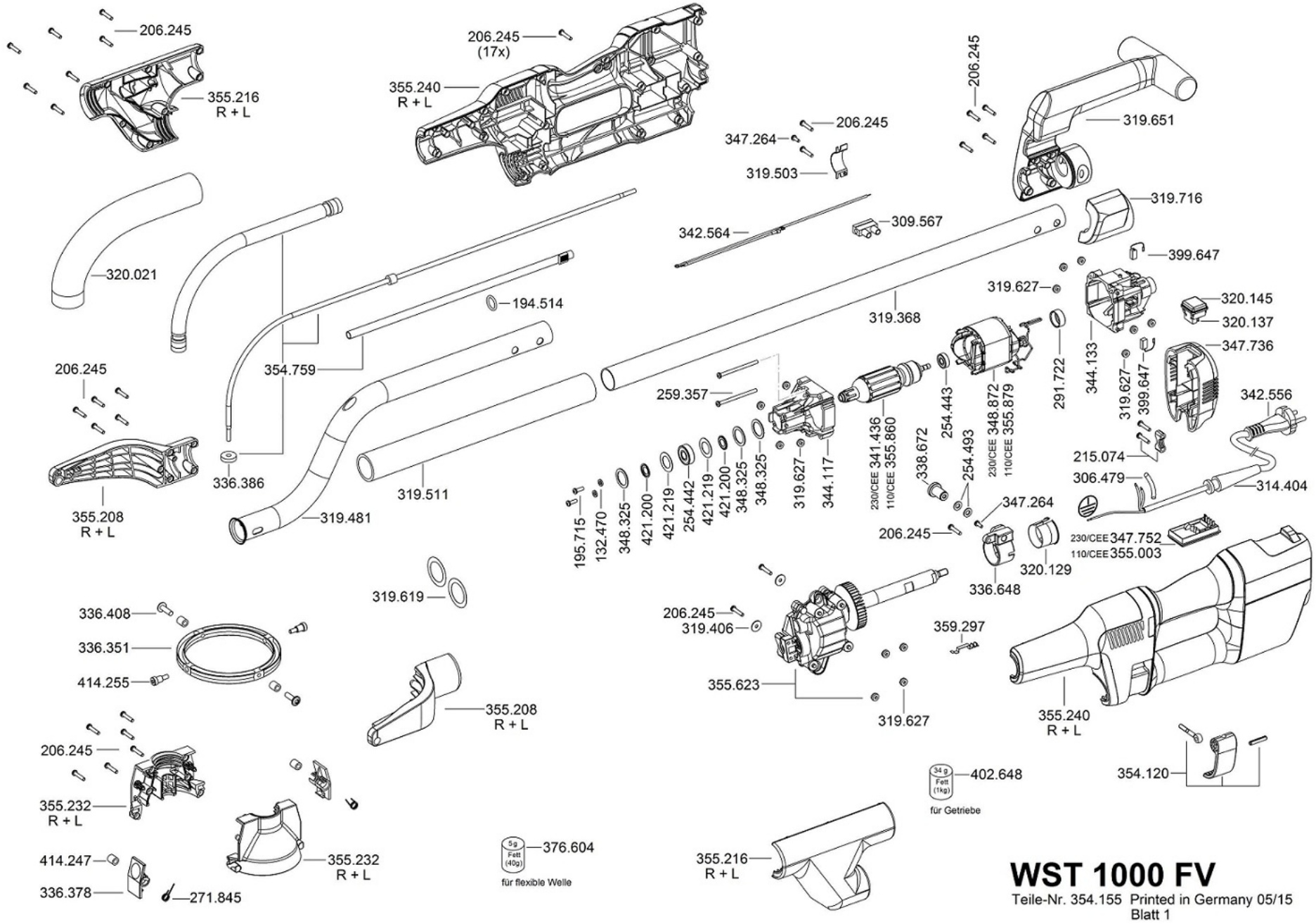

Diagram Flex WST 1000 FV

Diagram Flex WST 1000 FV

Download (533.24KB)
