Flex Power Tools

Flex Spare Parts for Fillet Weld Grinder LLK 1503 VR

SKU: Flex LLK 1503 VR - 01.09.2014 Condition: New
€0.69
VAT included

Flex Spare Parts for Fillet Weld Grinder LLK 1503 VR

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Fillet Weld Grinder LLK 1503 VR - 01.09.2014.
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

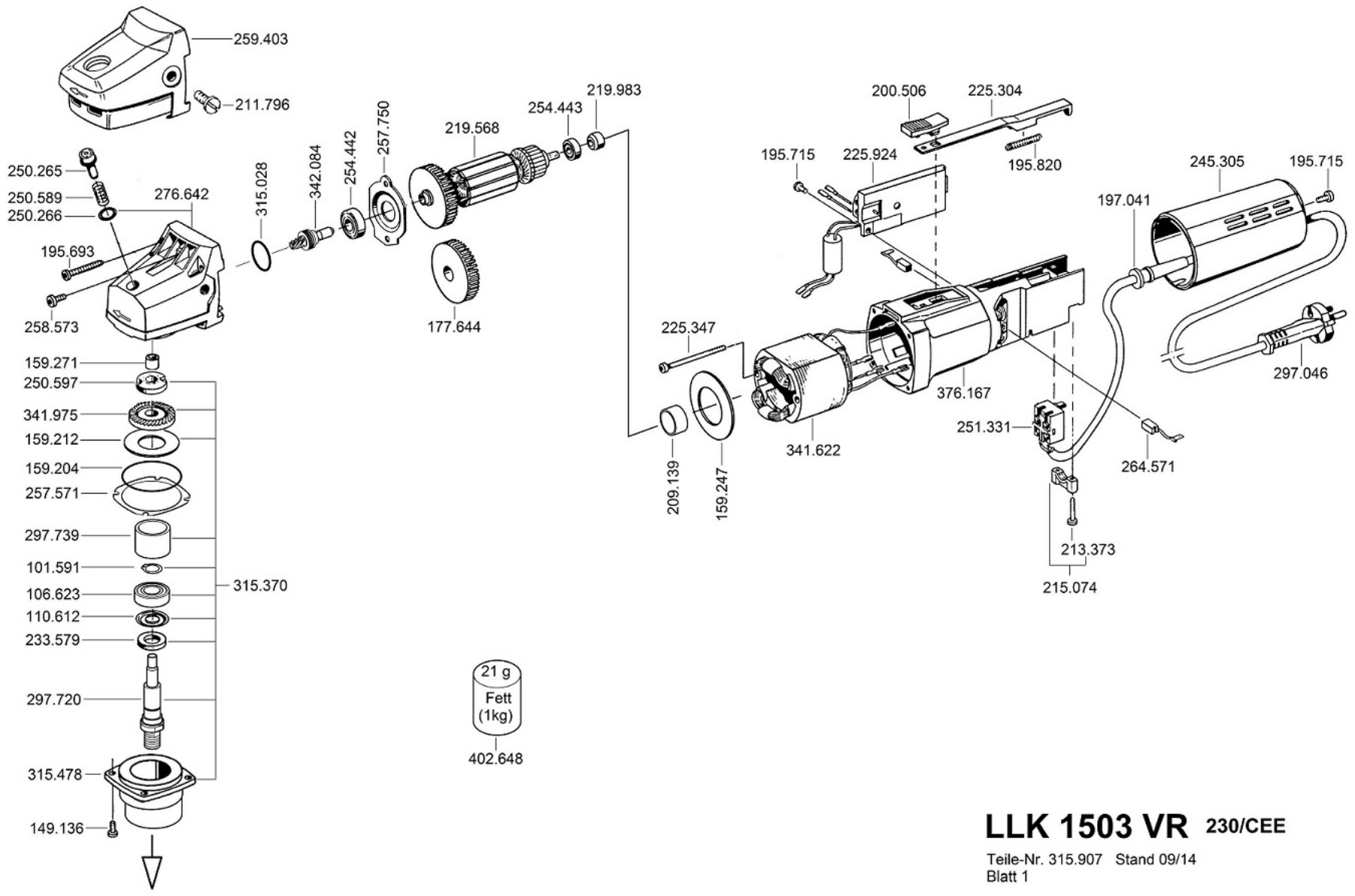

Esploso pagina 1

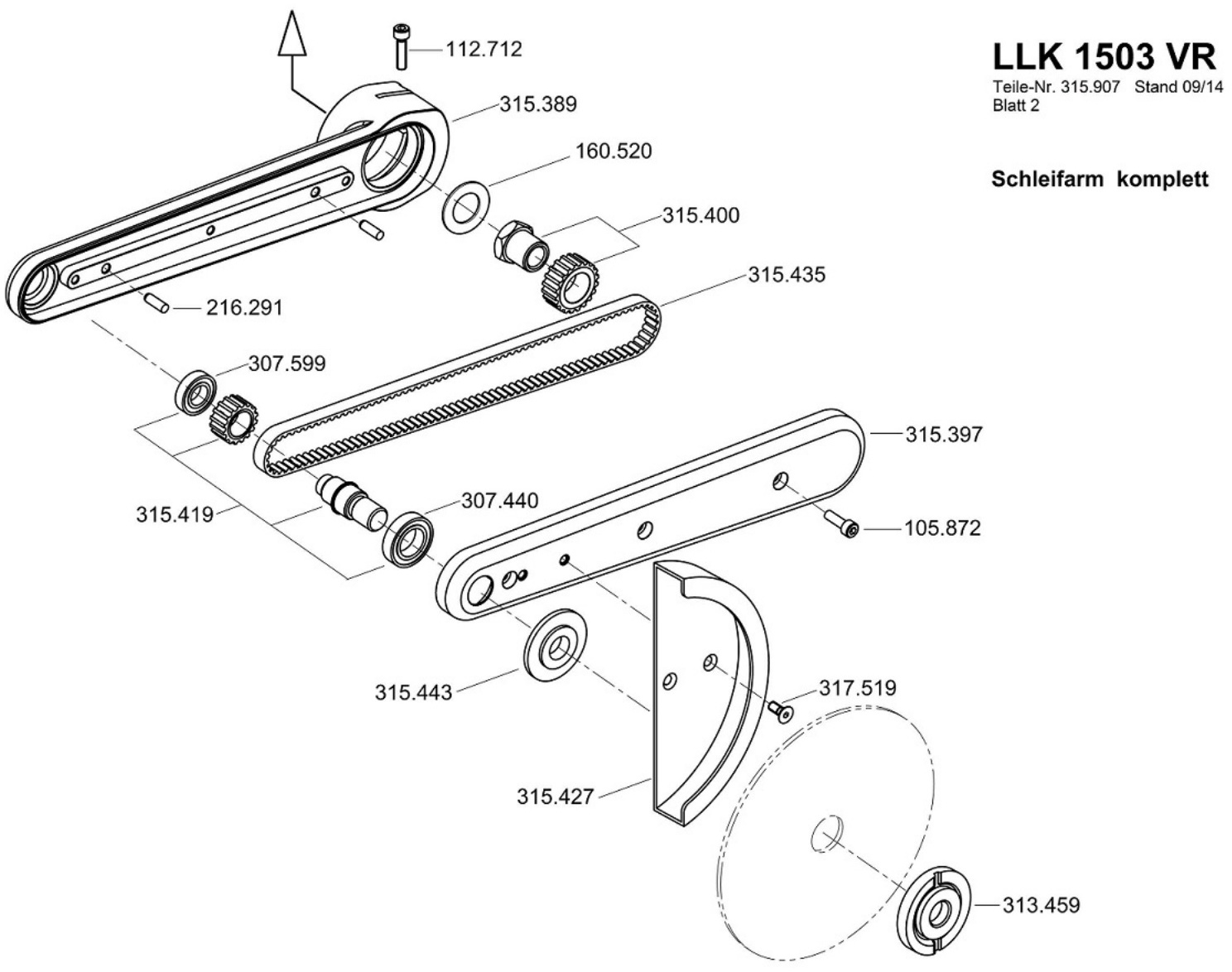

Esploso pagina 2
1 / 2
Pos. Item Price Buy
photo_cameraImage coming soon 106623 BEARING 6002 2RS €17.97
photo_cameraImage coming soon 110612 RING €3.91
O-Ring Spacer for Angle Grinder Flex L 1506 VR 159204 O-Ring Spacer for Angle Grinder Flex L 1506 VR €0.80
photo_cameraImage coming soon 159212 HEAD NUT €4.02
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
photo_cameraImage coming soon 159271 BEARING ROLLERS HEAD MINIS €9.03
FLEX SR 602 VV Washer 25,9X15,5X0,5 160520 FLEX SR 602 VV Washer 25,9X15,5X0,5 €0.95
photo_cameraImage coming soon 177644 FAN €5.14
Cord Grommet 8,3 mm for Power Tools Flex 197041 Cord Grommet 8,3 mm for Power Tools Flex €3.28
photo_cameraImage coming soon 200506 BUTTON BREAK. (EX 211451) €3.25
photo_cameraImage coming soon 209139 RING - L 1109 €2.07
Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 211796 Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 €0.91
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
Armature for Burnishing Machine FLEX LP 1503 VR 219568 Armature for Burnishing Machine FLEX LP 1503 VR €98.49
photo_cameraImage coming soon 219983 DIODE MAGNETIC €10.11
Switch Rod for Angle Grinder Flex L 1710 FRA 225304 Switch Rod for Angle Grinder Flex L 1710 FRA €4.20
Electronic Board for Angle Grinder Flex L 1506 VR 225924 Electronic Board for Angle Grinder Flex L 1506 VR €143.57
photo_cameraImage coming soon 245305 COVER MOTOR BODY €22.71
photo_cameraImage coming soon 250265 BUTTON CROWN BLOCKING €5.69
photo_cameraImage coming soon 250597 DISC STOP CORONA L1503 / 6/9 €18.09
Switch for Angle Grinder Flex L 1710 FRA 251331 Switch for Angle Grinder Flex L 1710 FRA €27.21
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 257571 SPACERS THICKNESS 0.2 €1.67
photo_cameraImage coming soon 257750 COVERS HEAD €4.72
Head Cover for Sander Flex LLK 1503 VR 259403 Head Cover for Sander Flex LLK 1503 VR €21.74
Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR 264571 Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR €23.04
photo_cameraImage coming soon 276642 GEAR BOX L 1506 €74.16
photo_cameraImage coming soon 297046 CABLE COMPLETE H05RNF 2X1X4M €16.98
photo_cameraImage coming soon 297720 SHAFT LLK 1503 €57.49
photo_cameraImage coming soon 297739 SPACER L1503 €12.01
photo_cameraImage coming soon 307440 BEARING X LRP 1503 €11.61
photo_cameraImage coming soon 307599 BEARING X LPR 1503 €10.27
photo_cameraImage coming soon 315028 O-RING 24X1 €1.64
photo_cameraImage coming soon 315370 BODY HEAD LLK 1503 VR €280.13
photo_cameraImage coming soon 315389 HOLDER ARM LLK 1503 VR €259.83
photo_cameraImage coming soon 315397 HOUSING COVER €128.56
photo_cameraImage coming soon 315400 TORQUE GEAR LLK 1503 VR €92.01
photo_cameraImage coming soon 315419 AXLE AND GEARS LLK 1503VR €100.66
photo_cameraImage coming soon 315427 PROTECTION CAP €75.76
Toothed Belt for Sander Flex LLK 1503 VR 315435 Toothed Belt for Sander Flex LLK 1503 VR €30.00
photo_cameraImage coming soon 315443 RING €27.46
photo_cameraImage coming soon 315478 HOLDER LLK 1503 VR €119.08
Stator for Burnishing Machine Flex LP 1503 VR 341622 Stator for Burnishing Machine Flex LP 1503 VR €109.82
photo_cameraImage coming soon 376167 MOTOR BODY €26.75

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Fillet Weld Grinder LLK 1503 VR

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Fillet Weld Grinder LLK 1503 VR - 01.09.2014.

In the following table, look for the model of the Fillet Weld Grinder and the respective parts of the code.
Flex LLK 1503 VR - 01.09.2014
Fillet Weld Grinder LLK 1503 VR - 01.09.2014
Part Num. Description
101591 RING X SK 2902
105872 SCREW X LLK 1503 VR
106623 BEARING 6002 RS 2
110612 RING NYLON
112712 SCREW X LLK 1503 VR
149136 HEAD SCREW
159204 SPACER RUBBER
159212 HEAD NUT
159247 FAN DISC
159271 BEARING ROLLERS HEAD
160520 WASHER LK 302/604/610
177644 FAN
195693 SCREW LK 604 4X30
195715 SCREW LK 604 4X12
195820 SPRING SWITCH
197041 SHEATH CABLE 8,3MM
200506 BUTTON BREAK. (EX 211451)
209139 RING - L 1109
211796 SCREW ROCKER COVER
213373 SCREW, KT, KT 4 X 20/9
215074 BOOT C / SCREW X MINISMER.
216291 SPINETTA ST 1005 VE
219568 ARMATURE 1506/1503 VR / 1509 FR
219983 DIODE MAGNETIC
225304 AUCTION X SWITCH L 09/06/1503
225347 SCREW
225924 ELECTRONIC BOARD VR (251845)
233579 FELT PARAGRASSO
245305 COVER MOTOR BODY
250265 BUTTON CROWN BLOCKING
250266 BUTTON CROWN BLOCKING
250589 SPRING LOCK BUTTON CROWN
250597 DISC STOP CORONA L1503 / 6/9
251331 UNIVERSAL SWITCH
254442 BEARING 6000 2 RSD
254443 BEARING 607 2 RSD
257571 SPACERS THICKNESS 0.2
257750 COVERS HEAD N.T.X MINI
258573 INSIDE SCREW LK604 (EX 251851)
259403 ROCKER COVER L 1506/1503
264571 BRUSHES K 53
276642 GEAR BOX L 1506
297046 CABLE (ROT) H05RNF 2X1X4M
297720 SHAFT LLK 1503
297739 SPACER L1503
307440 BEARING X LRP 1503
307599 BEARING X LPR 1503
315028 RING O- 24X1
315370 BODY HEAD LLK 1503 VR
315389 HOLDER ARM LLK 1503 VR
315397 HOUSING COVER
315400 TORQUE GEAR LLK 1503 VR
315419 AXLE AND GEARS LLK 1503VR
315427 PROTECTION CAP
315435 BELT X LLK 1503 VR
315443 RING
315478 HOLDER LLK 1503 VR
317519 0-RING X SKL 2903
341622 STATOR L1503 / L1506VR EX292591
376167 MOTOR HOLDER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex LLK 1503 VR - 01.09.2014
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Flex LLK 1503 VR

Diagram Flex LLK 1503 VR

Download (379.83KB)
