Flex Power Tools

Flex Spare Parts for Belt Sander LBR 1506 VRA

SKU: Flex LBR 1506 VRA - 01.05.2015
€0.69
VAT included

Flex Spare Parts for Belt Sander LBR 1506 VRA

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Belt Sander LBR 1506 VRA - 01.05.2015
Flex Spare Parts for Belt Sander LBR 1506 VRA
  • Online only
  • Flex Spare Parts for Belt Sander LBR 1506 VRA
  • Flex Spare Parts for Belt Sander LBR 1506 VRA
Flex Power Tools

Flex Spare Parts for Belt Sander LBR 1506 VRA

SKU: Flex LBR 1506 VRA - 01.05.2015 Condition: New
€0.69
VAT included

Flex Spare Parts for Belt Sander LBR 1506 VRA

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Belt Sander LBR 1506 VRA - 01.05.2015
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

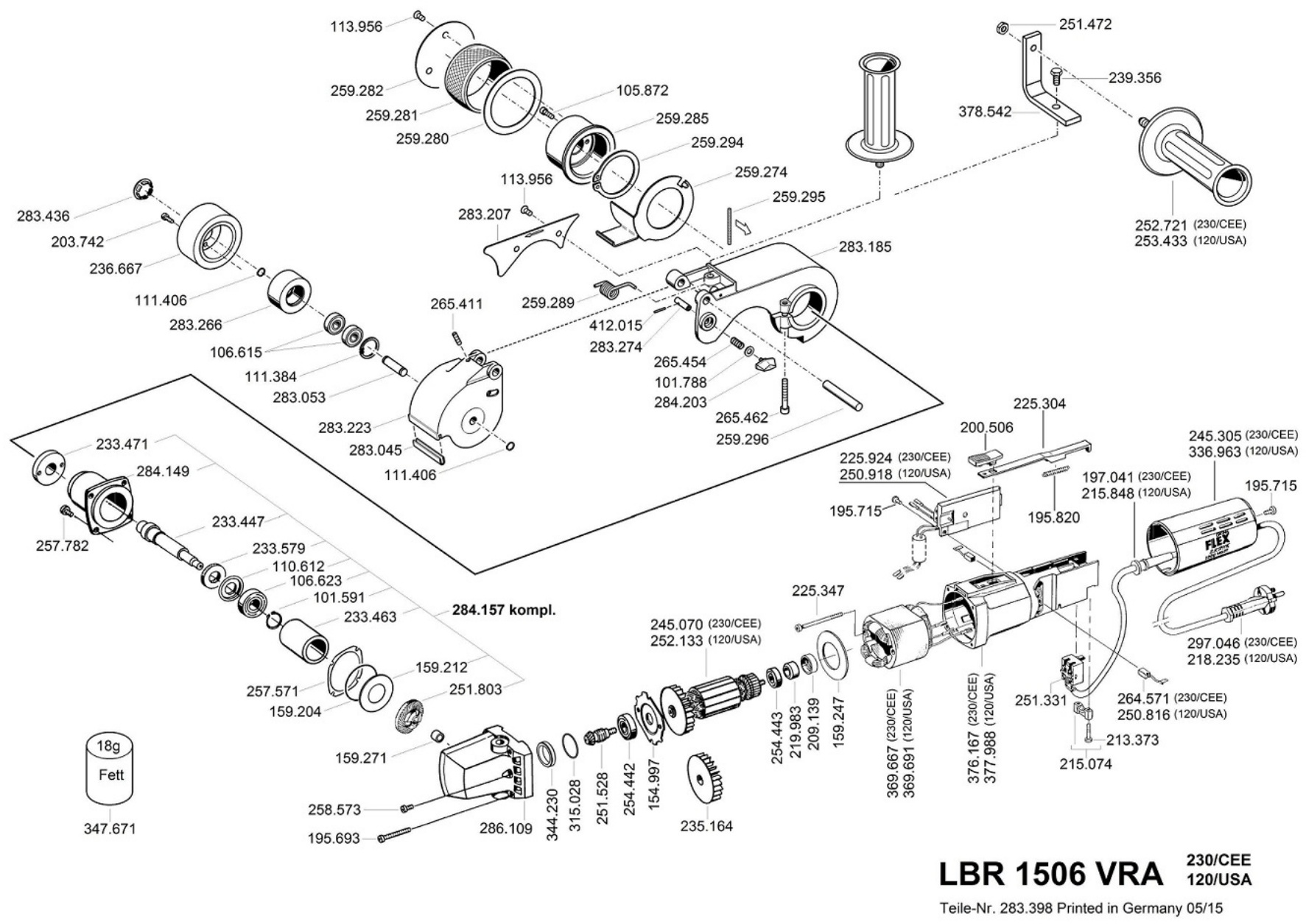

Esploso pagina 1
Pos. Item Price Buy
photo_cameraImage coming soon 106615 BEARING 6000 ZZ €13.92
photo_cameraImage coming soon 106623 BEARING 6002 2RS €17.97
photo_cameraImage coming soon 110612 RING €3.91
Seeger K 2750/2765 for Walls and Ceilings Sander FLEX WSE 500 111384 Seeger K 2750/2765 for Walls and Ceilings Sander FLEX WSE 500 €1.26
photo_cameraImage coming soon 154997 FLANGE SEAL BEARING €4.32
O-Ring Spacer for Angle Grinder Flex L 1506 VR 159204 O-Ring Spacer for Angle Grinder Flex L 1506 VR €0.80
photo_cameraImage coming soon 159212 HEAD NUT €4.02
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
photo_cameraImage coming soon 159271 BEARING ROLLERS HEAD MINIS €9.03
Cord Grommet 8,3 mm for Power Tools Flex 197041 Cord Grommet 8,3 mm for Power Tools Flex €3.28
photo_cameraImage coming soon 200506 BUTTON BREAK. (EX 211451) €3.25
photo_cameraImage coming soon 209139 RING - L 1109 €2.07
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 219983 DIODE MAGNETIC €10.11
Switch Rod for Angle Grinder Flex L 1710 FRA 225304 Switch Rod for Angle Grinder Flex L 1710 FRA €4.20
Electronic Board for Angle Grinder Flex L 1506 VR 225924 Electronic Board for Angle Grinder Flex L 1506 VR €143.57
photo_cameraImage coming soon 233447 TREE - LB 1506 FR €61.25
photo_cameraImage coming soon 233463 CYLINDER €13.75
photo_cameraImage coming soon 233471 CUTTING DISC €31.54
photo_cameraImage coming soon 235164 FAN L 1506/1509/1503 €4.99
Contact Roller for Belt Sander FLEX LBR 1506 VRA 236667 Contact Roller for Belt Sander FLEX LBR 1506 VRA €127.76
Armature for Belt Sander Flex LBR 1506 VRA 245070 Armature for Belt Sander Flex LBR 1506 VRA €113.56
photo_cameraImage coming soon 245305 COVER MOTOR BODY €22.71
Switch for Angle Grinder Flex L 1710 FRA 251331 Switch for Angle Grinder Flex L 1710 FRA €27.21
photo_cameraImage coming soon 252721 GS-M M8 €11.76
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 257571 SPACERS THICKNESS 0.2 €1.67
photo_cameraImage coming soon 259274 NUT GUIDE TAPE X LBR 1506 €44.26
photo_cameraImage coming soon 259280 WASHER X LBR 1506 VRA €5.42
photo_cameraImage coming soon 259281 NUT drag. LBR 1506 €83.10
photo_cameraImage coming soon 259282 FLANGE X LBR 1506 €9.13
photo_cameraImage coming soon 259285 NUT X LBR 1506 €66.58
photo_cameraImage coming soon 259289 SPRING X LBR 1506 €10.75
photo_cameraImage coming soon 259294 RING €6.24
photo_cameraImage coming soon 259295 SPRING €4.62
photo_cameraImage coming soon 259296 PLUG X LBR 1506 VRA €3.35
Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR 264571 Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR €23.04
photo_cameraImage coming soon 265454 SPRING €3.81
photo_cameraImage coming soon 283053 PIN X LBR 1506 VRA €17.56
photo_cameraImage coming soon 283185 HEADSET REAR LBR 1506 VRA €169.89
photo_cameraImage coming soon 283207 CASING SIDE LBR 1506 €8.08
photo_cameraImage coming soon 283223 CAP FRONT LBR 1506 VRA €71.42
photo_cameraImage coming soon 283266 ROLLER DOOR PULLEY X LBR1506 €46.00
Maruyama MCV3100S Starter Pulley 283274 Maruyama MCV3100S Starter Pulley €14.77
photo_cameraImage coming soon 283436 NUT X LBR 1506 VRA €154.36
photo_cameraImage coming soon 284149 GEARCASE LBR 1506 VRA €70.62
photo_cameraImage coming soon 284203 KNOB X LBR 1506 VRA €2.88
photo_cameraImage coming soon 286109 BOX INGR.X LBR1506VR €59.86
photo_cameraImage coming soon 297046 CABLE COMPLETE H05RNF 2X1X4M €16.98
photo_cameraImage coming soon 315028 O-RING 24X1 €1.64
photo_cameraImage coming soon 344230 RING DISTANZ Ø26X5,2 LANG €7.20
photo_cameraImage coming soon 369667 STATOR LB / LBR 1506 VR €88.41
photo_cameraImage coming soon 376167 MOTOR BODY €26.75
photo_cameraImage coming soon 378542 BRACKET LBR 1506 VRA €14.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Belt Sander LBR 1506 VRA

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Belt Sander LBR 1506 VRA - 01.05.2015

In the following table, look for the model of the Belt Sander and the respective parts of the code.
Flex LBR 1506 VRA - 01.05.2015
Belt Sander LBR 1506 VRA - 01.05.2015
Part Num. Description
101591 RING X SK 2902
101788 WASHER DIN 125 B 5.3 verz.
105872 SCREW X LLK 1503 VR
106615 BEARING 6000 ZZ
106623 BEARING 6002 RS 2
110612 NILOS RING
111384 SEEGER K 2750/2765
111406 SEEGER X LB 1506
113956 SCREW X LBR 1506 VRA
154997 FLANGE SEAL BEARING
159204 SPACER RUBBER
159212 HEAD NUT
159247 DISCO PARA FAN
159271 BEARING ROLLERS HEAD
195693 SCREW LK 604 4X30
195715 SCREW LK 604 4X12
195820 SPRING SWITCH
197041 SHEATH CABLE 8,3mm
200506 BUTTON BREAK. (EX 211451)
203742 SCREW SK 602 / P 125
209139 1109 RING
213373 SCREW, KT, KT 4 x 20/9
215074 BOOT WITH BOLTS
219983 DIODE MAGNETIC
225304 SWITCH ROD L 09/06/1503
225347 SCREW
225924 ELECTRONIC BOARD VR (251845)
233447 TREE - LB 1506 FR
233463 CYLINDER
233471 DISCO
233579 PARA FELT GREASE
235164 FAN L 1506/1509/1503
236667 PULLEY FRONT LB 1506 VR
239356 SCREW DIN 933 M 8x 20 v
245070 ARMATURE LB 1506 VR
245305 COVER MOTOR BODY
251331 UNIVERSAL SWITCH
251472 NUT M 8 DIN 934 Verzinkt
252721 GS-M M8
254442 BEARING 6000 2 RSD
254443 BEARING 607 2 RSD
257571 SPACERS THICKNESS 0.2
257782 SCREW X L1710 FRA
258573 INSIDE SCREW LK604 (EX 251851)
259274 NUT GUIDE TAPE X LBR 1506
259280 WASHER X LBR 1506 VRA
259281 NUT drag. LBR 1506
259282 FLANGE X LBR 1506
259285 NUT X LBR 1506
259289 SPRING X LBR 1506
259294 RING
259295 SPRING
259296 PLUG X LBR 1506 VRA
264571 CARBON BRUSHES K53
265411 PLUG X LBR 1506 VRA
265454 SPRING
265462 SCREW DIN 912 M 6 x 35
283045 PROTECTION RUBBER X LBR1506 VRA
283053 PIN X LBR 1506 VRA
283185 HEADSET REAR LBR 1506 VRA
283207 CASING SIDE LBR 1506
283223 CAP FRONT LBR 1506 VRA
283266 ROLLER DOOR PULLEY X LBR1506
283274 PIN X LBR 1506 VRA
283436 NUT X LBR 1506 VRA
284149 GEARCASE LBR 1506 VRA
284203 KNOB X LBR 1506 VRA
286109 BOX INGR.X LBR1506VR
297046 CABLE m.St. (rot) H05RNF 2x1x4m
315028 RING, O 24x1
344230 RING, SPACER Ø26x5,2 lang
369667 STATOR LB / LBR 1506 VR
376167 MOTOR BODY
378542 BRACKET LBR 1506 VRA
412015 A2, PIN DIN1475 2x12
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex LBR 1506 VRA - 01.05.2015
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Flex LBR 1506 VRA

Diagram Flex LBR 1506 VRA

Download (305.86KB)
