Flex Spare Parts for Belt Grinder LBS 1105 VE

SKU: Flex LBS 1105 VE
€3.13
VAT included

Flex Spare Parts for Belt Grinder LBS 1105 VE

Flex genuine spare parts or replacement parts for to repair Belt Grinder LBS 1105 VE.

Fix Your Belt Grinder LBS 1105 VE. All Spares are Available at Discounted Prices. Our spare parts are original spare parts and come with a full Guarantee.
Flex Spare Parts for Belt Grinder LBS 1105 VE
  • Flex Spare Parts for Belt Grinder LBS 1105 VE
  • Flex Spare Parts for Belt Grinder LBS 1105 VE

Flex Spare Parts for Belt Grinder LBS 1105 VE

SKU: Flex LBS 1105 VE Condition: New
€3.13
VAT included

Flex Spare Parts for Belt Grinder LBS 1105 VE

Flex genuine spare parts or replacement parts for to repair Belt Grinder LBS 1105 VE.

Fix Your Belt Grinder LBS 1105 VE. All Spares are Available at Discounted Prices. Our spare parts are original spare parts and come with a full Guarantee.
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 100277 RING NYLON €3.04
photo_cameraImage coming soon 154997 FLANGE SEAL BEARING €4.32
O-Ring Spacer for Angle Grinder Flex L 1506 VR 159204 O-Ring Spacer for Angle Grinder Flex L 1506 VR €0.80
photo_cameraImage coming soon 159212 HEAD NUT €4.02
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
photo_cameraImage coming soon 159271 BEARING ROLLERS HEAD MINIS €9.03
photo_cameraImage coming soon 159603 ARMATURE ZL 1106 SE / 1109/1104 €80.39
FLEX SR 602 VV Grease Felt 160512 FLEX SR 602 VV Grease Felt €0.95
photo_cameraImage coming soon 194034 GS-K M8 €12.63
photo_cameraImage coming soon 195782 SWITCH €13.99
photo_cameraImage coming soon 195812 INTERNAL LEVER SWITCH €1.32
Cord Grommet 8,3 mm for Power Tools Flex 197041 Cord Grommet 8,3 mm for Power Tools Flex €3.28
photo_cameraImage coming soon 200506 BUTTON BREAK. (EX 211451) €3.25
photo_cameraImage coming soon 203068 MOTOR BODY X 1107 VE €25.82
photo_cameraImage coming soon 209139 RING - L 1109 €2.07
Capacitor for Angle Grinder FLEX L 1109 212636 Capacitor for Angle Grinder FLEX L 1109 €14.19
photo_cameraImage coming soon 214884 BEARING 6001 2RS €15.19
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
Felt for Burnishing Flex LP 1503 VR 256157 Felt for Burnishing Flex LP 1503 VR €10.83
photo_cameraImage coming soon 257571 SPACERS THICKNESS 0.2 €1.67
photo_cameraImage coming soon 261165 WIRE CONDENSER L 1109 €3.51
photo_cameraImage coming soon 271365 GEAR BOX €54.49
Carbon Brushes K66 for Straight Grinders FLEX H1105-H1127VE 285994 Carbon Brushes K66 for Straight Grinders FLEX H1105-H1127VE €21.59
photo_cameraImage coming soon 287687 ELECTRONIC CARD EX 198145 €77.25
photo_cameraImage coming soon 292656 STATOR L 1106/1109 EX160997 €89.46
photo_cameraImage coming soon 297046 CABLE COMPLETE H05RNF 2X1X4M €16.98
photo_cameraImage coming soon 359173 CABLE COMPLETOGB4H; H07RN-F; 2X1,5X4 €45.56
photo_cameraImage coming soon 399914 PINION 1105 -KH €106.41
photo_cameraImage coming soon 436755 GEAR €5.20
2
photo_cameraImage coming soon 312371 MOUNTING PLATE COVER CSM 4060 €6.38
5
photo_cameraImage coming soon 312428 ASSEMBLY HANDLE €12.86
11
Capacitor for Band Saw FLEX SBG 4908 351873 Capacitor for Band Saw FLEX SBG 4908 €23.04
14
Switch for Band Saw FLEX SBG 4908 352756 Switch for Band Saw FLEX SBG 4908 €21.59
15
Switch Geschwind for Band Saw FLEX SBG 4908 352764 Switch Geschwind for Band Saw FLEX SBG 4908 €5.65
23
Switch ON/OFF for Band Saw FLEX SBG 4908 352772 Switch ON/OFF for Band Saw FLEX SBG 4908 €23.04
35
Carbon Brushes for Band Saw FLEX SBG 4908 351512 Carbon Brushes for Band Saw FLEX SBG 4908 €21.59
39
photo_cameraImage coming soon 260541 BEARING EX 855284 €9.73
47
photo_cameraImage coming soon 259147 BEARING 6202 2 RSD €14.73
53
photo_cameraImage coming soon 312312 RULER CSM 4060 €15.02
54
photo_cameraImage coming soon 352721 BEARING NEEDLE HK0609 SBG4908 €15.09
68
photo_cameraImage coming soon 313068 STATOR CSM 4060 €26.59
69
photo_cameraImage coming soon 313076 BODY OF MOTOR CSM 4060 €12.00
70
photo_cameraImage coming soon 313084 SCREW M. DISC CSM 4060 €3.29
71
photo_cameraImage coming soon 313092 SCREW CSM 4060 €4.82
73
photo_cameraImage coming soon 313114 CARBON BRUSHES X CSM 4060 €159.10
82
photo_cameraImage coming soon 104167 ALLEN WRENCH SW 6 €2.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Belt Grinder LBS 1105 VE

Flex genuine spare parts or replacement parts for to repair Belt Grinder LBS 1105 VE.

Fix Your Belt Grinder LBS 1105 VE. All Spares are Available at Discounted Prices. Our spare parts are original spare parts and come with a full Guarantee.

In the following table, look for the model of the Belt Grinder and the respective parts of the code.


Belt Grinder LBS 1105 VE
100277 RING NYLON
154997 FLANGE SEAL BEARING
159204 SPACER RUBBER X MINI SM.
159212 HEAD NUT
159247 FAN DISC
159271 BEARING ROLLERS HEAD
159603 ARMATURE ZL 1106 SE / 1109/1104
160512 FELT PARAGRASSO
190330 SCREW DIN 912 M 4 x 14
194034 GS-K M8
195693 SCREW LK 604 4X30
195715 SCREW LK 604 4X12
195782 SWITCH
195812 INTERNAL LEVER SWITCH
195820 SPRING SWITCH
196169 KA40X55 BOLTS FOR HEAD
197041 SHEATH CABLE 8,3mm
200506 BUTTON BREAK. (EX 211451)
203068 MOTOR BODY X 1107 VE
209139 Ring-L 1109
212636 CAPACITOR
214884 BEARING 6001 2RS
215074 BOOT WITH BOLTS
244481 WASHER - 6mm LKE 1503 VR
254442 BEARING 6000 2 RSD
254443 BEARING 607 2 RSD
254881 SPRING
254883 SCREW DIN 923 M 5X 10
254884 WASHER
254885 RAD, ENTSPANNUNGSSTELL
254887 PULLEY LBS 1105 VE
254888 SCREWS, DIN 6912 M 6X 12 V
254890 PLATE
254891 SCREW, DIN912 M5 * 10-8.8VERZ
254892 BOLT
254898 PIN X SHAFT DOOR ARM
254900 SCREW, FLÜGEL- M6 * 58, VERZ.
255334 NUT M8 DIN439
255410 MOTOR BODY LB105VV
255520 PIN - NRB 4X31,8 G2
255982 KAPPE, ABDECK M8 SCHWARZ
256157 UNIVERSAL FELT
256526 9MM HOLDER
256527 PIN - NRB 3X13,8 G2
256528 Rolle, Anpress spitz kpl.
257571 SPACERS THICKNESS 0.2
258322 HOLDER
258324 COVER LBS 1105 VE
258330 HOLDER
258573 INSIDE SCREW LK604 (EX 251851)
258889 ROLLER
260051 LAGERBUCHSE
261165 CABLE FOR CAPACITOR L 1109
271365 GEAR BOX
285994 BRUSHES H1105-H1127VE
287687 ELECTRONIC CARD EX 198145
292656 STATOR
297046 CABLE COMPLETE H05RNF 2X1X4M
320722 GUIDE
359173 CABLE COMPLETOGB4H; H07RN-F; 2X1,5X4
399914 PINION 1105 -KH
399949 KIT GEARS 1105-KH, RIZ-GWMONT.
412015 PIN DIN1475 2X12
436755 FAN

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex LBS 1105 VE
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

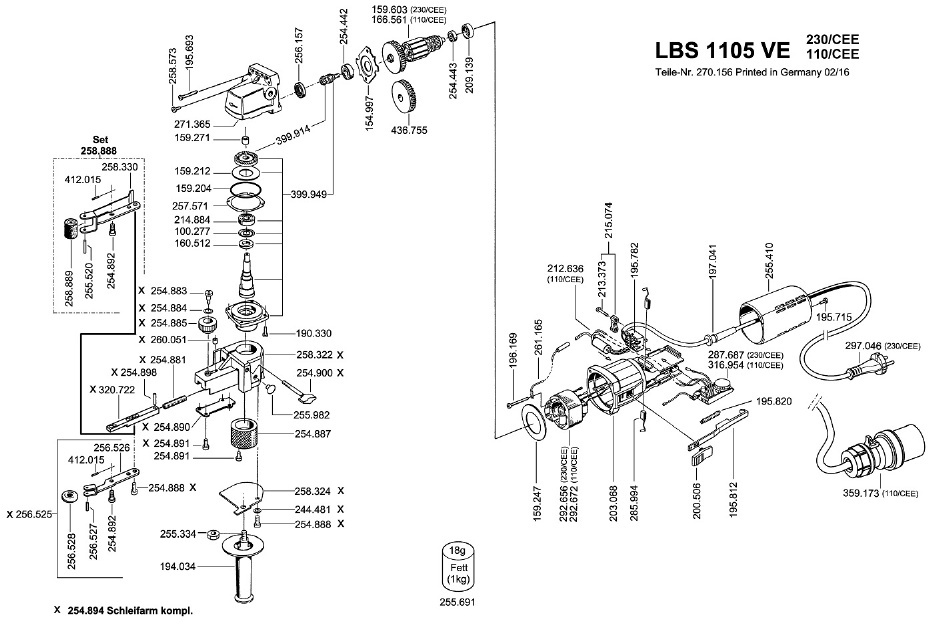

Diagram Flex LBS 1105 VE

Diagram Flex LBS 1105 VE

Download (268.07KB)
