Flex Spare Parts for Straight Grinder H 1105VE

SKU: Flex H 1105VE
€18.06
VAT included

Flex Spare Parts for Straight Grinder H 1105VE

Flex genuine spare parts or replacements parts for to repair Straight Grinder H 1105 VE - 01.10.2015.
Flex Spare Parts for Straight Grinder H 1105VE
  • Flex Spare Parts for Straight Grinder H 1105VE
  • Flex Spare Parts for Straight Grinder H 1105VE
  • Flex Spare Parts for Straight Grinder H 1105VE

Flex Spare Parts for Straight Grinder H 1105VE

SKU: Flex H 1105VE Condition: New
€18.06
VAT included

Flex Spare Parts for Straight Grinder H 1105VE

Flex genuine spare parts or replacements parts for to repair Straight Grinder H 1105 VE - 01.10.2015.
settings 30 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

30 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 101583 BEARING 6002 Z TH €14.56
photo_cameraImage coming soon 121673 BUSH ALL. H 105/127 €12.02
photo_cameraImage coming soon 154997 FLANGE SEAL BEARING €4.32
photo_cameraImage coming soon 157708 FLANGE SEAL BEARING €62.64
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
photo_cameraImage coming soon 192074 COVER €107.48
photo_cameraImage coming soon 192112 BEARING H 105 €15.60
photo_cameraImage coming soon 192120 NILOS H 105 €4.04
photo_cameraImage coming soon 195782 SWITCH €13.99
photo_cameraImage coming soon 195812 INTERNAL LEVER SWITCH €1.32
Cord Grommet 8,3 mm for Power Tools Flex 197041 Cord Grommet 8,3 mm for Power Tools Flex €3.28
photo_cameraImage coming soon 200506 BUTTON BREAK. (EX 211451) €3.25
photo_cameraImage coming soon 203068 MOTOR BODY X 1107 VE €25.82
photo_cameraImage coming soon 209139 RING - L 1109 €2.07
photo_cameraImage coming soon 213780 COVER €21.90
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 235296 Nut X H1105 €6.35
photo_cameraImage coming soon 236462 COMPLETE CABLE H05RN-F 2x1x4m €14.18
photo_cameraImage coming soon 239828 SHAFT H 1105 VE €64.72
photo_cameraImage coming soon 252164 HEAD COVER H 1105 VE €15.72
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 261165 WIRE CONDENSER L 1109 €3.51
photo_cameraImage coming soon 270024 ARMATURE H 1105 VE €119.91
Carbon Brushes K66 for Straight Grinders FLEX H1105-H1127VE 285994 Carbon Brushes K66 for Straight Grinders FLEX H1105-H1127VE €21.59
photo_cameraImage coming soon 287687 ELECTRONIC CARD EX 198145 €77.25
photo_cameraImage coming soon 292699 STATOR H 1105 VE €78.59
photo_cameraImage coming soon 338818 PINION H 1105 €121.94
photo_cameraImage coming soon 338826 GEAR H 1105 €41.60
photo_cameraImage coming soon 436755 GEAR €5.20

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Straight Grinder H 1105VE

Flex genuine spare parts or replacements parts for to repair Straight Grinder H 1105 VE - 01.10.2015.

In the following table, look for the model of the Straight Grinder and the respective parts of the code.
Straight Grinder H 1105 VE - 01.10.2015
Straight Grinder H 1105 VE - 01.10.2015
Part Num. Description
101583 BEARING 6002 Z TH
105546 RING SEEGER X BHW 812 FV
111406 SEEGER X LB 1506
121673 BUSH ALL. H 105/127
192074 COVER
192082 BOLT DIN 912 M 4 x 20
192112 BEARING H 105
192120 NILOS H 105
235296 DADO X H1105
239828 SHAFT H 1105 VE
252164 HEAD COVER H 1105 VE
338818 PINION H 1105
338826 GEAR H 1105
154997 FLANGE SEAL BEARING
157708 FLANGE SEAL BEARING
159247 DISCO PARAVENTOLA MINISMERIGL.
164283 BOLT DIN 7985 M 4x 6
195715 SCREW LK 604 4X12
195782 SWITCH
195812 INTERNAL LEVER SWITCH
195820 SPRING SWITCH MINISMER.
197041 SHEATH CABLE 8,3mm
200506 BUTTON BREAK. (EX 211451)
203068 MOTOR BODY X 1107 VE
203858 BOLT KT, KT 4 x 25
209139 RING - L 1109
213373 BOLT KT, KT 4 x 20/9
213780 COVER
215074 BOOT C / SCREW X MINISMER.
236462 COMPLETE CABLE H05RN-F 2x1x4m
254442 BEARING 6000 2 RSD
254443 BEARING 607 2 RSD
261165 WIRE CONDENSER L 1109
270024 ARMATURE H 1105 VE
285994 BRUSHES H1105-H1127VE
287687 ELECTRONIC CARD EX 198145
292699 STATOR H 1105 VE
436755 GEAR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex H 1105VE
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

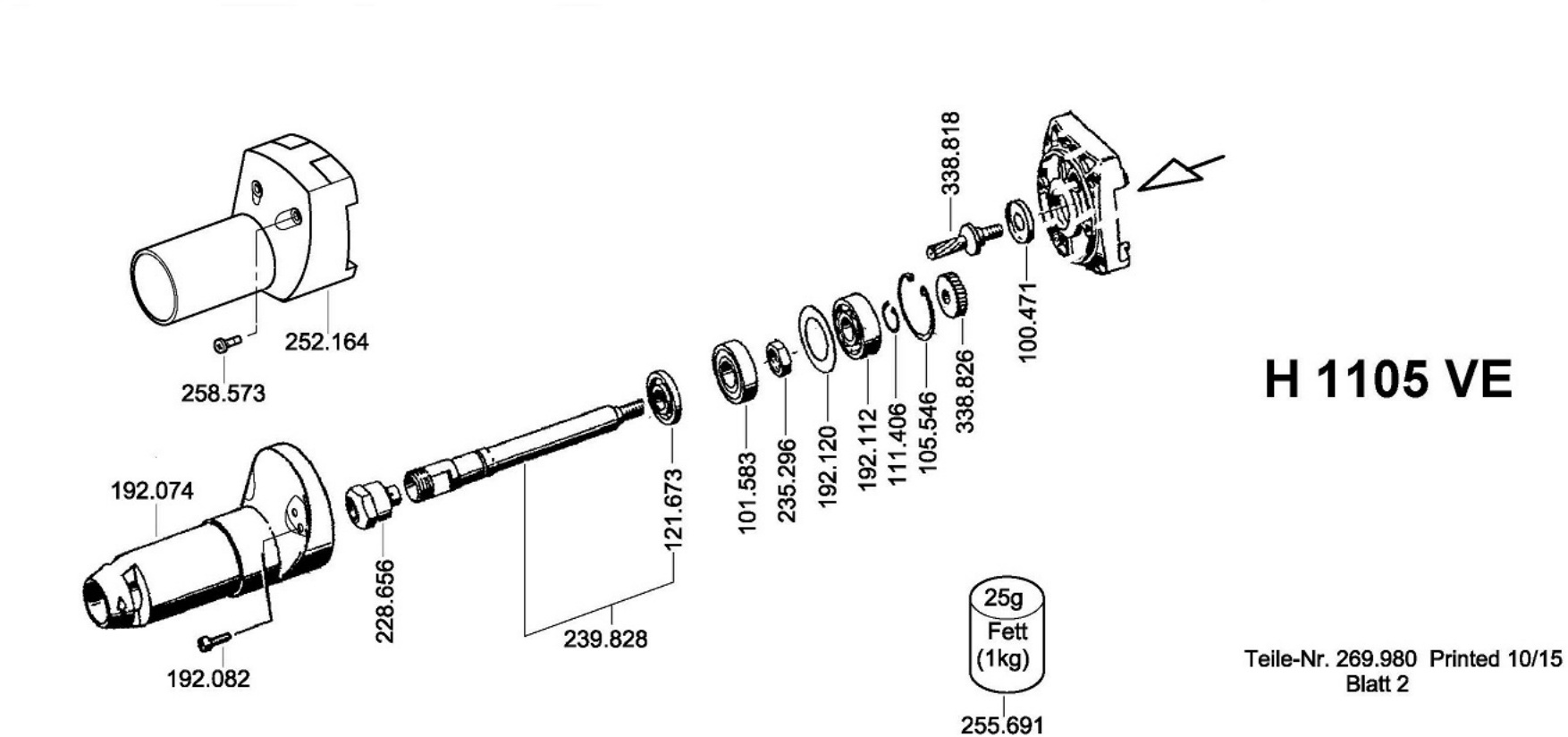

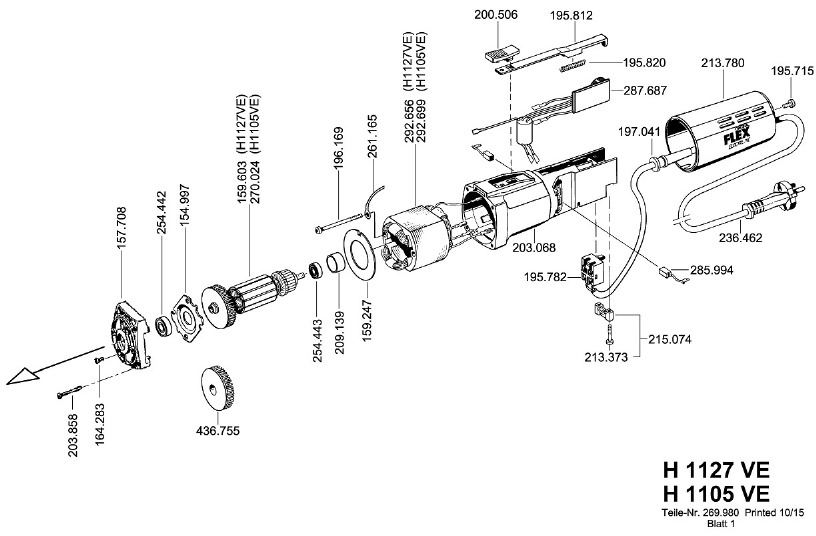

Diagram Flex H 1105 VE

Diagram Flex H 1105 VE

Download (294.47KB)
