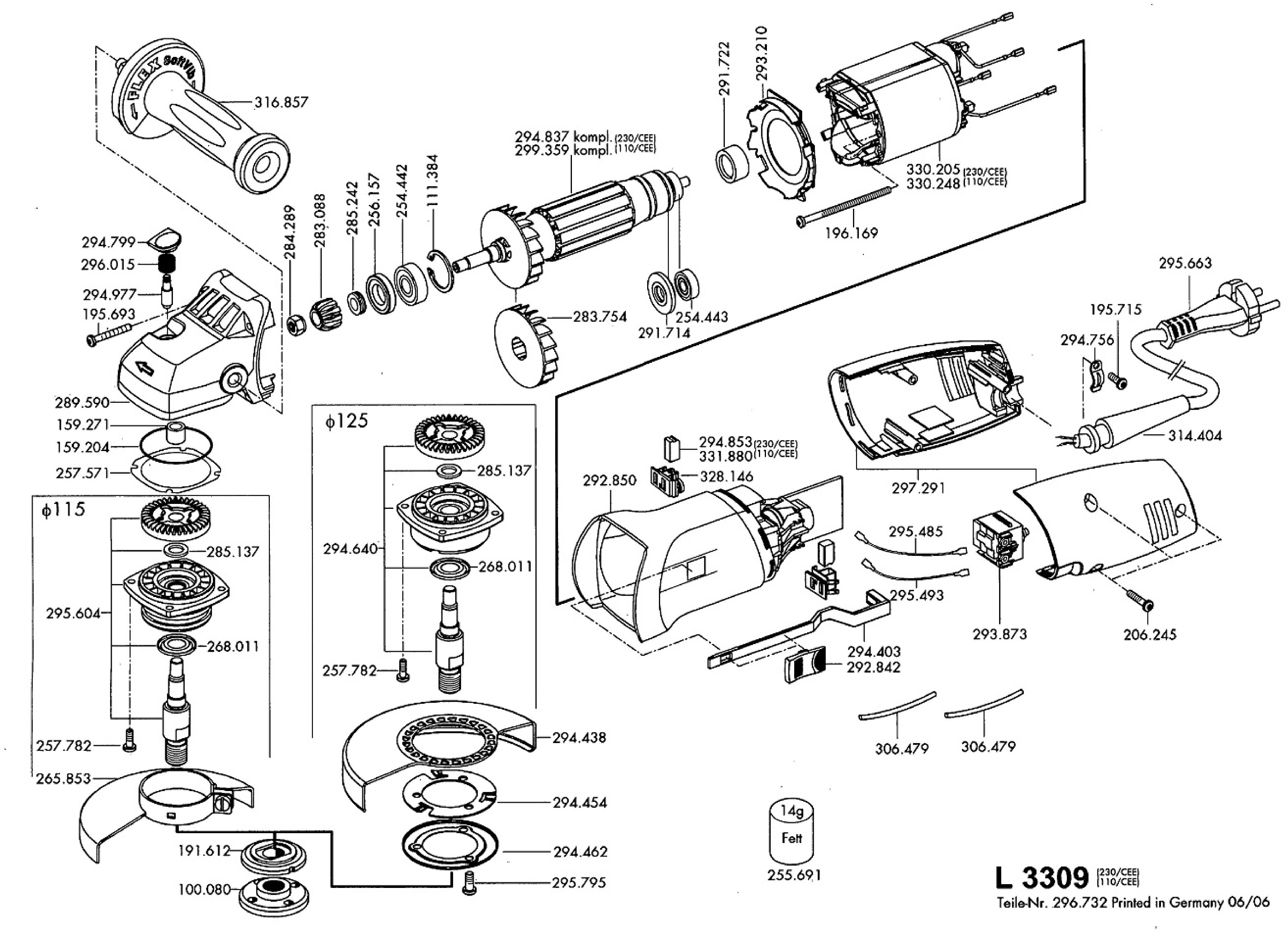

Flex Spare Parts for Angle Grinder L 3309
Flex genuine spare parts for replacing or repairing Angle Grinder L 3309.
Fix Your Angle Grinder. All Spares are Ready For Quick Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder L 3309 |
| 100080 |
GHIERA- M14 |
| 111384 |
SEEGER K2750 / 2765 |
| 159204 |
SPACER RUBBER X MINIS. |
| 159271 |
BEARING ROLLERS HEAD MINIS |
| 191612 |
FLANGE -SW 14 |
| 195693 |
SCREW LK 604 4X30 |
| 195715 |
SCREW LK 604 4X12 |
| 196169 |
KA40X55 SCREW FOR HEAD |
| 206245 |
40X20 SCREW |
| 254442 |
BEARING 6000 2 RSD |
| 254443 |
BEARING 607 2 RSD |
| 255691 |
FETT, DOSE1KG RENOLIT LXGFL0 |
| 256157 |
UNIVERSAL FELT |
| 257571 |
SPACERS THICKNESS 0.2 |
| 257782 |
SCREW X L1710 FRA |
| 257782 |
SCREW X L1710 FRA |
| 265853 |
PROTECTION 115 |
| 268011 |
6001 BEARING |
| 268011 |
6001 BEARING |
| 283088 |
PINION X L1109A |
| 283754 |
FAN L3309 / 3410 |
| 284289 |
NUT X L1109A |
| 285137 |
FELT X L1109A |
| 285137 |
FELT X L1109A |
| 285242 |
JACK - THE 1109 IN |
| 289590 |
BODY HEAD L3309 |
| 291714 |
SLIP RING L3309 / 3410 |
| 291722 |
RUBBER L3309 / 3410 |
| 292842 |
BUTTON INTERRUT.L3309 / 3410 |
| 292850 |
BODY ENGINE L3309 |
| 293210 |
PARAVENTOLA L3309 / 3410 |
| 293873 |
SWITCH L3309 / 3410 |
| 294403 |
AUCTION SWITCH L3308 |
| 294438 |
ROTATABLE SAFETY CAP, |
| 294454 |
RETAINING CAP L3309-3410 |
| 294462 |
RETAINING CAP L3309-3410 |
| 294640 |
CORONA + TREE L3309FRG-FR |
| 294756 |
BOOT |
| 294799 |
STOP BUTTON L3309 |
| 294837 |
ARMATURE L 3309 |
| 294853 |
BRUSH K68 EX 264601 |
| 294977 |
PIN ARREST X L3309 FR |
| 295485 |
LITZE, KPL.SW. AWG 18 L = 100MM |
| 295493 |
LITZE, KPL.SW. AWG 18 L = 55MM |
| 295604 |
CORONA + COVER + TREE L3309 |
| 295663 |
CABLE M.ST. (ROT) H05RNF 2X1X4M |
| 295795 |
RETAINING CAP SCREW X L3309-3410 |
| 296015 |
SPRING BUTTON CATCH 3309/3410 |
| 297291 |
BASE (2 PCS) L3309 |
| 306479 |
SCHUTZSCHLAUCH GF L3410FR |
| 314404 |
HOUSING CABLE LE14-7 INOX |
| 328146 |
THE BRUSH HOLDER 3309-125 |
| 330205 |
STATOR L 3309-125 |
