Flex LW 1703 S Wet Stone Grinder Spare Parts

SKU: Flex LW1703S
€0.11
VAT included

Flex LW 1703 S Wet Stone Grinder Spare Parts

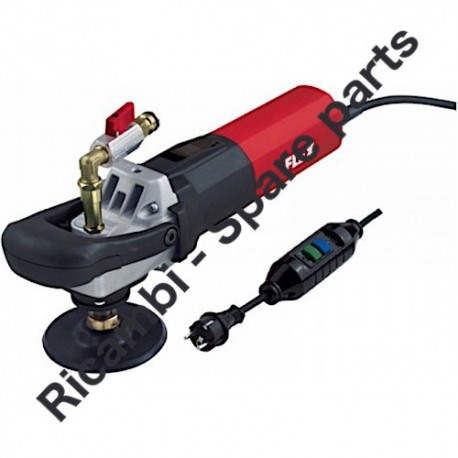

Flex Genuine spare parts or replacement parts for to fix LW 1703 S - 950 watt Wet Stone Grinder with PRCD (308773) (129656).
Flex LW 1703 S Wet Stone Grinder Spare Parts
  • Out-of-Stock
  • Flex LW 1703 S Wet Stone Grinder Spare Parts
  • Flex LW 1703 S Wet Stone Grinder Spare Parts - Drawing

Flex LW 1703 S Wet Stone Grinder Spare Parts

SKU: Flex LW1703S Condition: New
€0.11
VAT included

Flex LW 1703 S Wet Stone Grinder Spare Parts

Flex Genuine spare parts or replacement parts for to fix LW 1703 S - 950 watt Wet Stone Grinder with PRCD (308773) (129656).
settings 13 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

13 spare parts
Pos. Item Price Buy
3
Switch for Angle Grinder Flex L 1710 FRA 251331 Switch for Angle Grinder Flex L 1710 FRA €27.21
4
photo_cameraImage coming soon 218294 PROTECTION CABLE 10.1 mm 110V €2.07
13
photo_cameraImage coming soon 257591 Ring, seal 6202 ZAV €4.17
22
photo_cameraImage coming soon 235164 FAN L 1506/1509/1503 €4.99
25
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
28
Capacitor for Angle Grinder FLEX L 1109 212636 Capacitor for Angle Grinder FLEX L 1109 €14.19
29
photo_cameraImage coming soon 405442 MOTOR BODY -17-M.KH. €25.99
30
photo_cameraImage coming soon 200506 BUTTON BREAK. (EX 211451) €3.25
31
Switch Rod for Angle Grinder Flex L 1710 FRA 225304 Switch Rod for Angle Grinder Flex L 1710 FRA €4.20
37
Carbon Brush Set K96 for Wall and Ceiling Sander Flex WST 700 VV 399647 Carbon Brush Set K96 for Wall and Ceiling Sander Flex WST 700 VV €19.55
40
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
41
photo_cameraImage coming soon 244902 COVER MOTOR L 15 / 17ER €22.32
50
photo_cameraImage coming soon 258856 FINS X L1506 / 1109 _X001A_ €3.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex LW 1703 S Wet Stone Grinder Spare Parts

Flex Genuine spare parts or replacement parts for to fix LW 1703 S - 950 watt Wet Stone Grinder with PRCD (308773) (129656).

In the following table, look for the model of the Sander and the respective parts of the code.
Flex LW 1703 S

Flex LW 1703 S - 950 watt Wet Stone Grinder with PRCD (308773) (129656)
# Part Num. Description
2 ---
3 251331 Switch M.1245.0104 L 1509 FR
4 218294 Hose, cable protection 10.1 mm
5 283606 Cable with PRCD 10mA 3G1 4m
6 DIN7985-M4X8 Lens screw M4x8 DIN7985 galvanized
7 195693 Screw, KT-, KT 4 x 30
8 304735 Gearbox housing LW 1703
9 439770 Bearing, sintered 9x13x10
11 257602 Disc, distance- 0.2
12 DIN7985-M4X12-T Lens screw. M4x12 DIN7985 Torx galvanized
13 257591 Ring, seal 6202 ZAV
14 306258 Mounting the gear shaft LW 1703
15 113263 ring, support
16 113247 bushing, stuffing
17 113271 Pin, thread with hole
18 292478 Threaded socket
19 DIN3601-24X1N O-ring 24x1 NBR70
20 6000LLTN9-803 Deep groove ball bearings
21 308641 Lid, bearing with flask. 6.3
22 235164 Wind blades with straight blades
23 607LLTN9-803 Deep groove ball bearings
24 --- ---
25 159247 Airflow
26 255954 Screw,KT-,KT 4 x 70
27 290513 Stranded wire, connected size AWG16 260mm
28 212636 Capacitor X1Y 0.22F
29 405442 Motor housing-17-m.Kh.
30 200506 Lever, switch black
31 225304 rod, switch
32 195820 spring, compression
34 293911 Clamp bracket LW 1503 S
35 280259 Protective conductor plate
36 DIN7981-F3,9X13 Pan head sheet metal screw F3.9x13 galvanized
37 399647 Ab.CharcoalK96 6.3x8x15.9L26F12T1
38 317632 Cover for coal holder L 1517
39 213373 Screw, KT-, KT 4 x 209
40 215074 Clamp, cable complete. DMR9.4mm
41 244902 Hood printed L 1517
42 DIN3601-48X1,2N O-ring 48x1.2 NBR70
43 306231 Water supply complete LW 1703
44 305626 Elbow with pipe LW 1703
45 251646 Rooster, ball R 14
46 251648 Seal, polyamide
47 251650 connector
48 293709 Handle, complete LW 1703
49 DIN7984-M8X12 Hexagon socket screw. low head galv.ver
50 258856 deflection, air
