Flex Spare Parts for Sander Giraffe GDE 10

SKU: Flex Giraffa GDE10
€0.66
VAT included

Flex Spare Parts for Sander Giraffe GDE 10

We have the original Spares FLEX for Walls and Ceilings FLEX GDE 10 230V/CE the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Walls and Ceilings FLEX GDE 10. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Flex Spare Parts for Sander Giraffe GDE 10
  • Flex Spare Parts for Sander Giraffe GDE 10
  • Flex Spare Parts for Sander Giraffe GDE 10 - Drawing
  • Flex Spare Parts for Sander Giraffe GDE 10 - Drawing - 1
  • Flex Spare Parts for Sander Giraffe GDE 10 - Drawing - 2

Flex Spare Parts for Sander Giraffe GDE 10

SKU: Flex Giraffa GDE10 Condition: New
€0.66
VAT included

Flex Spare Parts for Sander Giraffe GDE 10

We have the original Spares FLEX for Walls and Ceilings FLEX GDE 10 230V/CE the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Walls and Ceilings FLEX GDE 10. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 35 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 304859 SWITCH X L3406 VRG €19.53
photo_cameraImage coming soon 306479 SCHUTZSCHLAUCH GF L3410FR €5.56
Head Ring Scew for Sanders Flex WST 700 VV-WST 1000 FV 336408 Head Ring Scew for Sanders Flex WST 700 VV-WST 1000 FV €0.86
Carbon Brush Set K96 for Wall and Ceiling Sander Flex WST 700 VV 399647 Carbon Brush Set K96 for Wall and Ceiling Sander Flex WST 700 VV €19.55
photo_cameraImage coming soon 402648 GREASE, Klüber GE14-111 - 1kg €88.93
photo_cameraImage coming soon 404365 Stutzen GE5 €6.92
photo_cameraImage coming soon 407038 Ring, O-45x1 €2.71
photo_cameraImage coming soon 411272 pre-assembled bearing block GE5 €4.94
photo_cameraImage coming soon 412384 Motor housing GE5 2 Hälften €85.73
photo_cameraImage coming soon 412392 HOUSING GE5 2 Hälften  €65.45
photo_cameraImage coming soon 414247 BUSH GE5 €1.39
photo_cameraImage coming soon 419192 Pad €47.22
photo_cameraImage coming soon 420247 Ring, O- 44x1 €1.61
photo_cameraImage coming soon 445584 Side support €3.08
photo_cameraImage coming soon 445746 2-stage ring gear Z = 71 €55.42
photo_cameraImage coming soon 447528 Fork insert €7.41
photo_cameraImage coming soon 447536 Fork insert €7.41
photo_cameraImage coming soon 450448 Magnetic coil holder GE7 €11.37
photo_cameraImage coming soon 462659 Speed Controller €78.53
photo_cameraImage coming soon 467324 cable protection tube €3.70
photo_cameraImage coming soon 486132 support GE7 mont. €47.88
photo_cameraImage coming soon 493945 head ring GDE10 €23.12
photo_cameraImage coming soon 494062 Screw GDE10 €44.65
photo_cameraImage coming soon 496960 2K hood €23.38
photo_cameraImage coming soon 502405 Piece of tube GE7 sw-rt €6.54
photo_cameraImage coming soon 503800 Two-chamber tube GDE10 €62.60
photo_cameraImage coming soon 506532 Clamping Washer €26.98
photo_cameraImage coming soon 521477 Brush €30.17
photo_cameraImage coming soon 521485 Brush €30.17
photo_cameraImage coming soon 521736 Head Holder €201.66
photo_cameraImage coming soon 521760 Screw €8.46
photo_cameraImage coming soon 530018 Complete Armature €169.77
photo_cameraImage coming soon 530019 Stator complete €134.56
photo_cameraImage coming soon 530193 Plate €5.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Sander Giraffe GDE 10

We have the original Spares FLEX for Walls and Ceilings FLEX GDE 10 230V/CE the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Walls and Ceilings FLEX GDE 10 230V/CE. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Sander and the respective parts of the code.
Flex Giraffa GDE 10 230V/CE
FLEX Giraffe GDE 10 230V/CE
Part Num. Description
206245 SCREW 40X20
306479 Protective tube GF L3410FR
399647 Ab.Kohle K96 6,3x8x15,9L26F12T1
450448 Magnetic coil holder GE7
399647 Ab.Kohle K96 6,3x8x15,9L26F12T1
215074 CABLE CLAMP C / SCREWS X MINISMER.
467324 cable protection tube
412384 Motor housing GE5 2 Hälften
402648 Grease, Klüber GE14-111 - 1kg
411272 pre-assembled bearing block GE5
407038 O-Ring, O-45x1
445746 2-stage ring gear Z = 71
462659 Speed Controller
319627 elastomer disc
420247 O-Ring, O- 44x1
304859 SWITCH X L3406 VRG
412392 GE5 2 Hälften fork
447528 Fork insert
447536 Fork insert
389005 screw, Torx T 15, M4x8
100196 disc, tooth -, J 4.3
404365 GE5 support
195707 Screw, KT-, KT 4 x 40
503800 Two-chamber tube GDE10
502405 Piece of tube GE7 sw-rt
195715 SCREW LK 604 4X12
336408 SCREW X RING HEAD
414247 Compass, GE5
486132 support GE7 mont.
271845 SPRING X L 3206
445584 Side support
206245 SCREW 40X20
493945 head ring GDE10
494062 Screw GDE10
496960 2K hood
402648 Fat, Klüber GE14-111 - 1kg
496960 2K hood
521736 Head Holder
521760 Screw
496960 Head
530193 Plate
521477 Brush
506532 Clamping Washer
402648 Grease
521744 Head Holder
521760 Screw
496960 Head
530193 Plate
521485 Brush
419192 Pad
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex Giraffa GDE10
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

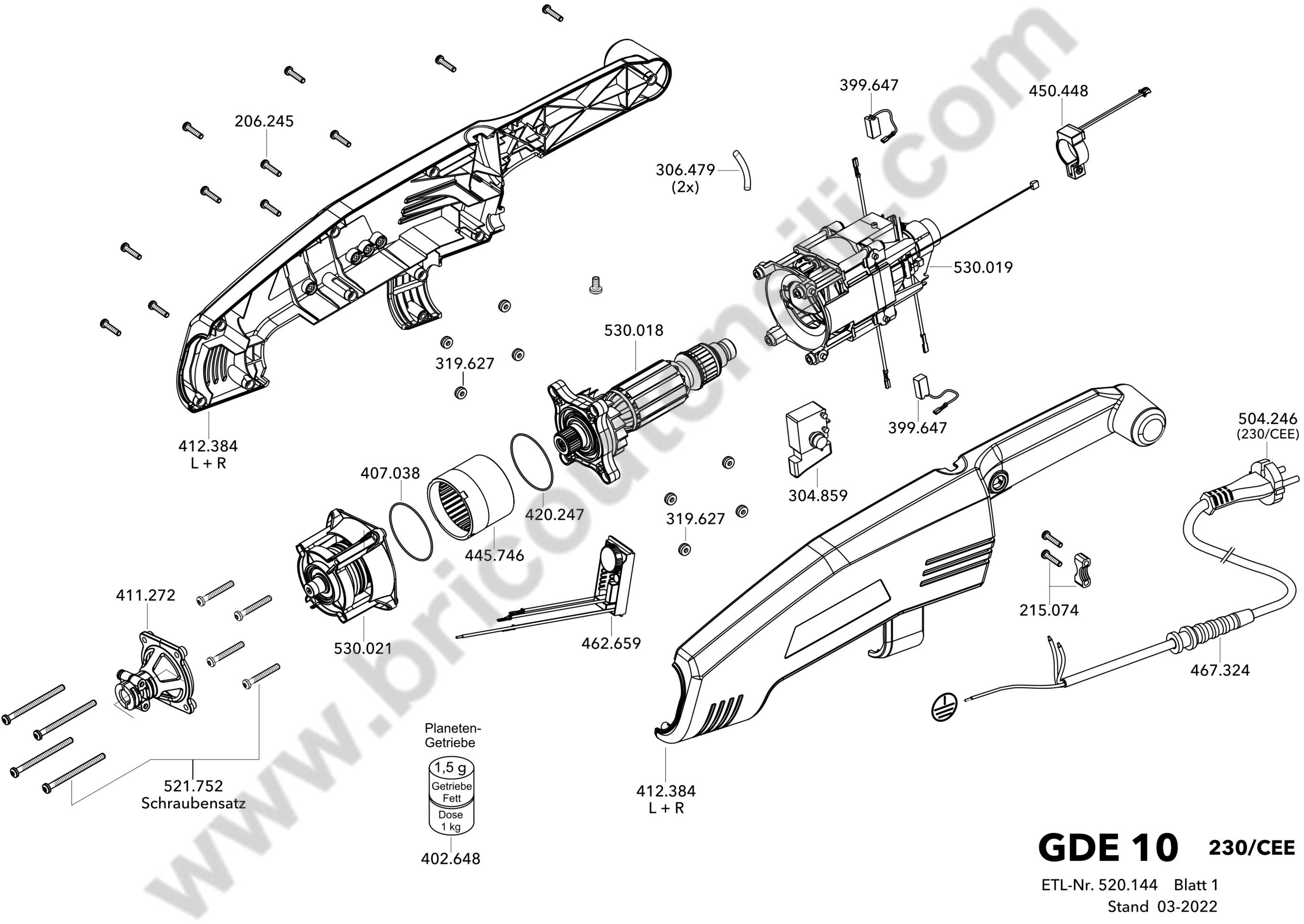

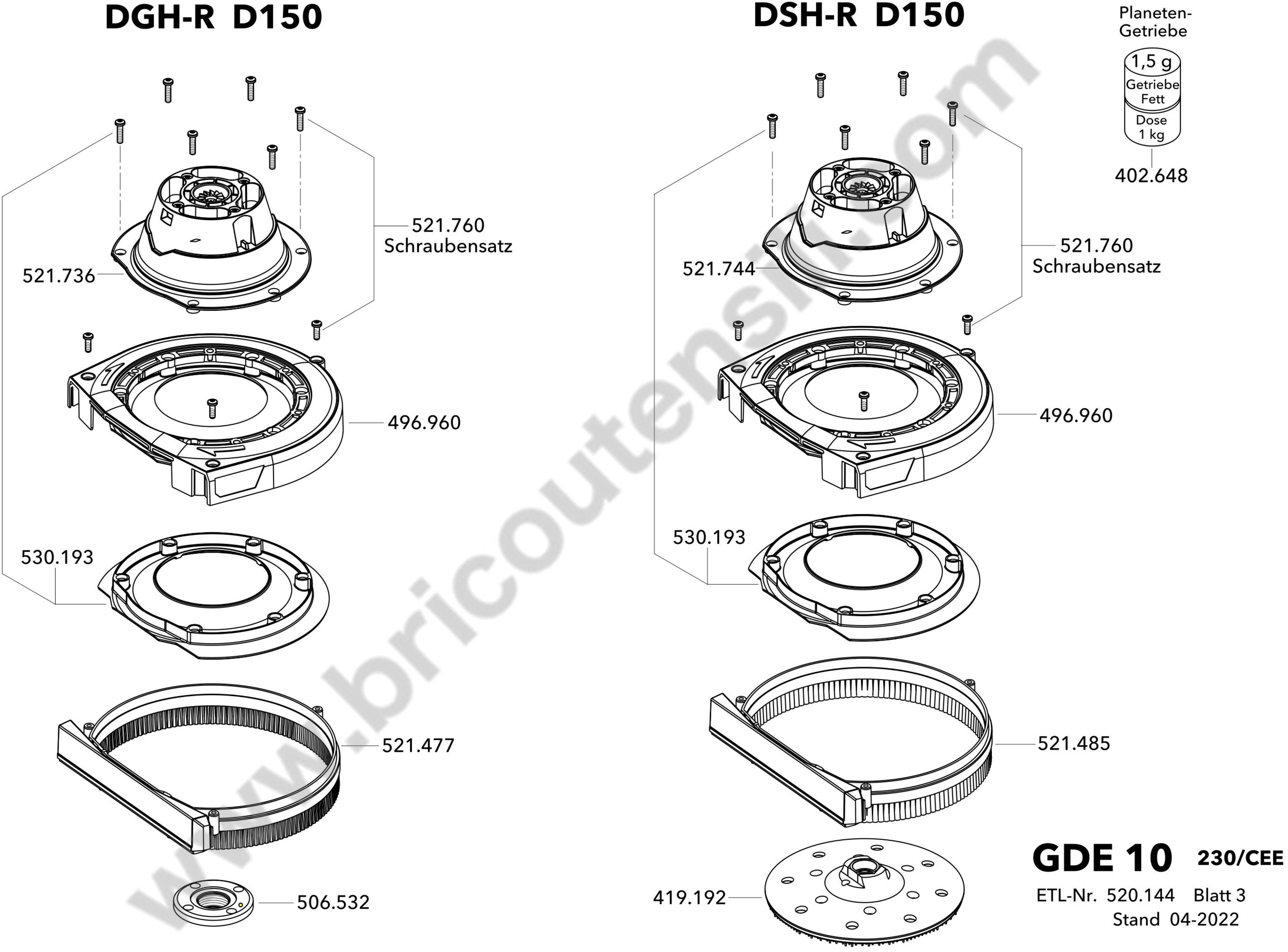

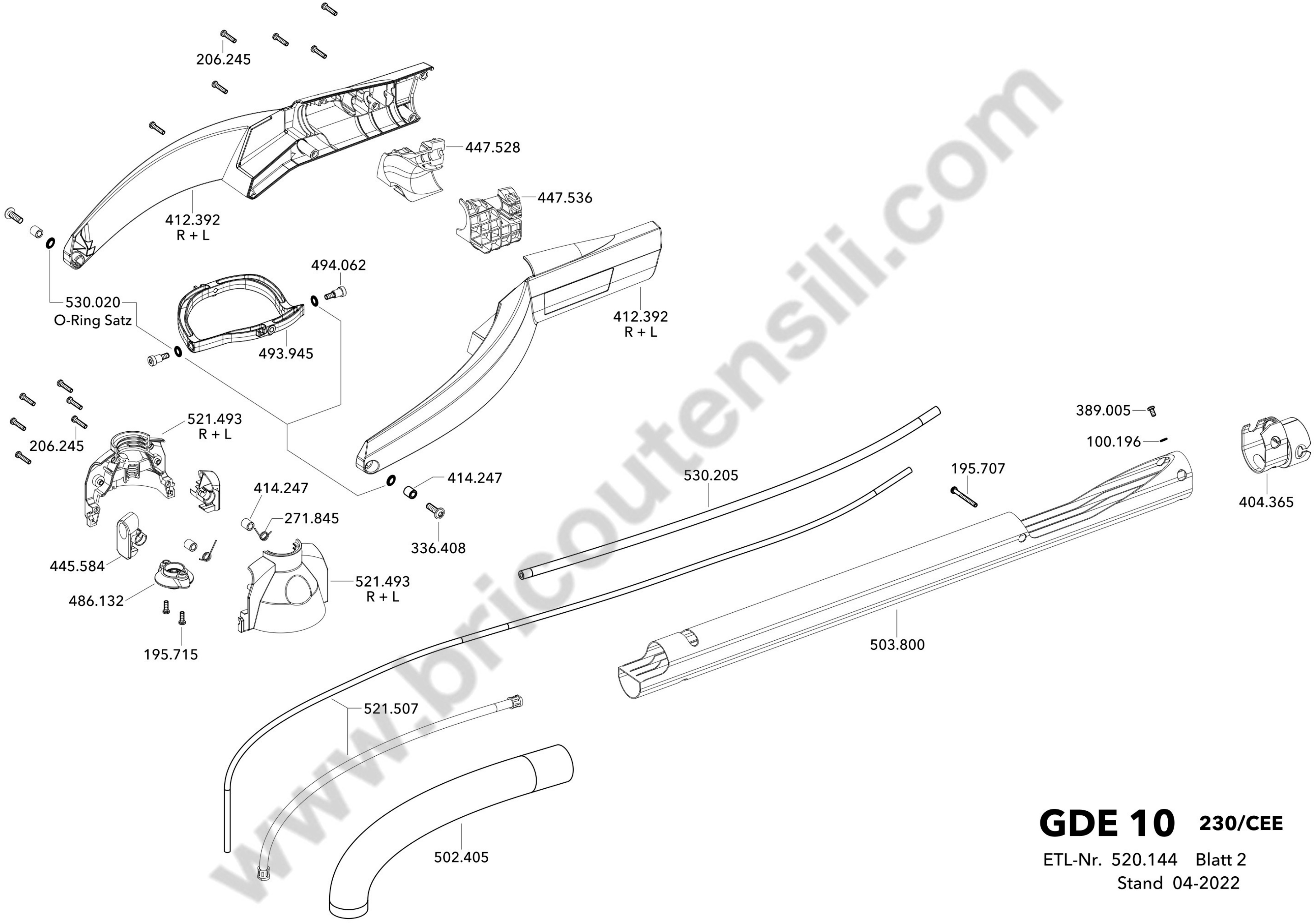

Drawing Flex Giraffe GDE 10

Drawing Flex Giraffe GDE 10

Download (1.53MB)
