Flex Spare Parts for Polisher XFE 7-15 150

SKU: XFE 7-15 125 - 150 CE 01.06.2018
€0.91
VAT included

Flex Spare Parts for Polisher XFE 7-15 150

Flex original spare parts for to replace broken parts for to fix Polisher XFE 7-15 125 - XFE 7-15 150 230/CE 01.06.2018.

Fix Your Polisher. All Spares are Available at Discounted Prices. Our spare parts are original spare parts and come with a full Guarantee.
Flex Spare Parts for Polisher XFE 7-15 150
  • Online only
  • Flex Spare Parts for Polisher XFE 7-15 150
  • Flex Spare Parts for Polisher XFE 7-15 150

Flex Spare Parts for Polisher XFE 7-15 150

SKU: XFE 7-15 125 - 150 CE 01.06.2018 Condition: New
€0.91
VAT included

Flex Spare Parts for Polisher XFE 7-15 150

Flex original spare parts for to replace broken parts for to fix Polisher XFE 7-15 125 - XFE 7-15 150 230/CE 01.06.2018.

Fix Your Polisher. All Spares are Available at Discounted Prices. Our spare parts are original spare parts and come with a full Guarantee.
settings 37 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
O-Ring Spacer for Angle Grinder Flex L 1506 VR 159204 O-Ring Spacer for Angle Grinder Flex L 1506 VR €0.80
Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 211796 Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 €0.91
photo_cameraImage coming soon 219983 DIODE MAGNETIC €10.11
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 257571 SPACERS THICKNESS 0.2 €1.67
photo_cameraImage coming soon 258012 O-ring DIN3770 €8.58
photo_cameraImage coming soon 291633 ELECTRONIC BOARD x L3403 VRG €84.54
photo_cameraImage coming soon 293210 PARAVENTOLA L3309 / 3410 €2.27
photo_cameraImage coming soon 293504 SWITCH X L3403 VRG €32.24
photo_cameraImage coming soon 295515 CAPACITOR X L3403-3406 €7.33
photo_cameraImage coming soon 298476 BODY ENGINE L3309 FRG €28.26
photo_cameraImage coming soon 311197 PTC RESISTANCE X LE 14-7 €5.36
photo_cameraImage coming soon 314404 HOUSING CABLE LE14-7 INOX €2.93
photo_cameraImage coming soon 334898 HOUSING SET, 2Schal.Poti Maroon €13.59
photo_cameraImage coming soon 356603 FASTENER für PUR-Kabel €3.78
photo_cameraImage coming soon 367141 SCREW, Liflako M4x16 €1.42
Power Cord for Polisher FLEX PE 14-2 150 373478 Power Cord for Polisher FLEX PE 14-2 150 €40.40
photo_cameraImage coming soon 377260 WASHER - 18.8x10.2x0.25 €20.97
photo_cameraImage coming soon 381756 ARMATURE 230 / EEC WSE 7 €77.27
photo_cameraImage coming soon 387533 STATOR 230 / EEC WSE7 €99.09
photo_cameraImage coming soon 402648 GREASE, Klüber GE14-111 - 1kg €88.93
photo_cameraImage coming soon 428566 COUNTERWEIGHT XFE7-15 €11.78
photo_cameraImage coming soon 429686 GEARBOX €49.48
photo_cameraImage coming soon 430072 DISC BRAKE XFE7-15 150 €32.05
photo_cameraImage coming soon 434981 SLEEVE XFE7-15 €15.59
photo_cameraImage coming soon 435813 BEARING COVER €21.36
Carbon Brush Holder for Polisher FLEX PE 14-2 150 436569 Carbon Brush Holder for Polisher FLEX PE 14-2 150 €11.13
photo_cameraImage coming soon 436763 FAN €6.06
photo_cameraImage coming soon 437026 BEARING COVER €14.31
Base Plate mm 150 for Polisher FLEX XFE 7-15 150 437077 Base Plate mm 150 for Polisher FLEX XFE 7-15 150 €37.04
Base Plate mm 125 for Polisher FLEX XFE 7-15 125 442445 Base Plate mm 125 for Polisher FLEX XFE 7-15 125 €35.82
photo_cameraImage coming soon 452629 HANDLE, L + R, rot, XFE 7 €29.10
photo_cameraImage coming soon 452815 ECCENTRIC SPINDLE XFE7-150 €75.65
photo_cameraImage coming soon 453919 GEAR / SPINDLE ASSEMBLED   XFE7-15 €183.13
Backing Plate for Polisher FLEX XFE 7-15 150 456500 Backing Plate for Polisher FLEX XFE 7-15 150 €102.65
photo_cameraImage coming soon 457981 SPACER (XFE 7 15 150) €4.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Polisher XFE 7-15 150

Fix Your Polisher XFE 7-15 125 - XFE 7-15 150 230/CE. All Spares are Available at Discounted Prices. Our spare parts are original spare parts and come with a full Guarantee.

In the following table, look for the model of the Polisher and the respective parts of the code.
XFE 7-15 125 - 150 CE 01.06.2018
XFE 7-15 125 - XFE 7-15 150 230/CE 01.06.2018
Part Num. Description
211796 SCREW
452629 HANDLE, L + R, rot, XFE 7
429686 GEARBOX
258012 O-Ring, O-DIN3770
254442 BEARING 6000 2 RSD
437026 BEARING COVER
381756 ARMATURE 230 / EEC WSE 7
436763 FAN vza.-Bohr.
254443 BEARING 607 2 RSD
374059 BEARING PROTECTION, Kollektor
254443 BEARING 607 2 RSD
291722 RUBBER L3309 / 3410
219983 MAGNETIC DIODE
293210 BAFFLE L3309 / 3410
311197 PTC RESISTANCE X LE 14-7
387533 STATOR-k.230 / EEC WSE7
255954 SCREW 4X70
377260 WASHER - 18.8x10.2x0.25
453919 GEAR / SPINDLE ASSEMBLED   XFE7-15
456500 BACKING PLATE (XFE 7 15 150)
430072 DISC BRAKE XFE7-15 150
452815 ECCENTRIC SPINDLE XFE7-150
257782 SCREW X L1710 FRA
435813 BEARING COVER
434981 SLEEVE XFE7-15
254443 BEARING 607 2 RSD
257571 SPACERS 0,2
159204 RUBBER SPACER X MINISM.
439215 SCREW, DIN 7985 M4x10TX20mi
132470 DISC DIN 125 4.3
195693 SCREW LK 604 4X30
452629 HANDLE, L + R, rot, XFE 7
211796 SCREW
206245 SCREW 40X20
428566 COUNTERWEIGHT XFE7-15
257782 SCREW X L1710 FRA
457981 SPACER (XFE 7 15 150)
367141 SCREW, Liflako M4x16
437077 BASE PLATE -M D150 XFE / XCE
402648 GREASE, Klüber GE14-111 - 1kg
442445 BP-M D125 XFE / XCE
446742 protection hose Revitex
293504 SWITCH X L3403 VRG
298476 MOTOR BODY L3309 FRG
436569 CARBON BRUSH HOLDER with B. L17
294853 CARBON BRUSH K68 EX 264601
291633 ELECTRONIC BOARD x L3403 VRG
295515 CAPACITOR X L3403-3406
334898 HOUSING SET, 2Schal.Poti Maroon
314404 LE14-7 INOX CABLE SHEATH
356603 FASTENING für PUR-Kabel
195715 SCREW LK 604 4X12
373478 POWER CORD rot St. sw. H05 BQ-F 2x1
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XFE 7-15 125 - 150 CE 01.06.2018
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

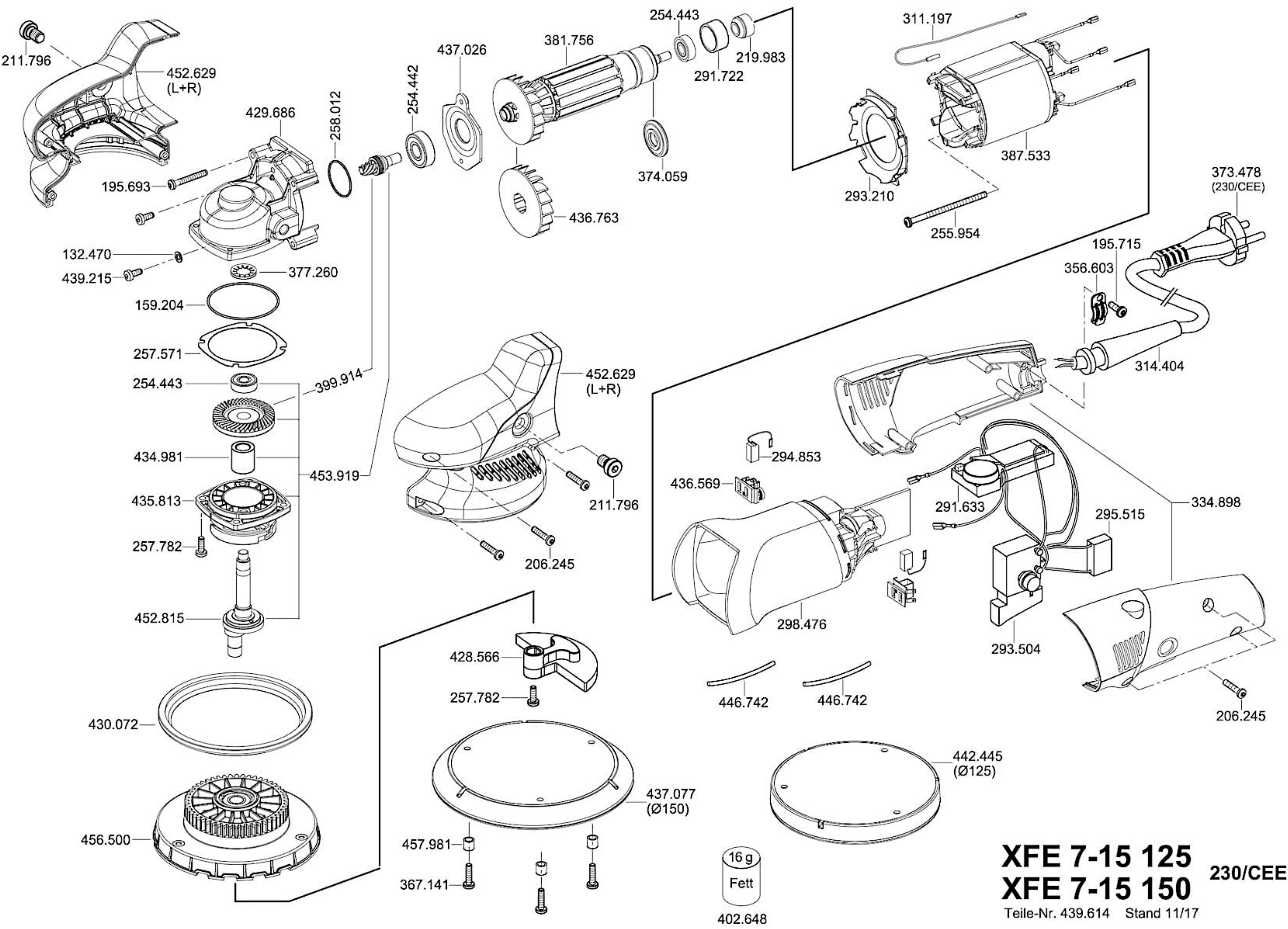

Drawing Flex XFE 7-15 150

Drawing Flex XFE 7-15 150

Download (576.36KB)
