Flex Spare Parts for Vacuum Cleaner S 47

SKU: Flex Aspiratore S47
€0.78
VAT included

Flex Spare Parts for Vacuum Cleaner S 47

Flex original spare parts at the lowest price on the web to make maintenance, to replace broken parts or repair S 47 vacuum cleaner, quick shipping and after-sales assistance.

Flex Spare Parts for Vacuum Cleaner S 47
  • Flex Spare Parts for Vacuum Cleaner S 47
  • Flex Spare Parts for Vacuum Cleaner S 47
  • Flex Spare Parts for Vacuum Cleaner S 47
  • Flex Spare Parts for Vacuum Cleaner S 47
  • Flex Spare Parts for Vacuum Cleaner S 47
  • Flex Spare Parts for Vacuum Cleaner S 47

Flex Spare Parts for Vacuum Cleaner S 47

SKU: Flex Aspiratore S47 Condition: New
€0.78
VAT included

Flex Spare Parts for Vacuum Cleaner S 47

Flex original spare parts at the lowest price on the web to make maintenance, to replace broken parts or repair S 47 vacuum cleaner, quick shipping and after-sales assistance.

settings 59 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

59 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 340316 COVER X S47 €157.34
2
photo_cameraImage coming soon 337641 PUSHING BUTTON €14.48
3
photo_cameraImage coming soon 337706 SCREW 5x30 S 47 €1.34
4
photo_cameraImage coming soon 340464 BUTTON GRAY S47 €7.73
5
photo_cameraImage coming soon 340499 SPRING S47 €6.87
6
photo_cameraImage coming soon 340472 PUSH BUTTON S47 €9.32
8
photo_cameraImage coming soon 297615 MICRO SWITCH X S36 €16.57
10
photo_cameraImage coming soon 340456 KNOB S47 €4.17
11
photo_cameraImage coming soon 340367 CONTROL PANEL S47 €54.53
12
photo_cameraImage coming soon 297593 INDICATOR GREEN S36 €13.62
13
photo_cameraImage coming soon 340596 S47 LED SWITCH €26.64
14
Switch S47 for Vacuum Cleaner Flex VC 35 L MC 340618 Switch S47 for Vacuum Cleaner Flex VC 35 L MC €21.22 Not available for order
15
photo_cameraImage coming soon 337668 SIDE HOOK X S47 €5.64
16
photo_cameraImage coming soon 297534 CABLE COMPLETE €80.44
17
photo_cameraImage coming soon 297542 HOLDER ACCESSORIES S36 €7.73
18
photo_cameraImage coming soon 325910 SCREW 3x12 S36M €2.48
19
photo_cameraImage coming soon 340359 POTENTIOMETER X SPEED €65.58
20
photo_cameraImage coming soon 297623 S36 PROTECTION €3.80
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 340332 HOUSING S47 €127.86
2
photo_cameraImage coming soon 340510 DISC S47 €11.78
3
photo_cameraImage coming soon 340561 MOTOR S47 €210.21
4
photo_cameraImage coming soon 340588 BRUSHES X S47 €53.32
5
photo_cameraImage coming soon 340553 DISC S47 €9.94
6
photo_cameraImage coming soon 340634 CABLE S47 €3.31
8
photo_cameraImage coming soon 340308 COVER S47 €116.80
9
photo_cameraImage coming soon 340421 PROBE S 47 / M, VCE 35/45-L / M €7.73
10
Electronic Board for Vacuum Cleaner Flex S 47 340340 Electronic Board for Vacuum Cleaner Flex S 47 €248.32 Not available for order
11
photo_cameraImage coming soon 340677 CLAMP S47 €6.87
12
photo_cameraImage coming soon 297550 SCREW 4x16 VCE €2.94
14
photo_cameraImage coming soon 340480 SPRING S47 €14.48
15
photo_cameraImage coming soon 337706 SCREW 5x30 S 47 €1.34
16
Flat Folded Filter for Vacuum Flex S 36 337692 Flat Folded Filter for Vacuum Flex S 36 €72.03
17
photo_cameraImage coming soon 340537 WASHER S47 €2.20
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 340383 DOOR MAGNET S47 €11.17
3
photo_cameraImage coming soon 340545 0-RING S47 €5.39
5
photo_cameraImage coming soon 340502 GRID S47 €20.26
6
photo_cameraImage coming soon 340375 SUPPORT S47 €12.76
7
photo_cameraImage coming soon 340391 COVER S47 €42.86
8
photo_cameraImage coming soon 340405 SUPPORT S47 €31.68
9
photo_cameraImage coming soon 340650 SCREW 5x80 S47 €2.94
10
photo_cameraImage coming soon 340626 CABLE S47 €20.26
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
2
photo_cameraImage coming soon 340324 TANK S47 €202.78
3
photo_cameraImage coming soon 298158 BOCCHETTA S36 / S47 €7.73
4
photo_cameraImage coming soon 340413 SUPPORT X S47 €12.76
5
photo_cameraImage coming soon 298174 WASHER X S47 €1.34
6
photo_cameraImage coming soon 298182 WHEEL COVER S47 €8.59
8
photo_cameraImage coming soon 337684 FRONT WHEEL X S47 €53.91
9
Connection for Vacuum Cleaner Flex S 36 298212 Connection for Vacuum Cleaner Flex S 36 €24.65
10
Bolt for Vacuum Cleaner Flex S 36 298298 Bolt for Vacuum Cleaner Flex S 36 €4.49
11
photo_cameraImage coming soon 340448 WASHER X S47 €5.39
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 408697 SAM-C R32 AS / NL €60.67
2
Rubber Cord for Vacuum Cleaner Flex S 36 298239 Rubber Cord for Vacuum Cleaner Flex S 36 €7.76
3
Flex VC 35 L MC Vacuum Cleaner Clip SH-C 32 379654 Flex VC 35 L MC Vacuum Cleaner Clip SH-C 32 €2.19
4
photo_cameraImage coming soon 378526 JINT AS, VC / E 35/45 €39.91
5
photo_cameraImage coming soon 299782 SUCTION HOSE €93.60
6
photo_cameraImage coming soon 296953 EXTENSION FOR SUCTION HOSE €22.96
8
photo_cameraImage coming soon 385530 LONG INTAKE JOINT €12.15
9
photo_cameraImage coming soon 251847 ADAPTER, Ø 32/28 mm €7.48
11
photo_cameraImage coming soon 445509 Floor nozzle €60.71
14
photo_cameraImage coming soon 300667 WHEEL €4.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Vacuum Cleaner S 47

Flex original spare parts at the lowest price on the web to make maintenance, to replace broken parts or repair S 47 vacuum cleaner, quick shipping and after-sales assistance.

In the following table, look for the model of the Vacuum Cleaner and the respective parts of the code.
Flex Aspiratore S 47

FLEX S 47 vacuum cleaner

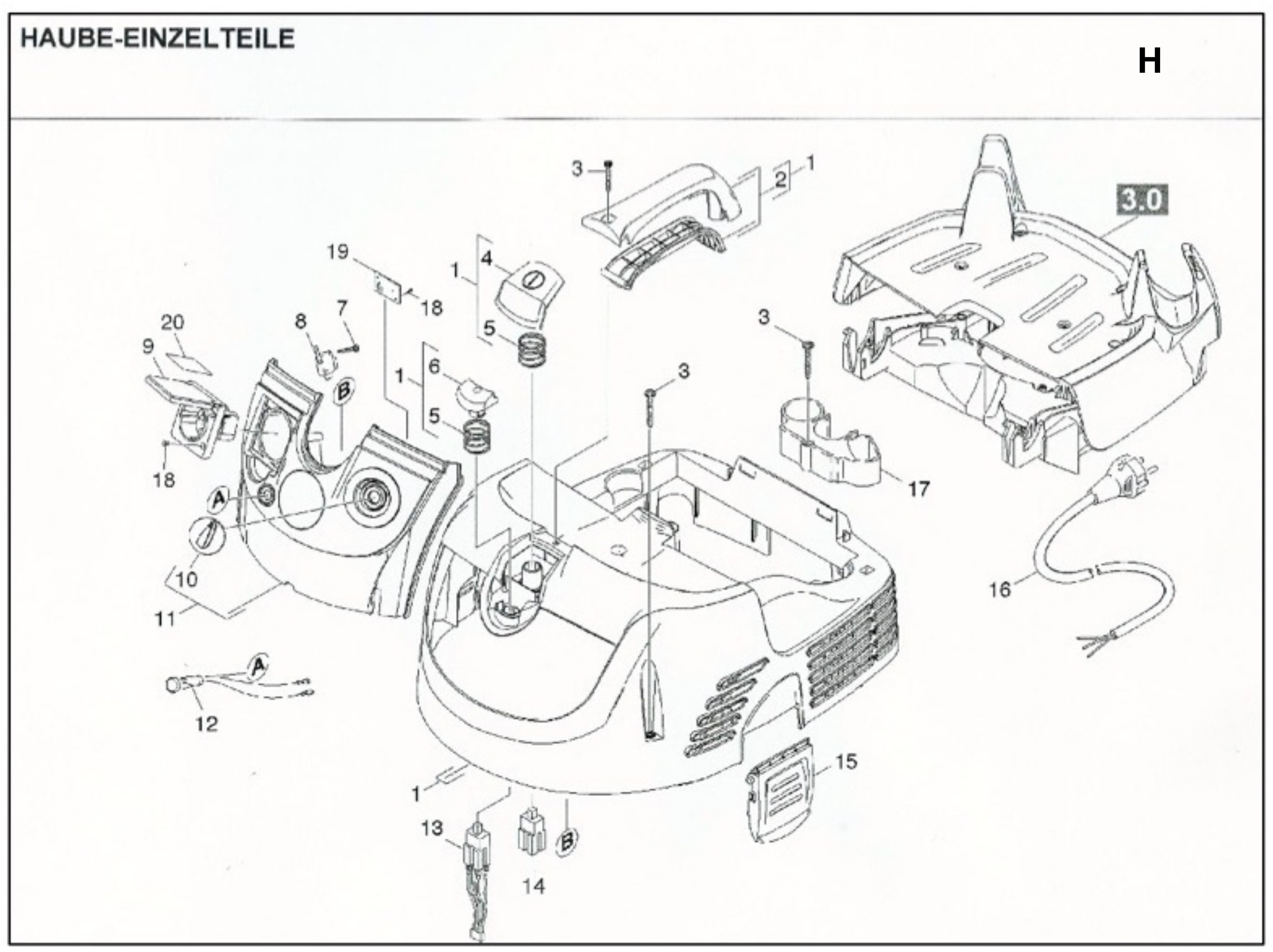

H Pag.1
# Part Num. Description
1 340316 COVER X S47
2 337641 HANDLE
3 337706 SCREW 5x30 S 47
4 340464 BUTTON GRAY S47
5 340499 SPRING S47
6 340472 PUSH BUTTON S47
7 329797 SCREW KT-, KT 4 x 16 vz
8 297615 MICRO SWITCH X S36
9 297607 SOCKET S 36
10 340456 KNOB S47
11 340367 CONTROL PANEL S47
12 297593 GREEN LED S36
13 340596 S47 LED SWITCH
14 340618 SWITCH S47
15 337668 SIDE HOOK X S47
16 297534 POWER CABLE S 36
17 297542 SUPPORT ACCESSORIES S36
18 325910 SCREW 3x12 S36M
19 340359 POTENTIOMETER X SPEED
20 297623 SCUDO S36

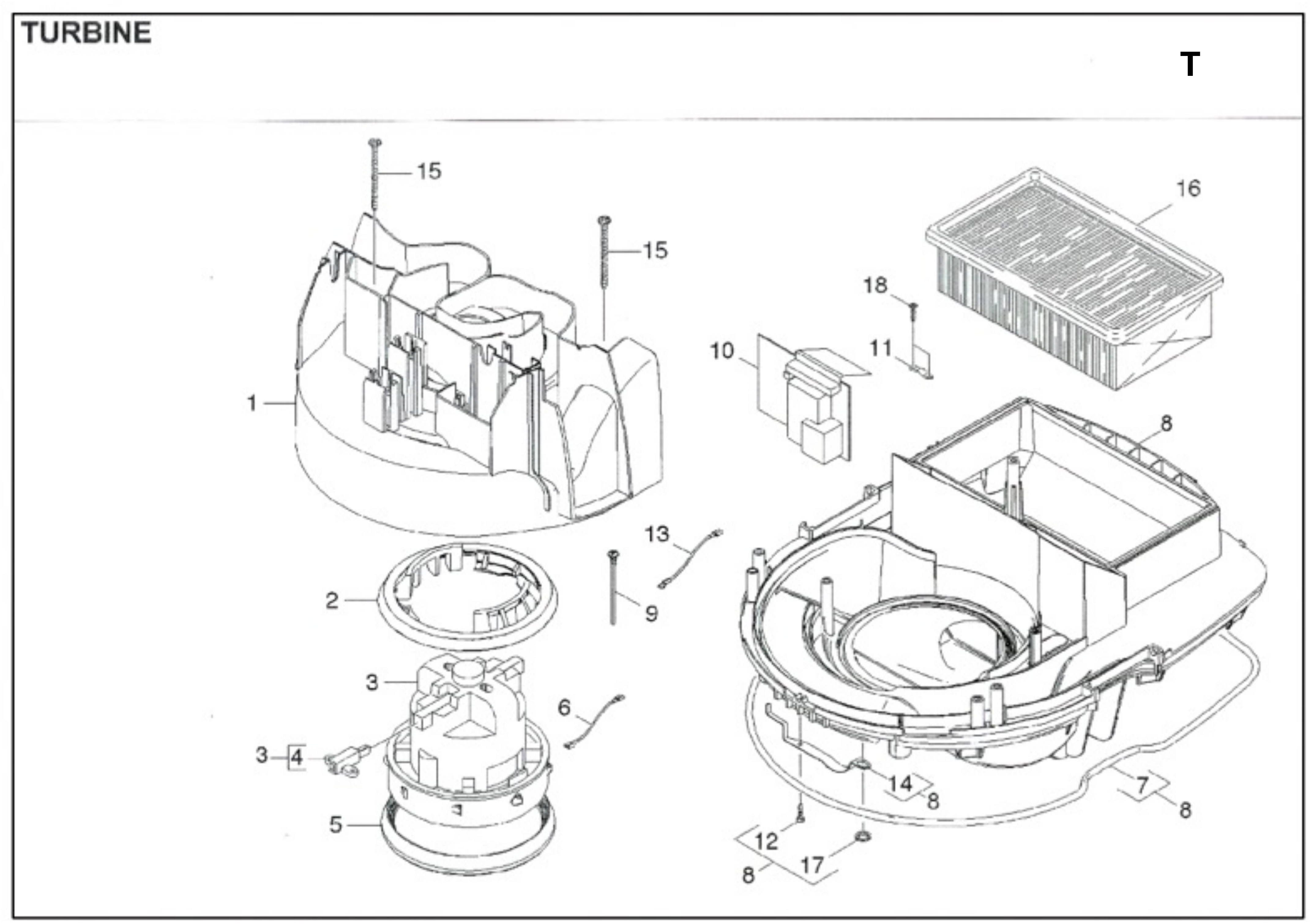

T Pag.2
1 340332 HOUSING S47
2 340510 DISC S47
3 340561 MOTOR S47
4 340588 BRUSHES X S47
5 340553 DISC S47
6 340634 CABLE S47
7 297860 GASKET X S36
8 340308 COVER S47
9 340421 PROBE S 47 / M, VCE 35/45-L / M
10 340340 ELECTRONIC BOARD S47
11 340677 CLAMP S47
12 297550 SCREW 4x16 VCE
13 340642 WHIRE S47
14 340480 SPRING S47
15 337706 SCREW 5x30 S 47
16 337692 FILTER
17 340537 WASHER S47

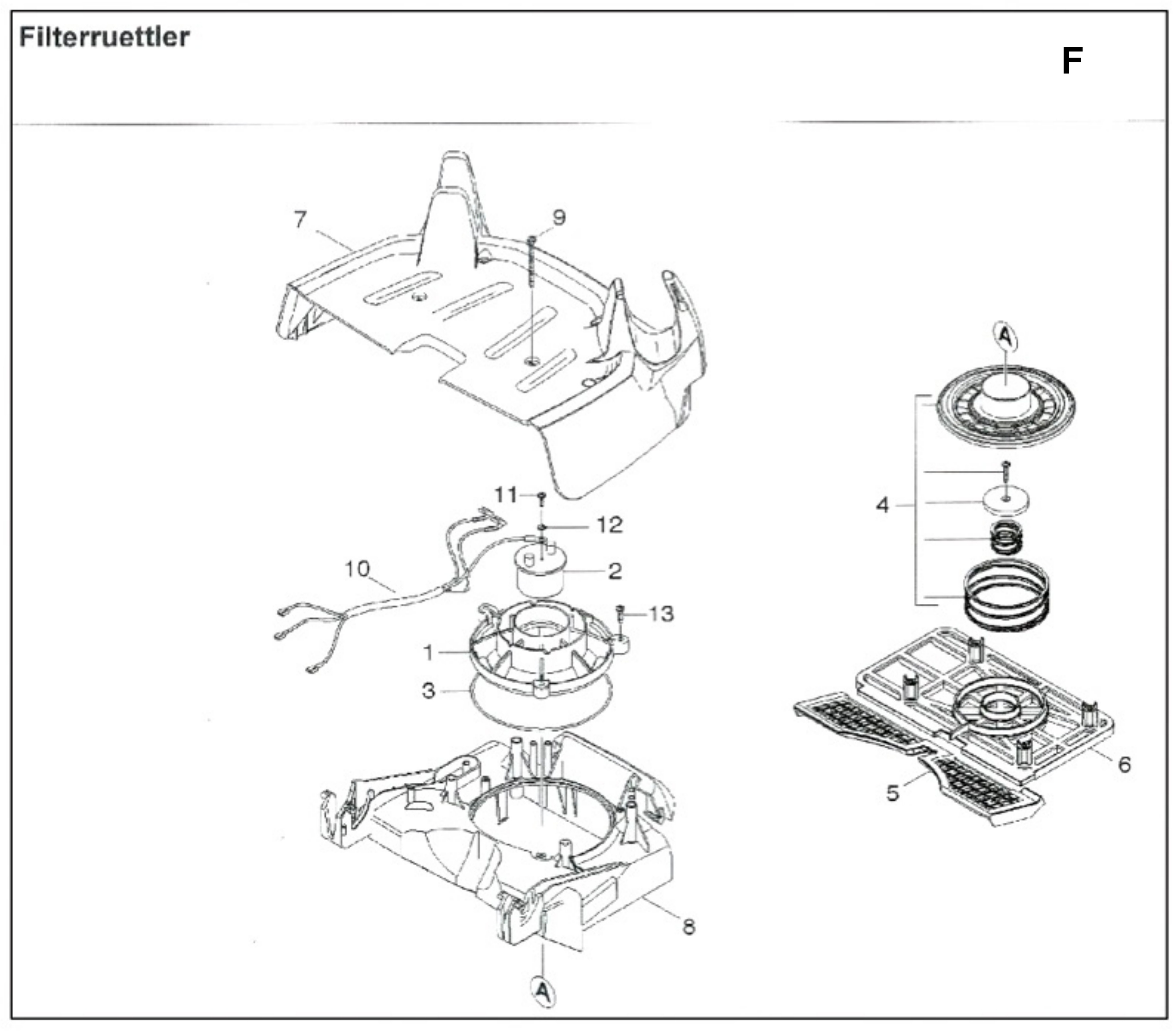

F Pag.3
1 340383 DOOR MAGNET S47
2 340669 MAGNET X S47
3 340545 0-RING S47
4 340294 KIT MAGNETE S47
5 340502 GRID S47
6 340375 SUPPORT S47
7 340391 COVER S47
8 340405 SUPPORT S47
9 340650 SCREW 5x80 S47
10 340626 CABLE S47
11 325937 SCREW M4x8 S36M
13 195715 SCREW LK 604 4X12

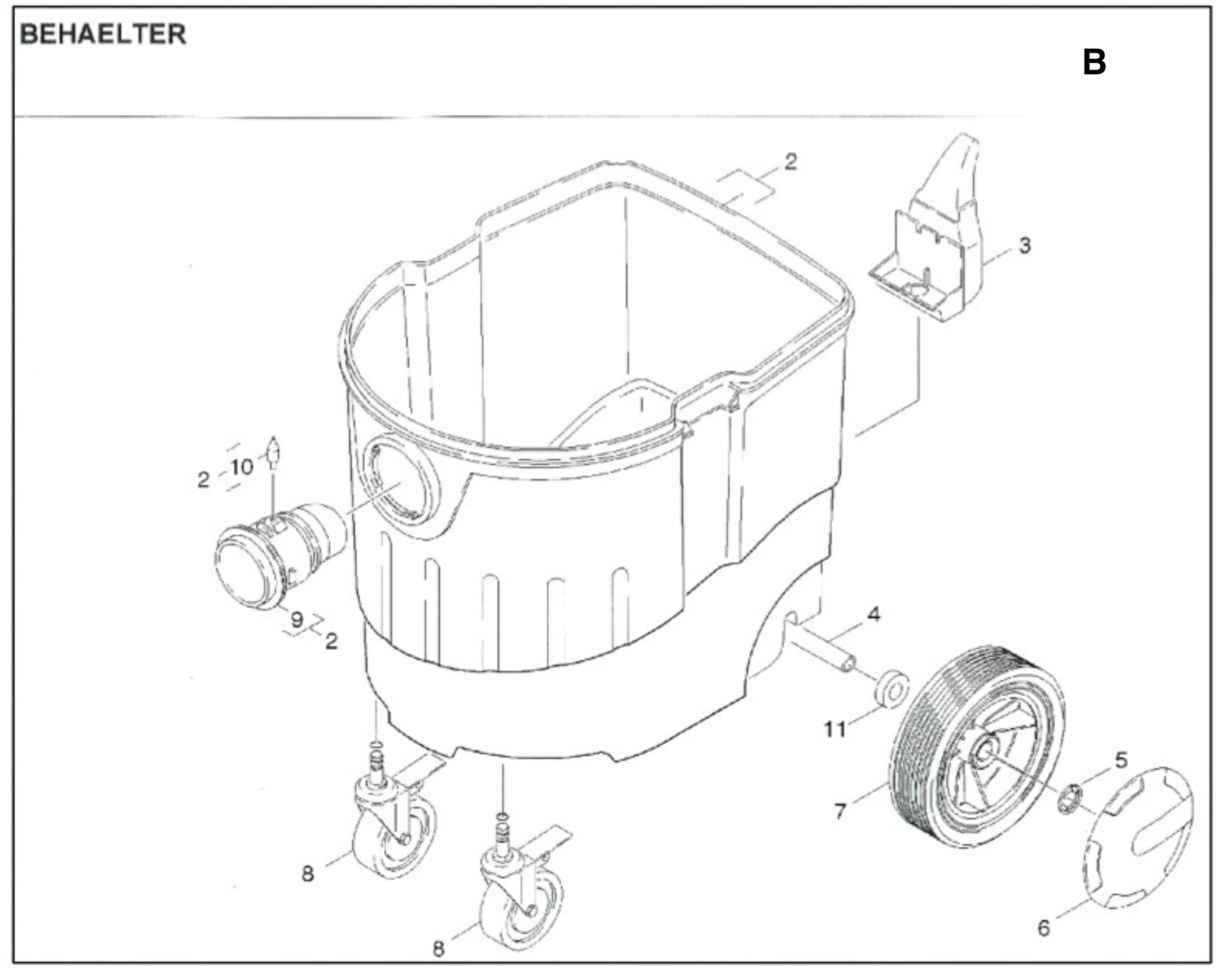

B Pag.4
2 340324 TANK S47
3 298158 NOZZLE S36 / S47
4 340413 SUPPORT X S47
5 298174 WASHER X S47
6 298182 WHEEL COVER S47
7 298190 REAR WHEEL X S47
8 337684 FRONT WHEEL X S47
9 298212 CONNECTION X S36
10 298298 BOLT S36
11 340448 WASHER X S47

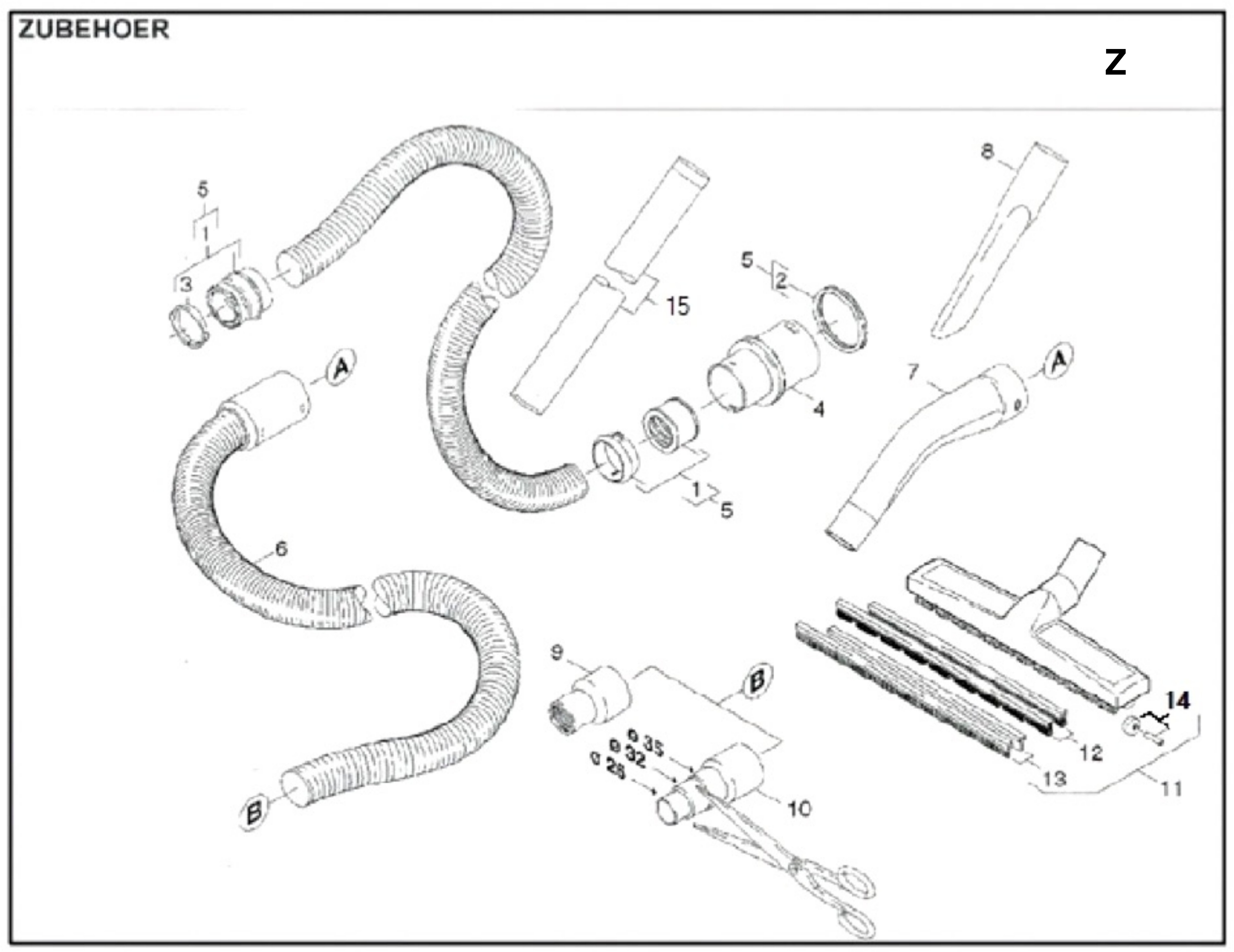

Z Pag.5
1 408697 SAM-C R32 AS / NL
2 298239 RUBBER CORD S36
3 379654 CLIP SH-C 32
4 378526 JINT AS, VC / E 35/45
5 299782 SUCTION TUBE SH-C 32x4m
6 296953 SHV-C 32x0.5m
8 385530 CN 36x300
9 251847 ADAPTER 32/28 mm Ø
11 445509 FLOOR NOZZLE
14 300667 ROLLER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex Aspiratore S47
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Flex S 47

Diagram Flex S 47

Download (801.93KB)
