Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016

SKU: Flex LK 604 - 256.245
€25.34
VAT included

Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016

Flex original spare parts for to replace broken parts for to fix 1200 w Angle Grinder LK 604 - from 01.02.2016 - 256.245

Fix Your 1200 w Angle Grinder LK 604. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016
  • Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016
  • Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016

Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016

SKU: Flex LK 604 - 256.245 Condition: New
€25.34
VAT included

Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016

Flex original spare parts for to replace broken parts for to fix 1200 w Angle Grinder LK 604 - from 01.02.2016 - 256.245

Fix Your 1200 w Angle Grinder LK 604. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 37 spare parts

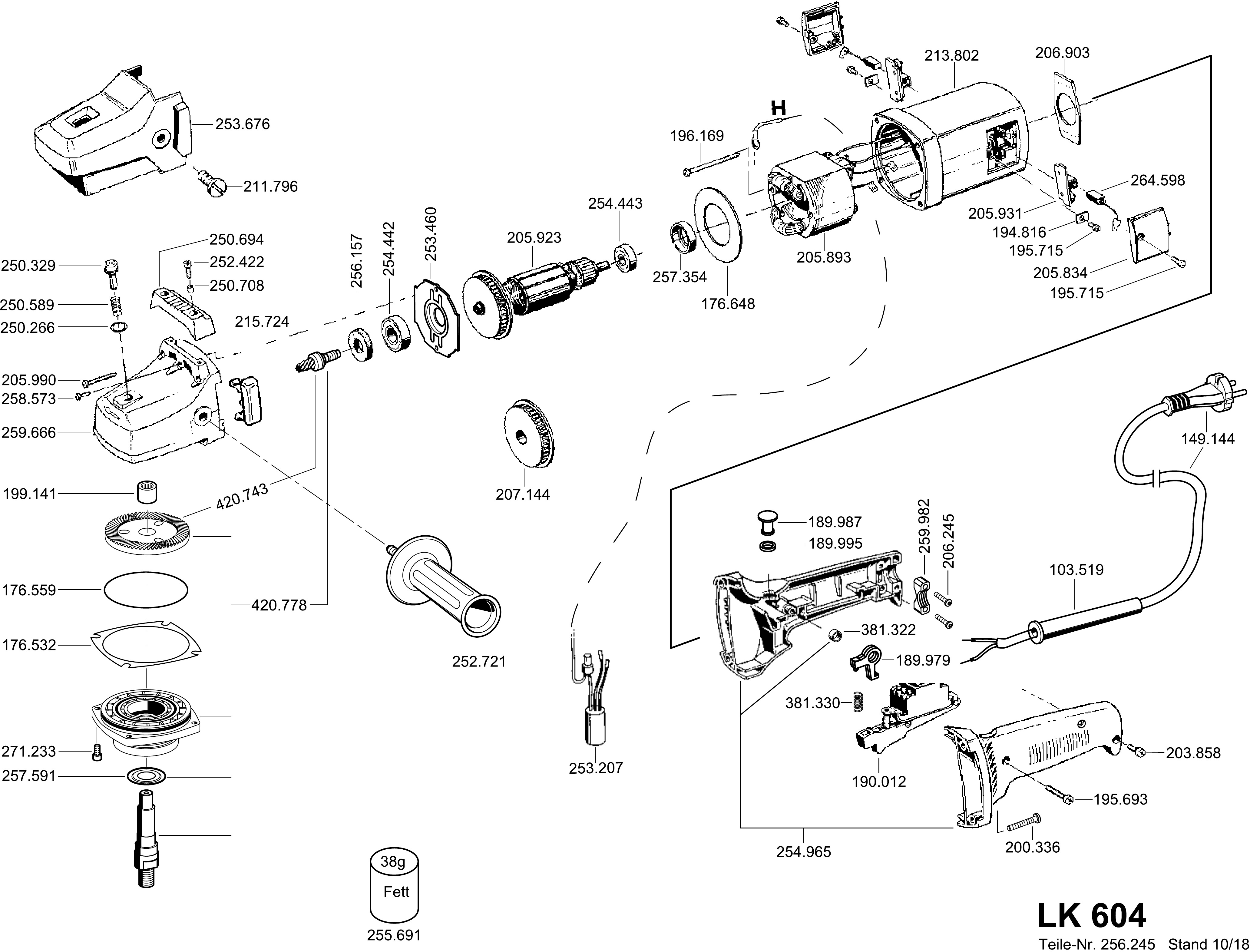

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 103519 SHEATH CABLE €4.59
photo_cameraImage coming soon 149144 FLEX CABLE ORIGINAL 2X1X4 MT. €18.17
photo_cameraImage coming soon 176532 SPACER €1.50
photo_cameraImage coming soon 176648 FAN LK 302/604/610 €4.31
photo_cameraImage coming soon 189979 SWITCH SAFETY LEVER €2.54
photo_cameraImage coming soon 189987 SAFETY BUTTON INT. LK 604 €1.50
Switch for Straight Grinder Flex H1206 190012 Switch for Straight Grinder Flex H1206 €46.25
photo_cameraImage coming soon 194816 ROACH €1.33
photo_cameraImage coming soon 199141 BRONZE BUSCHING LK 604 €3.71
photo_cameraImage coming soon 200336 SCREW LK 2006 €11.28
photo_cameraImage coming soon 205834 CAP PORTASPAZZ. LK 302/604 €4.62
photo_cameraImage coming soon 205893 STATOR LK 604/610/302 €92.05
photo_cameraImage coming soon 205923 ARMATURE LK 604/610/302 €98.53
photo_cameraImage coming soon 205931 BRUSH HOLDER LK 302/604/610 €7.56
photo_cameraImage coming soon 206903 SEAL €3.36
photo_cameraImage coming soon 207144 FAN LK 302/604/610 €4.62
Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 211796 Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 €0.91
photo_cameraImage coming soon 213802 MOTOR CASE LK 302/604/610 €47.94
photo_cameraImage coming soon 215724 AIR DEFLECTOR LK 604 €2.54
photo_cameraImage coming soon 250329 CROWN BLOCK BUTTON €9.37
photo_cameraImage coming soon 250694 RUBBER PROTECTION LK 604 €5.33
photo_cameraImage coming soon 252721 GS-M M8 €11.76
photo_cameraImage coming soon 253207 CAPACITOR X2 0,1ΜF LK 604 €4.58
photo_cameraImage coming soon 253460 INSIDE COVER LK604-EX 205885 €5.90
photo_cameraImage coming soon 253676 HEAD COVER RED X LK604 €21.88
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 254965 GRIP LK 302/604/610 €33.46
photo_cameraImage coming soon 255691 FETT, DOSE1KG RENOLIT LXGFL0 €53.85
Felt for Burnishing Flex LP 1503 VR 256157 Felt for Burnishing Flex LP 1503 VR €10.83
photo_cameraImage coming soon 257591 Ring, seal 6202 ZAV €4.17
photo_cameraImage coming soon 259666 HEAD X LK 603-604-LG 1707 €88.92
photo_cameraImage coming soon 259982 CLAMP €1.27
Carbon Brush K54 for Reciprocating Saw FLEX SR 602 VV 264598 Carbon Brush K54 for Reciprocating Saw FLEX SR 602 VV €22.40
photo_cameraImage coming soon 381322 Ring für Schalthaken €3.59
Crown Gear + Bevel Gear for Grinder Flex LK 604 420743 Crown Gear + Bevel Gear for Grinder Flex LK 604 €116.89
photo_cameraImage coming soon 420778 Rep. -Set LK604-KH, Riz-GW-mont €114.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Angle Grinder LK 604 - from 01.02.2016

Flex original spare parts for to replace broken parts for to fix 1200 w Angle Grinder LK 604 - from 01.02.2016 - 256.245

In the following table, look for the model of the Reciprocating Saw and the respective parts of the code.
1200 w Angle Grinder LK 604
1200 watt 175 mm Angle Grinder LK 604 - from 01.02.2016
Part Num. Description
253676 HEAD COVER RED X LK604
211796 HEAD COVER SCREW
250329 CROWN BLOCK BUTTON
250266 Ring 12.42x1.78
205990 SCREW SK 602 VE
258573 INTERNAL SCREW LK604 (EX 251851)
259666 HEAD X LK 603-604-LG 1707
199141 BRONZE BUSCHING LK 604
176559 RUBBER GASKET LK 302/604
176532 SPACER
271233 Schraube, DIN 912 M5x16 mik.
257591 NILOS LW 1703
420778 Rep. -Set LK604-KH, Riz-GW-mont
420743 Gear Set 604 -KH
215724 AIR DEFLECTOR LK 604
250708 Buchse, Distanz- LK 603 VR
252422 Schraube, Zylind M4x12 DIN 85
250694 RUBBER PROTECTION TEST.LK 604
256157 UNIVERSAL FELT
254442 BEARING 6000 2 RSD
253460 INTERNAL COVER LK604-EX 205885
205923 ARMATURE LK 604/610/302
254443 BEARING 607 2 RSD
257354 BEARING BUSCING
196169 SCREWS KA40X55
176648 FAN GUARD LK 302/604/610
205893 STATOR LK 604/610/302
213802 MOTOR HOUSING LK 302/604/610
206903 SEAL
264598 CARBON BRUSHES K54
205931 LK 302/604/610 POCKET HOLDER
194816 Lasche
195715 SCREW LK 604 4X12
205834 CARBON BRUSCH CAP LK 302/604
195715 SCREW LK 604 4X12
207144 FAN LK 302/604/610
252721 GS-M M8
253207 Kondensator X2 0.1μF LK 604
149144 POWER CORD ORIGINAL FLEX 2X1X4 MT.
103519 CORD SLEEVE
203858 Schraube, KT-, KT 4 x 25
195693 SCREW LK 604 4X30
200336 VINE LK 2006
254965 GRIP LK 302/604/610
190012 SWITCH LK 302/604/610
381330 Feder, Schraubendruck
189979 SWITCH SAFETY LEVER
381322 Ring für Schalthaken
206245 VINES 40X20
259982 Schelle, Kabel-PA6 L2108
189987 SAFETY BUTTON INT. LK 604
189995 KNOB FELT LK 604-L 2806
255691 Fett, Dose1Kg Renolit LXGFL0
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex LK 604 - 256.245
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Drawing LK 604 from 01.02.2016

Drawing LK 604 from 01.02.2016

Download (187.3KB)
