Flex Spare Parts for Angle Grinder L 1109

SKU: Flex L 1109 252.118
€9.71
VAT included

Flex Spare Parts for Angle Grinder L 1109

Flex original spare parts for to replace broken parts for to fix Angle Grinder L 1109.
Flex Spare Parts for Angle Grinder L 1109
  • Flex Spare Parts for Angle Grinder L 1109
  • Flex Spare Parts for Angle Grinder L 1109

Flex Spare Parts for Angle Grinder L 1109

SKU: Flex L 1109 252.118 Condition: New
€9.71
VAT included

Flex Spare Parts for Angle Grinder L 1109

Flex original spare parts for to replace broken parts for to fix Angle Grinder L 1109.
settings 32 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

32 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
Nut M14 Lock Disc for Angle Grinder Flex L 3709 100080 Nut M14 Lock Disc for Angle Grinder Flex L 3709 €9.71
O-Ring Spacer for Angle Grinder Flex L 1506 VR 159204 O-Ring Spacer for Angle Grinder Flex L 1506 VR €0.80
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
photo_cameraImage coming soon 159271 BEARING ROLLERS HEAD MINIS €9.03
photo_cameraImage coming soon 159603 ARMATURE ZL 1106 SE / 1109/1104 €80.39
photo_cameraImage coming soon 166561 ARMATURE 110 / EEC L 1109 €81.39
photo_cameraImage coming soon 191604 NUT -SW 17 €8.36
photo_cameraImage coming soon 194034 GS-K M8 €12.63
photo_cameraImage coming soon 195782 SWITCH €13.99
photo_cameraImage coming soon 195812 INTERNAL LEVER SWITCH €1.32
Cord Grommet 8,3 mm for Power Tools Flex 197041 Cord Grommet 8,3 mm for Power Tools Flex €3.28
photo_cameraImage coming soon 203068 MOTOR BODY X 1107 VE €25.82
photo_cameraImage coming soon 209139 RING - L 1109 €2.07
photo_cameraImage coming soon 211451 SWITCH BUTTON €2.54
Capacitor for Angle Grinder FLEX L 1109 212636 Capacitor for Angle Grinder FLEX L 1109 €14.19
photo_cameraImage coming soon 213764 COVER MOTOR BODY X MINI €21.27
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 218073 BRUSHES 110V L83 F13 €6.60
photo_cameraImage coming soon 235164 FAN L 1506/1509/1503 €4.99
photo_cameraImage coming soon 236470 POWER CABLE ORIGINAL FLEX 2X1 X2.5 MT €11.69
photo_cameraImage coming soon 250265 BUTTON CROWN BLOCKING €5.69
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
Felt for Burnishing Flex LP 1503 VR 256157 Felt for Burnishing Flex LP 1503 VR €10.83
photo_cameraImage coming soon 257571 SPACERS THICKNESS 0.2 €1.67
photo_cameraImage coming soon 257750 COVERS HEAD €4.72
photo_cameraImage coming soon 261165 WIRE CONDENSER L 1109 €3.51
Carbon Brush Set for Angle Grinder FLEX L 1109 267414 Carbon Brush Set for Angle Grinder FLEX L 1109 €20.27
photo_cameraImage coming soon 268011 6001 BEARING €4.44
photo_cameraImage coming soon 277126 GEARCASE L1109 FE €112.46
photo_cameraImage coming soon 292656 STATOR L 1106/1109 EX160997 €89.46
photo_cameraImage coming soon 292672 STATOR 110V L 1109 €85.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Angle Grinder L 1109

Flex original spare parts for to replace broken parts for to fix Angle Grinder L 1109.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Angle Grinder L 1109
Angle Grinder L 1109
Part Num. Description
100080 CLAMP WASHER M14
159204 SPACER
159247 DISC
159271 NEEDLE BEARING
159603 ARMATURE ZL 1106 SE / 1109/1104
166561 ARMATURE 110 / EEC L 1109
191604 INTERNAL FLANGE-SW 17
194034 HANDLE GS-K M8
195693 SCREW LK 604 4X30
195715 SCREW LK 604 4X12
195782 SWITCH
195812 SWITCH LEVER
195820 SWITCH SPRING
196169 SCREW KA40X55 FOR HEAD
197041 CORD GUARD 8,3mm
203068 MOTOR CASING X 1107 VE
209139 RUBBER BUSHING L 1109
211451 SWITCH BUTTON
212636 CAPACITOR
213373 SCREW 4 x 20/9
213764 MOTOR COVER X MINI
215074 CABLE CLAMP
218073 BRUSHES 110V L83 F13
235164 FAN L 1506/1509/1503
236470 POWER CABLE ORIGINAL FLEX 2X1 X2.5 MT
250265 BLOCK BUTTON
250266 RING 12.42x1.78
250589 SPRING BUTTON
254442 BEARING 6000 2 RSD
254443 BEARING 607 2 RSD
256157 UNIVERSAL FELT
257571 SPACER 0,2
257750 BEARING HOLDER
257782 SCREW X L1710 FRA
258573 INTERNAL SCREW LK604 (EX 251851)
261165 WHIRE L 1109
267414 CARBON BRUSHE SET K 56 X L1109 FE 230V
268011 WASHER 6001
277126 GEAR BOX L1109 FE
292656 STATOR L 1106/1109 EX160997 230V
292672 STATOR 110V L 1109
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex L 1109 252.118
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

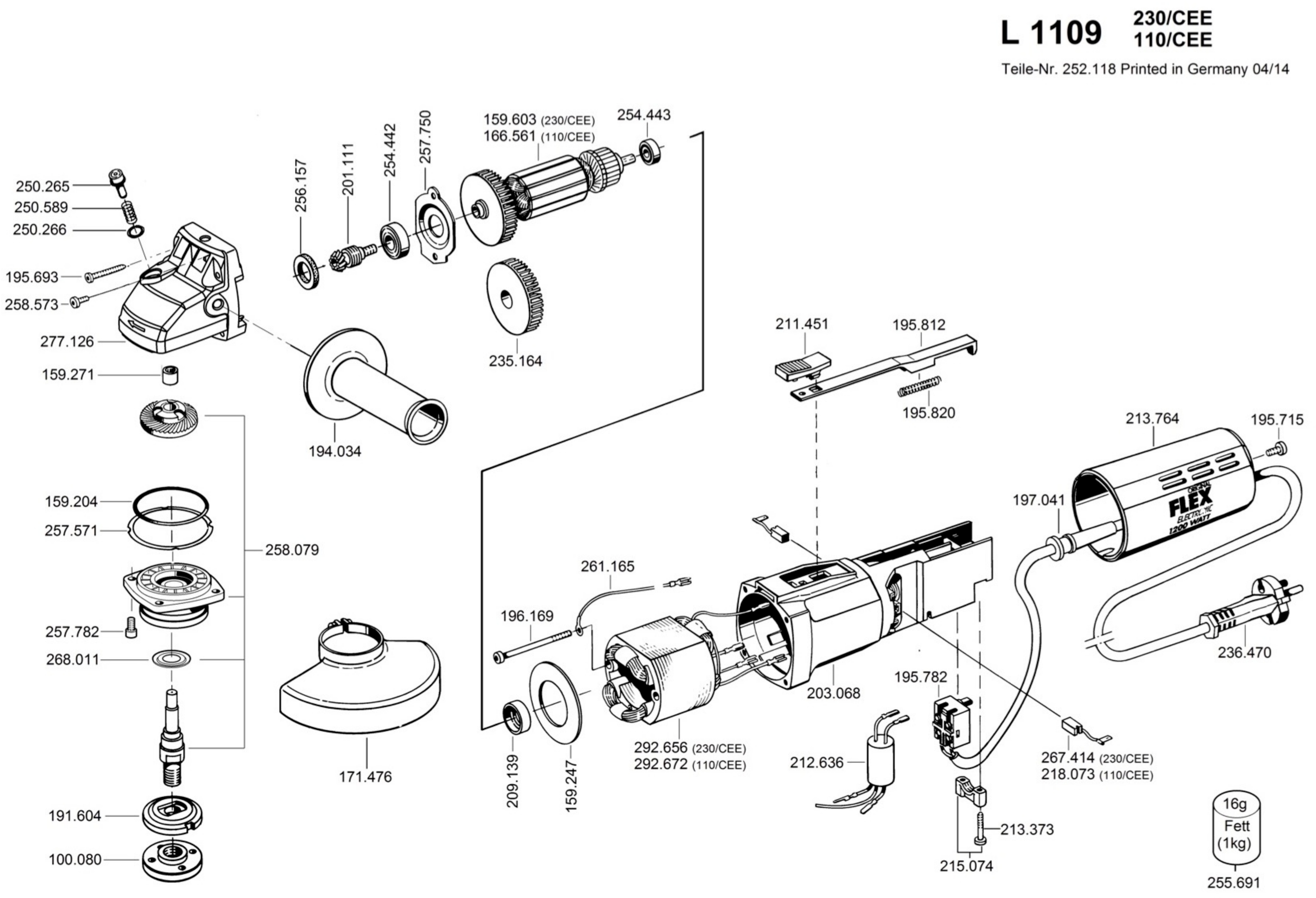

Diagram Flex L 1109
