Flex Spare Parts for Polisher PE 8-4 80
Flex original spare parts for to replace broken parts for to fix
Polisher PE 8-4 80.
Fix Your
Polisher. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Polisher and the respective parts of the code.

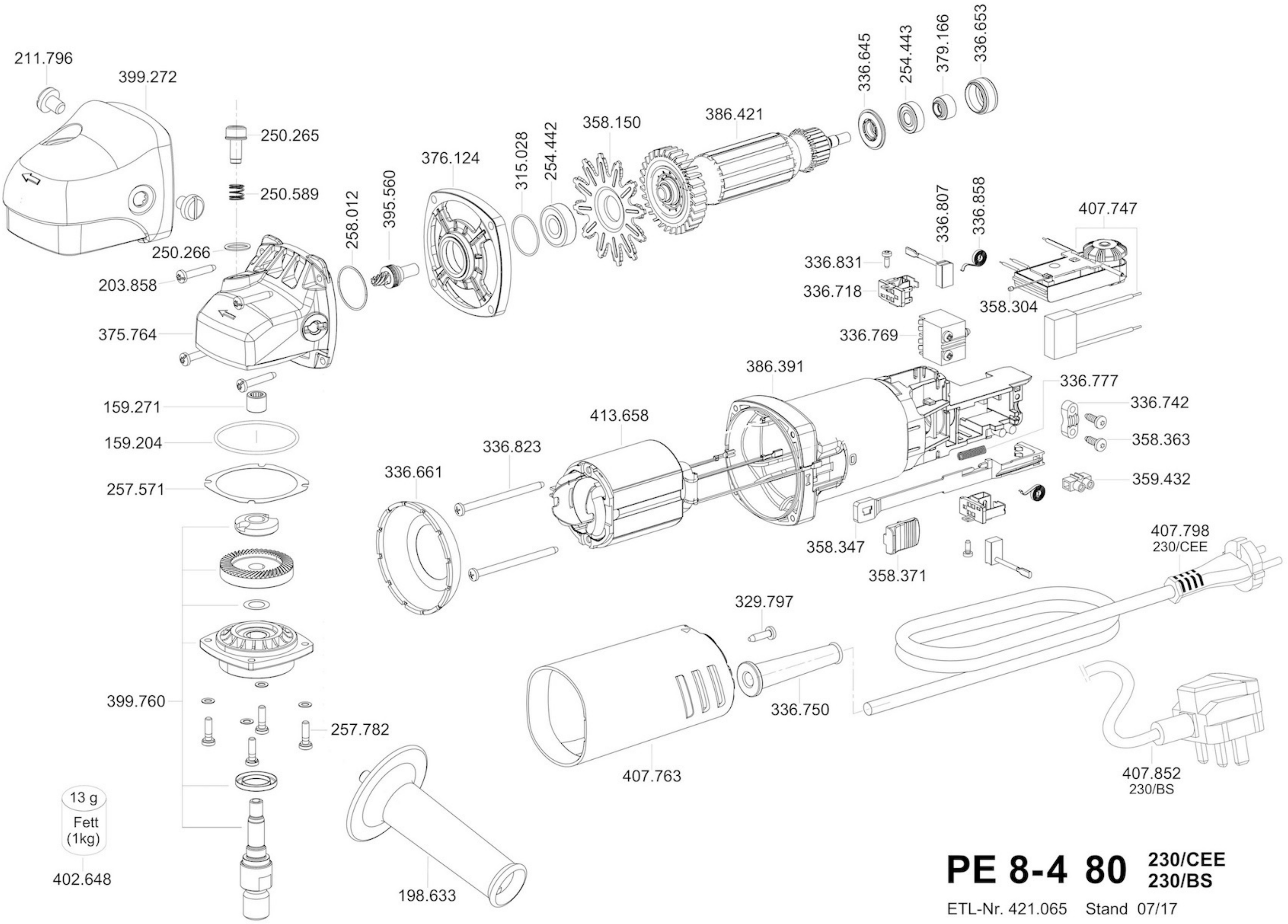

| Polisher PE 8-4 80 |
| Part Num. |
Description |
| 159204 |
SPACER |
| 159271 |
NEEDLE BEARING |
| 198633 |
Side Handle |
| 203858 |
Screw, KT, KT 4 x 25 |
| 211796 |
SCREW |
| 250265 |
LOCK BUTTON |
| 250266 |
Ring 12.42x1.78 |
| 250589 |
Spring lock button |
| 254442 |
BEARING 6000 2 RSD |
| 254443 |
BEARING 607 2 RSD |
| 257571 |
THICKNESS SPACERS 0,2 |
| 257782 |
SCREW X L1710 FRA |
| 258012 |
O-ring DIN3770 |
| 315028 |
O-ring 24x1 |
| 329797 |
Screw, KT, KT 4 x 16, vz |
| 336645 |
Dust Washer L3709 |
| 336653 |
Bearing Protection |
| 336661 |
Deflector L3709 |
| 336718 |
HOLDER BRUSH L 3709 |
| 336742 |
Cable clamp L3709 |
| 336750 |
CORD GUARD L3709 |
| 336769 |
SWITCH L3709 |
| 336777 |
0-RING X SKL 2903 |
| 336807 |
CARBON BRUSHES 3709 |
| 336823 |
Screw KT 4,2x60 L 3709 |
| 336831 |
Screw KT 2.9x8 L 3709 |
| 336858 |
Spring L3709 |
| 358150 |
Bearing LE 9-10 125 |
| 358304 |
PTC temperature s. LE 9-10 125 |
| 358347 |
Lever switch LE 9-10 125 |
| 358363 |
SCREW LE 9-10 125 |
| 358371 |
Switch Button LE 9-10 125 |
| 359432 |
Screw terminal, 1 pole, 302-N |
| 375764 |
Gear box |
| 376124 |
Bearing Support |
| 379166 |
Magnetic ring PE 8-4 80 |
| 386391 |
Motor HOUSING |
| 386421 |
ARMATURE PE 8-4 80 230 / EEC |
| 399272 |
Gears Box Cover |
| 407747 |
Electronic Board PE 8-4 80 230V |
| 407763 |
Motor Cover 8-4 80 230V |
| 407798 |
POWER Cable + plug PE 8-4 80 230 CEE |
| 407852 |
POWER Cable + plug PE 8-4 80 230 BS |
| 413658 |
Stator PE 8-4 80 230 / EEC |
| 446254 |
PAD M14 D.35 |
