Flex Spare Parts for Angle Grinder LE 9-11 125

SKU: LE 9-11-125
€9.71
VAT included

Flex Spare Parts for Angle Grinder LE 9-11 125

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Angle Grinder LE 9-11 125.
Flex Spare Parts for Angle Grinder L 8-11 115/125
  • Online only
  • Flex Spare Parts for Angle Grinder L 8-11 115/125
  • Flex Spare Parts for Angle Grinder LE 9-11 125

Flex Spare Parts for Angle Grinder LE 9-11 125

SKU: LE 9-11-125 Condition: New
€9.71
VAT included

Flex Spare Parts for Angle Grinder LE 9-11 125

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Angle Grinder LE 9-11 125.
settings 47 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
Nut M14 Lock Disc for Angle Grinder Flex L 3709 100080 Nut M14 Lock Disc for Angle Grinder Flex L 3709 €9.71
photo_cameraImage coming soon 100110 KEY, BL 5 €8.89
Flat Washer for Angle Grinder Flex L 3709 335282 Flat Washer for Angle Grinder Flex L 3709 €7.10
photo_cameraImage coming soon 339091 BEARING L 3906 C €18.42
photo_cameraImage coming soon 341207 SEAL L 3906 C €1.35
photo_cameraImage coming soon 357936 THE CROWN 9-10125 €28.12
photo_cameraImage coming soon 374628 Powe Cable LE 14-7 125 INOX €2.65
Pin Button for Angle Grinder Flex L10-10 125 387096 Pin Button for Angle Grinder Flex L10-10 125 €1.14
Spring Pin Lock Disc for Angle Grinder Flex L10-10 125 387118 Spring Pin Lock Disc for Angle Grinder Flex L10-10 125 €0.86
Pin Lock Disc for Angle Grinder Flex L10-10 125 387142 Pin Lock Disc for Angle Grinder Flex L10-10 125 €4.44
Needle Bearing for Angle Grinder Flex L10-10 125 387150 Needle Bearing for Angle Grinder Flex L10-10 125 €8.33
photo_cameraImage coming soon 387304 RUBBER RING L 10-10125 €1.22
photo_cameraImage coming soon 387487 PROTECTION CABLE L 10-10125 €4.54
photo_cameraImage coming soon 410438 Ball bearing L3709 100 €8.21
photo_cameraImage coming soon 431915 Clamp €1.46
photo_cameraImage coming soon 436860 Guard D125 48 / C2 €30.21
photo_cameraImage coming soon 437921 Handle GS-K / II M8 €8.96
photo_cameraImage coming soon 438146 Carbon Brush L8-11 / LE9-11 €21.91
photo_cameraImage coming soon 443352 Gear box L8-11 / LE9-11 €42.00
photo_cameraImage coming soon 443379 Pin L8-11 / LE9-11 €1.46
photo_cameraImage coming soon 443395 Latch L8-11 / LE9-11 €2.57
photo_cameraImage coming soon 443417 Spacer L8-11 / LE9-11 €3.43
photo_cameraImage coming soon 443425 Bearing box L8-11 / LE9-11 €16.94
photo_cameraImage coming soon 443468 Shaft L8-11 / LE9-11 €18.78
photo_cameraImage coming soon 443476 Nut M6 L8-11 / LE9-11 €3.68
photo_cameraImage coming soon 443484 Pinion L8-11 / LE9-11 €17.31
photo_cameraImage coming soon 443514 Deflector L8-11 / LE9-11 €4.04
photo_cameraImage coming soon 443530 Dust protection L8-11 / LE9-11 €1.58
photo_cameraImage coming soon 443549 Bearing protection L8-11 / LE9-11 €2.57
photo_cameraImage coming soon 443557 Brush Holder L8-11 / LE9-11 €3.41
photo_cameraImage coming soon 443565 Spring L8-11 / LE9-11 €2.57
photo_cameraImage coming soon 443581 Capacitor L8-11 / LE9-11 €3.67
photo_cameraImage coming soon 443603 Housing Motor L8-11 / LE9-11 €22.47
photo_cameraImage coming soon 443638 Bracket L8-11 / LE9-11 €1.46
photo_cameraImage coming soon 443654 Deflector L8-11 / LE9-11 €2.57
photo_cameraImage coming soon 443689 Switch L8-11 / LE9-11 €13.26
photo_cameraImage coming soon 443697 Lever Switch L8-11 / LE9-11 €5.76
photo_cameraImage coming soon 443700 Button L8-11 / LE9-11 €3.43
photo_cameraImage coming soon 443735 Gasket L8-11 / LE9-11 €4.04
photo_cameraImage coming soon 443743 GU-G D125 48 / C2 ITA €30.21
photo_cameraImage coming soon 443883 Guard L8-11 / LE9-11 €1.35
photo_cameraImage coming soon 443891 Electronic Board LE 9-11 €66.81
photo_cameraImage coming soon 443964 O-Ring €1.46
photo_cameraImage coming soon 444952 Armature LE9-11 €84.50
photo_cameraImage coming soon 444960 Stator LE9-11 €64.23
photo_cameraImage coming soon 447072 Engine Cover LE9-11 €19.64
photo_cameraImage coming soon 455482 Magnetic Ring MXE €4.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Angle Grinder LE 9-11 125

We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Angle Grinder LE 9-11 125.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.

Angle Grinder LE 9-11 125
Part Num. Description
100080 Upper Flange M14
100110 Key
335282 Lower Flange L3709
339091 Ball bearing L 3906 C
341207 Sealing ring L 3906 C
357936 Crown LE 9-10 125
374628 Power CABLE X LE 14-7 125 INOX
387096 Lock button L 10-10 125
387118 Spring L 10-10 125
387142 Pin L 10-10 125
387150 Needle Bearing L 10-10 125
387304 Rubber ring L 10-10 125
387312 Washer L 10-10 125
387444 Spring L 10-10 125
387487 Sleeve L 10-10 125
410438 Ball bearing L3709 100
431915 Clamp
436860 Guard GU-G D125 48 / C2
437921 Handle GS-K / II M8
438146 Carbon Brush L8-11 / LE9-11
443352 Gear box L8-11 / LE9-11
443379 Pin L8-11 / LE9-11
443387 Oring 2.2x1.4 L8-11 / LE9-11
443395 Latch L8-11 / LE9-11
443409 Spring L8-11 / LE9-11
443417 Sleeve L8-11 / LE9-11
443425 Bearing box L8-11 / LE9-11
443433 Screw M4x15 L8-11 / LE9-11
443441 Dust protection L8-11 / LE9-11
443468 Shaft L8-11 / LE9-11
443476 Nut M6 L8-11 / LE9-11
443484 Pinion L8-11 / LE9-11
443492 Dust Washer L8-11 / LE9-11
443506 Seeger L8-11 / LE9-11
443514 Deflector L8-11 / LE9-11
443530 Dust protection L8-11 / LE9-11
443549 Rubber Bushing L8-11 / LE9-11
443557 Brushes holder L8-11 / LE9-11
443565 Spring L8-11 / LE9-11
443581 Capacitor L8-11 / LE9-11
443603 Motor Housing L8-11 / LE9-11
443638 Bracket L8-11 / LE9-11
443646 Screw M4x70 L8-11 / LE9-11
443654 Deflector L8-11 / LE9-11
443662 Clamp L8-11 / LE9-11
443670 Screw L8-11 / LE9-11
443689 Switch L8-11 / LE9-11
443697 Lever Switch L8-11 / LE9-11
443700 Switch Button L8-11 / LE9-11
443735 GAsket L8-11 / LE9-11
443743 GU-G D125 48 / C2 ITA
443883 Gasket L8-11 / LE9-11
443891 Electronic Board LE 9-11
443921 Screw L8-11 / LE9-11
443948 Screw L8-11 / LE9-11
443956 Screw L8-11 / LE9-11
443964 O-ring
444952 Armature LE9-11
444960 Stator LE9-11
447072 Engine Cover LE9-11
455482 Magnetic Ring MXE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
LE 9-11-125
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

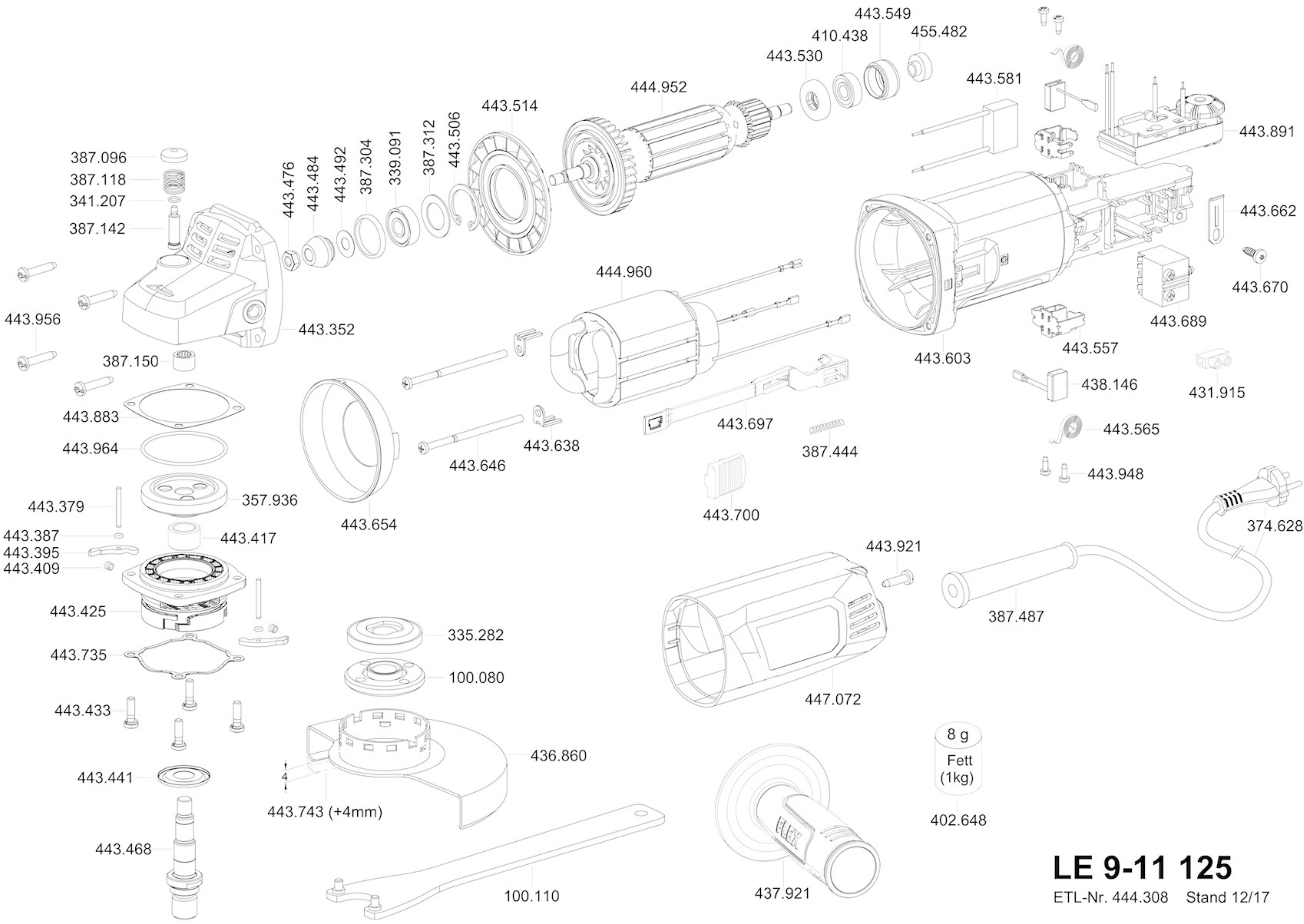

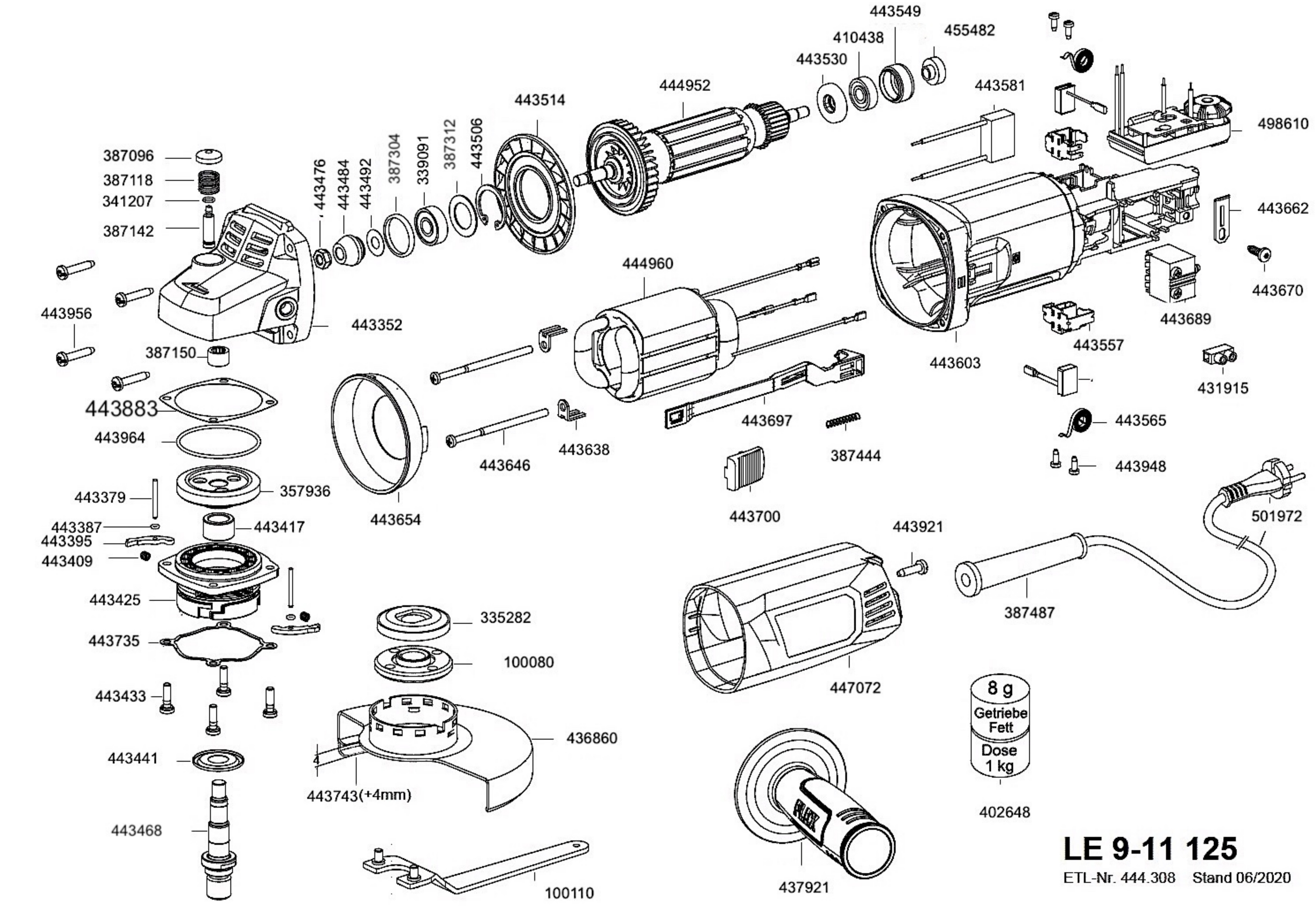

Diagram Flex LE 9-11 125

Diagram Flex LE 9-11 125

Download (312.34KB)
