Flex Spare Parts for Delta Orbital Sander ODE 100-2
We are FLEX original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for
Delta Orbital Sander ODE 100-2.

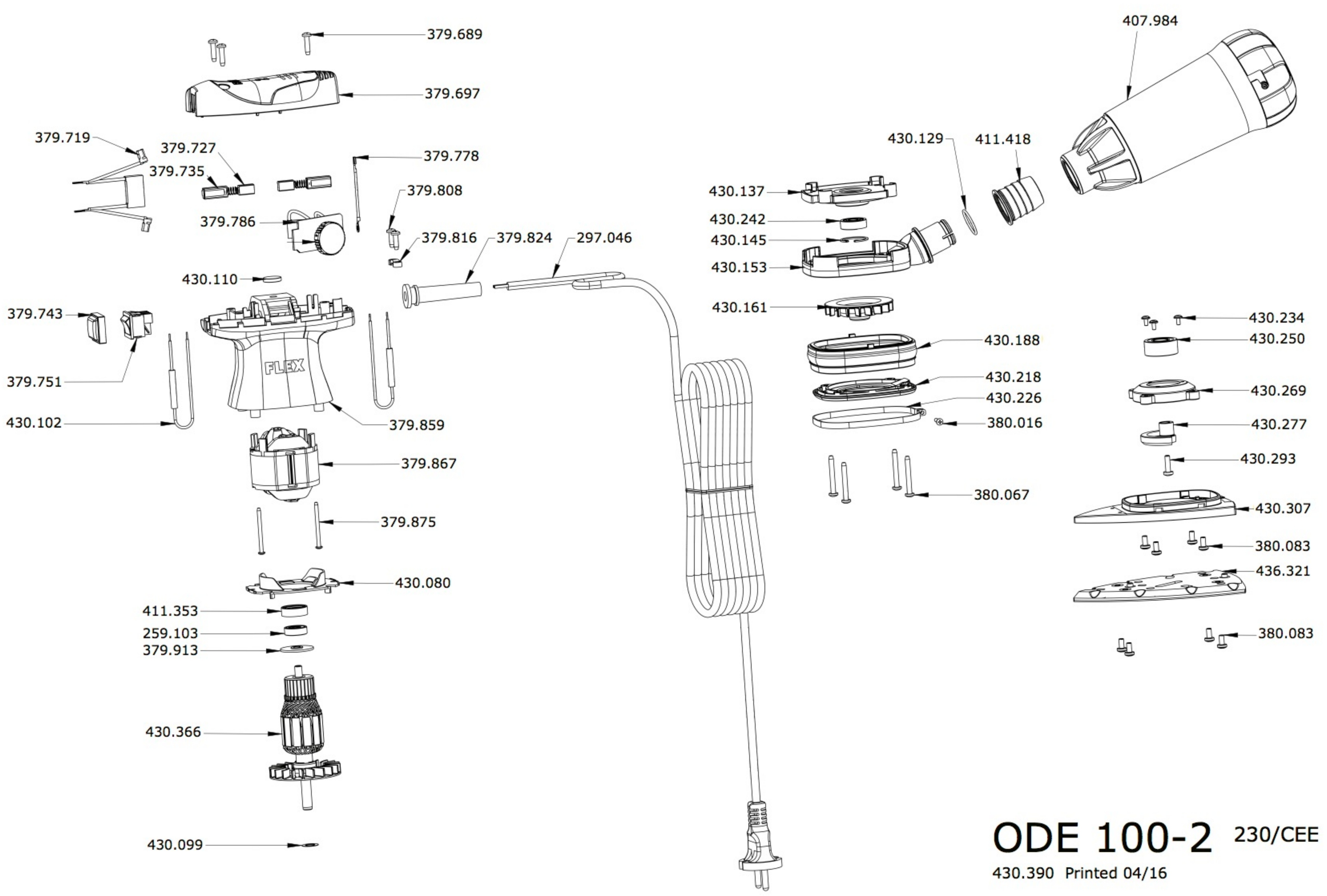

In the following table, look for the model of the Sander and the respective parts of the code.
| Delta Orbital Sander ODE 100-2 |
| Part NUm. |
Description |
| 430234 |
SCREW ORE/ODE/OSE |
| 430250 |
BEARING |
| 430269 |
BEARING HOLDER |
| 430277 |
Ausgleichsgewicht ODE/OSE |
| 430293 |
SREW |
| 430307 |
DELTA PAD |
| 380083 |
SCREW M 4 x 8 OSE 80 - 2 |
| 380067 |
SCREW KT 4 x 32,5 OSE 80-2 |
| 380016 |
SCREW KT 3 x 12,5 OSE 80-2 |
| 430226 |
CLAMP ODE/OSE |
| 430218 |
BASE ORE/ODE/OSE |
| 430188 |
RUBBER PROTECTION |
| 411418 |
CONNECTION |
| 430129 |
RING |
| 430137 |
HOLDER |
| 430242 |
BEARING |
| 430145 |
SEEGER ORE/ODE/OSE |
| 430153 |
HOLDER SUCTION |
| 430161 |
FAN |
| 297046 |
CABLE |
| 379824 |
PROTECTION CABLE |
| 379816 |
CABLE CLAMP |
| 379808 |
SCREW KT 4 x 14 OSE 80-2 |
| 379778 |
CABLE |
| 379697 |
UPPER CAP |
| 379689 |
SCREW KT 4x16 OSE 80-2 |
| 379727 |
CARBON BRUSHE SET |
| 379735 |
CARBON BRUSHES HOLDER |
| 379719 |
CAPACITOR OSE 80-2 |
| 379786 |
ELECTRONIC BOARD OSE 80-2 |
| 430110 |
Polster ORE/ODE/OSE |
| 379743 |
SWITCH PROTECTION |
| 379751 |
SWITCH OSE 80-2 |
| 430102 |
FILTER ORE/ODE/OSE |
| 411353 |
RUBBER BUSHING |
| 259103 |
BEARING |
| 379913 |
ISOLATOR WASHER |
| 430366 |
ARMATURE ORE/ODE/OSE |
| 430099 |
RING |
| 379859 |
HOUSING MOTOR |
| 379867 |
STATOR |
| 379875 |
SCREW KT 3 x 38 OSE 80-2 |
| 430080 |
BAFFLE ORE/ODE/OSE |
| 436321 |
SANDER PLATE |
| 407984 |
FILTER |
