Flex Spare Parts for Reciprocating Saw SK 602 VV
Flex genuine spare parts for replacing or repairing Reciprocating Saw SK 602 VV – 01.12.2014
In the following table, look for the model of the Reciprocating Saw and the respective parts of the code.

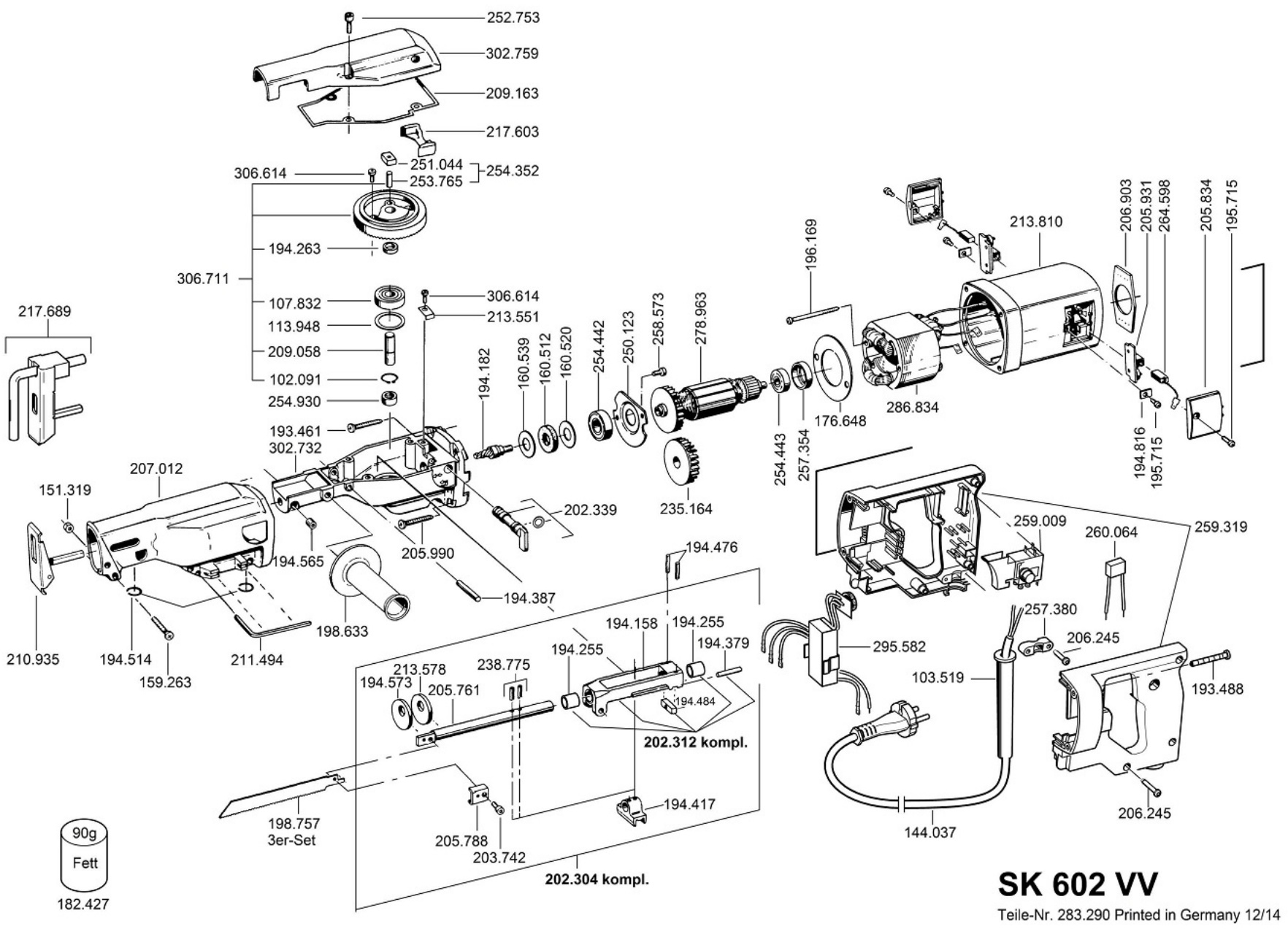

| Reciprocating Saw SK 602 VV – 01.12.2014 |
| Part Num. |
Description |
| 103519 |
SHEATH CABLE |
| 107832 |
BEARING 6201 RS 2 |
| 113948 |
SPACER SR 602 |
| 144037 |
COMPLETE CABLE H07RN-F 2X1QX4M |
| 151319 |
MUTTER, DIN 934 M 4 |
| 159263 |
SCREW M4X30 S103 (240214) |
| 160512 |
GREASE FELT |
| 160520 |
WASHER LK 302/604/610 |
| 160539 |
WASHER LK 302/604/610 |
| 176648 |
PARAVENTOLA LK 302/604/610 |
| 193461 |
SCREW |
| 193488 |
SCREW 5X45-LG 1707 FR |
| 194158 |
HUBSTANGENFÜHRUNG |
| 194255 |
LAGER, SINTER- 12X16X16 |
| 194263 |
SCREW |
| 194379 |
SPINETTA |
| 194387 |
PIN X SK 602 |
| 194417 |
GABELSTÜCK RUND |
| 194476 |
FEDER, ZYLINDER- |
| 194484 |
SHOE |
| 194514 |
RING |
| 194565 |
SCREW DIN 913 M 8X12 |
| 194573 |
FELT PARAGRASSO SK 602 VE |
| 194816 |
ROACH |
| 195715 |
SCREW LK 604 4X12 |
| 196169 |
KA40X55 BOLTS FOR HEAD |
| 198633 |
SIDE HANDLE BLACK |
| 202304 |
COMPLETE GROUP |
| 202312 |
COMPLETE GROUP |
| 202339 |
LEVER SWING SK 602 VE |
| 203742 |
SCREW SK 602 / P 125 |
| 205761 |
HUBSTANGE |
| 205788 |
PLATE FIXED BLADE SK 602 VE |
| 205834 |
CAP PORTASPAZZ. LK 302/604 |
| 205931 |
BRUSH HOLDER LK 302/604/610 |
| 205990 |
SCREW SK 602 VE |
| 206245 |
40X20 SCREW |
| 206903 |
SEAL |
| 207012 |
PLASTIC CAP SK 602 VE |
| 209058 |
BOLZEN, LAGER- |
| 209163 |
HEAD GASKET SK 602 VE |
| 211494 |
VITENDREHER, WINKEL SW4 |
| 213551 |
FEDER, WINKELRIED |
| 213578 |
FELT PARAGRASSO SK 602 |
| 213810 |
GEHÄUSE, MOTOR- BEDRÜCKT |
| 217603 |
CAVALLOTTO SR 602 |
| 235164 |
FAN L 1506/1509/1503 |
| 238775 |
PLUG X SLED SR 1502 VR |
| 250123 |
LITTLE COVER |
| 251044 |
SHOE WITH HOLE 6 MM |
| 252753 |
SCREW DIN 912 M 5X 20 M |
| 253765 |
6X18 CYLINDER |
| 254352 |
ECCENTRIC WITH CILIND. X SR-SK |
| 254442 |
BEARING 6000 2 RSD |
| 254443 |
BEARING 607 2 RSD |
| 254930 |
ROLLER BEARING |
| 257354 |
RUBBER BEARING HOUSING |
| 258573 |
INSIDE SCREW LK604 (EX 251851) |
| 259009 |
SWITCH X BH 812 VV |
| 259319 |
HANDLE BH 812 VV |
| 260064 |
CAPACITOR X BH812 VV |
| 264598 |
BRUSHES K54 |
| 278963 |
ARMATURE 230 / EEC SR 602 VV |
| 286834 |
STATOR 230 / EEC SR 602 VV |
| 295582 |
CARD 230V 6ERVV OHNE PTC |
| 302732 |
GEARCASE SK602 |
| 302759 |
COVER SK 602 VV |
| 306614 |
SCREW, LINSEN-FLANSCHKOPF |
