Angle Grinder L 3206 CD - 01.07.2012.

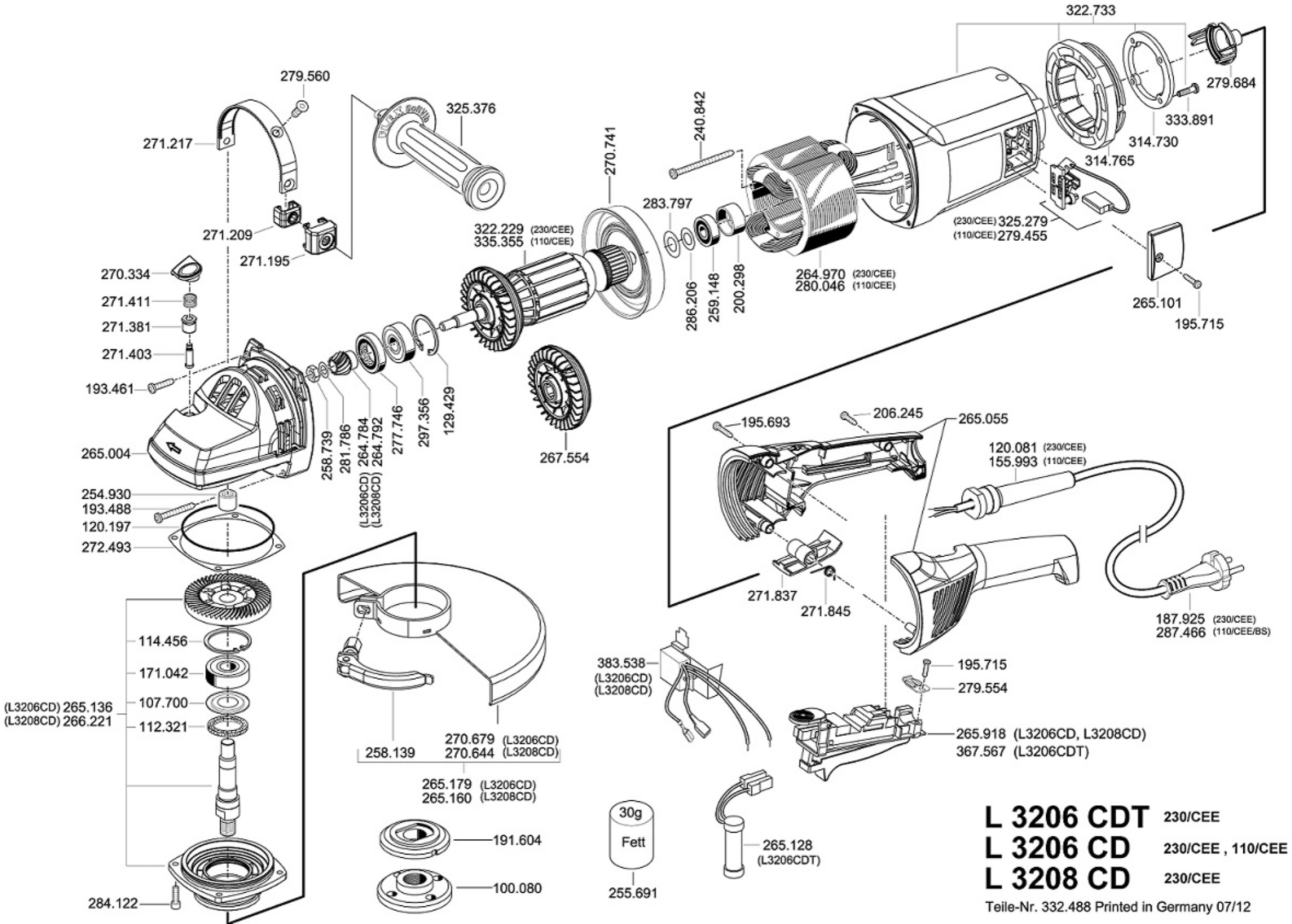

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder L 3206 CD - 01.07.2012 |
| Part Num. |
Description |
| 100080 |
NUT M14 |
| 107700 |
WASHER 6203JVS |
| 112321 |
FELT PARAGRASSO |
| 114456 |
SEEGER X BH 812 |
| 120081 |
SHEATH CABLE |
| 120197 |
SEAL GOM. L 2106/1206 |
| 129429 |
RING, SICHER.- 37X1,5 DIN 472 |
| 171042 |
BEARING 6203 2RS |
| 187925 |
CABLE PLUG ELETT.CON 2806-2106 |
| 191604 |
RING SW 17 |
| 193461 |
SCREW |
| 193488 |
SCREW 5X45-LG 1707 FR |
| 195693 |
SCREW LK 604 4X30 |
| 195715 |
SCREW LK 604 4X12 |
| 195715 |
SCREW LK 604 4X12 |
| 200298 |
RUBBER BEARING |
| 206245 |
40X20 SCREW |
| 240842 |
5X70 SCREW |
| 254930 |
ROLLER BEARING |
| 255691 |
CLAMP LXGFL0 |
| 258139 |
KIT GEAR L 2106 S |
| 258739 |
NUT PINION STOP X 2106 VT |
| 259148 |
BEARING 6001 2RS |
| 264784 |
PIGNONE X L 3206 |
| 264970 |
STATOR X L 3206 |
| 265004 |
HEAD X L3206 |
| 265055 |
GRIP X L3206 |
| 265101 |
COVER COPRISPAZ.LD 3206 C |
| 265128 |
STARTING SLOW DIODE L 3206 |
| 265136 |
SHAFT HEAD COMP.L 3206 |
| 265179 |
SAFETY CAP WITH LEVER D |
| 265918 |
SWITCH |
| 267554 |
FAN X L 3206 |
| 270334 |
BUTTON X L 3206 |
| 270679 |
SCHUTZH.M.VORD.230 O.VERSCHR. |
| 270741 |
PARAVENTOLA X L 3206 |
| 271195 |
CLAMP |
| 271209 |
LOCKING BRACKET |
| 271217 |
LOCKING PLATE |
| 271381 |
WASHER X L3206 |
| 271403 |
PIN X L3206 |
| 271411 |
SPRING X L 3206 |
| 271837 |
LEVER DIRECTION IMP. |
| 271845 |
SPRING X L 3206 |
| 272493 |
SPACERS MM.0,2 |
| 277746 |
RING X L 3206 |
| 279554 |
FERMACAVOL 3206 |
| 279560 |
SCREW M6X10 DIN7991 |
| 279684 |
BOTTOM X L3206 |
| 281786 |
WASHER X L 3206 |
| 283797 |
NUT X L3226 |
| 284122 |
SCREW, M 5X 12 DIN 912 |
| 286206 |
NUT X L3206 |
| 297356 |
BEARING 6301-2RS-C3 |
| 314730 |
L3206 RING |
| 314765 |
SHOCK L3206 |
| 322229 |
ARMATURE X L 3206 |
| 322733 |
MOTOR BODY BEDR. U. MONT. |
| 325279 |
CARBON BRUSHE ASSY L 3206 C (EX279439) |
| 333891 |
SCREW, KT 5X18 T20 |
| 383538 |
ELEKTRONIK M.WIEDERANLAUFSCH. |
