Flex Power Tools

Flex Spare Parts for Angle Grinder L 1506 VR

SKU: Flex L 1506 VR – 01.07.2015
€9.16
VAT included

Flex Spare Parts for Angle Grinder L 1506 VR

We have the original Spares for FLEX Angle Grinder L 1506 VR, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder L 1506 VR 01.07.2015. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Flex Spare Parts for Angle Grinder L 1506 VR
  • Online only
  • Flex Spare Parts for Angle Grinder L 1506 VR
  • Flex Spare Parts for Angle Grinder L 1506 VR
Flex Power Tools

Flex Spare Parts for Angle Grinder L 1506 VR

SKU: Flex L 1506 VR – 01.07.2015 Condition: New
€9.16
VAT included

Flex Spare Parts for Angle Grinder L 1506 VR

We have the original Spares for FLEX Angle Grinder L 1506 VR, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder L 1506 VR 01.07.2015. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 34 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

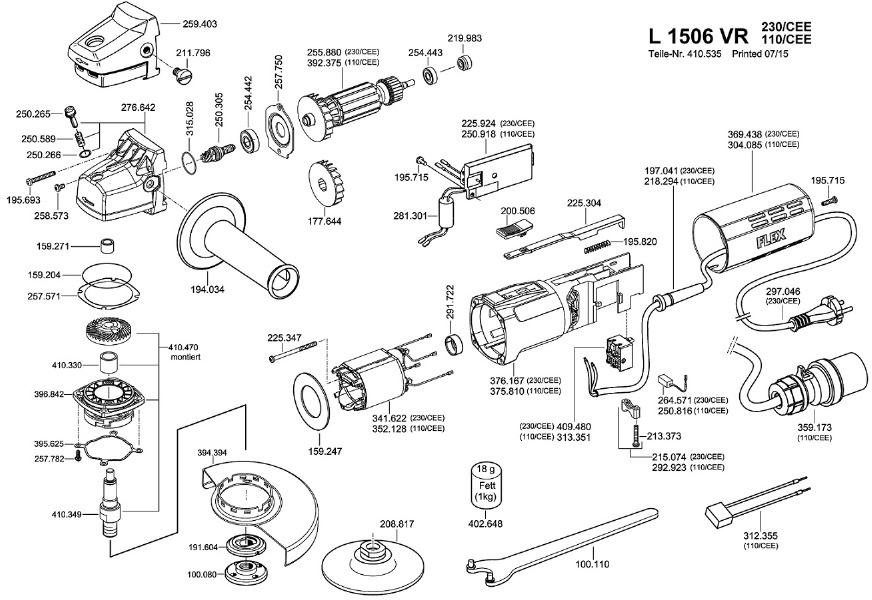

Esploso pagina 1
Pos. Item Price Buy
Nut M14 Lock Disc for Angle Grinder Flex L 3709 100080 Nut M14 Lock Disc for Angle Grinder Flex L 3709 €9.71
photo_cameraImage coming soon 100110 KEY, BL 5 €8.89
O-Ring Spacer for Angle Grinder Flex L 1506 VR 159204 O-Ring Spacer for Angle Grinder Flex L 1506 VR €0.80
photo_cameraImage coming soon 159247 DISCO PARA FAN €4.02
photo_cameraImage coming soon 159271 BEARING ROLLERS HEAD MINIS €9.03
photo_cameraImage coming soon 177644 FAN €5.14
photo_cameraImage coming soon 191604 NUT -SW 17 €8.36
Cord Grommet 8,3 mm for Power Tools Flex 197041 Cord Grommet 8,3 mm for Power Tools Flex €3.28
photo_cameraImage coming soon 200506 BUTTON BREAK. (EX 211451) €3.25
Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 211796 Screw mm 8x10 PA 6.6 Din 85 for Polisher FLEX XFE 7-15 €0.91
photo_cameraImage coming soon 215074 BOOT C / SCREW X MINISMER. €3.58
photo_cameraImage coming soon 219983 DIODE MAGNETIC €10.11
Switch Rod for Angle Grinder Flex L 1710 FRA 225304 Switch Rod for Angle Grinder Flex L 1710 FRA €4.20
Electronic Board for Angle Grinder Flex L 1506 VR 225924 Electronic Board for Angle Grinder Flex L 1506 VR €143.57
photo_cameraImage coming soon 250265 BUTTON CROWN BLOCKING €5.69
photo_cameraImage coming soon 254442 BEARING 6000 2 RSD €13.54
Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
photo_cameraImage coming soon 255880 ARMATURE 230 EEC LD 1509 FR €86.91
photo_cameraImage coming soon 257571 SPACERS THICKNESS 0.2 €1.67
photo_cameraImage coming soon 257750 COVERS HEAD €4.72
Head Cover for Sander Flex LLK 1503 VR 259403 Head Cover for Sander Flex LLK 1503 VR €21.74
Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR 264571 Carbon Brushes K 53 for Angle Grinders FLEX L 1506 VR €23.04
photo_cameraImage coming soon 276642 GEAR BOX L 1506 €74.16
Capacitor for Angle Grinder Flex L 1710 FRA-L 1506 VR 281301 Capacitor for Angle Grinder Flex L 1710 FRA-L 1506 VR €25.65 Not available for order
photo_cameraImage coming soon 297046 CABLE COMPLETE H05RNF 2X1X4M €16.98
photo_cameraImage coming soon 312355 CAPACITOR X2 0,22μF €4.21
photo_cameraImage coming soon 315028 O-RING 24X1 €1.64
Stator for Burnishing Machine Flex LP 1503 VR 341622 Stator for Burnishing Machine Flex LP 1503 VR €109.82
photo_cameraImage coming soon 369438 MOTOR COVER €23.67
photo_cameraImage coming soon 376167 MOTOR BODY €26.75
Flex Wheel Guard for L 3410 VR 394394 Flex Wheel Guard for L 3410 VR €31.72
photo_cameraImage coming soon 395625 BLATTFEDER KLEIN €6.16
photo_cameraImage coming soon 396842 DECKEL, LAGER- KLEIN MONTIERT €19.13
Switch for Angle Grinder Flex L 1506 VR 409480 Switch for Angle Grinder Flex L 1506 VR €24.49

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Flex Spare Parts for Angle Grinder L 1506 VR.

Fix Your Angle Grinder L 1506 VR – 01.07.2015. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Flex L 1506 VR – 01.07.2015
Angle Grinder L 1506 VR – 01.07.2015
Part Num. Description
100080 GHIERA- M14
100110 KEY-, BL 5
159204 SPACER RUBBER
159247 SCREEN DISC
159271 BEARING ROLLERS HEAD MINIS
177644 MINI FAN FOR SANDERS
191604 RING-SW 17
195693 SCREW LK 604 4X30
195715 SCREW LK 604 4X12
195820 SPRING SWITCH MINISMER.
197041 HOUSING CABLE 8,3MM
200506 BUTTON BREAK. (EX 211451)
211796 SCREW X ROCKER COVER MINISMERIG
213373 SCREW KT, KT 4 X 20/9
215074 CABLE CLAMP C / SCREW X MINISMER.
219983 DIODE MAGNETIC
225304 ROD X SWITCH L 09/06/1503
225347 SCREW
225924 ELECTRONIC DATA VR (251845)
250265 BUTTON CROWN BLOCKING
250266 BUTTON CROWN BLOCKING
250589 SPRING LOCK BUTTON CROWN
254442 BEARING 6000 RS 2
254443 BEARING 607 2 RSD
255880 ARMATURE 230 EEC LD 1509 FR
257571 SPACERS THICKNESS 0.2
257750 COVERS HEAD N.T.X MINI
257782 SCREW X L1710 FRA
258573 INSIDE SCREW LK604 (EX 251851)
259403 ROCKER COVER L 1506/1503
264571 BRUSHES K 53
276642 GEAR BOX L 1506
281301 CAPACITOR LG1507 (EX 212628
291722 RUBBER L3309 / 3410
297046 KABEL M.ST. (ROT) H05RNF 2X1X4M
312355 KONDENSATORE X2 0,22ΜF WEISS
315028 O-RING 24X1
341622 STATOR L1503 / L1506VR EX292591
369438 HAUBE BEDRUCKT M. SCHLITZ
376167 MOTORGEH. M. KH. LG.RING
394394 WHEEL GUARD
395625 BLATTFEDER KLEIN
396842 DECKEL, LAGER- KLEIN MONTIERT
409480 SWITCH ON/OFF, GEKLEBT
410330 BUSH L 1506 VR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Flex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Flex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Flex L 1506 VR – 01.07.2015
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Flex L 1506 VR

Diagram Flex L 1506 VR

Download (303.64KB)
