Fiac Spare Parts for Drier TXDRY 55-62
Fiac genuine spare parts or replacements parts for to repair Drier TXDRY 55-62

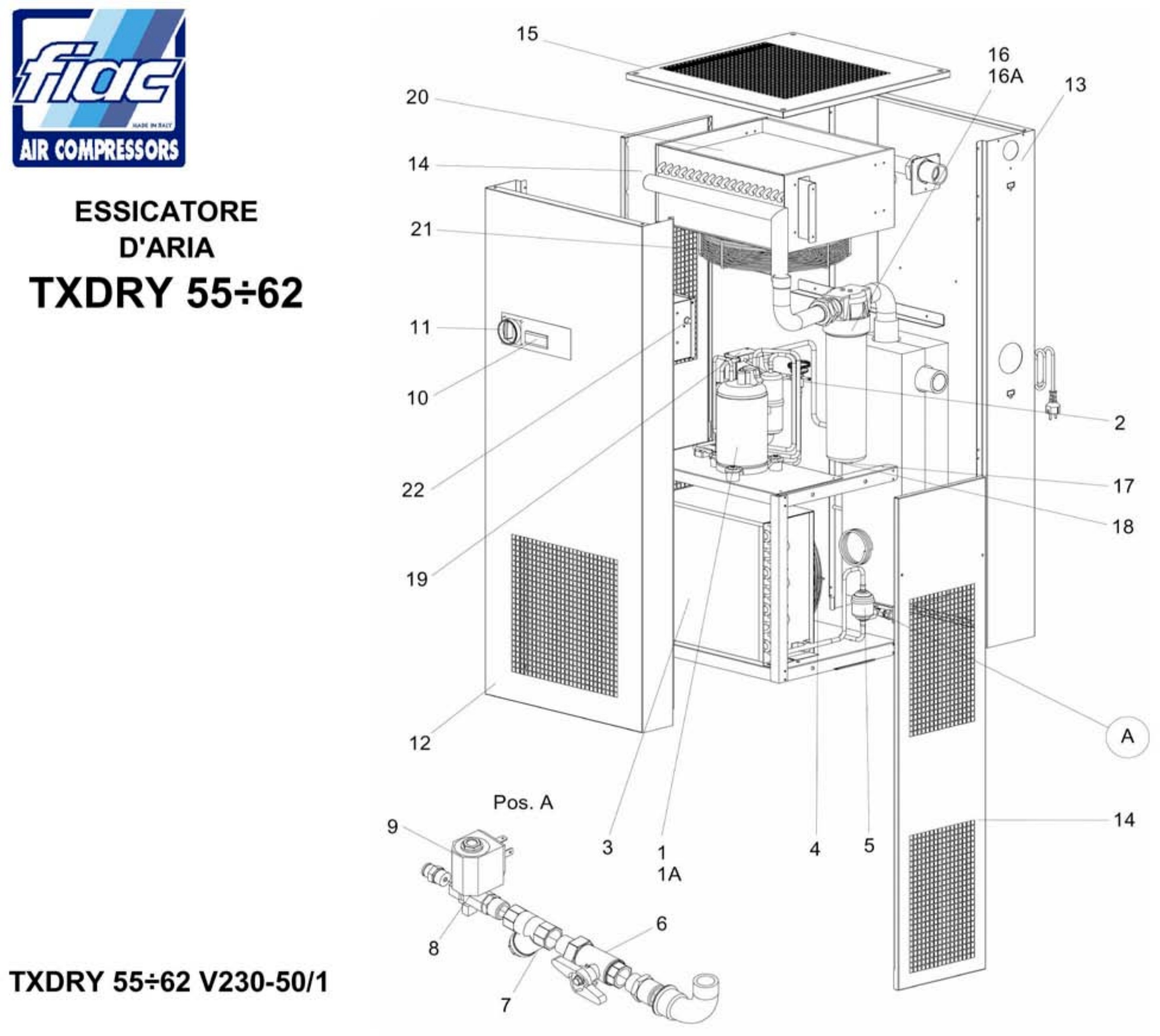

In the following table, look for the model of the Drier and the respective parts of the code.
DRYER TXDRY 55-62
#
Part Num.
Description
1
7565520010
COMPRESSOR REFRIGERATOR TXDRY 55 V230
2
7194680000
BY PASS VALVE HOT Tdry 105
3
7565520020
CAPACITOR TXDRY 55-62 V230
4
7565520030
ELECTRIC MOTOR + FAN TXDRY 55-62 V230
5
7562650000
FILTER DRIER 40 GRAMS
6
7194690000
VALVE EXHAUST AIR CONDITIONER Tdry V230 105/50/1
7
7194180000
VALVE DRAIN CLEANER AIR CONDITIONER 3/8-DRY3-98
8
7194270000
solenoid
9
7194660000
solenoid coil
10
7564980000
THERMOSTAT V.230-50 DMC-14 / 60HZ.
11
7565720000
SWITCH Tdry V230 105/50/1
12
7565520040
FRONT PANEL TXDRY 55-62 V230
13
7565520050
BACK TXDRY 55-62 V230
14
7565520060
PANEL DX-SX TXDRY 55-62 SIDE
15
7565520070
PANNELLOSUPERIORE TXDRY 55-62 V230-V115
16
7565510040
CARTRIDGE PREFILTER FTP055 TXDRY 40
17
7194270000
solenoid
18
7194660000
solenoid coil
19
7565710000
PRESSURE KP5 TDRY12S-18S-49-105
20
7565520080
COOLER FINAL TXDRY 55-62
21
7565520090
FAN TXDRY 55-62 V230
22
7565730000
SAFETY THERMOSTAT Tdry 49-105
001A
7565530010
COMPRESSOR REFRIGERATOR TXDRY 62 V230
016A
7565530020
CARTRIDGE PREFILTER FTP080 TXDRY 62
