Fiac Spare Parts for Drier TDRY 63-80
Fiac genuine spare parts or replacements parts for to repair Drier TDRY 63-80

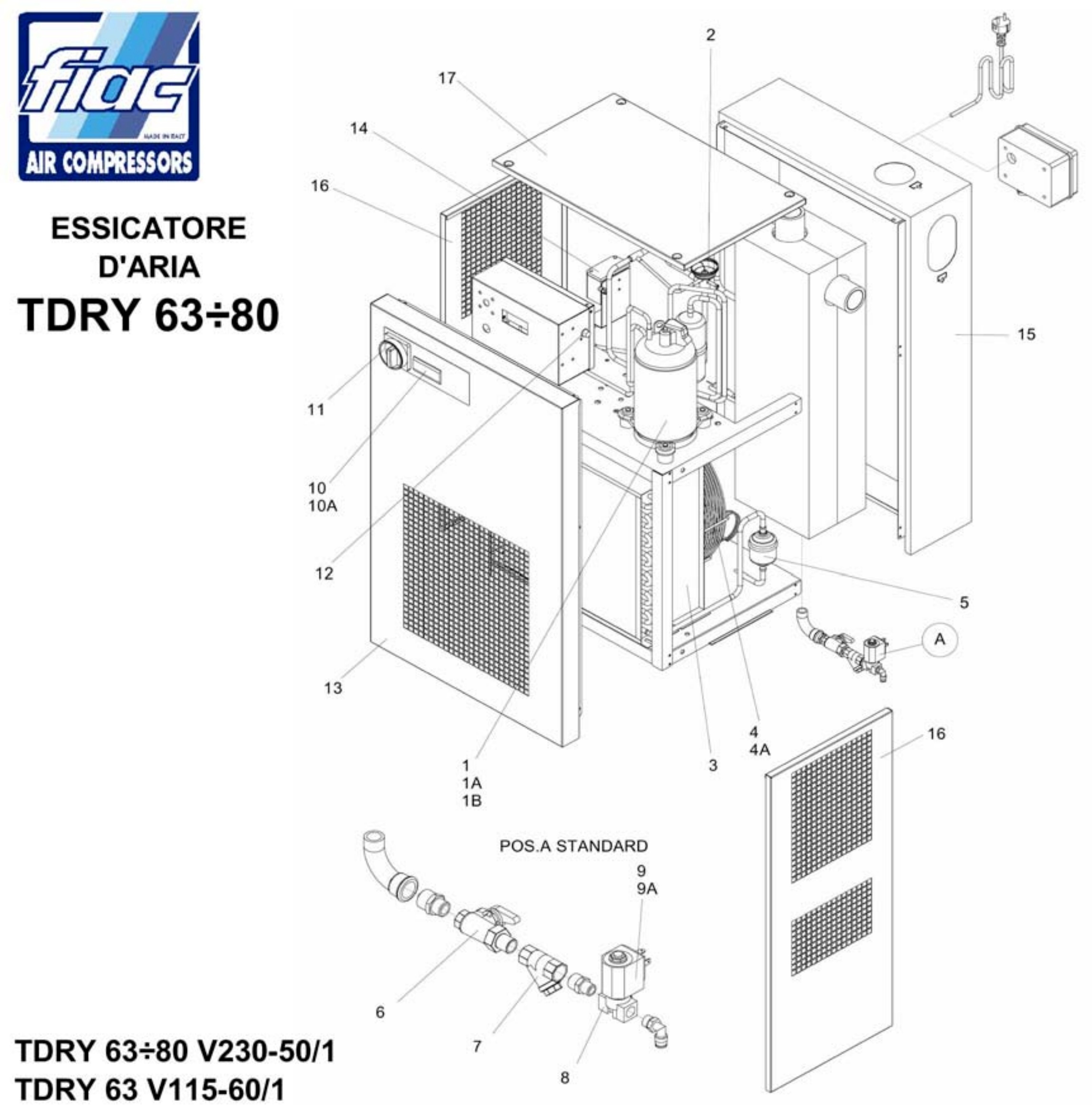

In the following table, look for the model of the Drier and the respective parts of the code.
DRYER TDRY 63-80
#
Part Num.
Description
1
7565370010
COMPRESSOR REFRIGERATOR Tdry V230 63/50/1
2
7194680000
BY PASS VALVE HOT Tdry 105
3
7565370030
SAFETY THERMOSTAT Tdry 63/80
4
7563070000
ELECTRIC MOTOR + FAN DF40-50 / DFR52-75
5
7562650000
FILTER DRIER 40 GRAMS
6
7194690000
VALVE EXHAUST AIR CONDITIONER Tdry V230 105/50/1
7
7194180000
VALVE DRAIN CLEANER AIR CONDITIONER 3/8-DRY3-98
8
7194270000
solenoid
9
7194660000
solenoid coil
10
7564980000
THERMOSTAT V.230-50 DMC-14 / 60HZ.
11
7565720000
SWITCH Tdry V230 105/50/1
12
7565730000
SAFETY THERMOSTAT Tdry 49-105
13
7565370050
FRONT PANEL Tdry 63-80 V230-V115
14
7565710000
PRESSURE KP5 TDRY12S-18S-49-105
15
7565370060
BACK Tdry 63-80 V230-V115
16
7565370070
SIDE PANEL RIGHT / LEFT Tdry 63-80 V230 / V115
17
7565370080
COVER Tdry 63-80 V230 / V115
001A
7565380010
COMPRESSOR REFRIGERATOR Tdry V230 80/50/1
001B
7565370020
COMPRESSOR REFRIGERATOR Tdry V115 63/60/1
004A
7565370040
ELECTRIC MOTOR + FAN Tdry 63 V115
009A
7194670000
solenoid coil
010A
7564920000
COVER DRYER ABV
