FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

SKU: Fiac VS314S
€325.56
VAT included

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 314 S.
FIAC Spare Parts for Piston Air Compressor Pump VS 314
  • FIAC Spare Parts for Piston Air Compressor Pump VS 314
  • FIAC Spare Parts for Piston Air Compressor Pump VS 314
FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

SKU: Fiac VS314S Condition: New
€325.56
VAT included

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 314 S.
settings 50 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

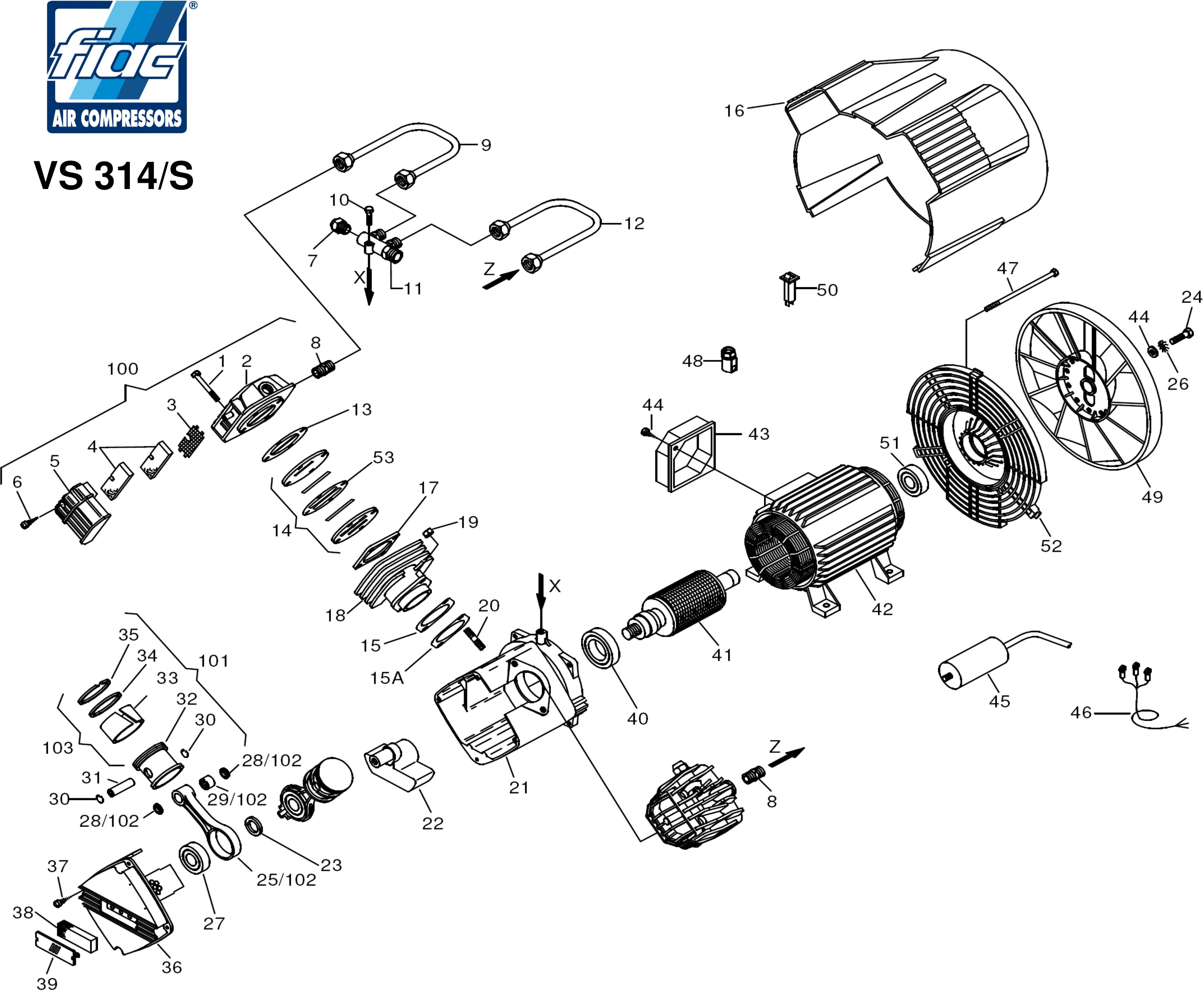

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 5030170008 Head €108.62
3
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 photo_cameraImage coming soon 7210640000 INTAKE FILTER VS204S-VS254S €16.10
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve 2.2 BAR-G 1/4 for Pump Units Fiac VX - VS 7196000000 Start Valve 2.2 BAR-G 1/4 for Pump Units Fiac VX - VS €14.40
8
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
9
 FIAC Pump Units VS Head Pipe L 7231770000 FIAC Pump Units VS Head Pipe L €25.96
10
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
11
 photo_cameraImage coming soon 7089950000 Collector €25.04
12
 FIAC Pump Units VS Head Pipe R 7231760000 FIAC Pump Units VS Head Pipe R €25.96
13
 FIAC VS254S Head Gasket 7078500000 FIAC VS254S Head Gasket €7.45
14
 photo_cameraImage coming soon 7459580000 Valve plate --> 1127450951 €98.26
15
 Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
16
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
17
 photo_cameraImage coming soon 7078740000 seal €4.29
18
 FIAC VS204S Cylinder 7575290000 FIAC VS204S Cylinder €103.36
19
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
20
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
21
 photo_cameraImage coming soon 5070160008 Sump €232.09
22
 photo_cameraImage coming soon 5041370008 Crank €71.85
23
 photo_cameraImage coming soon 7038070000 Washer Ø20,1X26X2 UNI-6593 €3.73
26
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
27
 photo_cameraImage coming soon 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF €23.84
30
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
31
 photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
32
 photo_cameraImage coming soon 7220300000 Piston €38.56
36
 photo_cameraImage coming soon 7151030000 COVER CARTER GMVS €10.77
37
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
38
 FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
39
 Air Cleaner Cap for Pump Unit FIAC VS 244 7151040000 Air Cleaner Cap for Pump Unit FIAC VS 244 €1.49
40
 photo_cameraImage coming soon 7060050000 6007 35-62-14-bearing 2RS1 SKF €38.94
41
 photo_cameraImage coming soon 4280780000 Rotor kit €223.89
42
 photo_cameraImage coming soon 4013450000 stator €306.88
43
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
44
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
45
 photo_cameraImage coming soon 7310380000 Capacitor MF.40 V450 €40.89
46
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
47
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
48
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
49
 FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
50
 photo_cameraImage coming soon 7410750000 Thermal protection 12 AMP.P & B €17.04
51
 photo_cameraImage coming soon 7060090000 6204-2RS1-bearing SKF €26.97
100
 photo_cameraImage coming soon 4021350000 Kit head €136.94
101
 Set Conrod-Piston for Pump Unit Fiac VS 204 4191140000 Set Conrod-Piston for Pump Unit Fiac VS 204 €111.51
102
 photo_cameraImage coming soon 4190320000 Kit rod €104.77
103
 Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €82.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 314 S.

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac VS 314 S

VS 314 S data validità - da 02/03/2011
# Part Num. Description
1 7011060000 Screw M6x45 UNI-5737
2 5030170008 Head
3 7458031000 filter plate
4 7210010000 filter element
5 7210640000 INTAKE FILTER VS204S-VS254S
6 7012100000 screw Ø3,9X16
7 7196000000 Start valve M1/4" 2.2 bar
8 7081100000 3/8 ''
9 7231770000 PIPE HEAD VS 204 / 254S COPPER D.10 SX
10 7010120000 Screw M6X25 UNI-5931
11 7089950000 Collector
12 7231760000 PIPE HEAD VS 204 / 254S COPPER D.10 DX
13 7078500000 Head gasket
14 7459580000 valve plate --> 1127450951
15 7078150000 gasket
16 7150370000 Plastic Hood
17 7078740000 gasket
18 7575290000 Cylinder
19 7020070000 Nut M8 UNI-5587
20 7015020000 prisoner M.8X35X14X16
21 5070160008 sump
22 5041370008 Crank
23 7038070000 Washer Ø20,1X26X2 UNI-6593
24 7011390000 Screw M8x20 DIN-6921
26 7031010000 Washer Ø8 UNI-3703
27 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF
30 7041010000 Seeger Ø12
31 7050050000 Pin Ø12 / 8,5X46 GMS
32 7220300000 Piston
36 7151030000 COVER CARTER GMVS
37 7012020000 Screw Ø3,9X12,7 DIN-7981
38 7210120000 FILTER HOUSING COVER
39 7151040000 COVER-FILTER GMV / S
40 7060050000 6007 35-62-14-bearing 2RS1 SKF
41 4280780000 Rotor Kit
42 4013450000 stator
43 7382340000 terminal cover
44 7038020000 Washer Ø8X30X3 UNI-6593
45 7310380000 Condenser MF.40 V450
46 7329900000 Cable Pressure / Motor
47 7015100000 guy M6X185
48 7501050000 cable locks
49 7200340000 Fan
50 7410750000 Prot. 12 Thermal AMP.P & B
51 7060090000 6204-2RS1-bearing SKF
52 7640010000 cover
100 4021350000 Kit head
101 4191140000 SET CON-Rod PIST.VS-BAND SINGLE RING-DSB
102 4190320000 rod kit
103 4080043000 Kit Rings
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac VS314S
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac VS 314 S

Diagram Fiac VS 314 S

Download (522.56KB)
