FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 254 S

SKU: Fiac VS254S
€795.79
VAT included

FIAC Spare Parts for Piston Air Compressor Pump VS 254 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 254 S.
FIAC Spare Parts for Piston Air Compressor Pump VS 254 S
  • FIAC Spare Parts for Piston Air Compressor Pump VS 254 S
  • FIAC Spare Parts for Piston Air Compressor Pump VS 254 S
FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 254 S

SKU: Fiac VS254S Condition: New
€795.79
VAT included

FIAC Spare Parts for Piston Air Compressor Pump VS 254 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 254 S.
settings 58 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts

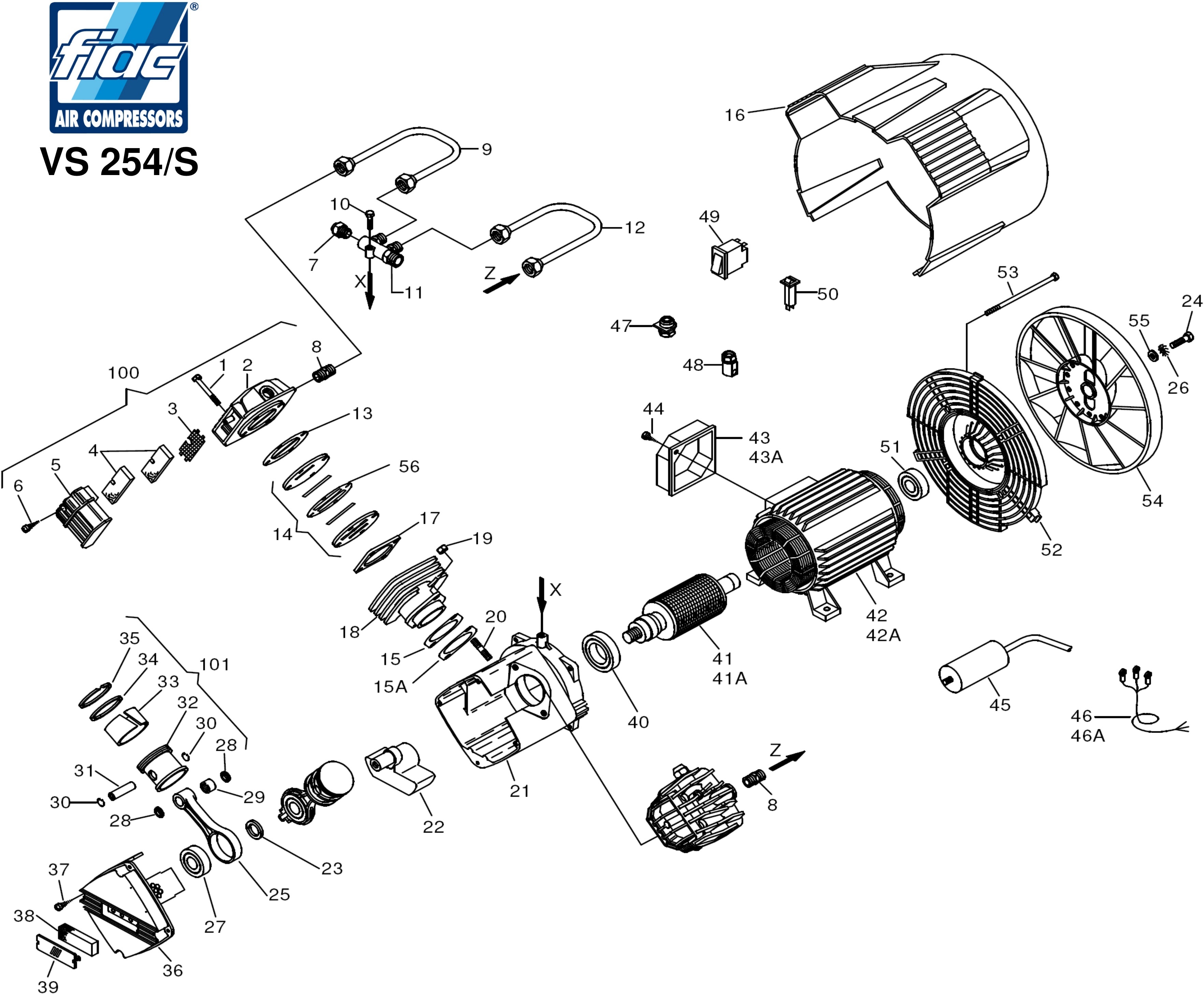

Page 1 zoom_in View exploded
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 5030170008 Head €108.62
3
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 photo_cameraImage coming soon 7210640000 INTAKE FILTER VS204S-VS254S €16.10
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve 2.2 BAR-G 1/4 for Pump Units Fiac VX - VS 7196000000 Start Valve 2.2 BAR-G 1/4 for Pump Units Fiac VX - VS €14.40
8
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
9
 FIAC Pump Units VS Head Pipe L 7231770000 FIAC Pump Units VS Head Pipe L €25.96
10
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
11
 photo_cameraImage coming soon 7089950000 Collector €25.04
12
 FIAC Pump Units VS Head Pipe R 7231760000 FIAC Pump Units VS Head Pipe R €25.96
13
 FIAC VS254S Head Gasket 7078500000 FIAC VS254S Head Gasket €7.45
14
 photo_cameraImage coming soon 7459580000 Valve plate --> 1127450951 €98.26
15
 Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
16
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
17
 photo_cameraImage coming soon 7078740000 seal €4.29
18
 FIAC VS204S Cylinder 7575290000 FIAC VS204S Cylinder €103.36
19
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
20
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
21
 photo_cameraImage coming soon 5070160008 Sump €232.09
22
 photo_cameraImage coming soon 5041370008 Crank €71.85
23
 photo_cameraImage coming soon 7038070000 Washer Ø20,1X26X2 UNI-6593 €3.73
24
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
26
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
27
 photo_cameraImage coming soon 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF €23.84
30
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
31
 photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
32
 photo_cameraImage coming soon 7220300000 Piston €38.56
36
 photo_cameraImage coming soon 7151030000 COVER CARTER GMVS €10.77
37
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
38
 FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
39
 Air Cleaner Cap for Pump Unit FIAC VS 244 7151040000 Air Cleaner Cap for Pump Unit FIAC VS 244 €1.49
40
 photo_cameraImage coming soon 7060050000 6007 35-62-14-bearing 2RS1 SKF €38.94
41
 photo_cameraImage coming soon 4280780000 Rotor kit €223.89
041A
 photo_cameraImage coming soon 4280790000 Rotor kit €245.74
042A
 photo_cameraImage coming soon 4011340000 MOTOR HOUSING VX 304-V400 / 50HZ- S / MORSET €750.12
42
 photo_cameraImage coming soon 4013420000 Stator €662.72
43
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
043A
 photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
44
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
45
 photo_cameraImage coming soon 7310380000 Capacitor MF.40 V450 €40.89
046A
 photo_cameraImage coming soon 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM €22.13
46
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
47
 photo_cameraImage coming soon 7501060000 Cable locks €1.52
48
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
49
 photo_cameraImage coming soon 7410460000 Prot. Thermal ETA-3120-F521-P7T1-W09D-6A €125.92
50
 photo_cameraImage coming soon 7410750000 Thermal protection 12 AMP.P & B €17.04
51
 photo_cameraImage coming soon 7060090000 6204-2RS1-bearing SKF €26.97
53
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
54
 FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
55
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
100
 photo_cameraImage coming soon 4021350000 Kit head €136.94
101
 Set Conrod-Piston for Pump Unit Fiac VS 204 4191140000 Set Conrod-Piston for Pump Unit Fiac VS 204 €111.51
102
 photo_cameraImage coming soon 4190320000 Kit rod €104.77
103
 Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €82.31
500
 FIAC VS254S Gaskets Kit 4082310000 FIAC VS254S Gaskets Kit €22.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Pump VS 254 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 254 S.

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac VS 254 S

VS 254 S data validità - da 02/03/2011
# Part Num. Description
1 7011220000 Screw M6X40 UNI-5737
2 5030170008 Head
3 7458031000 Filter plate
4 7210010000 Filter element
5 7210640000 SUCTION FILTER VS204S-VS254S
6 7012100000 Screw Ø3,9X16
7 7196000000 Start valve M1/4" 2.2 bar
8 7081100000 3/8 "fitting
9 7231770000 HEAD TUBE VS 204 / 254S COPPER D.10 SX
10 7010120000 M6X25 UNI-5931 screw
11 7089950000 Collector
12 7231760000 HEAD TUBE VS 204 / 254S COPPER D.10 DX
13 7078500000 Head Gasket
14 7459580000 Valve plate --> 1127450951
15 7078150000 seal
16 7150370000 Plastic Hood
17 7078740000 seal
18 7575290000 Cylinder
19 7020070000 Nut M8 UNI-5587
20 7015020000 Stud M.8X35X14X16
21 5070160008 Carter
22 5041370008 Crank
23 7038070000 Washer Ø20.1X26X2 UNI-6593
24 7011090000 M8X20 UNI-5739 screw
26 7031010000 UNI-3703 Ø8 washer
27 7060140000 Bearing 6204-2RS2 / C3 HT-22-SKF
30 7041010000 Seeger Ø12
31 7050050000 Plug Ø12 / 8,5X46 GMS
32 7220300000 Piston
36 7151030000 CRANKCASE COVER GMVS
37 7012020000 Screw Ø3,9X12,7 DIN-7981
38 7210120000 CRANKCASE COVER FILTER
39 7151040000 COVER-FILTER GMV / S
40 7060050000 Bearing 6007 35-62-14 2RS1-SKF
41 4280780000 Rotor kit
42 4013420000 Stator
43 7382340000 Terminal block cover
44 7012020000 Screw Ø3,9X12,7 DIN-7981
45 7310380000 MF.40 V450 capacitor
46 7329900000 Pressure switch / motor cable
47 7501060000 Lock cable
48 7501050000 Lock cable
49 7410460000 Thermal protection ETA-3120-F521-P7T1-W09D-6A
50 7410750000 Thermal protection 12 AMP.P & B
51 7060090000 Bearing 6204-2RS1-SKF
52 7640010000 cap
53 7015100000 M6X185 tie rod
54 7200340000 Cooling fan
55 7038020000 Ø8X30X3 UNI-6593 washer
100 4021350000 Head kit
101 4191140000 SET CONROD-PISTON VS SINGLE RING-DSB
102 4190320000 Connecting rod kit
103 4080043000 Piston Ring kit
041A 4280790000 Rotor kit
042A 4011340000 MOTOR HOUSING VX 304-V400 / 50HZ- S / MORSET
043A 7382350000 MEC90 GMV-E TRIFAS MORSET COVER
046A 7329870000 CABLE PR / MOTGMV25-30 3X1.5 + T PVC90CM
500 4082310000 GASKETS KIT VS254S
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac VS254S
12 Items

Specific References

New

Download

Diagram Fiac VS 254 S

Diagram Fiac VS 254 S

Download (533.8KB)
