FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 244

SKU: Fiac VS244 02/03/2011 042A
€3.95
VAT included

FIAC Spare Parts for Piston Air Compressor Pump VS 244

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 244 - 02/03/2011 042A.
FIAC Spare Parts for Piston Air Compressor Pump VS 244
  • FIAC Spare Parts for Piston Air Compressor Pump VS 244
  • FIAC Spare Parts for Piston Air Compressor Pump VS 244
FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 244

SKU: Fiac VS244 02/03/2011 042A Condition: New
€3.95
VAT included

FIAC Spare Parts for Piston Air Compressor Pump VS 244

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 244 - 02/03/2011 042A.
settings 61 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts

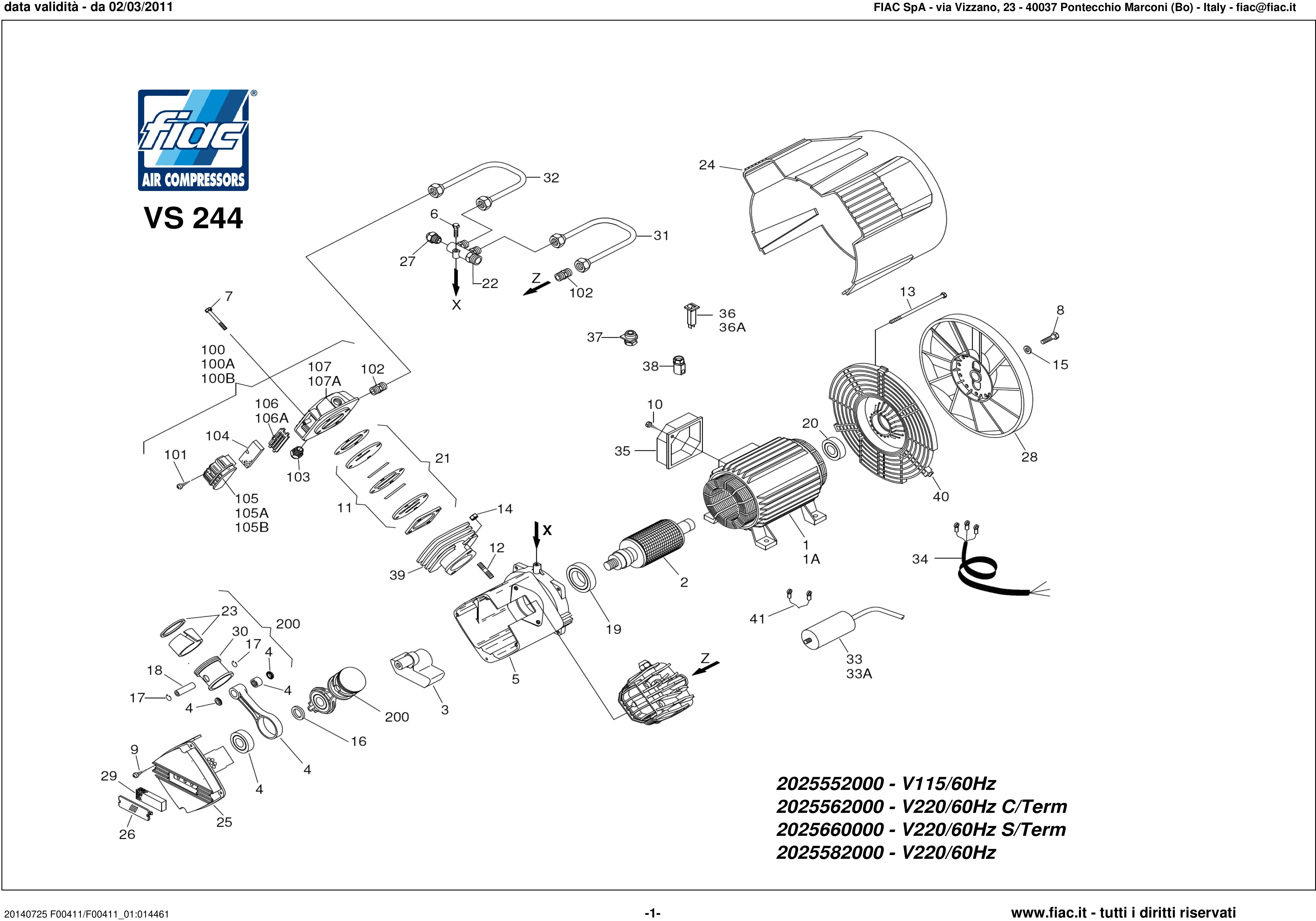

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
001A
 photo_cameraImage coming soon 4011130000 HOUSINGASSA ENGINE VS 244 220 V. / 60HZ €467.35
2
 photo_cameraImage coming soon 4280770000 Rotor Kit €206.15
3
 photo_cameraImage coming soon 5041360008 Crank €69.32
4
 photo_cameraImage coming soon 4190320000 Kit rod €104.77
5
 photo_cameraImage coming soon 5070160008 Sump €232.09
6
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
7
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
9
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
11
 Fiac VS204 Valve Plate Kit 7459510000 Fiac VS204 Valve Plate Kit €77.90
12
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
13
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
14
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
15
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
16
 photo_cameraImage coming soon 7038070000 Washer Ø20,1X26X2 UNI-6593 €3.73
17
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
18
 photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
19
 photo_cameraImage coming soon 7060050000 6007 35-62-14-bearing 2RS1 SKF €38.94
20
 photo_cameraImage coming soon 7060090000 6204-2RS1-bearing SKF €26.97
21
 photo_cameraImage coming soon 4082640000 Valve plate kit €80.06
22
 photo_cameraImage coming soon 7089950000 Collector €25.04
23
 FIAC VS204S Piston Rings Kit 4080040000 FIAC VS204S Piston Rings Kit €43.96 Not available for order
24
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
25
 photo_cameraImage coming soon 7151030000 COVER CARTER GMVS €10.77
26
 Air Cleaner Cap for Pump Unit FIAC VS 244 7151040000 Air Cleaner Cap for Pump Unit FIAC VS 244 €1.49
27
 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 7196020000 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 €10.00
28
 FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
29
 FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
30
 photo_cameraImage coming soon 7220070000 Piston €74.77
31
 FIAC Pump Units VS Head Pipe R 7231760000 FIAC Pump Units VS Head Pipe R €25.96
32
 FIAC Pump Units VS Head Pipe L 7231770000 FIAC Pump Units VS Head Pipe L €25.96
33A
 photo_cameraImage coming soon 7310330000 Condenser MF.30 V450 €30.79
34
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
35
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
036A
 photo_cameraImage coming soon 7410470000 Prot. Thermal singl. 10A €7.17
36
 photo_cameraImage coming soon 7410850000 Prot. 20 AMP TYCO Thermal-XB1A4A-2 €21.40
37
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
38
 photo_cameraImage coming soon 7501060000 Cable locks €1.52
39
 Fiac GMS 100 Pump Unit Cylinder 7575030000 Fiac GMS 100 Pump Unit Cylinder €158.15
41
 photo_cameraImage coming soon 7327280000 CABLE BRIDGE VX X / DE SILENT €4.81
100B
 photo_cameraImage coming soon 4020640000 Kit head €35.23
100
 photo_cameraImage coming soon 4020890000 Kit head €44.14
100A
 photo_cameraImage coming soon 4021350000 Kit head €136.94
101
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
102
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
103
 photo_cameraImage coming soon 7090200000 Cap 3/8 FIL.CILINDR.IN BRASS €3.68
104
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
105
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
105A
 photo_cameraImage coming soon 7210640000 INTAKE FILTER VS204S-VS254S €16.10
106A
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
106
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
107A
 photo_cameraImage coming soon 5030170008 Head €108.62
107
 photo_cameraImage coming soon 5030250008 Head €57.22
200
 photo_cameraImage coming soon 4191011000 GR.BIELLA-PISTON GMS-VS €98.76

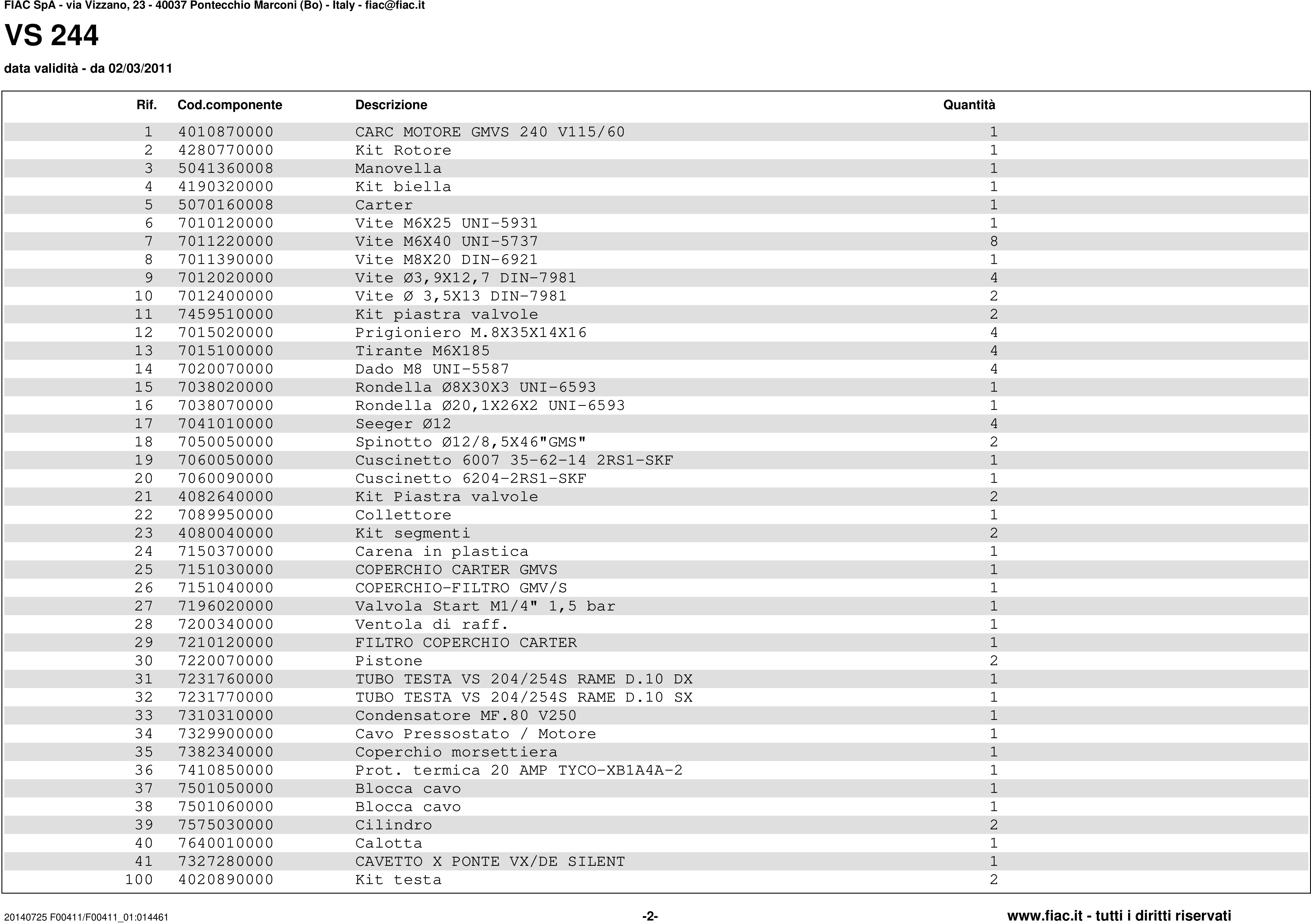

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

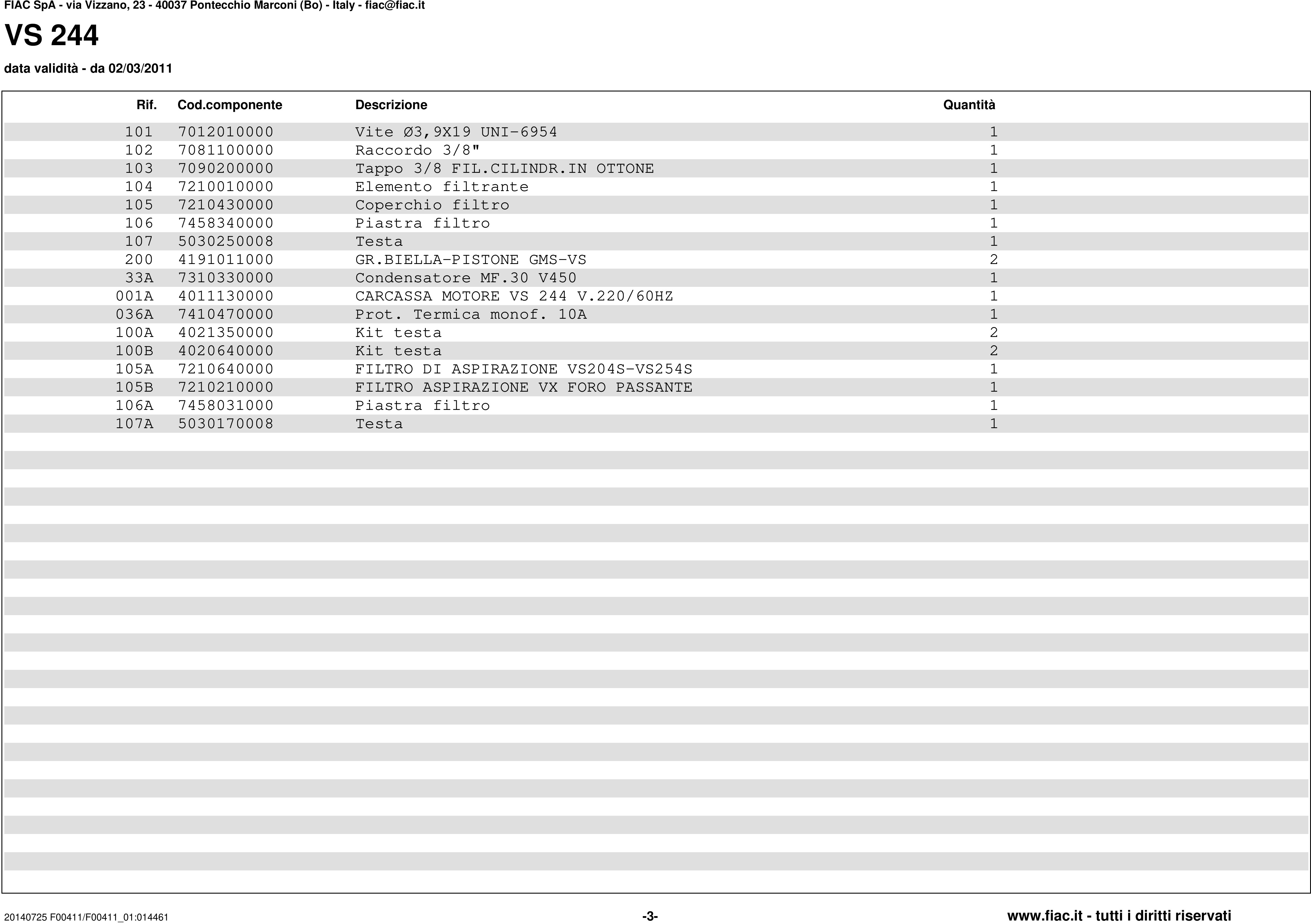

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
001A
 photo_cameraImage coming soon 4011130000 HOUSINGASSA ENGINE VS 244 220 V. / 60HZ €467.35
036A
 photo_cameraImage coming soon 7410470000 Prot. Thermal singl. 10A €7.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Pump VS 244

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 244 - 02/03/2011 042A.

In the following table , look for the model of the pump unit and the respective parts of the code.
Fiac VS 244 02/03/2011 042A

FIAC VS 244 data validità - da 02/03/2011 042A Parts List
# Part Num. Description
1 4010870000 HOUSING MOTOR GMVS 240 V115 / 60
2 4280770000 Rotor Kit
3 5041360008 Crank
4 4190320000 Rod kit
5 5070160008 Sump
6 7010120000 Screw M6X25 UNI-5931
7 7011220000 Screw M6x40 UNI-5737
8 7011390000 Screw M8x20 DIN-6921
9 7012020000 Screw Ø3,9X12,7 DIN-7981
10 7012400000 Ø Screw 3,5X13 DIN-7981
11 7459510000 Kit valve plate
12 7015020000 Prisoner M.8X35X14X16
13 7015100000 Guy M6X185
14 7020070000 Nut M8 UNI-5587
15 7038020000 Washer Ø8X30X3 UNI-6593
16 7038070000 Washer Ø20,1X26X2 UNI-6593
17 7041010000 Seeger Ø12
18 7050050000 Pin Ø12 / 8,5X46 GMS
19 7060050000 6007 35-62-14-bearing 2RS1 SKF
20 7060090000 6204-2RS1-bearing SKF
21 4082640000 Valve plate kit
22 7089950000 Collector
23 4080040000 Piston Rings Kit
24 7150370000 Plastic Hood
25 7151030000 COVER CARTER GMVS
26 7151040000 COVER-FILTER GMV / S
27 7196020000 Start valve M1/4"1.5 bar
28 7200340000 Fan
29 7210120000 FILTER HOUSING COVER
30 7220070000 Piston
31 7231760000 PIPE HEAD VS 204 / 254S COPPER D.10 DX
32 7231770000 PIPE HEAD VS 204 / 254S COPPER D.10 SX
33 7310310000 Condenser MF.80 V250
34 7329900000 Cable Pressure / Motor
35 7382340000 Terminal cover
36 7410850000 Prot. 20 AMP TYCO Thermal-XB1A4A-2
37 7501050000 Cable locks
38 7501060000 Cable locks
39 7575030000 Cylinder
40 7640010000 Cover
41 7327280000 CABLE BRIDGE VX X / DE SILENT
100 4020890000 Kit head
101 7012010000 Screw Ø3,9X19 UNI-6954
102 7081100000 3/8 ''
103 7090200000 Cap 3/8 FIL.CILINDR.IN BRASS
104 7210010000 Filter element
105 7210430000 Filter cover
106 7458340000 Filter plate
107 5030250008 Head
200 4191011000 GR.BIELLA-PISTON GMS-VS
33A 7310330000 Condenser MF.30 V450
001A 4011130000 HOUSINGASSA ENGINE VS 244 220 V. / 60HZ
036A 7410470000 Prot. Thermal singl. 10A
100A 4021350000 Kit head
100B 4020640000 Kit head
105A 7210640000 INTAKE FILTER VS204S-VS254S
105B 7210210000 INTAKE FILTER VX HOLE
106A 7458031000 Filter plate
107A 5030170008 Head
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac VS244 02/03/2011 042A
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac VS 244

Diagram Fiac VS 244

Download (526.29KB)
