FIAC spa

FIAC Spare Parts for Pump Unit VX 254

SKU: Fiac VX254 from 21/03/2003
€359.21
VAT included

FIAC Spare Parts for Pump Unit VX 254

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX 254 validity date - from 21/03/2003.

FIAC Spare Parts for Pump Unit VX 254
  • FIAC Spare Parts for Pump Unit VX 254
  • FIAC Spare Parts for Pump Unit VX 254
FIAC spa

FIAC Spare Parts for Pump Unit VX 254

SKU: Fiac VX254 from 21/03/2003 Condition: New
€359.21
VAT included

FIAC Spare Parts for Pump Unit VX 254

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX 254 validity date - from 21/03/2003.

settings 86 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

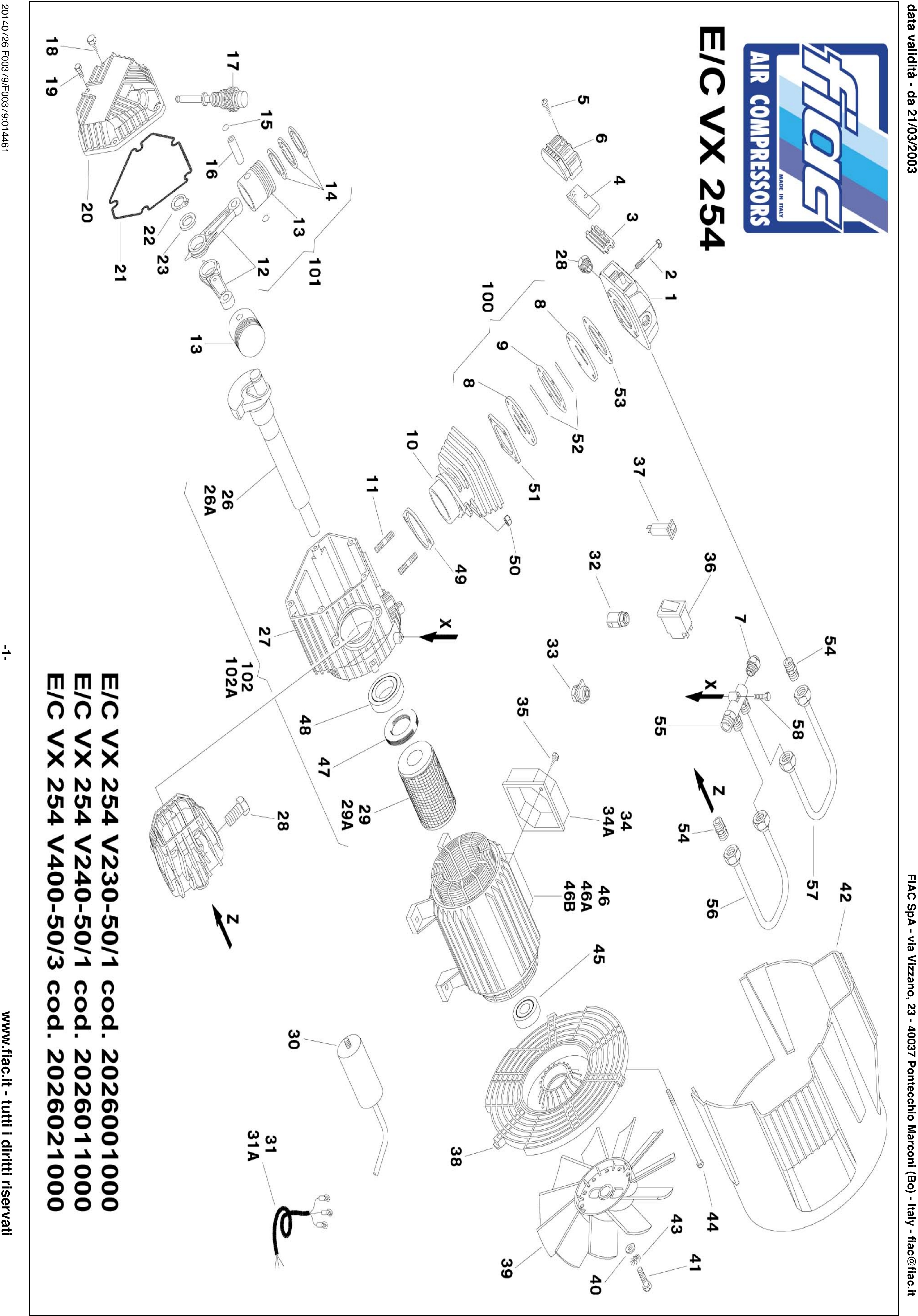

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5030250008 Head €57.22
2
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
6
 Air Cleaner Cover for Pump Units Fiac VX 254-304 7210180000 Air Cleaner Cover for Pump Units Fiac VX 254-304 €7.69
7
 Start Valve 2.2 BAR-G 1/4 for Pump Units Fiac VX - VS 7196000000 Start Valve 2.2 BAR-G 1/4 for Pump Units Fiac VX - VS €14.40
8
 photo_cameraImage coming soon 7458020000 PLATE-holder D 50 ZINC €13.02
8
 Valves Plate Kit for Puming Units Fiac VX 214-254-304 7459490000 Valves Plate Kit for Puming Units Fiac VX 214-254-304 €30.64
9
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
10
 photo_cameraImage coming soon 7575190000 Cylinder €59.78
11
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
12
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
13
 Piston D.50 MM for Pump Units FIAC Series VX - GM 7220020000 Piston D.50 MM for Pump Units FIAC Series VX - GM €26.96
14
 Piston Rings for Pumping Units FIAC VX 194-254-402 4080020000 Piston Rings for Pumping Units FIAC VX 194-254-402 €26.02
15
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
16
 photo_cameraImage coming soon 7050020000 Pin Ø12 / 8X42 €5.60
17
 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì 7181060000 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì €10.47
19
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
20
 photo_cameraImage coming soon 7650010000 Crankcase cover €28.94
21
 Motor Carter Gasket for Pumping Units FIAC VX 7078440000 Motor Carter Gasket for Pumping Units FIAC VX €7.53
22
 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 7040040000 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 €0.62
22
 Fiac Pump Unit GM 143 Head Plate Gasket 7078580000 Fiac Pump Unit GM 143 Head Plate Gasket €4.34
23
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
24
 FIAC Copper Pipe Right for Series VX 7237010000 FIAC Copper Pipe Right for Series VX €26.95
25
 photo_cameraImage coming soon 7237020000 Copper pipe €25.42
26
 photo_cameraImage coming soon 5040241008 Crank Shaft €145.02
026A
 photo_cameraImage coming soon 5040261008 Tree in Elbow €145.02
26
 photo_cameraImage coming soon 5041400008 Removable Crank €49.91
27
 photo_cameraImage coming soon 5070180008 Crankshaft housing €125.56
28
 photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
029A
 photo_cameraImage coming soon 4280810000 Rotor Kit €178.31
29
 photo_cameraImage coming soon 4280850000 Kit Armature Single Phase   with Shaft €182.41
29
 photo_cameraImage coming soon 5090210008 Armature Single Phase   without Shaft €124.08
029A
 photo_cameraImage coming soon 5090240008 Rotor €103.15
30
 photo_cameraImage coming soon 7310380000 Capacitor MF.40 V450 €40.89
031A
 photo_cameraImage coming soon 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM €22.13
31
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
32
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
33
 photo_cameraImage coming soon 7501060000 Cable locks €1.52
34
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
034A
 photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
35
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
36
 photo_cameraImage coming soon 7410450000 TERMIC.WEBER-UNIMATWTT22-551 "4.5A €128.46
36
 photo_cameraImage coming soon 7410460000 Prot. Thermal ETA-3120-F521-P7T1-W09D-6A €125.92
37
 Thermal Protection AMF 15 A for Pump Units Fiac VX 254-304 7410390000 Thermal Protection AMF 15 A for Pump Units Fiac VX 254-304 €35.10
39
 Motor Fan for Pumping Unit Fiac VX-GM 7200020000 Motor Fan for Pumping Unit Fiac VX-GM €59.99
40
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
41
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
42
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
43
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
44
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
45
 photo_cameraImage coming soon 7060030000 Bearing 6204 20-47-14 2RS1- €17.12
046B
 photo_cameraImage coming soon 4011330000 HOUSING MOTOR GMV 252 V380 / 50HZ S / TERMINALS €512.90
046A
 photo_cameraImage coming soon 4011330000 HOUSING MOTOR GMV 252 V380 / 50HZ S / TERMINALS €512.90
46
 photo_cameraImage coming soon 4011360000 CARC MOT VX 254 220 V. / 50HZ S / Morset €278.12
47
 photo_cameraImage coming soon 7071030000 RING 3462/10 SMIM €4.30
47
 Fiac VX214 Oil Seal 4062-10 SMIM 7071160000 Fiac VX214 Oil Seal 4062-10 SMIM €7.45
48
 photo_cameraImage coming soon 7060070000 Bearing 6007 €24.51
49
 Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
50
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
52
 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM 4081010000 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM €10.82
52
 photo_cameraImage coming soon 7089950000 Collector €25.04
54
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
55
 photo_cameraImage coming soon 7089950000 Collector €25.04
56
 FIAC Copper Pipe Right for Series VX 7237010000 FIAC Copper Pipe Right for Series VX €26.95
57
 photo_cameraImage coming soon 7237020000 Copper pipe €25.42
58
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
100
 Gasket Set for Pumping Units FIAC VX 194-214-254-402 4082150000 Gasket Set for Pumping Units FIAC VX 194-214-254-402 €15.23
100
 photo_cameraImage coming soon 4082690000 Kit Valve plate €27.63
101
 Conrod + Piston Kit for Air Compressors FIAC GM 191-192-243 4191020000 Conrod + Piston Kit for Air Compressors FIAC GM 191-192-243 €68.53
102
 photo_cameraImage coming soon 4280260000 CARTER GROUP Crankshaft-ROTOR VX 254 MON. €385.79
102A
 photo_cameraImage coming soon 4280270000 GR.CARTER Crankshaft-ROTOR VX-254 FRR €358.87
103
 Gasket Set for Pumping Units FIAC VX 194-214-254-402 4082150000 Gasket Set for Pumping Units FIAC VX 194-214-254-402 €15.23
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

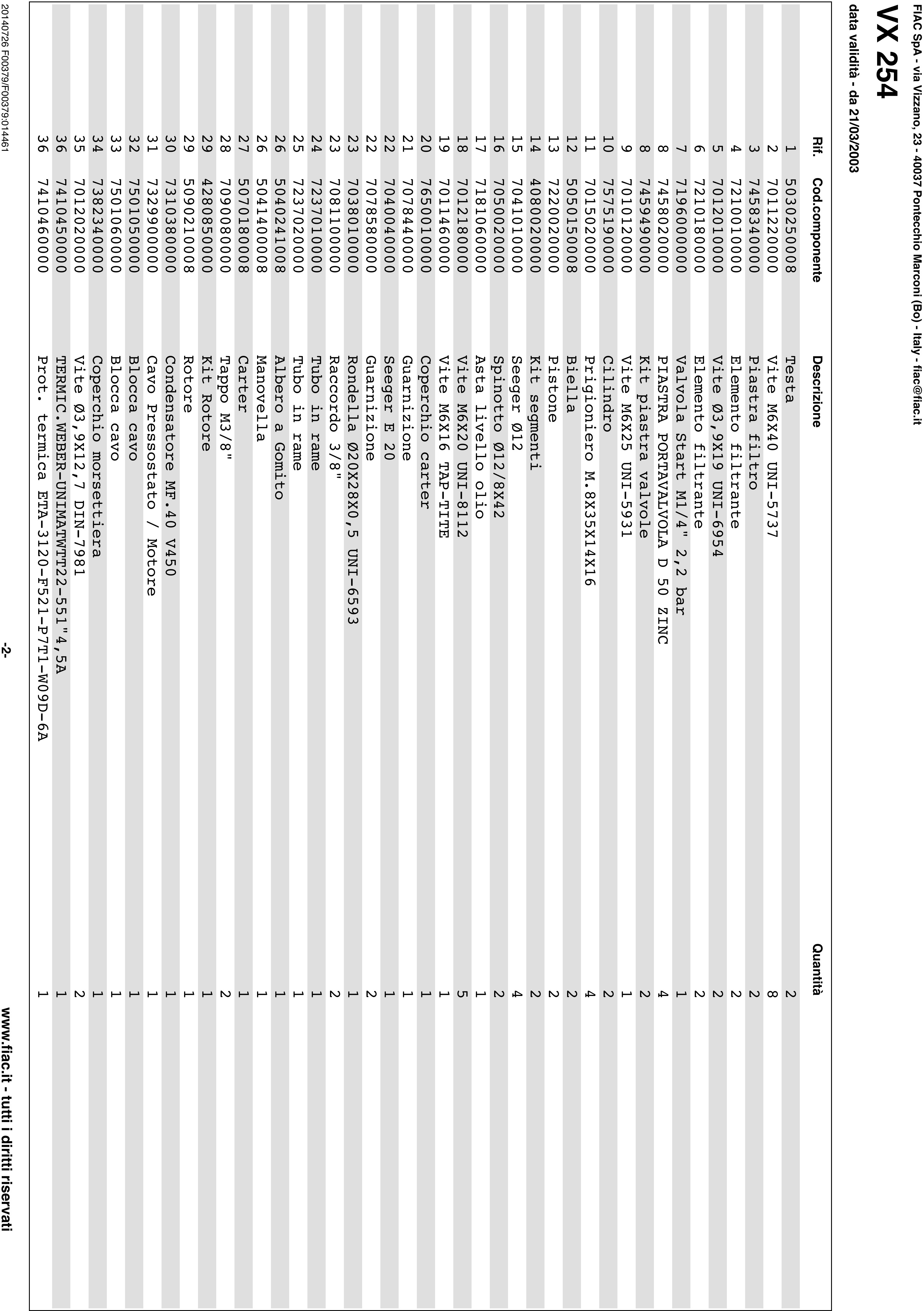

Esploso pagina 2
Pos. Item Price Buy
24
 FIAC Copper Pipe Right for Series VX 7237010000 FIAC Copper Pipe Right for Series VX €26.95
25
 photo_cameraImage coming soon 7237020000 Copper pipe €25.42
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

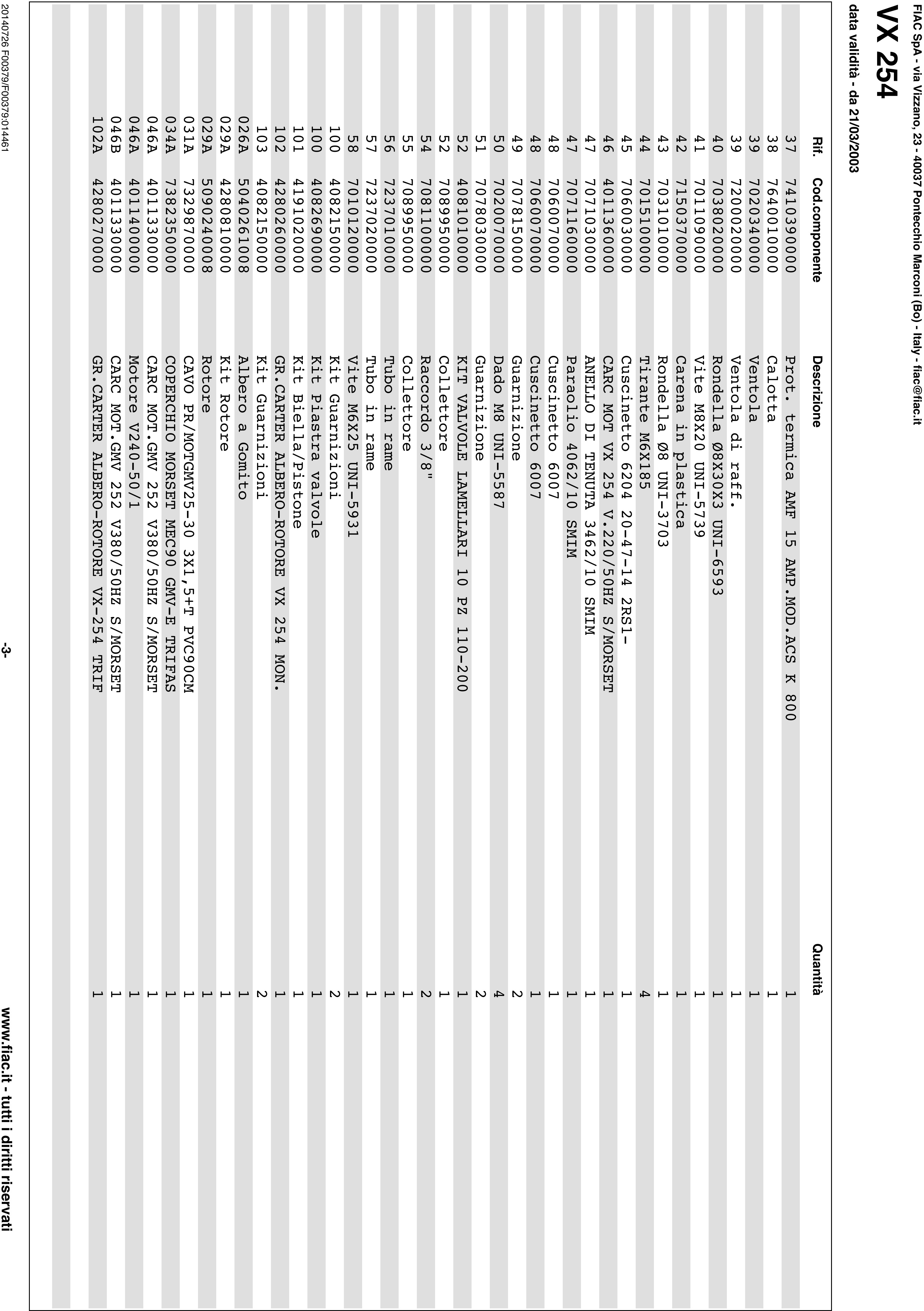

Esploso pagina 3
Pos. Item Price Buy
031A
 photo_cameraImage coming soon 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM €22.13
034A
 photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
046A
 photo_cameraImage coming soon 4011330000 HOUSING MOTOR GMV 252 V380 / 50HZ S / TERMINALS €512.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit VX 254

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX 254 validity date - from 21/03/2003

In the following table , look for the model of the pumping unit and the respective parts of the code .
Pump Unit VX 254 validity date - from 21/03/2003

VX 254 validity date - from 21/03/2003
# Part Num. Description
1 5030250008 Head
2 7011220000 Screw M6X40 UNI-5737
3 7458340000 Plate filter
4 7210010000 Filter element
5 7012010000 Screw Ø3,9X19 UNI-6954
6 7210180000 Air Cleaner Cover
7 7196000000 Start valve M1/4" 2.2 bar
8 7458020000 PLATE preassembled D 50 ZINC
8 7459490000 Kit valve plate
9 7010120000 Screw M6X25 UNI-5931
10 7575190000 Cylinder
11 7015020000 Stud M.8X35X14X16
12 5050150008 Connecting Rod
13 7220020000 Piston
14 4080020000 Piston Ring Set
15 7041010000 Clip Ø12
16 7050020000 Pin Ø12 / 8X42
17 7181060000 Dipstick
18 7012180000 Screw M6X20 UNI-8112
19 7011460000 Screw M6X16 TAP-TITE
20 7650010000 Crankcase cover
21 7078440000 Gasket
22 7040040000 Seeger E 20
22 7078580000 Gasket
23 7038010000 Washer Ø20X28X0,5 UNI-6593
23 7081100000 Fitting 3/8"
24 7237010000 Copper pipe
25 7237020000 Copper pipe
26 5040241008 Crank Shaft
26 5041400008 Removable Crank
27 5070180008 Sump
28 7090080000 Cap M3/8"
29 4280850000 Kit Armature Single Phase   with Shaft
29 5090210008 Armature Single Phase   without Shaft
30 7310380000 Capacitor MF.40 V450
31 7329900000 Cable Pressure / Motor
32 7501050000 Block Cable
33 7501060000 Block Cable
34 7382340000 Terminal cover
35 7012020000 Screw Ø3,9X12,7 DIN-7981
36 7410450000 TERMIC.WEBER-UNIMATWTT22-551 "4.5A
36 7410460000 Prot. Thermal ETA-3120-F521-P7T1-W09D-6A
37 7410390000 Prot. Thermal AMF 15 AMP.MOD.ACS K 800
38 7640010000 Cover
39 7020340000 Fan
39 7200020000 Fan raff.
40 7038020000 Washer Ø8X30X3 UNI-6593
41 7011090000 Screw M8X20 UNI-5739
42 7150370000 Carena plastic
43 7031010000 Washer Ø8 UNI-3703
44 7015100000 tie rod M6X185
45 7060030000 Bearing 6204 20-47-14 2RS1-
46 4011360000 CARC MOT VX 254 220 V. / 50HZ S / Morset
47 7071030000 RING 3462/10 SMIM
47 7071160000 Oil seal 4062/10 SMIM
48 7060070000 Bearing 6007
48 7060070000 Bearing 6007
49 7078150000 Gasket
50 7020070000 Nut M8 UNI-5587
51 7078030000 Gasket
52 4081010000 KIT VALVE FLAP 10 PZ 110-200
52 7089950000 Collector
54 7081100000 Fitting 3/8 "
55 7089950000 Collector
56 7237010000 Copper pipe
57 7237020000 Copper pipe
58 7010120000 Screw M6X25 UNI-5931
100 4082150000 Kits
100 4082690000 Kit Valve plate
101 4191020000 Kit rod / piston
102 4280260000 CARTER GROUP Crankshaft-ROTOR VX 254 MON.
103 4082150000 Kits
026A  5040261008 Tree in Elbow
029A  4280810000 Rotor Kit
029A  5090240008 Rotor
031A 7329870000 PR WIRE/MOTGMV25-30 3X1,5 + T PVC90CM
034A 7382350000 COVER Morset MEC90 GMV-E TRIFAS
046A 4011330000 HOUSING MOTOR GMV 252 V380 / 50HZ S / TERMINALS
046A 4011400000 Engine V240-50 / 1
046B 4011330000 CARC MOT.GMV 252 V380 / 50HZ S / Morset
102A 4280270000 GR.CARTER Crankshaft-ROTOR VX-254 FRR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac VX254 from 21/03/2003
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac VX254

Diagram Fiac VX254

Download (435.72KB)

You might also like

Piston Rings for Pumping Units FIAC VX 194-254-402
FIAC spa SKU: 4080020000
Piston Rings for Pumping Units FIAC VX 194-254-402
Piston Rings for Pump Units FIAC VX 194-254-402 Genuine Parts FIAC, Special Steel Piston Rings for Pump Units, VX 194 - VX 254 - VX 402 - GM 191 - GM 192 - GM 242 - GM 243. Part for the following Items. - Pump Unit FIAC VX 194 - Pump...
Last items in stock €26.02
Details
Conrod for Pump Units FIAC GM-VX
FIAC spa SKU: 5050150008
Conrod for Pump Units FIAC GM-VX
Conrod for Pump Units FIAC GM-VX Genuine part FIAC, Conrod Entirely Made in aluminum, for Pump Units FIAC GM-VX prepared with lubrication holes. Part for the following products: - GM 110 15 BAR validity date - from...
Last items in stock €27.33
Details
Gasket kit for Pumping Units FIAC GM 110-191-201-243
FIAC spa SKU: 4082010000
Gasket kit for Pumping Units FIAC GM 110-191-201-243
Gasket kit for Pump Units FIAC GM 110-191-201-243 Original parts FIAC, Gasket Kit for Air Compressors GM 110 - 191 GM - 201 GM - GM 243 - VX 422. Parts for the following compressors: - Pump unit GM 110 15 BAR validity date - by...
Last items in stock €18.27
Details
Cylinder Carter Gasket for Air Compressors FIAC AB 410-510-512
SKU: 7078150000
Cylinder Gasket for Pumping Units FIAC GM 142
Cylinder Gasket for Pump Units FIAC GM 142 Original replacement part FIAC, Cylinder gasket for pump units FIAC GN - VS 254 S - VS 254 S - VX. Part for the following products: - COSMOS 225  - COSMOS 225...
AVAILABLE €2.94
Details
Gasket Set for Pumping Units FIAC VX 194-214-254-402
FIAC spa SKU: 4082150000
Gasket Set for Pumping Units FIAC VX 194-214-254-402
Gasket Set for Pumping Units FIAC VX 194-214-254-402 Original spare parts FIAC, Gasket Set for Pumping Units FIAC VX 94 - 214 - 254 - 402 Part for the following products: - Pumping Unit Fiac VX 194 - Pumping Unit...
AVAILABLE €15.23
Details
Valves Plate Kit for Puming Units Fiac VX 214-254-304
FIAC spa SKU: 7459490000
Valves Plate Kit for Puming Units Fiac VX 214-254-304
Valves Plate Kit for Puming Units Fiac VX 214-254-304 Genuine spare part FIAC, Valves Plate Kit for Pump Units Fiac VX 214 - VX 254 - VX 304 Part for the following products: - Pump Unit Fiac VX 214 -...
AVAILABLE €30.64
Details
Motor Carter Gasket for Pumping Units FIAC VX
FIAC spa SKU: 7078440000
Motor Carter Gasket for Pumping Units FIAC VX
Motor Carter Gasket for Pumping Units FIAC VX Original spare parts FIAC, Motor Carter Gasket for Pumping Units FIAC VX 194 - VX 214 - VX 254 - VX 304 - VX 402 - VX 422 Part for the...
AVAILABLE €7.53
Details
Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM
FIAC spa SKU: 4081010000
Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM
Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM Genuine spare parts FIAC, Flap Valves Kit 10 pcs for Puming Units Fiac VX 194 - VX 214 - VX 402 - GM 110 -191 - 201 - 202 - 242 - 243 - 260 Part for the following...
AVAILABLE €10.82
Details
Piston for Pumping Unit FIAC AB 335
FIAC spa SKU: 7220050000
Piston for Pumping Unit FIAC AB 335
Piston for Pump Unit FIAC AB 335 Genuine replacement FIAC, Piston for Pump Units AB 335 - S 15 - GM 300 - VX 304 - Air Compressor Fiac GM 25 300 Part for the following products: - Pump...
AVAILABLE €29.18
Details
Gasket Set for Pump Unit FIAC VX 304
FIAC spa SKU: 4082080000
Gasket Set for Pump Unit FIAC VX 304
Gasket Set for Pump Unit FIAC VX 304 Original spare parts FIAC, Gasket Set for Pump Unit VX 304 validity date - from 05/12/2005 Part for the following products: -  Pump Unit Fiac VX 304 validity date - from 05/12/2005 - Code:...
Last items in stock €21.06
Details
Crankshaft for Pump Unit FIAC VX 304
FIAC spa SKU: 5041390008
Crankshaft for Pump Unit FIAC VX 304
Crankshaft for Pump Unit FIAC VX 304 Original spare part FIAC, Crankshaft for Pump Unit VX 304 validity date - from 05/12/2005 Part for the following products: - Pump Unit Fiac VX 304 validity date - from 05/12/2005 - Code: 1125040139...
Last items in stock €55.73
Details
Motor Fan for Pumping Unit Fiac VX-GM
FIAC spa SKU: 7200020000
Motor Fan for Pumping Unit Fiac VX-GM
Motor Fan for Pumping Unit Fiac VX-GM Genuine part FIAC, Motor fan for Pump Units VX 402 - VX 422 - VX 194 - VX 254 - GM 260. Part for yhe following Items: - Pump Unit VX 402  - Pump Unit VX 422  - Pump Unit VX 194 - Pump Unit VX 254...
AVAILABLE €59.99
Details
Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50
FIAC spa SKU: 7040040000
Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50
Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 Genuine part FIAC, Seeger E 20 for Pumping Units Fiac S 15 - GM 25 - GM 50 - GM 300 - VX 254 - GM 201 - VX 194 - GM 242 - VX 402. Parts for the following products: - Pumping Unit S...
AVAILABLE €0.62
Details
Air Cleaner Cover for Pump Units Fiac VX 254-304
FIAC spa SKU: 7210180000
Air Cleaner Cover for Pump Units Fiac VX 254-304
Air Cleaner Cover for Pump Units Fiac VX 254-304 Genuine part FIAC, Air Cleaner Cover for Pump Units Fiac VX 254 - VX 304 - VX 402 - VX 422 Part for the following article: - Pump...
AVAILABLE €7.69
Details
Piston D.50 MM for Pump Units FIAC Series VX - GM
FIAC spa SKU: 7220020000
Piston D.50 MM for Pump Units FIAC Series VX - GM
Piston D. 50 MM for Pump Units FIAC Series VX - GM Genuine part FIAC, Piston D. 50 MM for Pump Units FIAC Series VX - GM. Parts for the following products: -  Pump Unit FIAC VX 194 -  Pump Unit...
on 7/10 Business Days Approx €26.96
Details
Fiac Pump Unit GM 143 Head Plate Gasket
FIAC spa SKU: 7078580000
Fiac Pump Unit GM 143 Head Plate Gasket
Fiac Pump Unit GM 143 Head Plate Gasket Original part FIAC, Head Plate Gasket for Pump Units FIAC GM 143 - VX 254 - VX 214 - VX 304 - VX 422. Part for the following products:...
AVAILABLE €4.34
Details
FIAC Copper Pipe Right for Series VX
FIAC spa SKU: 7237010000
FIAC Copper Pipe Right for Series VX
FIAC Copper Pipe D.10 Right for Pump Units Series VX Fiac Genuine Spare Parts, Copper Pipe D.10 Right for Pump Units Series VX Part for the following products: - Fiac VX254 from 21/03/2003 - Fiac VX 402 - from 15/04/2003 - Fiac...
AVAILABLE €26.95
Details
FIAC Motor Cover for Series VS-VX
FIAC spa SKU: 7150370000
FIAC Motor Cover for Series VS-VX
FIAC Motor Cover for Pump Units Series VS-VX Fiac Genuine Spare Parts, Plastic Motor Cover for Pump Units Series VS-VX. Part for the following products: - Fiac VX254 from 21/03/2003 - Fiac VX 402 - from 15/04/2003 - Fiac...
Last items in stock €36.88
Details
Fiac VX214 Oil Seal 4062/10 SMIM
FIAC spa SKU: 7071160000
Fiac VX214 Oil Seal 4062-10 SMIM
Fiac VX214 Oil Seal 4062/10 SMIM Genuine part FIAC, Oil Seal 4062/10 SMIM for Pump Units Fiac VX214 - VX254 - VX304 - VX 422. Parts for the following article: - Pump Unit VX 214 - Pump Unit VX 254 - Pump Unit VX304 -...
AVAILABLE €7.45
Details
Comments (0)
