FIAC Spare Parts for Pump Unit GMS 150

SKU: Fiac GMS150 da 22/07/2009
€1.52
VAT included

FIAC Spare Parts for Pump Unit GMS 150

Fiac original spare parts, sourced from the manufacturer, for to make maintenance or repair damaged parts for pump unit GMS 150 validity date - from 22/07/2009 with efficient and professional After Sales Service.

FIAC Spare Parts for Pump Unit GMS 150
  • FIAC Spare Parts for Pump Unit GMS 150
  • FIAC Spare Parts for Pump Unit GMS 150 - Drawing

FIAC Spare Parts for Pump Unit GMS 150

SKU: Fiac GMS150 da 22/07/2009 Condition: New
€1.52
VAT included

FIAC Spare Parts for Pump Unit GMS 150

Fiac original spare parts, sourced from the manufacturer, for to make maintenance or repair damaged parts for pump unit GMS 150 validity date - from 22/07/2009 with efficient and professional After Sales Service.

settings 47 spare parts

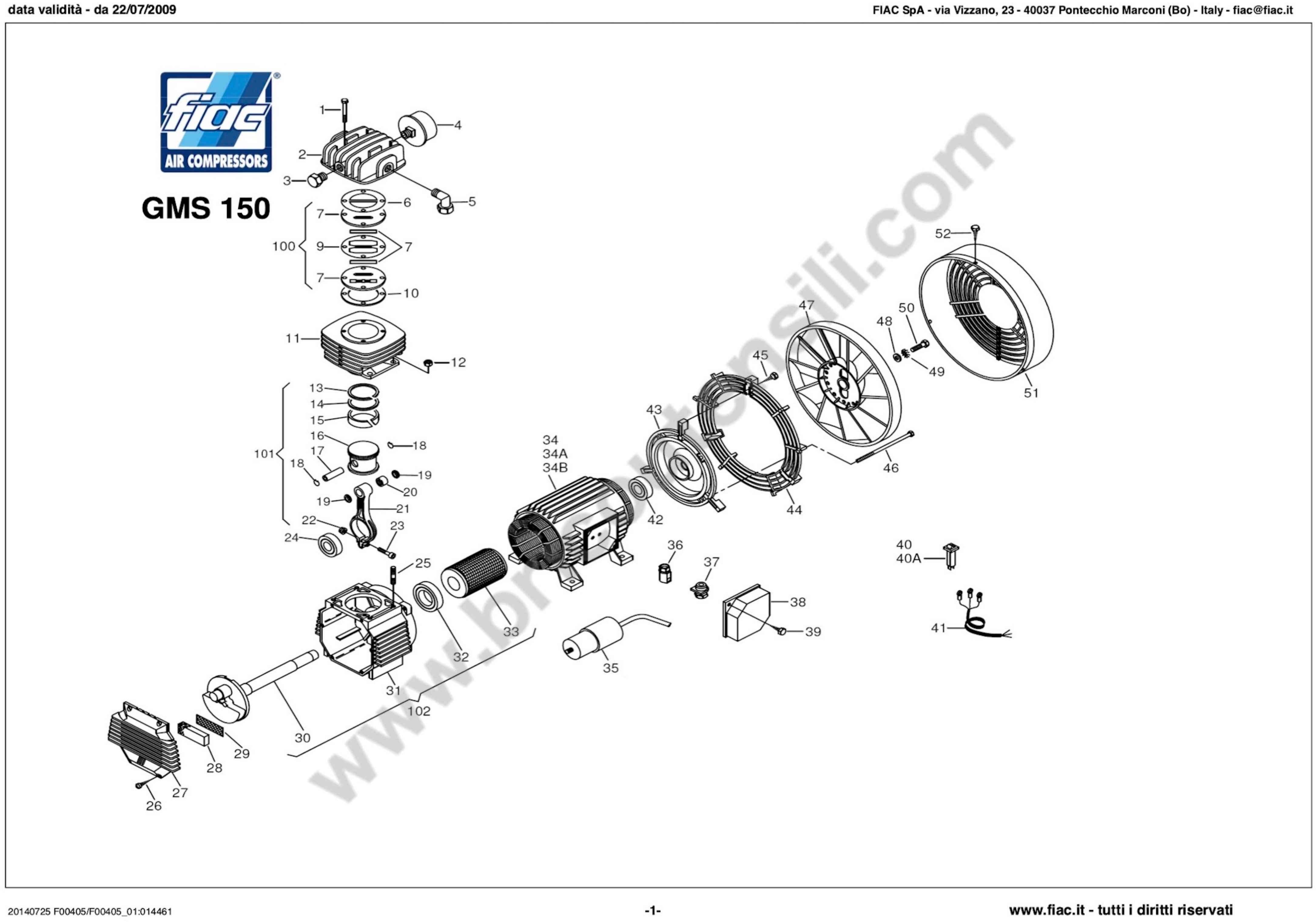

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 7570020000 Head €39.51
3
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
4
Air Filter for Compressors Stratos 50 Lt 7210090000 Air Filter for Compressors Stratos 50 Lt €11.90
5
photo_cameraImage coming soon 7084030000 A fitting L 1/2 TUBE D14 €19.03
7
Fiac VS204 Valve Plate Kit 7459510000 Fiac VS204 Valve Plate Kit €77.90
8
photo_cameraImage coming soon 7012080000 Screw Ø4,2X12,7 UNI-6954 €1.38
11
Cylinder for Pump Unit Fiac GMS 150 7575050000 Cylinder for Pump Unit Fiac GMS 150 €175.71
12
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
photo_cameraImage coming soon 7220300000 Piston €38.56
17
photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
18
Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
24
photo_cameraImage coming soon 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF €23.84
25
Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
26
photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
27
photo_cameraImage coming soon 7151050000 COVER CARTER GMS 150 €8.21
28
FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
29
photo_cameraImage coming soon 7458031000 Filter plate €5.87
30
photo_cameraImage coming soon 5040380008 Tree in Elbow €121.61
31
photo_cameraImage coming soon 5070100008 Sump €115.81
32
photo_cameraImage coming soon 7060650000 Bearing - Cuscinetto €27.92
33
photo_cameraImage coming soon 5090180008 Rotor €137.06
34
photo_cameraImage coming soon 4010970000 HOUSING MOTOR GMS 150 V230/50HZ S/Morset. €554.32
034A
photo_cameraImage coming soon 4010990000 ENGINE CASE GMS150 V240 /50HZ S/TERM. BLK €480.91
034B
photo_cameraImage coming soon 4011140000 ENGINE CASE GMS 150 V380 /50HZ WITHOUT TERMINALS €554.32
35
photo_cameraImage coming soon 7310370000 25 uF capacitor V450 €31.78
36
photo_cameraImage coming soon 7501050000 Cable locks €4.48
37
photo_cameraImage coming soon 7501060000 Cable locks €1.52
38
photo_cameraImage coming soon 7382340000 Terminal cover €4.34
038A
photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
39
photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
40
photo_cameraImage coming soon 7410470000 Prot. Thermal singl. 10A €7.17
41
photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
42
photo_cameraImage coming soon 7060090000 6204-2RS1-bearing SKF €26.97
42
photo_cameraImage coming soon 7060640000 Bearing - Cuscinetto €9.18
43
photo_cameraImage coming soon 5110020008 CAP POSTER.GM 260 / GMS 150-180 €37.58
44
photo_cameraImage coming soon 7248020000 PROTECTION FRONT VENT.GMV BLACK €10.44
45
photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
47
FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
48
photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
49
photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
50
photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
51
photo_cameraImage coming soon 7248030000 REAR VENT GMV BLACK €20.77
100
photo_cameraImage coming soon 4082650000 Valve plate kit €89.68
101
Set Conrod-Piston for Pump Unit Fiac VS 204 4191140000 Set Conrod-Piston for Pump Unit Fiac VS 204 €111.51
102
photo_cameraImage coming soon 4280180000 CARTER GROUP-SHAFT-ROTOR GMS-150 €395.92
103
photo_cameraImage coming soon 4082140000 Kits €12.27
104
Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €82.31
105
photo_cameraImage coming soon 4190320000 Kit rod €104.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit GMS 150

Fiac original spare parts, sourced from the manufacturer, for to make maintenance or repair damaged parts for pump unit GMS 150 validity date - from 22/07/2009 with efficient and professional After Sales Service.

In the following table , look for the model of the pumping unit and the respective parts of the code .
GMS 150 validity date - from 22/07/2009

GMS 150 validity date - from 22/07/2009
# Part Num. Description
1 7011340000 Screw M6x55 UNI-5737
2 7570020000 Head
3 7090030000 Cap M1/2"
4 7210090000 AIR FILTER M1-1/2"
5 7084030000 A fitting L 1/2 TUBE D14
7 7459510000 Kit valve plate
8 7012080000 Screw Ø4,2X12,7 UNI-6954
11 7575050000 Cylinder
12 7020070000 Nut M8 UNI-5587
16 7220300000 Piston
17 7050050000 Pin Ø12 / 8,5X46 "GMS"
18 7041010000 Seeger Ø12
24 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF
25 7015020000 STUD M.8X35X14X16
26 7012060000 Screw M4X12 UNI-8112
27 7151050000 COVER CARTER GMS 150
28 7210120000 FILTER COVER CARTER
29 7458031000 Filter plate
30 5040380008 Tree in Elbow
31 5070100008 Sump
32 7060650000 SKF Bearing 6205 2RS-25.52.15
32 7060650000 SKF Bearing 6205 2RS-25.52.15
33 5090180008 Rotor
34 4010970000 HOUSING MOTOR GMS 150 V230/50HZ S/Morset.
35 7310370000 Capacitor MF.25 V450
36 7501050000 Cable locks
37 7501060000 Cable locks
38 7382340000 Terminal cover
39 7012020000 Screw Ø3,9X12,7 DIN-7981
40 7410470000 Prot. Thermal phase 10A
41 7329900000 Cable Pressure / Motor
42 7060090000 6204-2RS1-bearing SKF
42 7060640000 Bearing 6203 ZZ 17:40:12 QE6-SKF
43 5110020008 REAR COVER GM 260 / GMS 150-180
44 7248020000 FAN FRONT GUARD GMV BLACK
45 7012060000 Screw M4X12 UNI-8112
46 7015090000 Guy M6X115
47 7200340000 COOLING FAN
48 7038020000 Washer Ø8X30X3 UNI-6593
49 7031010000 Washer Ø8 UNI-3703
50 7011090000 Screw M8X20 UNI-5739
51 7248030000 REAR FAN GMV BLACK
100 4082650000 Valve plate kit
101 4191140000 SET CONROD-PISTON VS SINGLE BAND-DSB
102 4280180000 CARTER GROUP-SHAFT-ROTOR GMS-150
103 4082140000 Kits
104 4080043000 Kit Piston Ring
105 4190320000 Kit rod
034A  4010990000 ENGINE CASE GMS150 V240 /50HZ S/TERM. BLK
034B  4011140000 ENGINE CASE GMS 150 V380 /50HZ WITHOUT TERMINALS
038A  7382350000 COVER TERMINALS MEC90 GMV-AND THREE PHASE
