FIAC spa

FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512

SKU: Fiac AB410 - AB510 - AB512
€30.99
VAT included

FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512

FIAC Genuine Spare Parts or replacements parts for to repair components for piston Air Compressors Pump units, AB 410 - 510 - 512.

Fix Your Pump Units AB 410 - 510 - 512. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512
  • FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512
  • FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512
FIAC spa

FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512

SKU: Fiac AB410 - AB510 - AB512 Condition: New
€30.99
VAT included

FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512

FIAC Genuine Spare Parts or replacements parts for to repair components for piston Air Compressors Pump units, AB 410 - 510 - 512.

Fix Your Pump Units AB 410 - 510 - 512. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 40 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

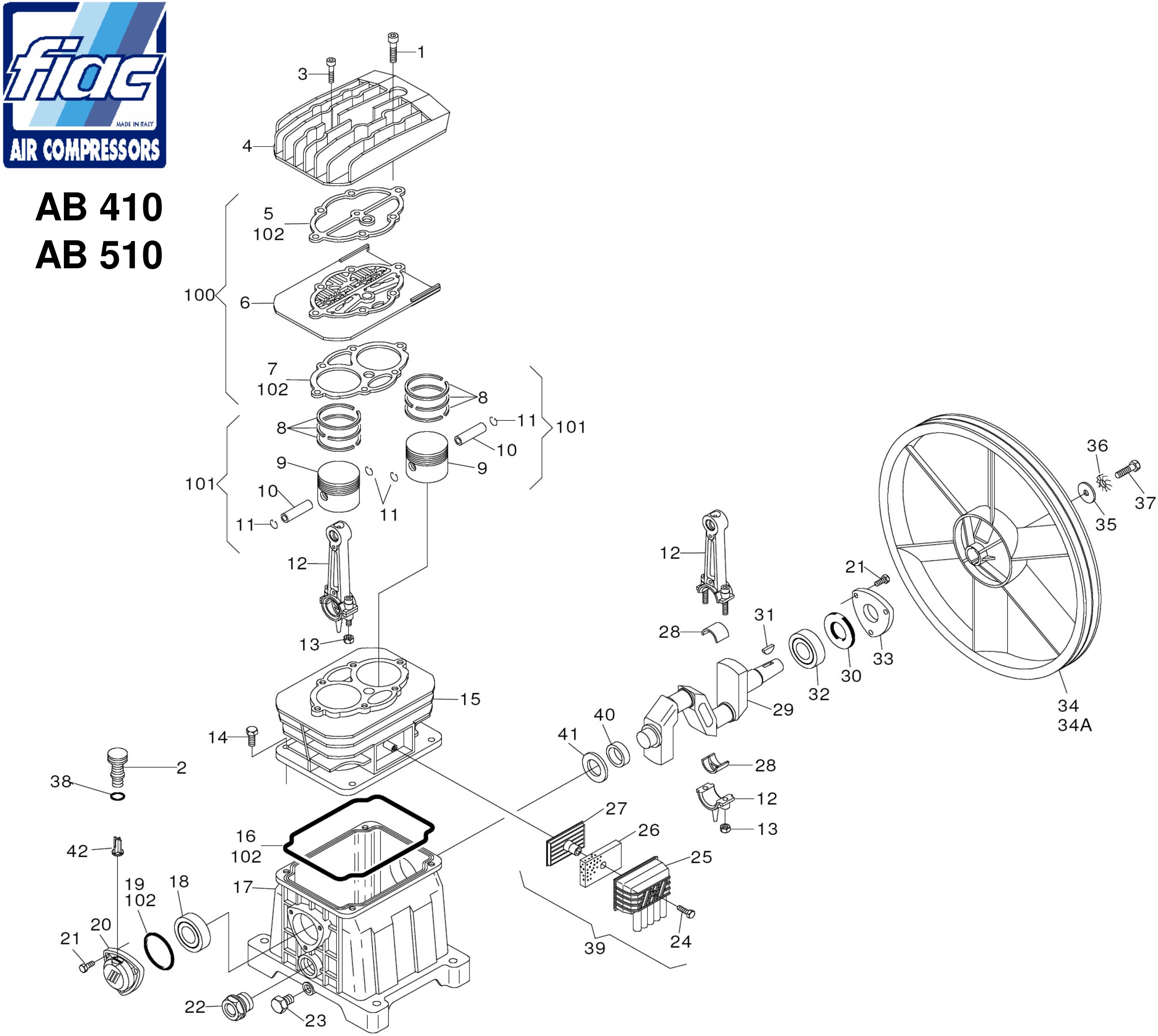

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
2
 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 €4.34
4
 photo_cameraImage coming soon 5030580008 Head €62.21
5
 Cylinder Head Plate Gasket for Pumping Units FIAC AB 410-510-512 7079470000 Cylinder Head Plate Gasket for Pumping Units FIAC AB 410-510-512 €6.27
6
 Valves Plate Set for Pumping Units FIAC AB 410-510-512 4231220000 Valves Plate Set for Pumping Units FIAC AB 410-510-512 €98.23
006C
 Cylinder Head Plate/Plate Gasket for Pump Units FIAC AB 410-510-512 7078600000 Cylinder Head Plate/Plate Gasket for Pump Units FIAC AB 410-510-512 €6.32
006B
 photo_cameraImage coming soon 7199150000 Valve €3.86
6
 FIAC AB 410 Valve Plate Pair 9106380000 FIAC AB 410 Valve Plate Pair €88.24
006A
 FIAC AB 410 Valve Plate Pair 9106380000 FIAC AB 410 Valve Plate Pair €88.24
7
 Cylinder Plate Gasket for Pumping Units FIAC AB 410-510-512 7079480000 Cylinder Plate Gasket for Pumping Units FIAC AB 410-510-512 €8.29
8
 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 4080120000 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 €30.99
9
 Piston for Pumping unit FIAC AB 410-510-512 7220230000 Piston for Pumping unit FIAC AB 410-510-512 €31.49
10
 Piston Pin 15x46 for Pump Unit FIAC AB410 7050180000 Piston Pin 15x46 for Pump Unit FIAC AB410 €6.21
12
 Conrod for Pumping unit FIAC AB410-415-515 5050510008 Conrod for Pumping unit FIAC AB410-415-515 €27.22
14
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
16
 Cylinder Carter Gasket for Air Compressors FIAC AB 410-510-512 7079440000 Cylinder Carter Gasket for Air Compressors FIAC AB 410-510-512 €11.12
17
 photo_cameraImage coming soon 5071040008 sump €224.17
18
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
19
 O-Ring 45X2 for Pumping Units FIAC AB 410 - 510 - 512 7079450000 O-Ring 45X2 for Pumping Units FIAC AB 410 - 510 - 512 €0.76
20
 PVC Blank Side Cover for Pump Units FIAC AB 410 - 510 - 512 7151160000 PVC Blank Side Cover for Pump Units FIAC AB 410 - 510 - 512 €5.28 Not available for order
22
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
23
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
24
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
25
 photo_cameraImage coming soon 7151240000 Plastic cover €5.26
26
 Filter Element for Pumping Unit FIAC AB 410 7210610000 Filter Element for Pumping Unit FIAC AB 410 €5.30
27
 Filter Plate for Pump Unit FIAC AB 335 7151230000 Filter Plate for Pump Unit FIAC AB 335 €4.34
28
 Con-Rod Bearing for Pumping Units AB410-510-512 7062050000 Con-Rod Bearing for Pumping Units AB410-510-512 €24.41
29
 Fiac AB410 - AB510 Crankshaft 5041010008 Fiac AB410 - AB510 Crankshaft €113.78
30
 Oil Seal for Pump Units FIAC AB410 - 510 - 512 7071150000 Oil Seal for Pump Units FIAC AB410 - 510 - 512 €5.28
31
 FIAC Woodruf Metric Key 5x7,5 7051510000 FIAC Woodruf Metric Key 5x7,5 €6.42
32
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
33
 PVC Carter Cover for Pump Units FIAC AB 410 - 510 - 512 7151170000 PVC Carter Cover for Pump Units FIAC AB 410 - 510 - 512 €2.56
34
 Flywheel for Pumping unit Fiac AB 410-510-512 7201010000 Flywheel for Pumping unit Fiac AB 410-510-512 €168.83
35
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
36
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
37
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
38
 O-Ring for Pumping Unit Fiac AB 335-410-858-998 7070110000 O-Ring for Pumping Unit Fiac AB 335-410-858-998 €1.52
39
 Set Intake Filter for Pump Units AB 335 - AB 410 4086990000 Set Intake Filter for Pump Units AB 335 - AB 410 €16.77
42
 FIAC AB 410 Oil Cap Filter 7091270000 FIAC AB 410 Oil Cap Filter €0.53
100
 Valves Plate for Pumping Units FIAC AB 410-510-512 4082790000 Valves Plate for Pumping Units FIAC AB 410-510-512 €98.19
101
 Kit Piston for Pumping unit FIAC AB 360-410 4291140000 Kit Piston for Pumping unit FIAC AB 360-410 €41.27
102
 Gaskets for Air Compressors Pump Unit FIAC AB410-415-515 4082000000 Gaskets for Air Compressors Pump Unit FIAC AB410-415-515 €35.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Air Compressor Pumps Unit AB 410-510-512

Fix Your Air Compressors Pump units, AB 410 - 510 - 512. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the pumping unit and the respective parts code.
Fiac AB 410 - 510 - 512

Pump Unit AB 410 - 510 - 512
# Part Num. Description
1 7010080000 Screw M8x35 UNI-5931
2 7091120000 Oil Cap
3 7010140000 Screw M6X35 UNI-5931
4 5030580008 head
5 7079470000 gasket
6 4231220000 Kit valve plate
6 9106380000 valve plate Pair
7 7079480000 gasket
8 4080120000 Kit Piston Rings
9 7220230000 piston
10 7050180000 Piston Pin 15X46
11 7041410000 Seeger 15
12 5050510008 Connecting rod
13 7022030000 Nut M6 DIN-980
14 7011100000 Screw M8X25 UNI-5739
15 7575180000 cylinder - DISCONTINUED
16 7079440000 gasket
17 5071040008 Case
18 7060200000 bearing 6204
19 7079450000 O-ring 45x2
20 7151160000 COP.CIECO LATER.AB 410 PLASTIC
21 7012180000 Screw M6X20 UNI-8112
22 7180060000 Oil level warning
23 7090090000 Cap M1 / 4 Brass
24 7012060000 Screw M4X12 UNI-8112
25 7151240000 Plastic cover
26 7210610000 filter element
27 7151230000 PIASTRINO FILTER AB 410/510-NEW
28 7062050000 bearing
29 5041010008 Crankshaft
30 7071150000 Oil seal 25X52X7
31 7051510000 Key Round 5X7
32 7060060000 bearing 6205
33 7151170000 crankcase cover
34 7201010000 flywheel
35 7030270000 Washer 8 5X30X4 UNI-6593
36 7031010000 Washer 8 UNI-3703
37 7011100000 Screw M8X25 UNI-5739
38 7070110000 O-Ring 3037
39 4086990000 Kit suction filter
40 7031120000 Washer 20 5X45X1 UNI-6593
41 7031110000 Spacer 20.5X28X1 UNI-6593
42 7091270000 Oil Cap Filter
100 4082790000 Kit Valve plate
101 4291140000 Piston Kit
102 4082000000 Gaskets Kit
006A 9106380000 valve plate
006B 7199150000 valve
006C 7078600000 gasket
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB410 - AB510 - AB512
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac AB 410-510-512

Diagram Fiac AB 410-510-512

Download (480.58KB)
