FIAC spa

FIAC Spare Parts for Air Compressor FX 95 - HP 1,5

SKU: Fiac FX95 - HP 1,5
€165.95
VAT included

FIAC Spare Parts for Air Compressor FX 95 - HP 1,5

We are FIAC AIR COMPRESSORS original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor FX 95 - HP 1,5.
FIAC Spare Parts for Air Compressor FX 95 - HP 1,5
  • FIAC Spare Parts for Air Compressor FX 95 - HP 1,5
  • FIAC Spare Parts for Air Compressor FX 95 - HP 1,5
FIAC spa

FIAC Spare Parts for Air Compressor FX 95 - HP 1,5

SKU: Fiac FX95 - HP 1,5 Condition: New
€165.95
VAT included

FIAC Spare Parts for Air Compressor FX 95 - HP 1,5

We are FIAC AIR COMPRESSORS original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor FX 95 - HP 1,5.
settings 64 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

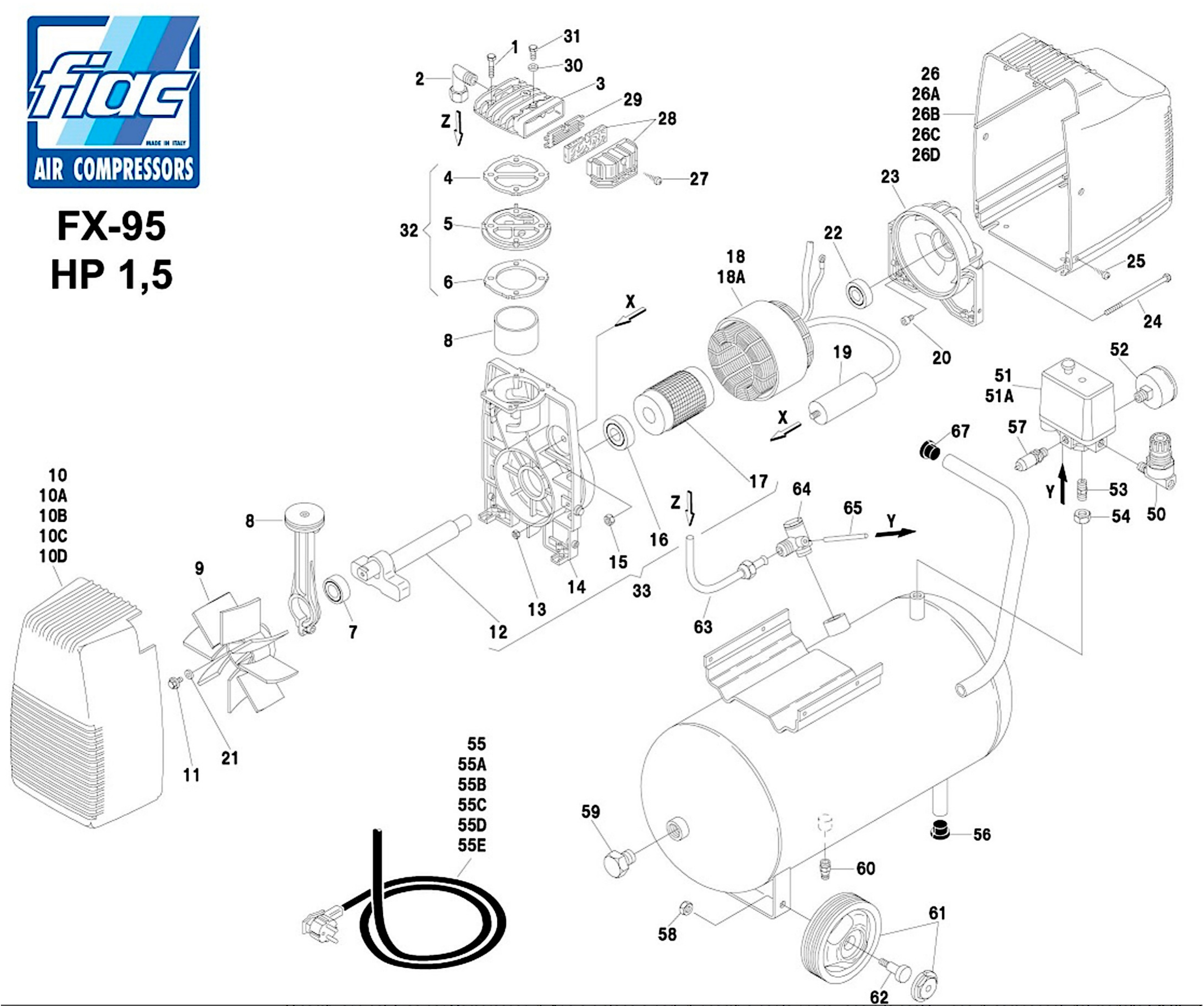

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011290000 Screw M6X35 UNI-5739 €1.38
2
 FIAC F204 Fitting L 1/4" 7084080000 FIAC F204 Fitting L 1/4" €10.17
3
 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 7570550000 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 €33.32
5
 Valves Plate for Air Compressors FIAC ECU 201-FX 95 4200020000 Valves Plate for Air Compressors FIAC ECU 201-FX 95 €32.09
7
 photo_cameraImage coming soon 4085040000 Aspiration Filter Kit €13.23
8
 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 4190270000 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 €77.90 Not available for order
9
 photo_cameraImage coming soon 4085080000 Fan €15.47
9
 Motor Fan for Air Compressor Fiac ECU201-FB-210 7200140000 Motor Fan for Air Compressor Fiac ECU201-FB-210 €8.84
010A
 photo_cameraImage coming soon 7150560000 Plastic COVER €20.86
10
 photo_cameraImage coming soon 7150590000 Plastic Fairing €26.94
010B
 photo_cameraImage coming soon 7150610000 CASING COMPRESS. "ECU" YELLOW €22.43
010C
 Fiac FX95 Motor Housing BLUE 7150650000 Fiac FX95 Motor Housing BLUE €20.48
010D
 photo_cameraImage coming soon 7150720000 CASING COMPRES.ECU GRAY €17.12
11
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
12
 Crankshaft for Air Compressors Fiac ECU 200 - ECU 201 5040670008 Crankshaft for Air Compressors Fiac ECU 200 - ECU 201 €66.56
13
 photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
14
 Motor Support for Air Compressors Fiac ECU 200 - ECU 201 7670010000 Motor Support for Air Compressors Fiac ECU 200 - ECU 201 €58.91
16
 Crank Shaft Ball Bearing 6005-Z for Air Compressor Fiac LEONARDO HP 1 7060280000 Crank Shaft Ball Bearing 6005-Z for Air Compressor Fiac LEONARDO HP 1 €17.41
18
 Field Ass'y for Air Compressors Fiac ECU 200 - ECU 201 4011600000 Field Ass'y for Air Compressors Fiac ECU 200 - ECU 201 €165.96
018A
 photo_cameraImage coming soon 4011640000 Wound Stator V240-50 / 1 €170.59
19
 Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
20
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
22
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
23
 Motor Hood for Pump Unit FIAC GM 145 7640060000 Motor Hood for Pump Unit FIAC GM 145 €27.79
24
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
25
 photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
026A
 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 7150550000 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 €35.16
26
 photo_cameraImage coming soon 7150580000 Plastic Fairing €19.99
026B
 photo_cameraImage coming soon 7150600000 CASING MOTOR "ECU" YELLOW €24.30
026C
 photo_cameraImage coming soon 7150640000 FAIRING ENGINE ECU BLEU €11.09
026D
 photo_cameraImage coming soon 7150710000 CARENAT.MOTORE ECU GRAY €19.99
27
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
28
 Set Intake Filter for Pumping Units FIAC GM 201-202-242 4085010000 Set Intake Filter for Pumping Units FIAC GM 201-202-242 €15.65
29
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
30
 FIAC Air Compressor Ecu 201 Washer 7030780000 FIAC Air Compressor Ecu 201 Washer €0.62
32
 Valves Plate Kit for Air Compressors FIAC FX 95 4082620000 Valves Plate Kit for Air Compressors FIAC FX 95 €38.34
33
 photo_cameraImage coming soon 4280530000 CRANKCASE-CRANKSHAFT- ARMATURE-ECU NEW €217.35
50
 Pressure Reducer for Air Compressor FIAC FX 95 7100260000 Pressure Reducer for Air Compressor FIAC FX 95 €37.78
51
 Single-Phase Pressure Switch with Built-in Start valve 7250240000 Single-Phase Pressure Switch with Built-in Start valve €32.67
51
 photo_cameraImage coming soon 7250360000 Pressure Switch €38.56
52
 photo_cameraImage coming soon 7110020000 Manometer €19.55
53
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
54
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
055A
 photo_cameraImage coming soon 7328600000 Alimentation Cable €12.09
055B
 photo_cameraImage coming soon 7328620000 Alimentation Cable €21.16
055C
 photo_cameraImage coming soon 7329000000 Alimentation Cable €16.99
055D
 photo_cameraImage coming soon 7329020000 CABLE THERMAL-INTERR.F-130 "CSA" €6.97
55
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
055E
 photo_cameraImage coming soon 7329140000 Alimentation Cable €4.23
56
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
57
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
58
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
59
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
60
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
61
 Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
62
 Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
63
 Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5 7230170000 Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5 €22.94
64
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
65
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
100
 FIAC F114 Gaskets Kit 4082610000 FIAC F114 Gaskets Kit €13.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Air Compressor FX 95 - HP 1,5

We are FIAC AIR COMPRESSORS original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor FX 95 - HP 1,5.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
Fiac FX 95 - HP 1,5

Air Compressor FX 95 - HP 1,5
# Part Num. Description
1 7011290000 Screw M6X35 UNI-5739
2 7084080000 Fitting "L" 1/4 FIL
3 7570550000 Head
5 4200020000 Kit Valve Plate
7 4085040000 Aspiration Filter Kit
8 4190270000 Kit Rod / Piston
9 4085080000 Fan
9 7200140000 Cooling Fan
10 7150590000 Plastic Fairing
11 7011040000 Screw M6X20 UNI-5739
12 5040670008 Crankshaft
13 7021010000 Nut M6 UNI-7473
14 7670010000 Cranckcase
15 7020240000 Nut M8 DIN-6923
16 7060280000 Bearing 6005-2Z
17 7660090000 Armature
18 4011600000 Field Ass'y
19 7310590000 Capacitor MF.25 V450
20 7013060000 Screw M4X8 UNI-8112
21 7030190000 Washer Ø6,4X18X1,5 UNI-6593
22 7060010000 Bearing 6203 ZZ 17:40:12 QE6
23 7640060000 Cover
24 7018010000 Screw M6x139 UNI-5737
25 7012240000 Screw M5X15 UNI-8112
26 7150580000 Plastic Fairing
27 7012010000 Screw Ø3,9X19 UNI-6954
28 4085010000 Aspiration Filter Kit
29 7458340000 Filter Plate
30 7030780000 Washer
31 7014300000 Screw M4X12 UNI-8112
32 4082620000 BLISTER-PLATE VALVES 2800 RPM
33 4280530000 GR.CARTER-TREE-ROTOR-ECU NEW
50 7100260000 Pressure Reducer
51 7250240000 Pressure Switch
51 7250360000 Pressure Switch
52 7110020000 Manometer
53 7081140000 Fitting 1/4 "MM
54 7023040000 Nut 1/4 "
55 7329070000 Alimentation Cable
56 7360020000 Rubber Ø16
57 7192020000 Drain Valve M1 / 4-8,5Bar
58 7020080000 Nut M10 UNI-5588
59 7090030000 Cap 1/2
60 7130160000 Bleeding Tap M3 / 8 "
61 7260160000 Ø125X35 Wheel-F15
62 7018290000 Pin Wheel
63 7230170000 Tube Feeding
64 7190180000 Check Valve MM 1/2 "X3 / 8" -Sx
65 7230010000 Rilsan Tube Ø6X4
100 4082610000 Gaskets Kit
010A 7150560000 Plastic Fairing
010B 7150610000 CASING COMPRESS. "ECU" YELLOW
010C 7150650000 CASING COMPRESS.ECU BLEU
010D 7150720000 CASING COMPRES.ECU GRAY
018A 4011640000 Wound Stator V240-50 / 1
026A 7150550000 Motor Housing, Green
026B 7150600000 CASING MOTOR "ECU" YELLOW
026C 7150640000 FAIRING ENGINE ECU BLEU
026D 7150710000 CARENAT.MOTORE ECU GRAY
055A 7328600000 Alimentation Cable
055B 7328620000 Alimentation Cable
055C 7329000000 Alimentation Cable
055D 7329020000 CABLE THERMAL-INTERR.F-130 "CSA"
055E 7329140000 Alimentation Cable
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac FX95 - HP 1,5
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac FX 95 - HP 1,5

Diagram Fiac FX 95 - HP 1,5

Download (419KB)
