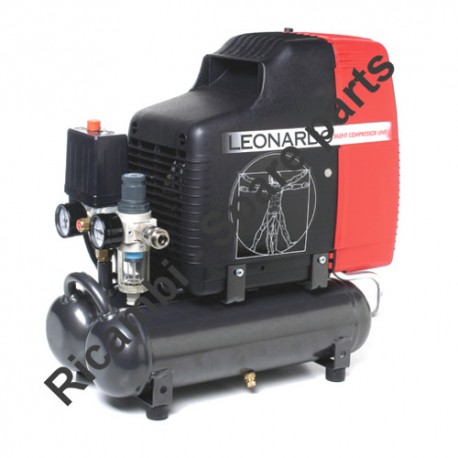

FIAC spa

FIAC Spare Parts for Air Compressor LEONARDO HP 1

SKU: Fiac LEONARDO HP 1
€357.28
VAT included

FIAC Spare Parts for Air Compressor LEONARDO HP 1

Distribution and Sale at attractive prices of FIAC Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Air Compressor LEONARDO HP 1.
FIAC Spare Parts for Air Compressor LEONARDO HP 1
  • FIAC Spare Parts for Air Compressor LEONARDO HP 1
  • FIAC Spare Parts for Air Compressor LEONARDO HP 1
FIAC spa

FIAC Spare Parts for Air Compressor LEONARDO HP 1

SKU: Fiac LEONARDO HP 1 Condition: New
€357.28
VAT included

FIAC Spare Parts for Air Compressor LEONARDO HP 1

Distribution and Sale at attractive prices of FIAC Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Air Compressor LEONARDO HP 1.
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

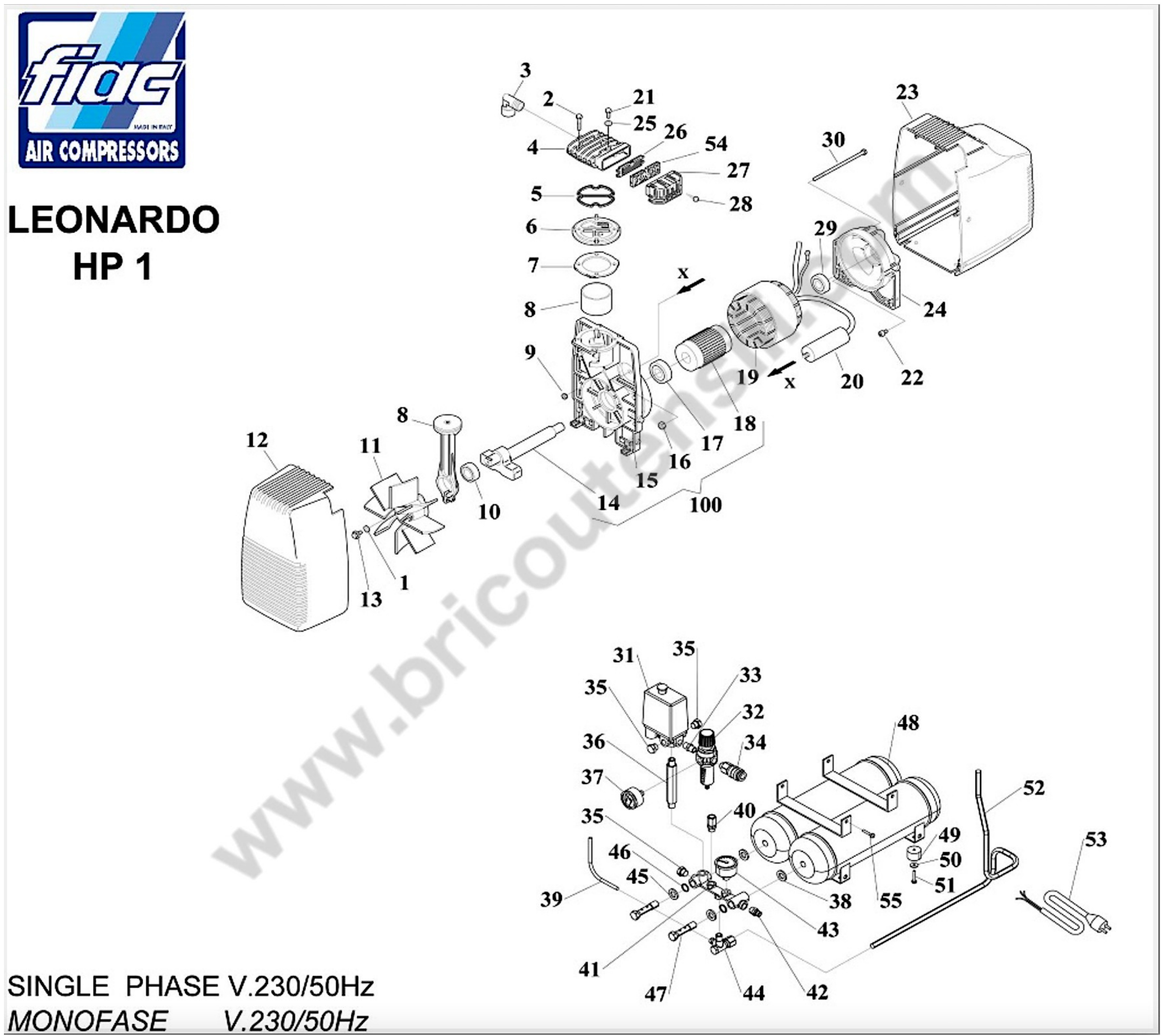

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 7011290000 Screw M6X35 UNI-5739 €1.38
3
 FIAC F204 Fitting L 1/4" 7084080000 FIAC F204 Fitting L 1/4" €10.17
4
 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 7570550000 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 €33.32
5
 Silicon OR for Head of Air Compressor Fiac ECU201-FB-210 7070600000 Silicon OR for Head of Air Compressor Fiac ECU201-FB-210 €7.89
6
 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 4200030000 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 €32.09 Not available for order
7
 Head Gasket for Air Compressor Fiac ECU201-FB-210 7078490000 Head Gasket for Air Compressor Fiac ECU201-FB-210 €7.98
8
 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 4190270000 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 €77.90 Not available for order
9
 photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
10
 photo_cameraImage coming soon 7060550000 Bearing 6004 2RS1 / QE6 €8.35
11
 Motor Fan for Air Compressor Fiac ECU201-FB-210 7200140000 Motor Fan for Air Compressor Fiac ECU201-FB-210 €8.84
12
 photo_cameraImage coming soon 7150800000 Casing COMPRESSOR RED €17.12
13
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
14
 photo_cameraImage coming soon 5040700008 Crankshaft €70.44
15
 photo_cameraImage coming soon 7670040000 Casing €53.54
17
 Crank Shaft Ball Bearing 6005-Z for Air Compressor Fiac LEONARDO HP 1 7060280000 Crank Shaft Ball Bearing 6005-Z for Air Compressor Fiac LEONARDO HP 1 €17.41
18
 photo_cameraImage coming soon 5090330008 Rotor €78.48
19
 photo_cameraImage coming soon 4011710000 Stator 230V / 50Hz €330.19
20
 Capacitor 20 mf for Air Compressors 7310100000 Capacitor 20 mf for Air Compressors €22.94
22
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
23
 photo_cameraImage coming soon 7150580000 Plastic Fairing €19.99
24
 Fiac LEONARDO HP 1 Rear Motor Holder 7640100000 Fiac LEONARDO HP 1 Rear Motor Holder €23.22
25
 FIAC Air Compressor Ecu 201 Washer 7030780000 FIAC Air Compressor Ecu 201 Washer €0.62
26
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
27
 Filter Cover for Air Compressors FIAC FB-210-LEONARDO HP 1 7210450000 Filter Cover for Air Compressors FIAC FB-210-LEONARDO HP 1 €3.48
28
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
29
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
30
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
31
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
32
 Fiac Pressure Reducer Micro W-Filter 7100380000 Fiac Pressure Reducer Micro W-Filter €58.00
33
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
34
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
35
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
36
 photo_cameraImage coming soon 7087910000 Fitting 1/4 MM €24.92
37
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
38
 O-Ring 4042 for Compressor Fiac LEONARDO HP 1 7070700000 O-Ring 4042 for Compressor Fiac LEONARDO HP 1 €1.22
39
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
40
 Safety Valve M1/4"-8,5 Bar for Air Compressors Fiac 7192430000 Safety Valve M1/4"-8,5 Bar for Air Compressors Fiac €11.70
41
 photo_cameraImage coming soon 7196960000 Distributor €49.41
42
 FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
44
 Non Return Valve for Air Compressors Fiac ECU 200-201 7190200000 Non Return Valve for Air Compressors Fiac ECU 200-201 €28.91
45
 Washer for Compressor Fiac LEONARDO HP 1 7031210000 Washer for Compressor Fiac LEONARDO HP 1 €0.76
46
 O-Ring 3056 for Compressor Fiac LEONARDO HP 1 7070690000 O-Ring 3056 for Compressor Fiac LEONARDO HP 1 €0.76 Not available for order
47
 Screw 1/4"G ECUII for Compressor Fiac LEONARDO HP 1 7014000000 Screw 1/4"G ECUII for Compressor Fiac LEONARDO HP 1 €12.15 Not available for order
48
 photo_cameraImage coming soon 5159920008 Tank €206.65
51
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
52
 photo_cameraImage coming soon 7239380000 Tube Feeding €16.33
53
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
54
 Air Filter Element for Air Compressor Fiac ECU201-FB-210 7210590000 Air Filter Element for Air Compressor Fiac ECU201-FB-210 €1.87
55
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
100
 photo_cameraImage coming soon 4280100000 GR.CARTER-TREE-ROTOR F-114 €217.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Air Compressor LEONARDO HP 1

Distribution and Sale at attractive prices of FIAC Original Spare Parts

. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Air Compressor LEONARDO HP 1.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
Fiac LEONARDO HP 1

Air Compressor LEONARDO HP 1
# Part Num. Description
1 7030190000 Washer Ø6,4X18X1,5 UNI-6593
2 7011290000 Screw M6X35 UNI-5739
3 7084080000 Fitting "L" 1/4 FIL
4 7570550000 Head
5 7070600000 O-Ring
6 4200030000 VALVE PLATE KIT RPM 1400
7 7078490000 Gasket
8 4190270000 Kit Rod / Piston
9 7021010000 Nut M6 UNI-7473
10 7060550000 Bearing 6004 2RS1 / QE6
11 7200140000 Cooling Fan
12 7150800000 CASING Compressor ECU RED
13 7011040000 Screw M6X20 UNI-5739
14 5040700008 Crankshaft
15 7670040000 Casing
16 7020240000 Nut M8 DIN-6923
17 7060280000 Bearing 6005-2Z
18 5090330008 Armature
19 4011710000 Stator 230V / 50Hz
20 7310100000 Capacitor MF.20 V450
21 7014300000 Screw M4X12 UNI-8112
22 7013060000 Screw M4X8 UNI-8112
23 7150580000 Plastic Fairing
24 7640100000 Rear Motor Holder
25 7030780000 Washer
26 7458340000 Filter Plate
27 7210450000 Filter Cover
28 7012010000 Screw Ø3,9X19 UNI-6954
29 7060010000 Bearing 6203 ZZ 17:40:12 QE6
30 7018010000 Screw M6x139 UNI-5737
31 7250740000 Pressure Switch
32 7100380000 Pressure Reducer
33 7081090000 Fitting 1/4 "MM
34 7130570000 Universal Tap M1 / 4 "
35 7090070000 M Cap 1/4 "
36 7087910000 Fitting 1/4 MM
37 7110240000 Gauge Ø40-1 / 8 "
38 7070700000 O-Ring 4042
39 7230010000 Rilsan Tube Ø6X4
40 7192430000 Drain Valve M1 / 4 "-8.5 BAR
41 7196960000 Distributor
42 7130090000 Bleeding Tap M1 / 4 "
43 7110240000 Gauge Ø40-1 / 8 "
44 7190200000 Check Valve M1 / 4-Tube 10
45 7031210000 Washer
46 7070690000 O-Ring 3056
47 7014000000 Screw 1/4 "G ECUII
48 5159920008 Tank
49 7360380000 Rubber Foot Ø25 - 40 Sh
50 7030020000 Ø6 Washer UNI-6592
51 7012090000 Screw M5x12 UNI-8112
52 7239380000 Tube Feeding
53 7329070000 Power Cable
54 7210590000 Filter Element
55 7012290000 Screw M5X20 TAP-TITE
100 4280100000 GR.CARTER-TREE-ROTOR F-114
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac LEONARDO HP 1
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac LEONARDO HP 1

Diagram Fiac LEONARDO HP 1

Download (278.02KB)
