FIAC spa

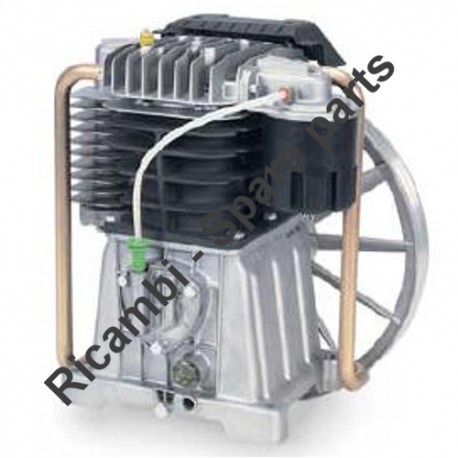

FIAC Spare Parts for Pumping Unit AB 1000

SKU: Fiac AB1000
€144.77
VAT included

FIAC Spare Parts for Pump Unit AB 1000

We have the original Spares FIAC for Pump Unit AB 1000, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pump Unit AB 1000. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
FIAC Spare Parts for Pumping Unit AB 1000
  • FIAC Spare Parts for Pumping Unit AB 1000
  • FIAC Spare Parts for Pumping Unit AB 1000
FIAC spa

FIAC Spare Parts for Pumping Unit AB 1000

SKU: Fiac AB1000 Condition: New
€144.77
VAT included

FIAC Spare Parts for Pump Unit AB 1000

We have the original Spares FIAC for Pump Unit AB 1000, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pump Unit AB 1000. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 76 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
  • 5130070008
  • 7070140000
  • 5131190008
  • 7079090000
  • 7079270000
  • 7010220000
  • 7084220000
  • 7011060000
  • 7011160000
  • 7160160000
  • 7011710000
  • 7192350000
  • 4080170000
  • 7210310000
  • 7015260000
  • 4250040000
  • 7220160000
  • 7024150000
  • 7031050000
  • 4291120000
  • 7458600000
  • 7050170000
  • 5041060008
  • 7060220000
  • 5082070008
  • 5130090008
  • 7070150000
  • 7079250000
  • 5170010008
  • 7079280000
  • 7010390000
  • 7084270000
  • 7011080000
  • 7011270000
  • 7180060000
  • 7013060000
  • 7210280000
  • 4082570000
  • 7210320000
  • 7022030000
  • 4251000000
  • 7230730000
  • 7030300000
  • 7040070000
  • 4291130000
  • 7458920000
  • 7051530000
  • 5060710008
  • 5082080008
  • 7062110000
  • 5131020008
  • 7071140000
  • 7079260000
  • 7010050000
  • 7081220000
  • 7011040000
  • 7011090000
  • 7090240000
  • 7011490000
  • 7181110000
  • 7210300000
  • 7014140000
  • 4080160000
  • 4190230008
  • 7220150000
  • 7022040000
  • 4251010000
  • 7458590000
  • 7031030000
  • 7050160000
  • 5030550008
  • 7458930000
  • 7060210000
  • 5071030008
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

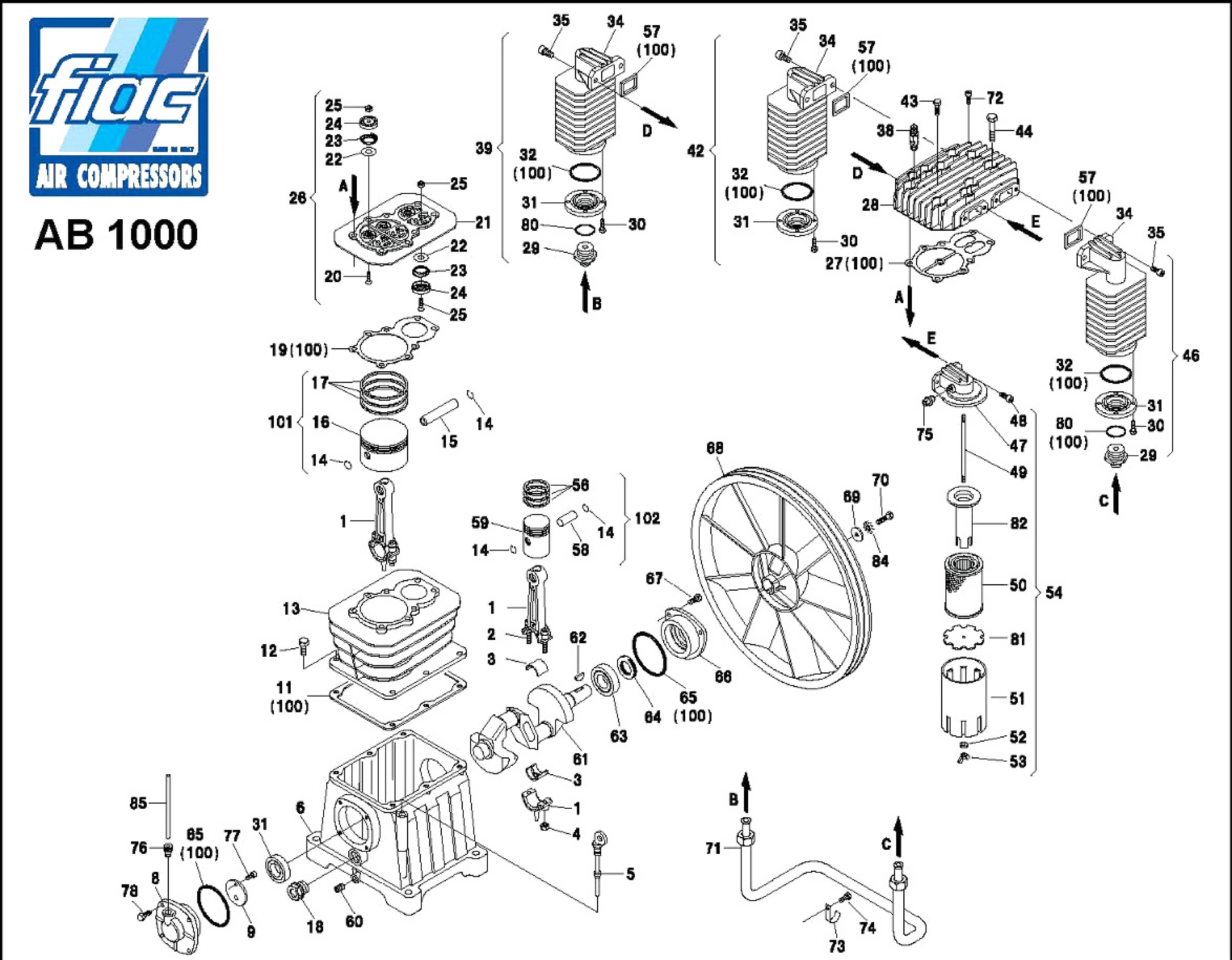

Esploso pagina 1
Pos. Item Price Buy
1
 Conrod Assembly for Pump Unit FIAC AB 1000 4190230008 Conrod Assembly for Pump Unit FIAC AB 1000 €127.41
3
 Con-Rod Bearing for Pumping Units AB1000-1500 7062110000 Con-Rod Bearing for Pumping Units AB1000-1500 €27.49
4
 photo_cameraImage coming soon 7022040000 Nut M8 DIN-980 €1.52
5
 Oil Dipstick for Pump Unit AB 1000 7181110000 Oil Dipstick for Pump Unit AB 1000 €12.14
6
 photo_cameraImage coming soon 5071030008 CARTER €967.04
8
 photo_cameraImage coming soon 5082070008 Cover €78.79
9
 photo_cameraImage coming soon 7458600000 Diaphragm €3.40
10
 photo_cameraImage coming soon 7060220000 Bearing €25.07
11
 photo_cameraImage coming soon 7079280000 Gasket €15.71
13
 photo_cameraImage coming soon 5060710008 Cylinder €889.05
15
 photo_cameraImage coming soon 7050160000 Piston pin €35.47
16
 photo_cameraImage coming soon 7220150000 Low pressure piston €351.77
17
 Piston Ring Set LP for Pump Unit AB 1000 - AB1500 4080160000 Piston Ring Set LP for Pump Unit AB 1000 - AB1500 €144.78
18
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
19
 Cylinder Plate Gasket for Pumping Unit FIAC AB 1000 7079270000 Cylinder Plate Gasket for Pumping Unit FIAC AB 1000 €24.41
20
 photo_cameraImage coming soon 7014140000 Screw €4.23
27
 Head Gasket for Pumping Unit FIAC AB 1000 7079260000 Head Gasket for Pumping Unit FIAC AB 1000 €46.70
28
 photo_cameraImage coming soon 5030550008 Head €204.45
29
 photo_cameraImage coming soon 7081220000 Joint €46.30
30
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
31
 photo_cameraImage coming soon 5131020008 junction €26.95
32
 FIAC AB851 O-Ring 4200 7070140000 FIAC AB851 O-Ring 4200 €2.59
34
 photo_cameraImage coming soon 5130090008 cooler €58.10
35
 photo_cameraImage coming soon 7010220000 Screw M10x25 UNI-5931 €1.52
38
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
39
 photo_cameraImage coming soon 4251000000 Refrigerator group €148.99
42
 photo_cameraImage coming soon 4251010000 Refrigerator group €155.92
47
 photo_cameraImage coming soon 5130070008 collector €26.55
48
 photo_cameraImage coming soon 7010050000 Screw M8X20 UNI-5931 €1.52
49
 photo_cameraImage coming soon 7015260000 Tension rod €7.39
50
 Air Filter for Pump Unit Fiac AB 1000 7210320000 Air Filter for Pump Unit Fiac AB 1000 €29.53
51
 Air Filter Holder for Pump Unit Fiac AB 1000 7210310000 Air Filter Holder for Pump Unit Fiac AB 1000 €19.18
52
 photo_cameraImage coming soon 7031030000 Washer Ø6 UNI-3703 €1.52
53
 photo_cameraImage coming soon 7024150000 A nut M6 GALLETTO €1.52
54
 photo_cameraImage coming soon 4250040000 Filter group €93.53
56
 Piston Ring Set HP for Pump Unit AB 1000 - AB1500 4080170000 Piston Ring Set HP for Pump Unit AB 1000 - AB1500 €60.07
57
 FIAC AB851 Cooler Gasket 7079250000 FIAC AB851 Cooler Gasket €7.47
58
 photo_cameraImage coming soon 7050170000 Piston pin €33.73
59
 photo_cameraImage coming soon 7220160000 High pressure piston €164.59
60
 photo_cameraImage coming soon 7090240000 Plug €4.10
61
 photo_cameraImage coming soon 5041060008 Crankshaft €327.50
62
 photo_cameraImage coming soon 7051530000 Key €4.10
63
 photo_cameraImage coming soon 7060210000 Bearing €53.66
64
 photo_cameraImage coming soon 7071140000 Mim ring €4.27
66
 photo_cameraImage coming soon 5082080008 Support €80.53
67
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
68
 photo_cameraImage coming soon 5170010008 Flywheel €1,020.77
69
 photo_cameraImage coming soon 7030300000 Washer €4.79
70
 photo_cameraImage coming soon 7011160000 Screw M10x30 UNI-5739 €1.52
71
 photo_cameraImage coming soon 7230730000 Refrigeration tube €119.52
73
 photo_cameraImage coming soon 7458590000 Clamp €8.43
75
 photo_cameraImage coming soon 7084270000 Joint €5.18
76
 photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
77
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
81
 Filter Element For Pumping Units FIAC AB 671-851-901-981 7210280000 Filter Element For Pumping Units FIAC AB 671-851-901-981 €10.43
82
 photo_cameraImage coming soon 7210300000 Sleeve €4.10
84
 photo_cameraImage coming soon 7031050000 Toothed washer €3.58
100
 Gasket kit for Pumping Units AB 1000-1500 4082570000 Gasket kit for Pumping Units AB 1000-1500 €134.14
101
 photo_cameraImage coming soon 4291120000 Low pressure piston group €530.28
102
 photo_cameraImage coming soon 4291130000 High pressure piston group €249.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit AB 1000

Fix Your Pump Unit AB 1000. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the type of the Pumping Unit and the respective parts of the code.
Fiac AB 1000

Pump Unit AB 1000
# Part Num. Description
1 4190230008 Con rod
2 7011710000 Screw
3 7062110000 Bushing
4 7022040000 Selflocking nut
5 7181110000 Oil dipstick
6 5071030008 Carter
8 5082070008 Cover
9 7458600000 Diaphragm
10 7060220000 Bearing
11 7079280000 Gasket
12 7011270000 Screw
13 5060710008 Cylinder
14 7040070000 Ring
15 7050160000 Piston pin
16 7220150000 Low pressure piston
17 4080160000 Low pressure piston rings
18 7180060000 Sight flow gauge
19 7079270000 Gasket
20 7014140000 Screw
21 5131190008 Valve Plate - Include in 4231250000
22 7199100000 FLAP VALVE
23 7160160000 Spring
24 7458920000 Valve guide
25 7022030000 Selflocking nut
26 4231071000 Valve plate group
27 7079260000 Gasket
28 5030550008 Head
29 7081220000 Joint
30 7011040000 Screw
31 5131020008 Reduction
32 7070140000 O-Ring 4200
34 5130090008 Refrigerator
35 7010220000 Screw
38 7192350000 Safety valve
39 4251000000 Refrigerator group
42 4251010000 Refrigerator group
43 7011060000 Screw
44 7011490000 Screw
46 4251000000 Refrigerator group
47 5130070008 Manifold
48 7010050000 Screw
49 7015260000 Tension rod
50 7210320000 Filter
51 7210310000 Filter holder
52 7031030000 Washer
53 7024150000 Nut
54 4250040000 Filter group
55 7458930000 Valve guide
56 4080170000 High pressure piston rings
57 7079250000 Gasket
58 7050170000 Piston pin
59 7220160000 High pressure piston
60 7090240000 Plug
61 5041060008 Crankshaft
62 7051530000 Key
63 7060210000 Bearing
64 7071140000 Mim ring
65 7070150000 Gasket
66 5082080008 Support
67 7011090000 Screw
68 5170010008 Flywheel
69 7030300000 Washer
70 7011160000 Screw
71 7230730000 Refrigeration tube
72 7010390000 Screw
73 7458590000 Clamp
74 7011080000 Screw
75 7084270000 Joint
76 7084220000 Joint
77 7013060000 Screw
78 7011090000 Screw
80 7079090000 Gasket
81 7210280000 Filtering element
82 7210300000 Sleeve
84 7031050000 Toothed washer
85 7084220000 Joint
100 4082570000 Gasket Kit
101 4291120000 Low pressure piston group
102 4291130000 High pressure piston group
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB1000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac AB 1000

Diagram Fiac AB 1000

Download (294.88KB)

You might also like

Pumping unit for air compressor Mod. AB 268 -10%
FIAC spa SKU: AB268 - 1123020153
Pumping unit for air compressor Mod. AB 268
Pumping unit for air compressor Mod. AB 268 Pump unit for air compressors Fiac 25/50/100/150/200 Liters lubricated single-stage belt drive. - System-head with large ciindro fins for heat dissipation - Ductile iron crankshaft...
AVAILABLE €231.53 €257.25
Details
Pumping unit for air compressor Mod. AB 360 -10%
FIAC spa SKU: AB360 - 9101880000
Pumping unit for air compressor Mod. AB 360
Pumping unit for air compressor Mod. AB 360 Pump unit for air compressors Fiac 100/150/200 Liters lubricated single-stage belt drive. - System-head with large ciindro fins for heat dissipation - Ductile iron crankshaft carefully...
AVAILABLE €240.64 €267.38
Details
Pumping unit for air compressor Mod. AB 415/515 -10%
FIAC spa SKU: AB415/515 - 1129740082
Pumping unit for air compressor Mod. AB 415/515
Pump unit for air compressor Mod. AB 415/515 Pump unit for air compressors Fiac 150/200/300 Liters lubricated single-stage belt drive.  - System-head with large ciindro fins for heat dissipation  - Ductile iron crankshaft...
AVAILABLE €361.02 €401.13
Details
Pumping unit for air compressor Mod. AB 678 -25% Sale
FIAC spa SKU: AB678 - 3021100000
Pumping unit for air compressor Mod. AB 678
Pumping unit for air compressor Mod. AB 678 Pumping unit for air compressors Fini/Dari/Fiac 200/300/500 Liters lubricated single-stage belt drive.  - System-head with large ciindro fins for heat dissipation  - Ductile iron...
Last items in stock €792.43 €1,056.57
Details
Pumping Unit for air Compressor Mod. AB 998 -18%
FIAC spa SKU: AB998 - 1123020166
Pumping Unit for air Compressor Mod. AB 998
Pumping Unit for air Compressor Mod. AB 998 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €967.49 €1,179.86
Details
Pumping Unit for air Compressor Mod. AB 1500 Sale
FIAC spa SKU: AB1500 - 3020600000
Pumping Unit for air Compressor Mod. AB 1500
Pumping Unit for air Compressor Mod. AB 1500 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive.The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €2,503.64
Details
Cylinder Plate Gasket for Pumping Unit FIAC AB 1000
FIAC spa SKU: 7079270000
Cylinder Plate Gasket for Pumping Unit FIAC AB 1000
Cylinder Plate Gasket for Pump Unit FIAC AB 1000 Original replacement part FIAC, cylinder plate gasket for pump units FIAC AB 1000-1500. Part for the following products: -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit...
AVAILABLE €24.41
Details
Head Gasket for Pumping Unit FIAC AB 1000
FIAC spa SKU: 7079260000
Head Gasket for Pumping Unit FIAC AB 1000
Head Gasket for Pump Unit FIAC AB 1000 Original replacement part FIAC, Head Gasket for pump units FIAC AB 1000 - AB 1500. Part for the following products: -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit AB 1500 -...
AVAILABLE €46.70
Details
Con-Rod Bearing for Pumping Units AB1000-1500 Sale
FIAC spa SKU: 7062110000
Con-Rod Bearing for Pumping Units AB1000-1500
Con-Rod Bearing for Pumping Units AB1000-1500 Original parts FIAC, Connecting rod bearing for pumping units for AB 1000 - AB 1500. Part for the following article: - Pumping Unit AB 1000 validity date - by 12/07/2011 - Pumping Unit AB...
Last items in stock €27.49
Details
Gasket kit for Pumping Units AB 1000-1500
FIAC spa SKU: 4082570000
Gasket kit for Pumping Units AB 1000-1500
Gasket kit for Pump Unit AB 1000-1500 Genuine parts for FIAC Pump Unit AB 1000 - AB 1500, complete kit with all the seals needed to repair the pumping units. - For the following products -  Pump Unit AB 1000 validity date - by...
Last items in stock €134.14
Details
Safety Valve M1/4-6 bar for Pumping Units Fiac
FIAC spa SKU: 7192350000
Safety Valve M1/4-6 bar for Pumping Units Fiac
Safety Valve M1/4-6 bar for Pump Units Fiac Genuine Part Fiac, Safety valve for Air compressors, Safety Valve M1/4-6 bar for Pump Units Fiac AB 450 - 550 - 800 - AB 525 - AB 598...
AVAILABLE €13.02
Details
Conrod Assembly for Pump Unit FIAC AB 1000
FIAC spa SKU: 4190230008
Conrod Assembly for Pump Unit FIAC AB 1000
Conrod Assembly for Pump Unit FIAC AB 1000 Original replacement part FIAC, Conrod Assembly for Pump Units FIAC AB 1000 - AB 1500. Part for the following products: -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit AB...
Last items in stock €127.41
Details
Piston Ring Set LP for Pump Unit AB 1000 - AB1500
FIAC spa SKU: 4080160000
Piston Ring Set LP for Pump Unit AB 1000 - AB1500
Piston Ring Set LP for Pump Unit AB 1000 - AB1500 Genuine part FIAC, Piston Ring Set LP for Pump Unit AB 1000 - AB 1500. - For the following products -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit AB 1500 - Code:...
Last items in stock €144.78
Details
Piston Ring Set HP for Pump Unit AB 1000 - AB1500
FIAC spa SKU: 4080170000
Piston Ring Set HP for Pump Unit AB 1000 - AB1500
Piston Ring Set HP for Pump Unit AB 1000 - AB1500 Genuine part FIAC, Piston Ring Set HP for Pump Unit AB 1000 - AB 1500. - For the following products -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit AB 1500 - Code:...
Last items in stock €60.07
Details
Oil Dipstick for Pump Unit AB 1000
FIAC spa SKU: 7181110000
Oil Dipstick for Pump Unit AB 1000
Oil Dipstick for Pump Unit AB 1000-1500 Genuine part for FIAC. Oil Dipstick Complete for Pump Unit AB 1000 - AB 1500. - For the following products -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit AB...
AVAILABLE €12.14
Details
FIAC AB851 Cooler Gasket
FIAC spa SKU: 7079250000
FIAC AB851 Cooler Gasket
FIAC AB851 Cooler Gasket Genuine Part FIAC, Cooler Gasket for Pump Units AB 671 - 851 - 901. Part for the following products: -  Pump Unit AB 851 - FIAC AB1000 - FIAC AB1500 -  Pump...
on 7/10 Business Days Approx. €7.47
Details
FIAC AB851 O-Ring 4200
FIAC spa SKU: 7070140000
FIAC AB851 O-Ring 4200
FIAC AB851 O-Ring 4200 (50,39*3,53) Genuine Part FIAC, O-Ring 4200 (50,39*3,53) for Pump Units AB 671 - 851 - 901. Part for the following products: -  Pump Unit AB 851 - FIAC AB1000 - FIAC...
on 7/10 Business Days Approx. €2.59
Details
Comments (0)
