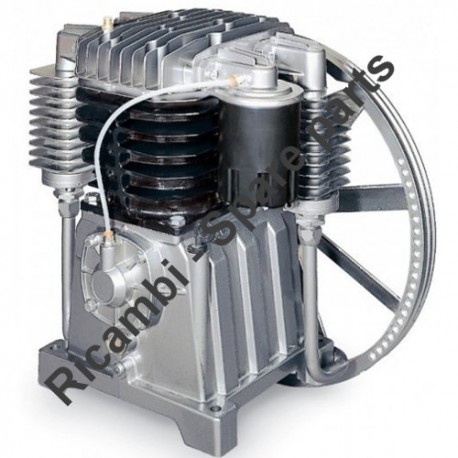

FIAC Spare Parts for Pumping Unit AB 678

Name: FIAC Spare Parts for Pumping Unit AB 678
Brand: FIAC spa
SKU: Fiac AB678
Availability: InStock

SKU: Fiac AB678

€40.67

VAT included

FIAC Spare Parts for Pump Unit AB 678

We have the original Spares FIAC for Pump Unit AB 678, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pump Unit AB 678. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

35 spare parts

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Pos.		Item	Price
1,1		4080090000 Piston Ring Set 105 mm for Pump Units FIAC AB 671-851	€58.91
1		4080870000 Conrod - Piston Kit LP for Pump Units FIAC AB 678-858	€95.74
1,5		4190370008 Conrod Assy for Air Pump Units Fiac AB 671 - AB 851	€83.03
1,3		7050150000 Piston Pin 18x94 for Pump Units FIAC AB 678-858	€9.91
1,7		7062170000 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851	€19.72
1,2		7220140000 Piston LP for Pump Units FIAC AB 678-858	€61.19
2,1		4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851	€40.68
2		4080880000 Fiac AB678 Conrod Piston Kit HP	€117.78
2,3	Image coming soon	4190370005 Con rod	€37.25
2,4		7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550	€10.67
2,7		7062170000 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851	€19.72
2,2		7220120000 FIAC AB858 HP Piston	€80.84
3	Image coming soon	4080910000 Screw kit	€17.75
4	Image coming soon	4081900000 Gasket kit	€54.53
5		4231240000 Valves Plate Kit for Pumping Units FIAC AB 671-851-901	€155.88
6		5030620008 Fiac AB678 Head	€45.80
7		5041150008 Crank Shaft for Pump Unit FIAC AB 851	€208.18
8		5060720008 FIAC AB678 Cylinder	€229.24
9		5070270008 FIAC AB678 Crankcase	€199.89
10		5082050008 FIAC AB678 Crankshaft Holder	€30.83
11		5082090008 FIAC AB678 Holder Oil Cap	€30.83
12		5130010008 Fiac Pumping Unit AB 678 Aftercooler	€41.59
13		7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998	€10.13
14	Image coming soon	7060150000 bearing 6206	€41.13
15		7060160000 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678	€20.38
17		7090090000 Brass Cap M1/4" for Pump Units Fiac	€4.42
18		7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901	€4.34
19		7153050000 Air Baffle for Pump Unit FIAC AB851	€9.90
20		7180060000 Fiac AB598 Pump Unit Oil Sight Glass	€6.57
21		7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac	€13.02
22		7201050000 Flywheel for Pumping unit Fiac AB 450-550-800	€193.41
23	Image coming soon	7230040000 Rilsan hose	€5.99
24	Image coming soon	7232700000 Intercooler	€83.95
25	Image coming soon	7458910000 band	€4.52
26		9103760330 Air Filter Element for Air Compressor Fiac AB678	€7.80
26		9700002979 Air Filter Kit for Air Compressor Fiac AB678	€16.60

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit AB 678

Pumping Unit AB 678
#	Part Num.	Description
1	4080870000	LP con rod/piston Kit
1,1	4080090000	LP Piston Ring Set
1,2	7220140000	Piston LP D.105 mm AB851
1,3	7050150000	Piston pin 18x94
1,5	4190370008	Con rod - LP
1,7	7062170000	Bearing
2	4080880000	HP con rod/piston ki
2,1	4080080000	HP Ring Kit
2,2	7220120000	Piston HP
2,3	4190370005	Con rod
2,4	7050130000	Piston pin
2,7	7062170000	Bearing
3	4080910000	Screw kit
4	4081900000	Gasket kit
5	4231240000	Valve plate Kit
6	5030620008	Head
7	5041150008	Crankshaft
8	5060720008	Cylinder
9	5070270008	Crankcase
10	5082050008	Support
11	5082090008	Support
12	5130010008	Aftercooler
13	7051520000	Key
14	7060150000	Bearing
15	7060160000	Bearing
17	7090090000	Plug
18	7091120000	Brent cover
19	7153050000	Air Baffle
20	7180060000	Oil level gauge
21	7192350000	Safety Valve
22	7201050000	Flywheel
23	7230040000	Rilsan hose
24	7232700000	Intercooler
25	7458910000	Clamp
26	9700002979	Filter Kit
26	9103760330	FIiltering element

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Fiac AB678

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

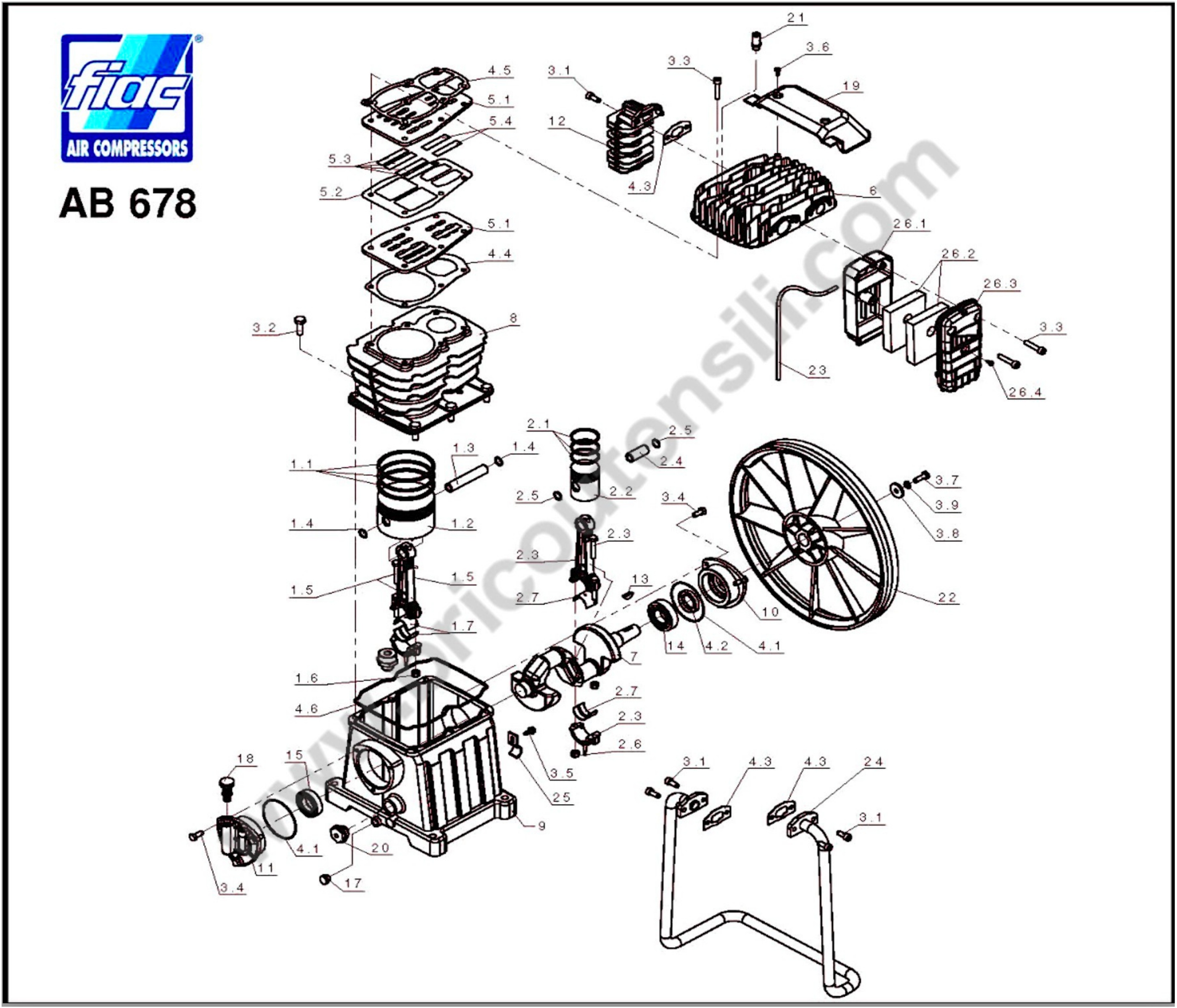

Diagram Fiac AB 678

Download (342.51KB)
