FIAC spa

FIAC Spare Parts for Pumping Unit AB 598

SKU: Fiac AB598
€40.67
VAT included

FIAC Spare Parts for Pump Unit AB 598

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Pump Unit AB598.
FIAC Spare Parts for Pumping Unit AB 598
  • FIAC Spare Parts for Pumping Unit AB 598
  • FIAC Spare Parts for Pumping Unit AB 598 - Drawing
FIAC spa

FIAC Spare Parts for Pumping Unit AB 598

SKU: Fiac AB598 Condition: New
€40.67
VAT included

FIAC Spare Parts for Pump Unit AB 598

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Pump Unit AB598.
settings 40 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

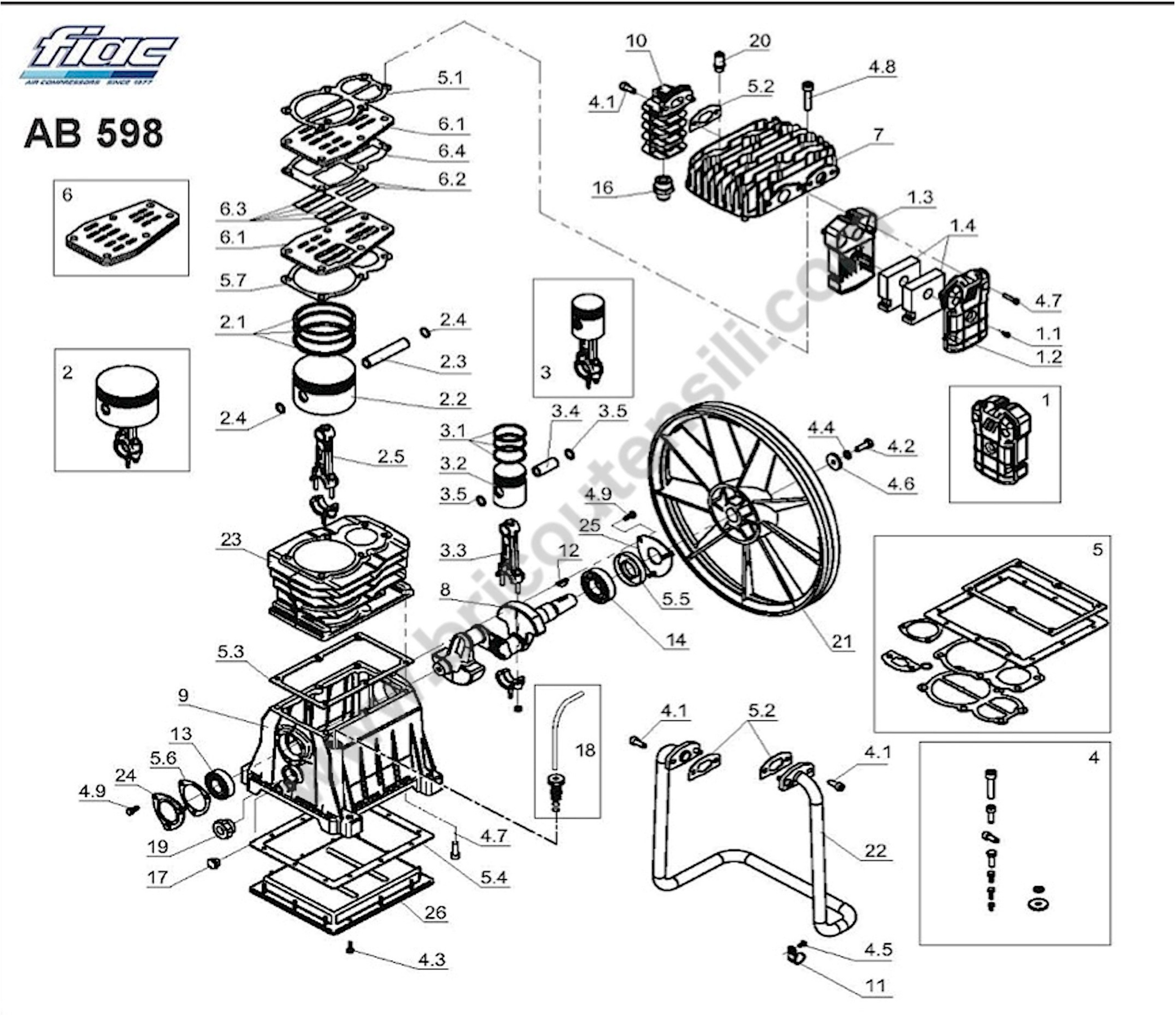

Esploso pagina 1
Pos. Item Price Buy
1
 Fiac AB598 Intake Filter Kit 4080290000 Fiac AB598 Intake Filter Kit €17.08
1,4
 FIAC AB598 Filter Element 7210690000 FIAC AB598 Filter Element €7.17
2,1
 photo_cameraImage coming soon 4080840000 Low pression ring kit €41.13
2
 Fiac AB598 Conrod-Piston Kit LP 4080850000 Fiac AB598 Conrod-Piston Kit LP €99.12
2,5
 photo_cameraImage coming soon 5050580008 Con rod €76.25
2,3
 photo_cameraImage coming soon 7050270000 Piston pin €9.37
2,2
 photo_cameraImage coming soon 7220340000 Piston €76.48
3,1
 Piston Rings for Pumping Units FIAC AB 671-AB 851 4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851 €40.68
3
 Fiac AB598 Conrod-Piston Kit HP 4080860000 Fiac AB598 Conrod-Piston Kit HP €77.90
3,3
 photo_cameraImage coming soon 5050580008 Con rod €76.25
3,4
 Piston Pin 18x42 for Pump Unit FIAC AB 550 7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550 €10.67
3,2
 FIAC AB858 HP Piston 7220120000 FIAC AB858 HP Piston €80.84
4
 photo_cameraImage coming soon 4080920000 Screw kit €21.31
5
 Fiac AB598 Pump Unit Gasket Kit 4082280000 Fiac AB598 Pump Unit Gasket Kit €43.07
5,5
 Fiac AB550 Oil Seal 3062/10 7071060000 Fiac AB550 Oil Seal 3062/10 €8.58
5,3
 Fiac AB598 Crankcase-Cylinder Gasket 7079150000 Fiac AB598 Crankcase-Cylinder Gasket €14.38
5,6
 Fiac AB550 Rear Cover Gasket 7079160000 Fiac AB550 Rear Cover Gasket €1.48
5,7
 Cylinder Plate Gasket for Pumping Units FIAC AB 450-550-800 7079170000 Cylinder Plate Gasket for Pumping Units FIAC AB 450-550-800 €26.63
5,4
 Fiac AB550 Cranckcase Cover Gasket 7079190000 Fiac AB550 Cranckcase Cover Gasket €9.91
5,2
 Fiac AB598 Pump Unit Cooler Gasket 7079890000 Fiac AB598 Pump Unit Cooler Gasket €2.87
6
 Valves Plate Set for Pumping Units FIAC AB AB 450-550-800 4231230000 Valves Plate Set for Pumping Units FIAC AB AB 450-550-800 €155.92
6,4
 Head-Plate Gasket for Pumping Unit FIAC AB 550 7079180000 Head-Plate Gasket for Pumping Unit FIAC AB 550 €30.09
7
 Fiac AB598 Pump Unit Head 5030610008 Fiac AB598 Pump Unit Head €118.68
9
 Fiac AB598 Pump Unit Crankcase 5071020008 Fiac AB598 Pump Unit Crankcase €179.76
10
 Fiac AB598 Aftercooler 5130110008 Fiac AB598 Aftercooler €43.17
11
 photo_cameraImage coming soon 7043050000 Stirrup €4.00
12
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €10.13
13
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
14
 photo_cameraImage coming soon 7060150000 bearing 6206 €41.13
16
 photo_cameraImage coming soon 7081190000 Joint €14.24
17
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
18
 Fiac AB598 Breather Pipe Plug Kit 4086830000 Fiac AB598 Breather Pipe Plug Kit €5.30
19
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
20
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
21
 Flywheel for Pumping unit Fiac AB 450-550-800 7201050000 Flywheel for Pumping unit Fiac AB 450-550-800 €193.41
22
 Fiac AB598 Intermediate Aftercooler 7232220000 Fiac AB598 Intermediate Aftercooler €70.84
23
 Fiac AB598 Cylinder 7575460000 Fiac AB598 Cylinder €213.56
24
 Fiac AB598 Pump Unit Rear Cover 7650070000 Fiac AB598 Pump Unit Rear Cover €7.18
25
 Fiac AB598 Pump Unit Front Cover 7650080000 Fiac AB598 Pump Unit Front Cover €7.18
26
 Fiac AB598 Crankcase Lover Cover 7650090000 Fiac AB598 Crankcase Lover Cover €39.72
501
 photo_cameraImage coming soon 3030120000 Modify Kit x 598 €69.57

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit AB 598

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Pump Unit AB598.

In the following table, look for the type of the Pumping Unit and the respective parts of the code.
Pump Unit AB 598

Pump Unit AB598
# Part Num. Description
1 4080290000 Intake filter kit
1,4 7210690000 Filter CARTRIDGE
2 4080850000 LP Conn.rod/Piston
2,1 4080840000 Low pression ring kit
2,2 7220340000 Piston
2,3 7050270000 Piston pin
2,5 5050580008 Con rod
3 4080860000 HP conn.rod/piston
3,1 4080080000 High pressure ring kit
3,2 7220120000 Piston HP
3,3 5050580008 Con rod
3,4 7050130000 Piston pin
4 4080920000 Screw kit
5 4082280000 Gaskets kit
5,2 7079890000 Gasket
5,3 7079150000 Gasket
5,4 7079190000 Lower Cover Gasket
5,5 7071060000 OIL SEAL 30/62/10
5,6 7079160000 REAR COVER GASKET
5,7 7079170000 CYLINDER PLATE GASKET
6 4231230000 Valve Plate KIT
6,4 7079180000 HEAD PLATE GASKET
7 5030610008 Head
8 5041490008 Crankshaft - DISCONTINUED
9 5071020008 Crankcase
10 5130110008 Aftercooler
11 7043050000 Stirrup
12 7051520000 Key
13 7060060000 Bearing
14 7060150000 Bearing
16 7081190000 Joint
17 7090090000 Plug
18 4086830000 Oil breather pipe plug kit
19 7180060000 Oil level sight glass
20 7192350000 Safety Valve
21 7201050000 Flywheel
22 7232220000 Intermediate Aftercooler
23 7575460000 Cylinder
24 7650070000 Rear cover
25 7650080000 Front cover
26 7650090000 Lower cover
501 3030120000 Modify Kit x 598
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB598
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Fiac AB 598 Drawing

Fiac AB 598 Drawing

Download (533.48KB)
