FIAC spa

FIAC Spare Parts for Pumping Unit AB 525

SKU: AB525 - 3020060000
€26.38
VAT included

FIAC Spare Parts for Pumping Unit AB 525

Buy at the lowest prices, Fiac original spare parts to Make maintenance on damaged parts for Piston Air Compressors Pump Unit AB 525 - 3020060000.
FIAC Spare Parts for Pumping Unit AB 525
  • FIAC Spare Parts for Pumping Unit AB 525
  • FIAC Spare Parts for Pumping Unit AB 525
FIAC spa

FIAC Spare Parts for Pumping Unit AB 525

SKU: AB525 - 3020060000 Condition: New
€26.38
VAT included

FIAC Spare Parts for Pumping Unit AB 525

Buy at the lowest prices, Fiac original spare parts to Make maintenance on damaged parts for Piston Air Compressors Pump Unit AB 525 - 3020060000.
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

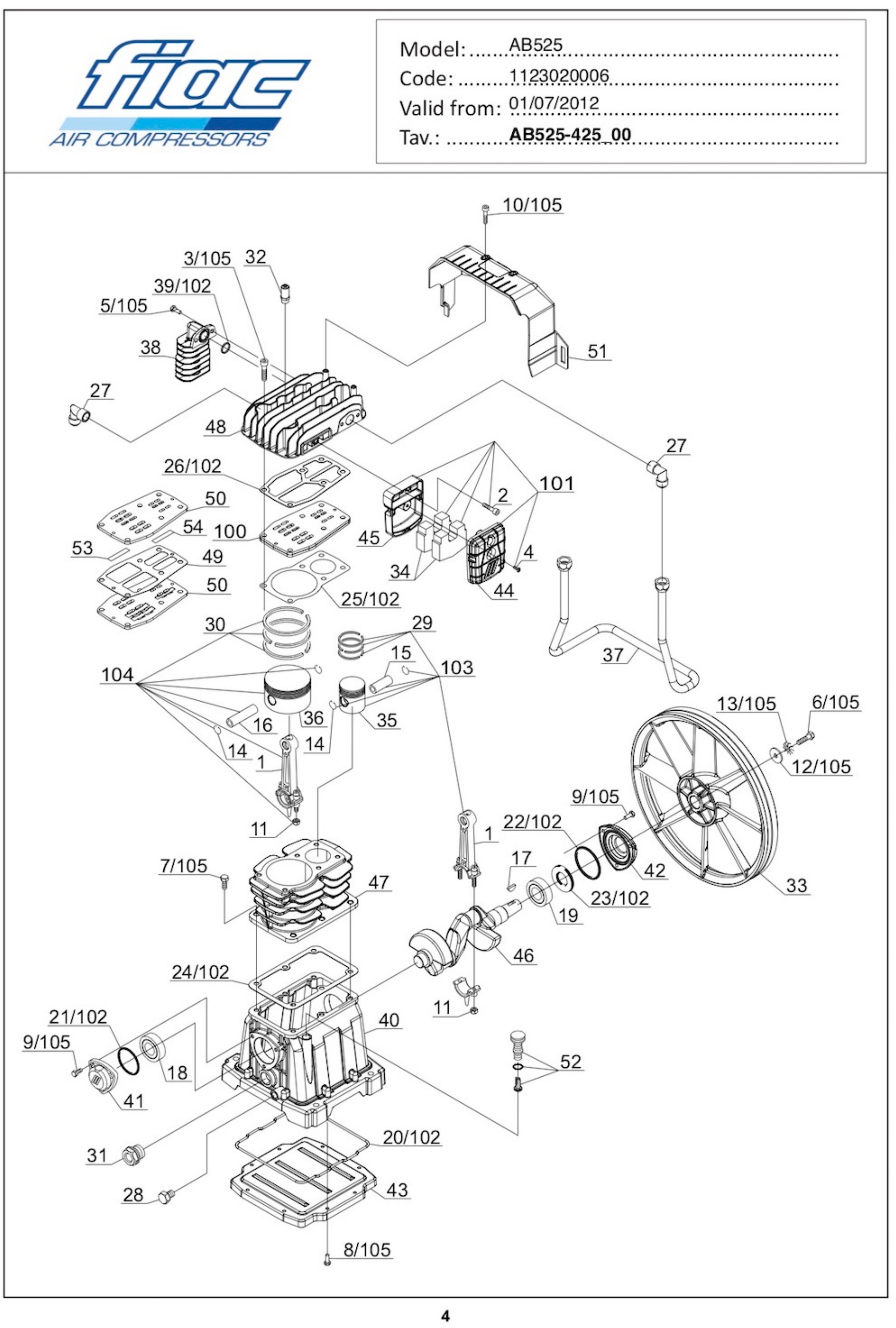

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4190190005 High press. Conn.rod €54.01
14
 photo_cameraImage coming soon 7040140000 Seeger Ø18 UNI-7437 €4.48
15
 photo_cameraImage coming soon 7050240000 Piston pin €4.83
16
 photo_cameraImage coming soon 7050250000 Piston pin €6.56
17
 FIAC Woodruf Metric Key 5x7,5 7051510000 FIAC Woodruf Metric Key 5x7,5 €6.42
18
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
19
 photo_cameraImage coming soon 7060150000 bearing 6206 €41.13
27
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
28
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
29
 Piston Rings for Pumping Units FIAC VX 214-422-AB 525 4080230000 Piston Rings for Pumping Units FIAC VX 214-422-AB 525 €26.39
30
 photo_cameraImage coming soon 4080260000 Piston rings kit €39.31
31
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
32
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
33
 Flywheel for Pumping unit Fiac AB 410-510-512 7201010000 Flywheel for Pumping unit Fiac AB 410-510-512 €168.83
35
 photo_cameraImage coming soon 7220310000 Piston €42.45
36
 photo_cameraImage coming soon 7220320000 Piston €58.20
37
 photo_cameraImage coming soon 7237980000 Aftercooler Hose €31.44
38
 photo_cameraImage coming soon 9100270270 Aftercooler €17.75
40
 photo_cameraImage coming soon 9105450010 Crankcase €102.81
41
 FIAC Pump Unit AB415 Front Cover 9105450070 FIAC Pump Unit AB415 Front Cover €6.38
42
 Fiac AB415 Rear Cover 9105450080 Fiac AB415 Rear Cover €7.79
43
 photo_cameraImage coming soon 9105450090 Carter cover €14.32
48
 photo_cameraImage coming soon 9105450160 Head €47.18
51
 FIAC AB415-425-525 Air Conveyor 7153140000 FIAC AB415-425-525 Air Conveyor €12.86
52
 Oil Filler Neck Komplett for Pump Units FIAC 9700001377 Oil Filler Neck Komplett for Pump Units FIAC €13.60
100
 photo_cameraImage coming soon 4231270000 Valve plate Kit €94.40
101
 Air Filter Kit for Pump Unit Fiac AB 415 4250130000 Air Filter Kit for Pump Unit Fiac AB 415 €22.18
102
 photo_cameraImage coming soon 4081980000 Gasket kit €31.44
103
 photo_cameraImage coming soon 4291190000 Con rod/Piston Kit €118.02
104
 photo_cameraImage coming soon 4291200000 Con rod/Piston Kit €157.37
105
 photo_cameraImage coming soon 4080480000 Screw kit €16.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pumping Unit AB 525

Buy at the lowest prices, Fiac original spare parts to Make maintenance on damaged parts for Piston Air Compressors Pump Unit AB 525 - 3020060000.

In the following table, look for the type of the Pumping Unit and the respective parts of the code.
Piston Air Compressors Pump Unit AB 525 - 3020060000.

Pump Unit AB 525
# Part Num. Description
1 4190190005 High press. Conn.rod
14 7040140000 Internal snapring
15 7050240000 Piston pin
16 7050250000 Piston pin
17 7051510000 Key
18 7060060000 Bearing
19 7060150000 Bearing
27 7080160000 Joint
28 7090090000 Plug
29 4080230000 Piston rings kit
30 4080260000 Piston rings kit
31 7180060000 Oil level gauge
32 7192350000 Safety valve
33 7201010000 Flywheel
35 7220310000 Piston
36 7220320000 Piston
37 7237980000 Aftercooler Hose
38 9100270270 Aftercooler
40 9105450010 Crankcase
41 9105450070 Front cover
42 9105450080 Rear cover
43 9105450090 Carter cover
46 9105450120 Crankshaft
47 9105450130 Cylinder
48 9105450160 Head
51 7153140000 Conveyor
52 9700001377 Oil Filler Neck Komplett
100 4231270000 Valve plate Kit
101 4250130000 Intake filter kit
102 4081980000 Gasket kit
103 4291190000 Con rod/Piston Kit
104 4291200000 Con rod/Piston Kit
105 4080480000 Screw kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AB525 - 3020060000
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac AB 525

Diagram Fiac AB 525

Download (282.31KB)
