FIAC Spare Parts for Piston Air Compressor Colibri' GM 191

SKU: Fiac Colibri' GM 191
€270.35
VAT included

FIAC Spare Parts for Piston Air Compressor Colibri' GM 191

Genuine Parts FIAC for piston Air Compressor and spare parts or replacement parts for to repair components of the Air Compressor Colibri' GM 191.
FIAC Spare Parts for Piston Air Compressor Colibri' GM 191
  • FIAC Spare Parts for Piston Air Compressor Colibri' GM 191
  • FIAC Spare Parts for Piston Air Compressor Colibri' GM 191

FIAC Spare Parts for Piston Air Compressor Colibri' GM 191

SKU: Fiac Colibri' GM 191 Condition: New
€270.35
VAT included

FIAC Spare Parts for Piston Air Compressor Colibri' GM 191

Genuine Parts FIAC for piston Air Compressor and spare parts or replacement parts for to repair components of the Air Compressor Colibri' GM 191.
settings 61 spare parts

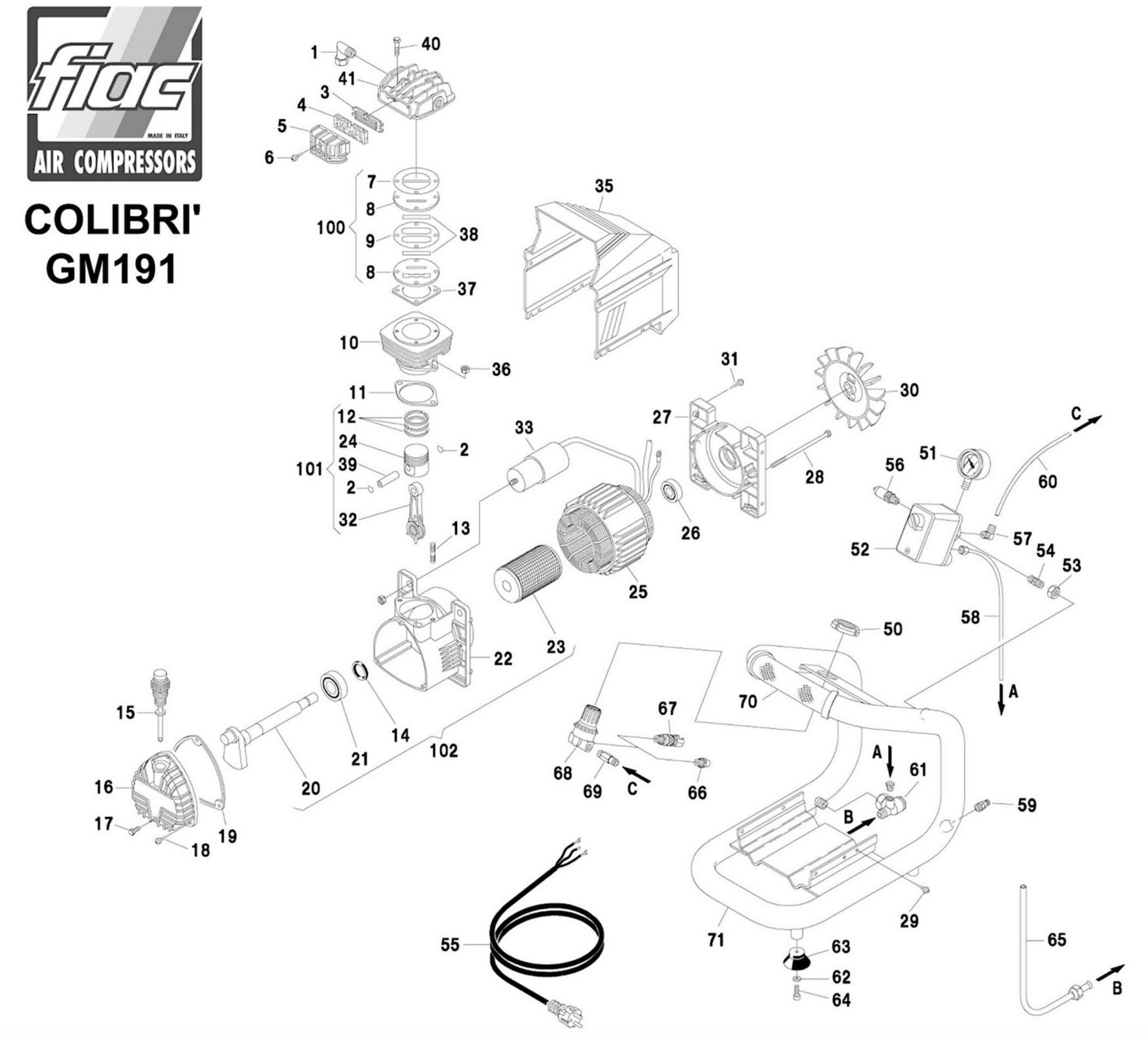

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
2
Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
3
Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
8
photo_cameraImage coming soon 7458020000 PLATE-holder D 50 ZINC €13.02
12
Piston Rings for Pumping Units FIAC VX 194-254-402 4080020000 Piston Rings for Pumping Units FIAC VX 194-254-402 €26.02
13
Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
14
Oil Seal for Pumping Units FIAC GM 110-191-201-242 7071020000 Oil Seal for Pumping Units FIAC GM 110-191-201-242 €5.38
15
Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì 7181060000 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì €10.47
16
photo_cameraImage coming soon 7650020000 crankcase cover €17.43
18
photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
19
Motor Cover Gasket for Pumping Units Fiac GM 110-242 7078460000 Motor Cover Gasket for Pumping Units Fiac GM 110-242 €5.16
20
photo_cameraImage coming soon 5040840008 Tree in Elbow €47.06
21
Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
22
photo_cameraImage coming soon 5070320008 Sump €60.63
24
Piston D.50 MM for Pump Units FIAC Series VX - GM 7220020000 Piston D.50 MM for Pump Units FIAC Series VX - GM €26.96
25
photo_cameraImage coming soon 4012510000 CRANKCASE MOTOR GM-191-H.70 V.230 / 50HZ €239.96
26
photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
27
photo_cameraImage coming soon 5110061008 Cover €29.96
28
photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
29
photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
30
Motor Fan for Pump Units GM 143-191 7201280000 Motor Fan for Pump Units GM 143-191 €15.06
31
photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
32
Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
33
Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
35
photo_cameraImage coming soon 7150421000 CASING GM-250-BLACK VERSION 96 €22.73
36
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
38
Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM 4081010000 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM €10.82
39
photo_cameraImage coming soon 7050020000 Pin Ø12 / 8X42 €5.60
40
photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
41
photo_cameraImage coming soon 7570090000 Head €29.39
50
photo_cameraImage coming soon 7101440000 X RING GEAR "ANI" mod.31 / S6 €4.21
51
photo_cameraImage coming soon 7110170000 Manometer €19.58
52
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
53
photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
54
photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
55
photo_cameraImage coming soon 7329070000 Power Cord €29.80
56
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
57
”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €12.09
58
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
59
FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
61
photo_cameraImage coming soon 7190030000 CHECK VALVE FM 1 / 2X3 / 8 €28.05
63
Sucking Foot for Air Compressor Compact 106 7270010000 Sucking Foot for Air Compressor Compact 106 €3.45
65
photo_cameraImage coming soon 7239520000 Tube feeding €10.82
66
photo_cameraImage coming soon 7085210000 Fitting 1 / 4-1 / 8 FM €5.60
67
photo_cameraImage coming soon 7130200000 RUBINETTO LINEA A CORSOIO 1/4 M €15.46
68
photo_cameraImage coming soon 7100280000 RID PR 1/4 Art.31 / S6 S / C RUB / RING €55.27
69
photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
70
photo_cameraImage coming soon 7285000000 LOCK RUBBER HANDLE insulating COLIBRI €5.47
71
photo_cameraImage coming soon 5155830008 Tank €292.70
100
Valves Plate Kit for Puming Units Fiac GM 191 4082670000 Valves Plate Kit for Puming Units Fiac GM 191 €31.97
101
Conrod + Piston Kit for Air Compressors FIAC GM 191-192-243 4191020000 Conrod + Piston Kit for Air Compressors FIAC GM 191-192-243 €68.53
102
photo_cameraImage coming soon 4280032000 GR.CARTER-SHAFT-ROTOR-GM 191 H.70 €152.27
103
Gasket kit for Pumping Units FIAC GM 110-191-201-243 4082010000 Gasket kit for Pumping Units FIAC GM 110-191-201-243 €18.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Colibri' GM 191

Genuine Parts FIAC for piston Air Compressor and spare parts or replacement parts for to repair components of the Air Compressor Colibri' GM 191.

In the following table, look for the type of the air compressor and the respective parts of the code.
Air Compressor Colibri' GM 191

Colibri' GM 191
# Part Num. Description
1 7084040000 Fitting "L" M3 / 8 "
2 7041010000 Seeger Ø12
3 7458340000 Filter plate
4 7210010000 Filter element
5 7210430000 Filter cover
6 7012010000 Screw Ø3,9X19 UNI-6954
8 7458020000 PLATE-holder D 50 ZINC
10 7575240000 Cylinder - DISCONTINUED
12 4080020000 Kit segments
13 7015020000 Prisoner M.8X35X14X16
14 7071020000 Oil seal 2452/10
15 7181060000 Dipstick
16 7650020000 Crankcase cover
17 7011430000 Screw M6X16 UNI-8112
18 7012100000 Screw Ø3,9X16
19 7078460000 Gasket
20 5040840008 Tree in Elbow
21 7060060000 Bearing 6205
22 5070320008 Sump
23 7660130000 Armature
24 7220020000 Piston
25 4012510000 CRANKCASE MOTOR GM-191-H.70 V.230 / 50HZ
26 7060010000 Bearing 6203 ZZ 17:40:12 QE6
27 5110061008 Cover
28 7018010000 Screw M6x139 UNI-5737
29 7012290000 Screw M5X20 TAP-TITE
30 7201280000 Fan
31 7013060000 Screw M4X8 UNI-8112
32 5050150008 Connecting rod
33 7310320000 Capacitor MF.30 V450
35 7150421000 CASING GM 250-BLACK-VERS.96-
36 7020070000 Nut M8 UNI-5587
38 4081010000 FLAP VALVE KIT 10 PCS 110-200
39 7050020000 Pin Ø12 / 8X42
40 7011220000 Screw M6x40 UNI-5737
41 7570090000 Head
50 7101440000 X RING GEAR "ANI" mod.31 / S6
51 7110170000 Manometer
52 7250740000 Pressure switch
53 7023040000 Nut 1/4 "
54 7081140000 Fitting 1/4 "MM
55 7329070000 Power cable
56 7192020000 Safety Valve M1/ 4-8,5Bar
57 7084240000 The connection M1/​​4"- Ø6
58 7230010000 Rilsan tube Ø6X4
59 7130090000 Drain tap M1/​​4"
60 7230010000 Rilsan tube Ø6X4
61 7190030000 CHECK VALVE FM 1 / 2X3 / 8
62 7030020000 Ø6 washer UNI-6592
63 7270010000 Rubber Sucking foot
64 7014080000 Screw M6x14 UNI-6107
65 7239520000 Tube feeding
66 7085210000 Fitting 1 / 4-1 / 8 FM
67 7130200000 RUB LINE CALIPER 1/4 M
68 7100280000 RID PR 1/4 Art.31 / S6 S / C RUB / RING
69 7084220000 Fitting DIR.M1 / 4 "-6 QUICK
70 7285000000 LOCK RUBBER HANDLE insulating COLIBRI
71 5155830008 Tank
100 4082670000 Valve plate kit
101 4191020000 Kit piston rod
102 4280032000 GR.CARTER-SHAFT-ROTOR-GM 191 H.70
103 4082010000 Gasket Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac Colibri' GM 191
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac Colibri' GM 191

Diagram Fiac Colibri' GM 191

Download (275.12KB)
