FIAC spa

FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda

SKU: Fiac Agri 25/40 - AB248 Honda
€30.62
VAT included

FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda

Genuine Parts FIAC for Air compressors with petrol engines Agri 25-Agri 40 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines
FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda
  • FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda
  • FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda
  • FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda - AB248/338 Drawing
FIAC spa

FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda

SKU: Fiac Agri 25/40 - AB248 Honda Condition: New
€30.62
VAT included

FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda

Genuine Parts FIAC for Air compressors with petrol engines Agri 25-Agri 40 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines
settings 96 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
87 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

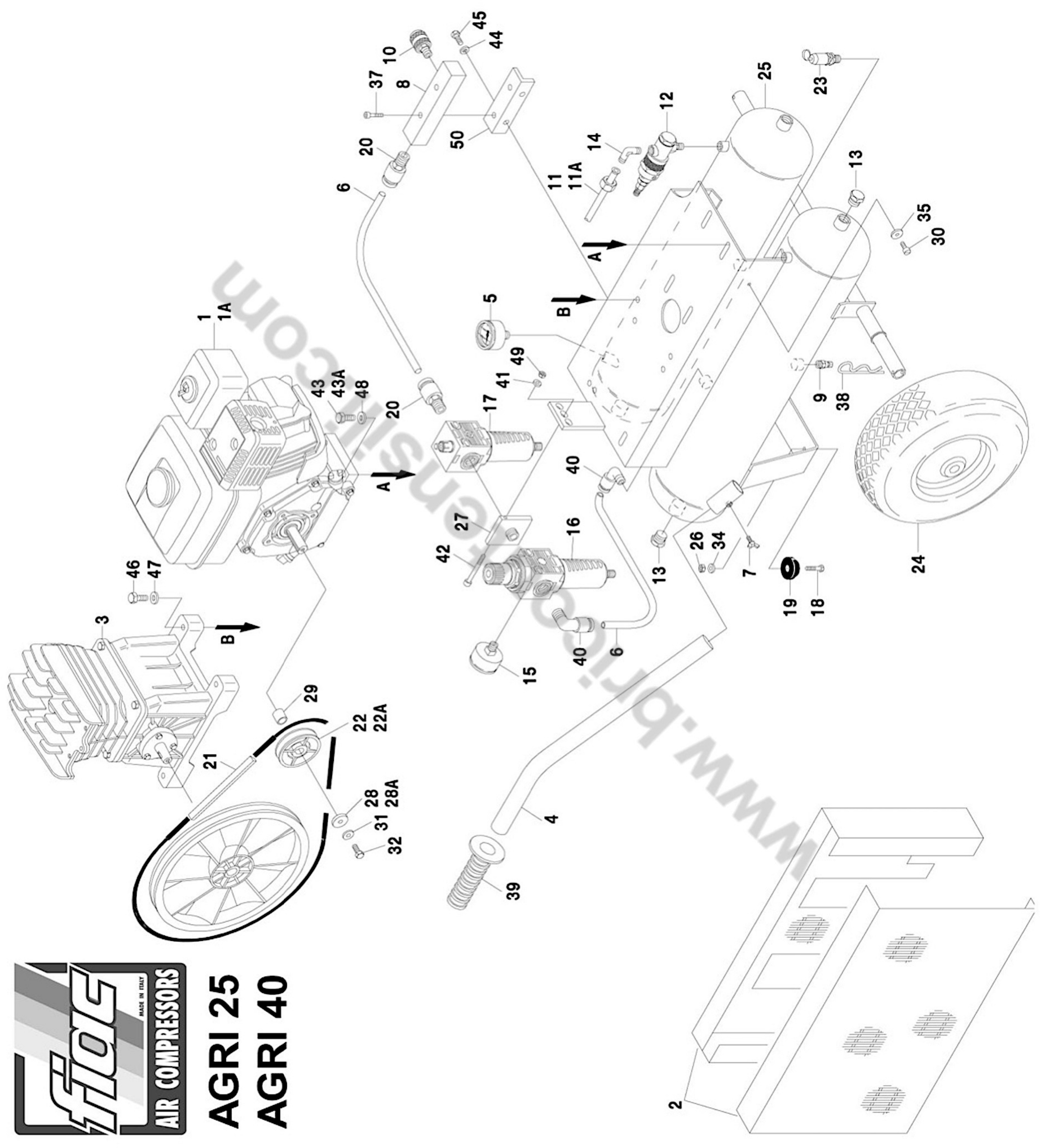

Esploso pagina 1
Pos. Item Price Buy
001A
 photo_cameraImage coming soon 7382680000 Engine €1,014.82
1
 photo_cameraImage coming soon 7385080000 Combustion Engine €3,006.32
2
 photo_cameraImage coming soon 7240260000 Belt Guard HP.4 S-16 HONDA €116.20
3
 photo_cameraImage coming soon 9110930000 Pumping Unit AB 268 €249.76
4
 photo_cameraImage coming soon 5140390008 Handle €39.66
5
 photo_cameraImage coming soon 7110140000 Manometer €81.50
6
 photo_cameraImage coming soon 7230030000 TUBE RILSAN Ø10X8 €8.96
8
 photo_cameraImage coming soon 7517330000 DISTRIBUTOR ALLUM.6047 3 / 8-1 / 4-3 €52.43
9
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
10
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
011A
 photo_cameraImage coming soon 7231350000 Tube Feeding €30.86
11
 photo_cameraImage coming soon 7232710000 Rubber Hose €305.62
12
 photo_cameraImage coming soon 7195100000 Circuit Breaker €277.49
13
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
14
 photo_cameraImage coming soon 7084190000 Fitting "L" 3/8-1/2 MM €15.30
15
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
16
 photo_cameraImage coming soon 7100410000 Pressure Reducer €251.23
17
 photo_cameraImage coming soon 7100420000 Lubricator €157.46
18
 photo_cameraImage coming soon 7011050000 Screw M6x30 UNI-5739 €1.48
19
 FIAC Rubber Foot D.40X15 F.7 7360140000 FIAC Rubber Foot D.40X15 F.7 €5.17
20
 photo_cameraImage coming soon 7084260000 Fitting M3 / 8 "X10 €8.73
21
 V-Belt for Compressor Fiac AB100/248 - 338M 7370740000 V-Belt for Compressor Fiac AB100/248 - 338M €8.19
022A
 Fiac Pulley D.90 F.19A 7408140000 Fiac Pulley D.90 F.19A €28.59
22
 photo_cameraImage coming soon 7408780000 Pulley OP100 1-A-F15 €52.43
23
 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS 7192010000 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS €17.32
24
 photo_cameraImage coming soon 7260310000 WHEEL PNEUM.D.320X120 €103.07
25
 photo_cameraImage coming soon 5151050008 Tank 100lt €997.68
26
 photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
27
 photo_cameraImage coming soon 7101500000 Mounting Kit €11.36
28
 photo_cameraImage coming soon 7152550000 HOOD X S 24 €18.67
28
 photo_cameraImage coming soon 7152570000 Spacer €23.36
29
 photo_cameraImage coming soon 7062680000 Bush €20.66
30
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
31
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
32
 photo_cameraImage coming soon 7011970000 Screw 5/16 "25 UNF €1.48
38
 photo_cameraImage coming soon 7040190000 Safety Pin €6.48
39
 photo_cameraImage coming soon 7280030000 Knob €7.24
40
 photo_cameraImage coming soon 7084250000 The Fitting 3 / 8M RAP10X8 €24.20
44
 photo_cameraImage coming soon 7030010000 Washer Ø5 UNI-6592 €1.48
45
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
46
 photo_cameraImage coming soon 7011120000 Screw M10x45 UNI-5739 €1.44
47
 photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
48
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
49
 photo_cameraImage coming soon 7020050000 M5 Nut UNI-5587 €1.48
50
 photo_cameraImage coming soon 7459200000 SUPP.DISTR.S-16 / S-33R / GONF. "AGRIAIR €40.24
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

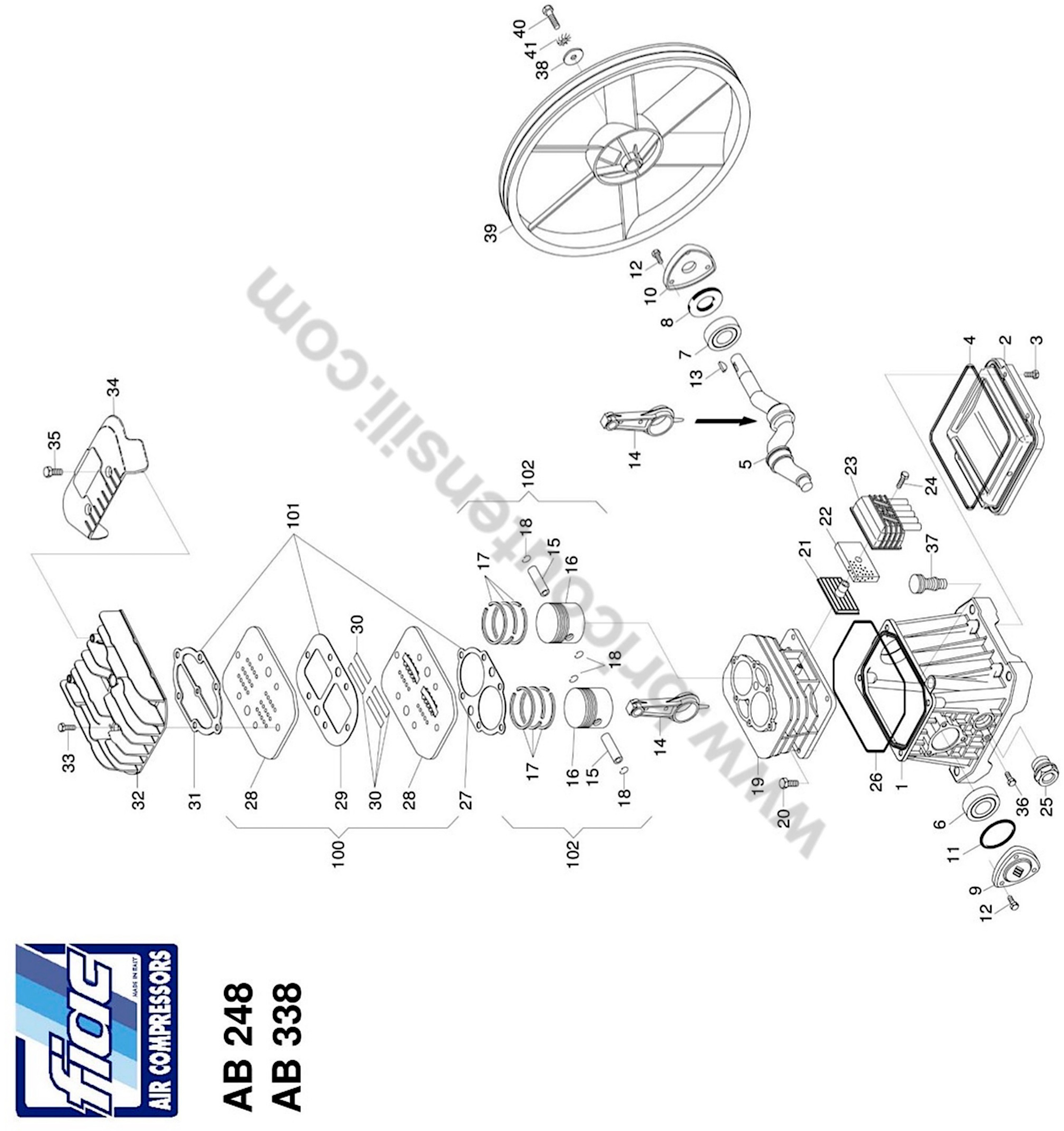

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9700001075 Case €79.81
2
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €20.50
3
 photo_cameraImage coming soon 9700000531 Screw M5X18 UNI7687 €1.82
4
 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 9700001077 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 €4.34
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
11
 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 9100280010 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 €4.34
12
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €1.29
14
 Conrod for Pumping unit FIAC AB248 9100280030 Conrod for Pumping unit FIAC AB248 €29.72
15
 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 9100020080 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 €15.80
16
 Piston for Pumping unit FIAC AB 248-338-GM193 9100020120 Piston for Pumping unit FIAC AB 248-338-GM193 €25.65
17
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
18
 Retaining Ring 13 mm for Piston Pin Pumping Unit FIAC AB 248-338-GM193 9100010580 Retaining Ring 13 mm for Piston Pin Pumping Unit FIAC AB 248-338-GM193 €9.10
19
 photo_cameraImage coming soon 7575230000 Cylinder €142.05
20
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
21
 Filter Plate for Pumping Uniti Fiac AB 248-338 9100280040 Filter Plate for Pumping Uniti Fiac AB 248-338 €1.83
22
 Air Filter Element for Pumping Unit Fiac AB 248-338-360 9100280050 Air Filter Element for Pumping Unit Fiac AB 248-338-360 €3.45
23
 Filter Cover for Pumpming Unit Fiac AB 248-338 9100280060 Filter Cover for Pumpming Unit Fiac AB 248-338 €4.88
25
 photo_cameraImage coming soon 9100280070 Oil level warning €4.65
26
 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 9100270180 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 €9.50
27
 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 9100270190 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 €6.13
28
 Valves Plate Set for Pump unit FIAC AB248 9100280080 Valves Plate Set for Pump unit FIAC AB248 €61.19
29
 Aluminum Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 9100270200 Aluminum Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 €5.98
30
 photo_cameraImage coming soon 9100280090 Valve €8.37
31
 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 9100270210 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 €7.12
32
 Head for Pump Units FIAC AB 248-338 9100280100 Head for Pump Units FIAC AB 248-338 €49.07
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
033A
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €10.61
36
 photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
37
 Oil Cap for Pump Units Fiac AB 248-338 AB 360 9100280110 Oil Cap for Pump Units Fiac AB 248-338 AB 360 €2.09
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €64.36
40
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
100
 Kit Valves Plate for Pump Unit FIAC AB 248-338 9100280210 Kit Valves Plate for Pump Unit FIAC AB 248-338 €54.50
101
 Gaskets Kit for Air Compressors Pump Unit FIAC AB248-360 9700000078 Gaskets Kit for Air Compressors Pump Unit FIAC AB248-360 €24.18
102
 Kit Piston for Pumping unit FIAC AB 248-338 4291030000 Kit Piston for Pumping unit FIAC AB 248-338 €70.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda

Genuine Parts FIAC for Air compressors with petrol engines Agri 25 - Agri 40 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them on impracticable ground. Equipped with pressure regulator/filter and, in the Agri models, also with a lubricator, they are remarkably powerful, sturdy, versatile, handy and easy to use.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac Agri 25/40 - AB248 Honda

Petrol Engine Agri 25/40 - AB248- Honda Pump Unit AB 248-338 Pag.1
# Part Num. Description
1 7385080000 Combustion Engine
2 7240260000 Belt Guard HP.4 S-16 HONDA
3 9110930000 Pumping Unit AB 268
4 5140390008 Handle
5 7110140000 Manometer
6 7230030000 Rilsan Tube Ø10X8
7 7014100000 Screw M8x20 UNI-5449
8 7517330000 DISTRIBUTOR ALLUM.6047 3 / 8-1 / 4-3
9 7130160000 Bleeding Tap M3 / 8 "
10 7130570000 Universal Tap M1 / ​​4 "
11 7232710000 Rubber Hose
12 7195100000 Circuit Breaker
13 7090030000 Cap 1/2
14 7084190000 Fitting "L" 3 / 8-1 / 2 MM
15 7110240000 Manometer Ø40-1 / 8 "
16 7100410000 Pressure Reducer
17 7100420000 Lubricator
18 7011050000 Screw M6x30 UNI-5739
19 7360140000 Rubber Foot
20 7084260000 Fitting M3 / 8 "X10
21 7370740000 V-Belt. A 45
22 7408780000 Pulley OP100 1-A-F15
23 7192010000 Valve Sic. M1 / 4-10,5Bar
24 7260310000 WHEEL PNEUM.D.320X120
25 5151050008 Tank 100lt
26 7021010000 Nut M6 UNI-7473
27 7101500000 Mounting Kit
28 7152550000 HOOD X S 24
28 7152570000 Spacer
29 7062680000 Bush
30 7012090000 Screw M5x12 UNI-8112
31 7031010000 Washer Ø8 UNI-3703
32 7011970000 Screw 5/16 "25 UNF
33 7012150000 Ø Screw 4,2X45 UNI-6954
34 7030190000 Washer Ø6,4X18X1,5 UNI-6593
35 7030050000 Washer Ø6X24 UNI-6593
36 7090080000 Cap M3 / 8 "
37 7010320000 Screw M5x25 UNI-5931
38 7040190000 Safety Pin
39 7280030000 Knob
40 7084250000 The Fitting 3 / 8M RAP10X8
41 7030020000 Ø6 Washer UNI-6592
42 7014330000 Screw M5x60 UNI-6107
43 7011130000 Screw M8X40 UNI-5739
44 7030010000 Washer Ø5 UNI-6592
45 7011040000 Screw M6X20 UNI-5739
46 7011120000 Screw M10x45 UNI-5739
47 7030040000 Washer Ø10 UNI-6592
48 7038020000 Washer Ø8X30X3 UNI-6593
49 7020050000 M5 Nut UNI-5587
50 7459200000 SUPP.DISTR.S-16 / S-33R / GONF. "AGRIAIR
001A 7382680000 Combustion Engine
011A 7231350000 Tube Feeding
022A 7408140000 Pulley Op 90 F 19 A
043A 7011120000 Screw M10x45 UNI-5739
Pump Unit AB 248-338 Pag.2
1 9700001075 Carter
2 9700001076 Casing Cover
3 9700000531 Screw M5X18 UNI 7687
4 9700001077 Gasket
5 9100270140 Crankshaft
6 7060180000 Bearing 6203 17X40X12
7 7060200000 Bearing 6204
8 9100270150 Oil Seal 20x47x7
9 9100270160 Front Cover
10 9100270170 Back Cover
11 9100280010 O-Ring 144
12 7011460000 Screw M6X16 TAP-TITE
13 9100280020 4x6 Key
14 9100280030 Con Rod
15 9100020080 Pin
16 9100020120 Piston
17 4080030000 Kit Segments
18 9100010580 Seeger
19 7575230000 Cylinder
20 7012220000 Screw M8X 25 UNI-8112
21 9100280040 Filter Plate
22 9100280050 Filter Element
23 9100280060 Suction Filter
24 7012730000 Screw M.4X45
25 9100280070 Oil Level
26 9100270180 Gasket
27 9100270190 Gasket
28 9100280080 Valves Plate
29 9100270200 Gasket
30 9100280090 Valve
31 9100270210 Gasket
32 9100280100 Head
33 7010080000 Screw M8x35 UNI-5931
34 9100270220 Conveyor
35 7012090000 Screw M5x12 UNI-8112
36 7011460000 Screw M6X16 TAP-TITE
37 9100280110 Cork
38 7030270000 Washer 8 5X30X4 UNI-6593
39 9100270230 Flywheel
40 7011100000 Screw M8X25 UNI-5739
41 7031010000 Washer 8 UNI-3703
100 9100280210 Kit Valve Plate
101 9700000078 Seal Kit
102 4291030000 Piston Kit
033A 7030030000 Washer 8 UNI-6592
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac Agri 25/40 - AB248 Honda
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Agri 25/40 - AB248 Honda Drawing

Agri 25/40 - AB248 Honda Drawing

Download (760.79KB)

You might also like

Piston for Pumping unit FIAC AB 248-338-GM193
SKU: 9100020120
Piston for Pumping unit FIAC AB 248-338-GM193
Piston for Pumping unit FIAC AB 248-338-GM193 Genuine part Fiac, Piston for Pump Units AB 248-338 GM193 Entirely in aluminum, prepared with lubrication holes, grooves for series of piston rings Part for the following products: - Pump...
on 7/10 Business Days Approx €25.65
Details
Kit Piston for Pumping unit FIAC AB 248-338
SKU: 4291030000
Kit Piston for Pumping unit FIAC AB 248-338
Kit Piston for Pumping unit FIAC AB 248-338 Genuine replacement FIAC, Kit of Piston Entirely in aluminum, with lubrication holes, Piston Rigs, Piston Pin, Circlip. - Piston diameter: 55 mm - Hole diameter pin: 13 mm - Code: 4291030000
AVAILABLE €70.16
Details
Oil Seal for Pumping Units FIAC AB248-338-360
FIAC spa SKU: 9100270150
Oil Seal for Pumping Units FIAC AB248-338-360
Oil Seal for Pumping Units FIAC AB248-338-360 Genuine spare part FIAC, Oil Seal for Pump units FIAC AB248-360 Parts for the following products: - Pump unit AB 248-338 - Pump unit AB 360 - GM 145 validity date - from...
AVAILABLE €4.30
Details
Piston Pin for Pumping Unit FIAC AB 248-338-GM 193
FIAC spa SKU: 9100020080
Piston Pin for Pumping Unit FIAC AB 248-338-GM 193
Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 Genuine Part FIAC, steel pin for piston pumping units 248-338 AB - GM193. Parts for the following products: - Pumping unit AB 248-338 - Pumping unit GM 193 validity date - from...
AVAILABLE €15.80
Details
Flywheel for Pumping unit Fiac AB 248-338-360
FIAC spa SKU: 9100270230
Flywheel for Pumping unit Fiac AB 248-338-360
Flywheel for Pumping unit Fiac AB 248-338-360 Genuine Part FIAC, Flywheel Entirely in aluminum, with V groove for pumping units AB 248-338-360 . Part for the following products: - Pumping Unit AB 248-338 - Pumping Unit AB 360 -...
Last items in stock €64.36
Details
Crank Shaft for Pumping Units FIAC AB248-338-360
FIAC spa SKU: 9100270140
Crank Shaft for Pumping Units FIAC AB248-338-360
Crank Shaft for Pumping Units FIAC AB248-338-360 Original part FIAC, Crank Shaft for pumping units FIAC AB248-338 - AB 360. Part for the following products: - Pump unit AB 248-338 - Pump unit AB 360 - Code: 9100270140
Out-of-Stock €58.71
Details
Filter Plate for Pumping Uniti Fiac AB 248-338
FIAC spa SKU: 9100280040
Filter Plate for Pumping Uniti Fiac AB 248-338
Filter Plate for Pumping Uniti Fiac AB 248-338 Genuine part FIAC, Filter Plate for Pumping Uniti Fiac AB 248-338. Parts for the following products: - Pumping Uniti AB 248-338 - Code: 9100280040
AVAILABLE €1.83
Details
Front Cover for Pumping Units FIAC AB248-268-338-360
FIAC spa SKU: 9100270160
Front Cover for Pumping Units FIAC AB248-268-338-360
Front Cover for Pumping Units FIAC AB248-268-338-360 Genuine parts Fiac, Housing Crankshaft Bearing Front Cover for pumping units FIAC AB 248 - 268 - 338 - 360.  Parts for the following products:  - Pumping FIAC Group AB 268  -...
AVAILABLE €12.15
Details
Rear Cover for Pumping Units FIAC AB248-268-338-360
FIAC spa SKU: 9100270170
Rear Cover for Pumping Units FIAC AB248-268-338-360
Rear Cover for Pumping Units FIAC AB248-268-338-360 Genuine parts Fiac, Housing Crankshaft Bearing Rear Cover for pumping units FIAC AB 248 - 268 - 338 - 360.   Parts for the following products:  - Pumping FIAC Group AB 268  - Pumping...
AVAILABLE €12.15
Details
Air Filter Element for Pumping Unit Fiac AB 248-338-360
FIAC spa SKU: 9100280050
Air Filter Element for Pumping Unit Fiac AB 248-338-360
Air Filter Element for Pump Unit Fiac AB 248-338-360 Genuine part FIAC, Air Filter Element for Pump Unit Fiac 248 - 338 - 410 - 510 - 512 - 410 - 510 - 512 - 360 - 450 - 550 - 800. Part for the following products: - Pump Unit AB 248 -...
AVAILABLE €3.45
Details
Cylinder Carter Gasket for Pump Units FIAC AB 248-338
FIAC spa SKU: 9700001077
Cylinder Carter Gasket for Pump Units FIAC AB 248-338
Cylinder Carter Gasket for Pump Units FIAC AB 248-338 Original part FIAC, Cylinder Plate Gasket for Pump Units FIAC AB 248-338 Part for the following products: - Pump Unit Fiac AB 248-338 - Engine Compressor...
AVAILABLE €4.34
Details
Oil Cap for Pump Units Fiac AB 248-338 AB 360
FIAC spa SKU: 9100280110
Oil Cap for Pump Units Fiac AB 248-338 AB 360
Oil Cap for Pump Units Fiac AB 248-338 AB 360 Original part FIAC, Oil Cap for Pump Units AB 248-338 AB 360 - Motor Compressor Fiac S10-360 - S50-360 - Agri 25/40 Part...
AVAILABLE €2.09
Details
V-Belt for Compressor Fiac AB100/248 - 338M
FIAC spa SKU: 7370740000
V-Belt for Compressor Fiac AB100/248 - 338M
 V-Belt for Compressor Fiac AB100/248 - 338M Original Part FIAC, V-Belt A45 13x1143Li for Air Compressors AB100/248 - 338M - AB150/200-248 -338M - Motocompressore Agri 25/40 - AB248 -...
on 10/15 Business Days Approx €8.19
Details
Valves Plate Set for Pump unit FIAC AB248
FIAC spa SKU: 9100280080
Valves Plate Set for Pump unit FIAC AB248
Valves Plate Set for Pump unit FIAC AB248 Genuine part FIAC, Valves Plate Set For Pump unit  AB 248 - Petrol Engine Air Compressors Agri 25/40 - AB248 Part for the followiing Products: -  Pump...
Last items in stock €61.19
Details
FIAC Rubber Foot D.40X15 F.7
FIAC spa SKU: 7360140000
FIAC Rubber Foot D.40X15 F.7
FIAC Rubber Foot D.40X15 F.7 Genuine replacement part FIAC, Rubber Foot D.40X15 F.7 for Air Compressors FIAC - Black&Decker - Michelin Part for the following products: - Fiac GM25 300 - Fiac Agri 25/40 - AB248 Honda - F iac Agri...
AVAILABLE €5.17
Details
Fiac Pulley D.90 F.19A
FIAC spa SKU: 7408140000
Fiac Pulley D.90 F.19A
Fiac Pulley Øp 90 F.19A Genuine FIAC Spare Part, Pulley Øp 90 F.19A for Compressor FIAC - Michelin. Part for the following products: -  Michelin VCX 100-3 -  Fiac Agri 25/40 - AB248 Honda - Code:...
Last items in stock €28.59
Details
FIAC AB268 Carter Cover
FIAC spa SKU: 9700001076
FIAC AB268 Carter Cover
FIAC AB268 Carter Cover Genuine replacement part FIAC, Bottom Carter Cover for Pump Units AB268 - AB248 - AB338. Part for the following products: -  Pumping Unit Fiac AB248 - AB338 -  Air Compressor Fiac Agri 25/40 - AB248...
Last items in stock €20.50
Details
Comments (0)
