FIAC spa

FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda

SKU: Fiac S50-360 - AB360 - Honda
€30.99
VAT included

FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda

Genuine Parts FIAC for Air compressors with petrol engines S50-360 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines
FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda
  • Online only
  • FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda
  • FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda - Drawing
  • FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda - AB360 Drawing
FIAC spa

FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda

SKU: Fiac S50-360 - AB360 - Honda Condition: New
€30.99
VAT included

FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda

Genuine Parts FIAC for Air compressors with petrol engines S50-360 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines
settings 69 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

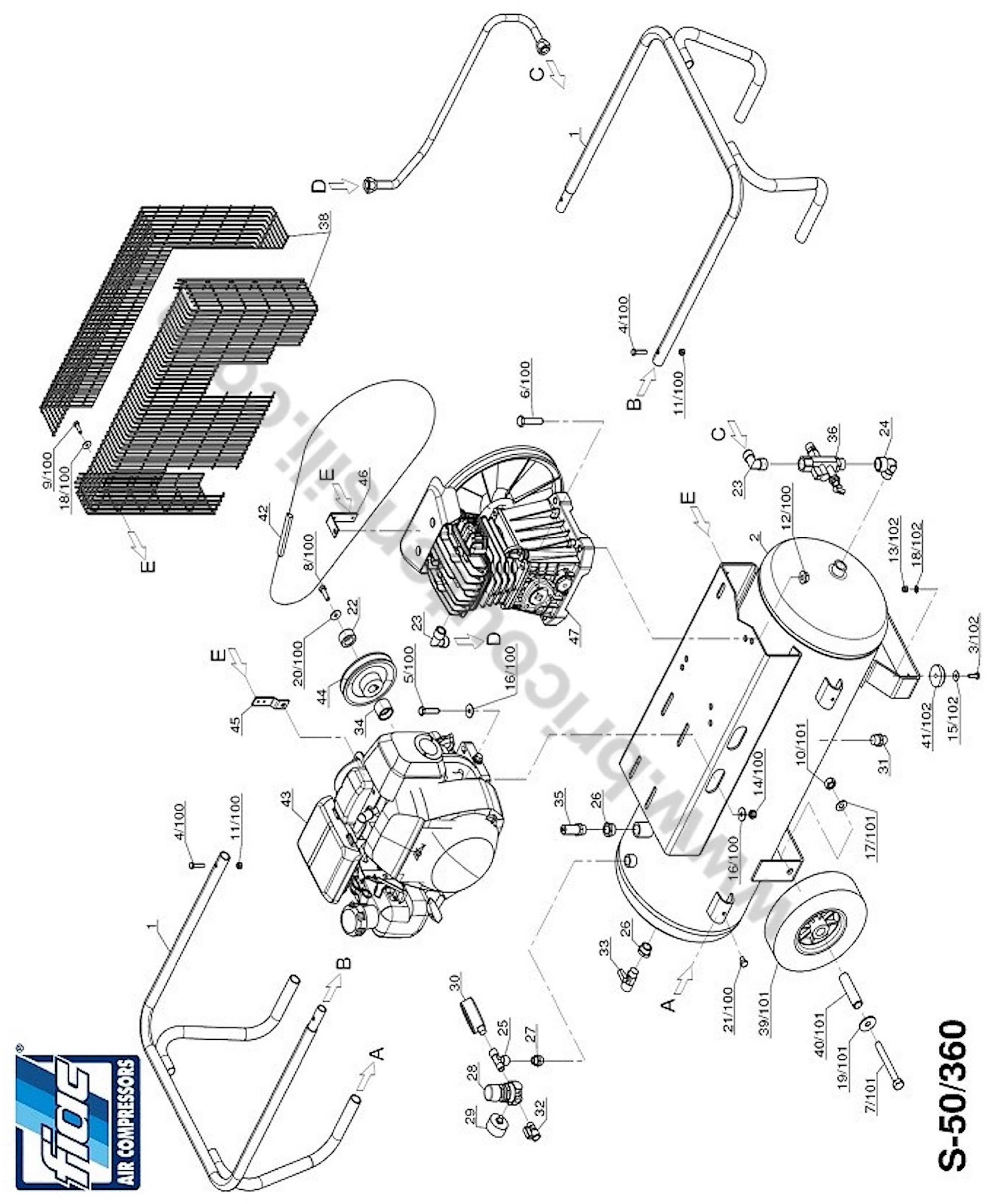

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7080770000 The Fitting MF 1/2 €21.23
1
 photo_cameraImage coming soon 7152570000 Spacer €23.36
1
 Automatic Unloading Valve for Compressors FIAC S10 - S50 7195170000 Automatic Unloading Valve for Compressors FIAC S10 - S50 €108.94
1
 photo_cameraImage coming soon 7237311000 Tube Feeding €55.40
22
 photo_cameraImage coming soon 7062680000 Bush €20.66
23
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
25
 photo_cameraImage coming soon 7082050000 Fitting "T" fourth FFM €12.10
26
 photo_cameraImage coming soon 7085020000 Fitting 1/2 "-3 / 8" MF €10.12
27
 photo_cameraImage coming soon 7085170000 Fitting 1/4 "-3/8" MM €4.10
28
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
29
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
30
 photo_cameraImage coming soon 7110480000 Gauge €30.27
31
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
32
 photo_cameraImage coming soon 7130440000 MF ball valve 1/4 " €16.97
33
 photo_cameraImage coming soon 7130580000 MF Ball Valve 3/8 " €27.72
35
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
38
 photo_cameraImage coming soon 4170030000 Belt Guard Kit €78.33
42
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
43
 photo_cameraImage coming soon 7382680000 Engine €1,014.82
44
 photo_cameraImage coming soon 7409090000 Pulley Øp100-1 "A" F.19,04 €15.91
45
 photo_cameraImage coming soon 7458200000 Belt Guard Bracket €5.57
46
 photo_cameraImage coming soon 7458940000 Belt Guard Bracket €7.39
47
 photo_cameraImage coming soon 9101880000 Pumping Unit AB360 €242.01
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

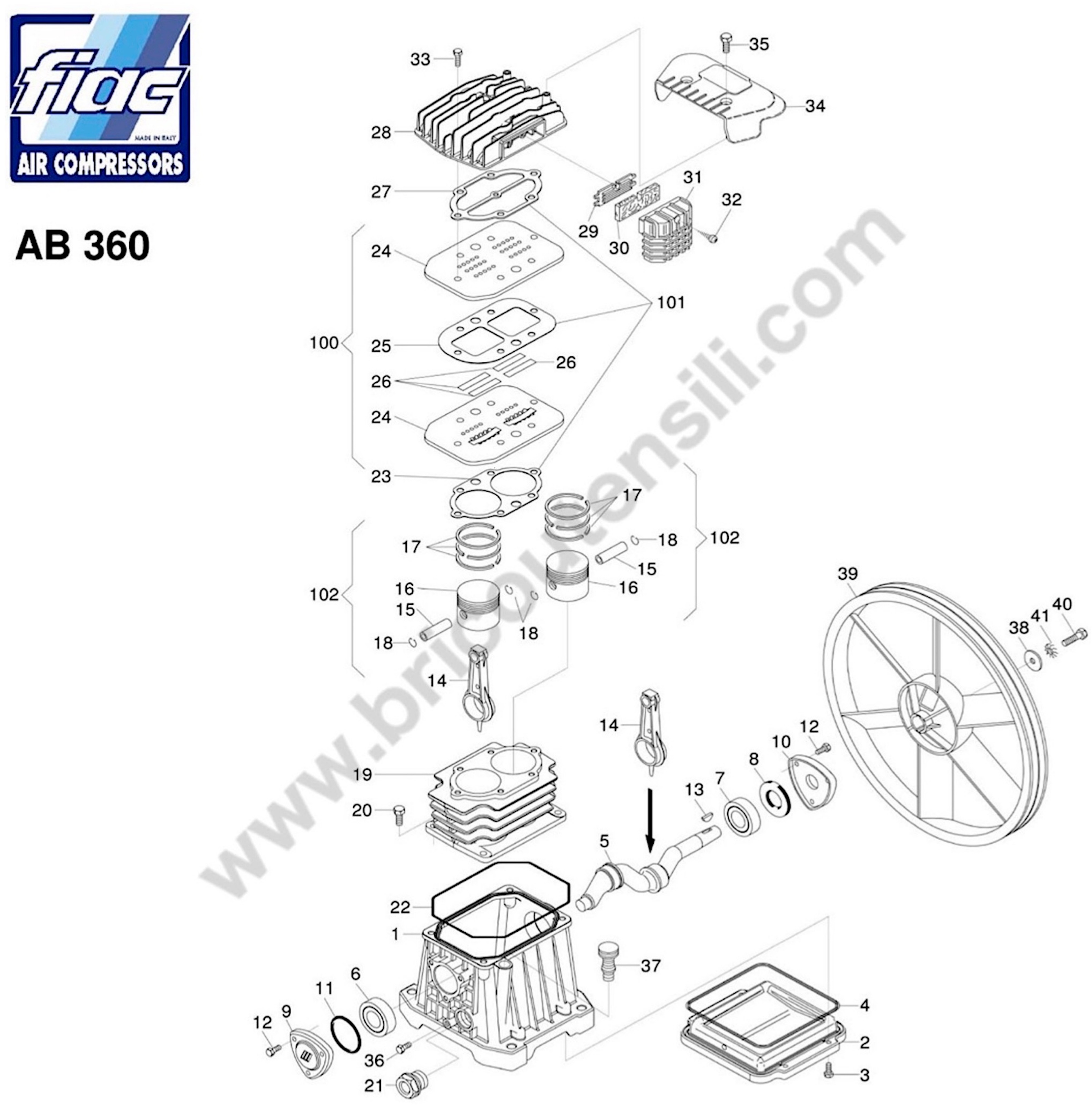

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9100270110 Case €106.52
2
 Fiac Pump Unit AB360 Bottom Crankcase Cover 9100270120 Fiac Pump Unit AB360 Bottom Crankcase Cover €28.36
4
 photo_cameraImage coming soon 9100270130 Seal €4.22
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
11
 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 9100280010 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 €4.34
12
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €1.29
14
 Conrod for Pumping unit FIAC AB338-360 9100270010 Conrod for Pumping unit FIAC AB338-360 €29.72
15
 FIAC AB360 Piston Pin 9100270020 FIAC AB360 Piston Pin €4.47
16
 Piston for Pumping unit FIAC AB 360 9100270030 Piston for Pumping unit FIAC AB 360 €26.10
17
 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 4080120000 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 €30.99
18
 FIAC AB360 Piston Pin Seeger 9100270070 FIAC AB360 Piston Pin Seeger €1.47
19
 photo_cameraImage coming soon 9100270080 Cylinder €96.35
20
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
21
 photo_cameraImage coming soon 9100280070 Oil level warning €4.65
22
 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 9100270180 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 €9.50
23
 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 9100270190 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 €6.13
24
 Valves Plate for Pump Unit FIAC AB 360 9100270090 Valves Plate for Pump Unit FIAC AB 360 €77.90
25
 Aluminum Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 9100270200 Aluminum Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 €5.98
26
 photo_cameraImage coming soon 9100280090 Valve €8.37
27
 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 9100270210 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 €7.12
28
 photo_cameraImage coming soon 9100270100 Top €43.81
29
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
30
 Air Filter Element for Air Compressor Fiac AB360 9100010210 Air Filter Element for Air Compressor Fiac AB360 €3.45
31
 Air Filter Cover for Pump Unit Fiac AB 360 9100270240 Air Filter Cover for Pump Unit Fiac AB 360 €6.01
32
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €10.61
35
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
37
 Oil Cap for Pump Units Fiac AB 248-338 AB 360 9100280110 Oil Cap for Pump Units Fiac AB 248-338 AB 360 €2.09
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €64.36
41
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
100
 Kit Valves Plate for Pumping Unit FIAC AB 360 9100270260 Kit Valves Plate for Pumping Unit FIAC AB 360 €62.37
101
 Gaskets Kit for Air Compressors Pump Unit FIAC AB248-360 9700000078 Gaskets Kit for Air Compressors Pump Unit FIAC AB248-360 €24.18
102
 Kit Piston for Pumping unit FIAC AB 360-410 4291140000 Kit Piston for Pumping unit FIAC AB 360-410 €41.27
103
 FIAC AB360 Conrod-Piston Kit 9700010170 FIAC AB360 Conrod-Piston Kit €31.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Petrol Engine Air Compressors S50-360 - AB360 - Honda

Genuine Parts FIAC for Air Air compressors with petrol engines S50-360 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them on impracticable ground. Equipped with pressure regulator/filter and, in the Agri models, also with a lubricator, they are remarkably powerful, sturdy, versatile, handy and easy to use.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.

In the following table, look for the type of the air compressor and the respective parts of the code .
Air compressors with petrol engines S50-360

Petrol Engine S50  Pump Unit AB 360 Pag.1
# Part Num. Description
1 4080430000 Kit Screws
1 4083140000 Kit Rubber Foot
1 5140210008 Roll Bar
1 7080770000 The Fitting MF 1/2
1 7152570000 Spacer
1 7195170000 Automatic Unloading Valve 1/2"
1 7237311000 Tube Feeding
2 5152750008 Tank 50lt
2 x Tube Connector
22 7062680000 Bush
23 7080160000 Fitting "L" 1/2
24 7080770000 The Fitting MF 1/2
25 7082050000 Fitting "T" 1/4 FFM
26 7085020000 Fitting 1/2 "-3/8" MF
27 7085170000 Fitting 1/4 "-3/8" MM
28 7100640000 Pressure Reducer
29 7110240000 Gauge Ø40-1 / 8 "
30 7110480000 Gauge
31 7130160000 Bleeding Tap M3 / 8 "
32 7130440000 MF Ball Valve 1/4 "
33 7130580000 MF Ball Valve 3/8 "
34 7152570000 Spacer
35 7192090000 Valve Sic. 3/8 "10,4BAR
36 7195170000 Automatic Unloading Valve 1/2"
37 7237311000 Tube Feeding
38 4170030000 Belt Guard Kit
41 x Tube Connector
42 7370060000 TRAP Belt. A 46
43 7382680000 Combustion Engine
44 7409090000 Pulley Øp100-1 "A" F.19,04
45 7458200000 Belt Guard Bracket
46 7458940000 Belt Guard Bracket
47 9101880000 Pumping Unit AB360
100 4080430000 Kit Screws
102 4083140000 Kit Rubber Foot
Pump Unit AB 360 Spare Parts Pag.2
# Part Num. Description
1 9100270110 Carter
2 9100270120 Crankcase Bottom cover
4 9100270130 seal
5 9100270140 Crankshaft
6 7060180000 Bearing 6203 "17X40X12
7 7060200000 bearing 6204
8 9100270150 Oil seal Ø20x47x7
9 9100270160 front cover
10 9100270170 back cover
11 9100280010 O-ring 144
12 7011420000 Screw M6X16 UNI-5739
13 9100280020 Tang 4x6,5
14 9100270010 piston rod
15 9100270020 pin
16 9100270030 piston
17 4080120000 Kit segments
18 9100270070 Seeger
19 9100270080 cylinder
20 7011100000 Screw M8X25 UNI-5739
21 9100280070 Oil Level
22 9100270180 seal
23 9100270190 seal
24 9100270090 valves plate
25 9100270200 Gasket
26 9100280090 valve
27 9100270210 Gasket
28 9100270100 top
29 7458340000 filter plate
30 9100010210 filter element
31 9100270240 Air filter cover
32 7012060000 Screw M4X12 UNI-8112
33 7010080000 Screw M8x35 UNI-5931
34 9100270220 conveyor
35 7012090000 Screw M5x12 UNI-8112
36 7011420000 Screw M6X16 UNI-5739
37 9100280110 stopper
38 7030270000 Washer Ø8,5X30X4 UNI-6593
39 9100270230 flywheel
40 7011100000 Screw M8X25 UNI-5739
41 7031010000 Washer Ø8 UNI-3703
100 9100270260 Kit valves plate
101 9700000078 seal Kit
102 4291140000 Piston Kit
103 9700010170 Conrod Piston Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac S50-360 - AB360 - Honda
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

S50-360 - AB360 - Honda Drawing

S50-360 - AB360 - Honda Drawing

Download (836.84KB)

You might also like

Pressure Regulator for Air Compressor 25/50 lt
FIAC spa SKU: 7100640000
Pressure Regulator for Air Compressor 25/50 lt
Pressure Regulator for Air Compressor 25/50 lt Genuine part FIAC, Pressure regulator for air compressors single phase, 25/50 liters. - Pressure connection: 1/4'' - Gauge: 1/8'' - Fittings Air connection : 1/4'' - Adjustable...
on 7/10 Business Days Approx €25.40
Details
Oil Seal for Pumping Units FIAC AB248-338-360
FIAC spa SKU: 9100270150
Oil Seal for Pumping Units FIAC AB248-338-360
Oil Seal for Pumping Units FIAC AB248-338-360 Genuine spare part FIAC, Oil Seal for Pump units FIAC AB248-360 Parts for the following products: - Pump unit AB 248-338 - Pump unit AB 360 - GM 145 validity date - from...
AVAILABLE €4.30
Details
Kit Piston for Pumping unit FIAC AB 360-410
FIAC spa SKU: 4291140000
Kit Piston for Pumping unit FIAC AB 360-410
Kit Piston for Pump unit FIAC AB 360-410 Genuine replacement FIAC, Kit of Piston Entirely in aluminum, with lubrication holes, Piston Rigs, Piston Pin, Circlip. - Piston diameter: 59 mm - Hole diameter pin: 15 mm - Code: 4291140000
Last items in stock €41.27
Details
Flywheel for Pumping unit Fiac AB 248-338-360
FIAC spa SKU: 9100270230
Flywheel for Pumping unit Fiac AB 248-338-360
Flywheel for Pumping unit Fiac AB 248-338-360 Genuine Part FIAC, Flywheel Entirely in aluminum, with V groove for pumping units AB 248-338-360 . Part for the following products: - Pumping Unit AB 248-338 - Pumping Unit AB 360 -...
Last items in stock €64.36
Details
Crank Shaft for Pumping Units FIAC AB248-338-360
FIAC spa SKU: 9100270140
Crank Shaft for Pumping Units FIAC AB248-338-360
Crank Shaft for Pumping Units FIAC AB248-338-360 Original part FIAC, Crank Shaft for pumping units FIAC AB248-338 - AB 360. Part for the following products: - Pump unit AB 248-338 - Pump unit AB 360 - Code: 9100270140
Out-of-Stock €58.71
Details
Front Cover for Pumping Units FIAC AB248-268-338-360
FIAC spa SKU: 9100270160
Front Cover for Pumping Units FIAC AB248-268-338-360
Front Cover for Pumping Units FIAC AB248-268-338-360 Genuine parts Fiac, Housing Crankshaft Bearing Front Cover for pumping units FIAC AB 248 - 268 - 338 - 360.  Parts for the following products:  - Pumping FIAC Group AB 268  -...
AVAILABLE €12.15
Details
Rear Cover for Pumping Units FIAC AB248-268-338-360
FIAC spa SKU: 9100270170
Rear Cover for Pumping Units FIAC AB248-268-338-360
Rear Cover for Pumping Units FIAC AB248-268-338-360 Genuine parts Fiac, Housing Crankshaft Bearing Rear Cover for pumping units FIAC AB 248 - 268 - 338 - 360.   Parts for the following products:  - Pumping FIAC Group AB 268  - Pumping...
AVAILABLE €12.15
Details
Air Filter Element for Air Compressor Fiac AB360
FIAC spa SKU: 9100010210
Air Filter Element for Air Compressor Fiac AB360
Air Filter Element for Air Compressor Fiac AB360 Genuine part FIAC, Air Filter Element, for Air Pumping Units AB 360 - GM 142-143 - 192-193 - Compressors FX 90 1300 W - Colibrì. Parts for the following compressors: - Pumping unit FIAC...
AVAILABLE €3.45
Details
Oil Cap for Pump Units Fiac AB 248-338 AB 360
FIAC spa SKU: 9100280110
Oil Cap for Pump Units Fiac AB 248-338 AB 360
Oil Cap for Pump Units Fiac AB 248-338 AB 360 Original part FIAC, Oil Cap for Pump Units AB 248-338 AB 360 - Motor Compressor Fiac S10-360 - S50-360 - Agri 25/40 Part...
AVAILABLE €2.09
Details
Valves Plate for Pump Unit FIAC AB 360
FIAC spa SKU: 9100270090
Valves Plate for Pump Unit FIAC AB 360
Valves Plate for Pump Unit FIAC AB 360 Genuine replacement part FIAC, Valves Plate for air Pump Unit AB 360. Part for the following products: -  Pump Unit FIAC AB 360 -  Engine Air Compressors...
Usually Shipped on: 7/10 Business Days Approx. €77.90
Details
Air Filter Cover for Pump Unit Fiac AB 360
FIAC spa SKU: 9100270240
Air Filter Cover for Pump Unit Fiac AB 360
Air Filter Cover for Pump Unit Fiac AB 360 Genuine Parts FIAC, Air Filter Cover for Air Compressor Pump Unit AB 360. Part for the following products: -  FIAC S10-360 - AB360 - HONDA -  FIAC S50-360 - AB360 - HONDA -  FIAC PUMP UNIT...
AVAILABLE €6.01
Details
Fiac Pump Unit AB360 Bottom Crankcase Cover
FIAC spa SKU: 9100270120
Fiac Pump Unit AB360 Bottom Crankcase Cover
Fiac Pump Unit AB360 Bottom Crankcase Cover Genuine Parts FIAC, Bottom Crankcase Cover for Air Compressor Pump Unit AB248 - AB360. Part for the following products: -  FIAC S10-360 - AB360 - HONDA -  FIAC S50-360 - AB360 -...
Last items in stock €28.36
Details
FIAC AB360 Conrod-Piston Kit
FIAC spa SKU: 9700010170
FIAC AB360 Conrod-Piston Kit
FIAC AB360 Conrod & Piston Kit Genuine replacement part FIAC, Conrod & Piston Kit for air Pump Unit AB 360. Part for the following products: -  Engine Air Compressors S10-360 - AB360 - Honda -  Engine Air...
AVAILABLE €31.73
Details
FIAC AB360 Piston Pin
FIAC spa SKU: 9100270020
FIAC AB360 Piston Pin
FIAC Piston Pin for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC S360-22...
AVAILABLE €4.47
Details
FIAC AB360 Piston Pin Seeger
FIAC spa SKU: 9100270070
FIAC AB360 Piston Pin Seeger
FIAC Piston Pin Seeger for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin Seeger for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC...
AVAILABLE €1.47
Details
Comments (0)
