FIAC Spare Parts for Petrol Engine Air Compressors S1506 - S15 Honda

Genuine Parts FIAC for Air compressors with petrol engines S1506 for use where there is no available electric power supply.

Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.
FIAC Spare Parts for Petrol Engine Air Compressors S1506
  • FIAC Spare Parts for Petrol Engine Air Compressors S1506
  • FIAC Spare Parts for Petrol Engine Air Compressors S1506 - Drawing
  • FIAC Spare Parts for Petrol Engine Air Compressors S1506 - Drawing 1
FIAC spa

FIAC Spare Parts for Petrol Engine Air Compressors S1506 - S15 Honda

SKU: S1506 - S15 Honda Condition: New
€376.89
VAT included

FIAC Spare Parts for Petrol Engine Air Compressors S1506 - S15 Honda

Genuine Parts FIAC for Air compressors with petrol engines S1506 for use where there is no available electric power supply.

Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.
settings 66 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
66 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

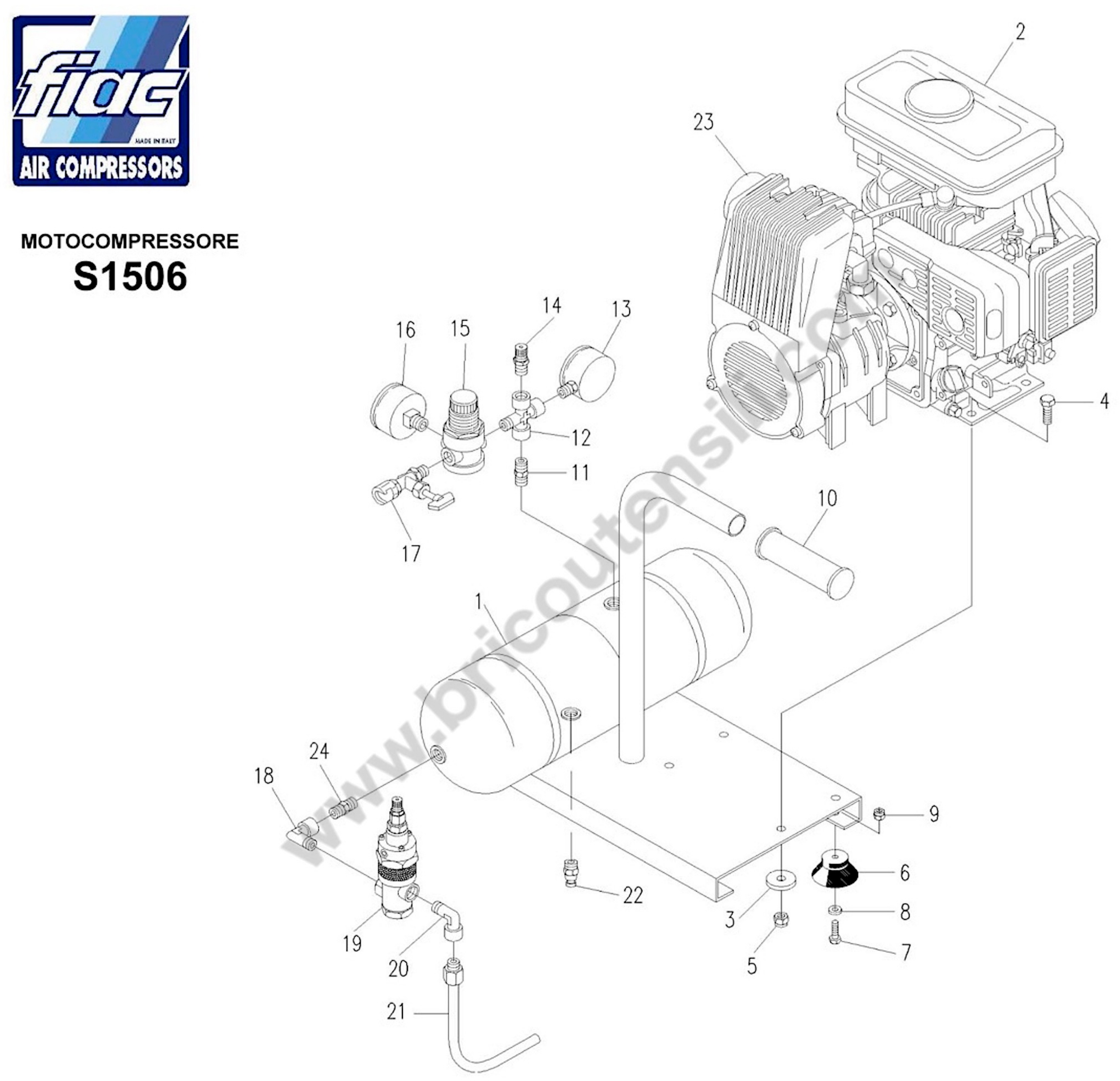

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5152300008 Tank €245.74
2
 photo_cameraImage coming soon 7382680000 Engine €1,014.82
3
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
6
 photo_cameraImage coming soon 7270080000 Sucker €11.04
7
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
9
 photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
10
 photo_cameraImage coming soon 7280030000 Knob €7.24
11
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
12
 photo_cameraImage coming soon 7086010000 Fitting FFFM 1/4 €13.40
13
 photo_cameraImage coming soon 7110180000 Manometer €20.46
14
 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS 7192010000 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS €17.32
15
 Pressure Regulator for Air Compressor Apollo 100 7100530000 Pressure Regulator for Air Compressor Apollo 100 €29.87
16
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
17
 photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
18
 photo_cameraImage coming soon 7080010000 3/8 MF €10.64
19
 photo_cameraImage coming soon 7195100000 Circuit Breaker €277.49
20
 photo_cameraImage coming soon 7084190000 Fitting "L" 3/8-1/2 MM €15.30
21
 photo_cameraImage coming soon 7239750000 Tube Feeding €46.36
22
 FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
23
 photo_cameraImage coming soon 2022010000 Pumping Unit S-15 €355.27
24
 Cylindrical Thread Nipple Male/Male 3/8''-1/4'' 6002901438 Cylindrical Thread Nipple Male/Male 3/8''-1/4'' €1.84
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

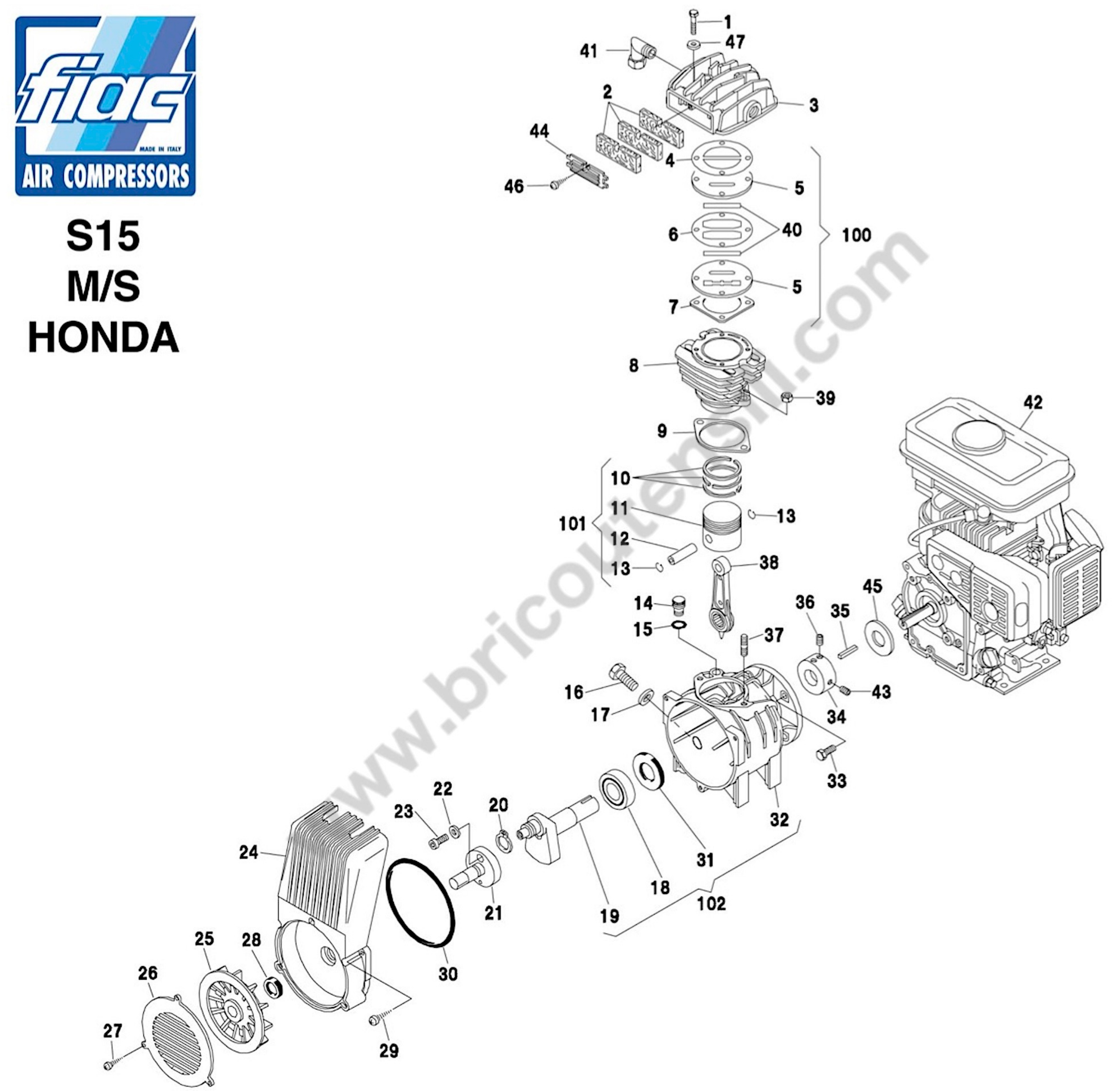

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
3
 FIAC S15 Pump Unit Head 5030150008 FIAC S15 Pump Unit Head €29.86
5
 photo_cameraImage coming soon 7459530000 Kit Valve Plate €28.15
8
 Cylinder for Pump Unit Fiac S15 7575360000 Cylinder for Pump Unit Fiac S15 €80.09
10
 FIAC Pump Unit S15 Piston Ring Kit 4080240000 FIAC Pump Unit S15 Piston Ring Kit €23.10
11
 Piston for Pumping Unit FIAC AB 335 7220050000 Piston for Pumping Unit FIAC AB 335 €29.18
12
 photo_cameraImage coming soon 7050030000 Pin Ø 13 €5.58
13
 photo_cameraImage coming soon 7041030000 Seeger Ø13 €1.44
14
 photo_cameraImage coming soon 7098120000 Stopper €18.13
15
 photo_cameraImage coming soon 7070010000 O-Ring 108 €1.44
16
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
17
 photo_cameraImage coming soon 7072010000 Seal €1.44
18
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
19
 Crank Shaft for Pump Unit Fiac S15 5041280008 Crank Shaft for Pump Unit Fiac S15 €131.29
20
 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 7040040000 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 €0.62
21
 Motor Fan Shaft for Pump Unit Fiac S15 5040720008 Motor Fan Shaft for Pump Unit Fiac S15 €81.06
22
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
23
 Special Bolt M8x20 UNI-5931 for Pump Unit Fiac S15 7010420000 Special Bolt M8x20 UNI-5931 for Pump Unit Fiac S15 €1.52
24
 photo_cameraImage coming soon 5080060008 Cover €83.46
25
 Motor Fan for Pump Unit Fiac S15 7200150000 Motor Fan for Pump Unit Fiac S15 €12.06
26
 photo_cameraImage coming soon 7248060000 Grid €5.44
27
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
28
 Oil Seal 17x28x7 FP for Pump Unit Fiac S15 7071260000 Oil Seal 17x28x7 FP for Pump Unit Fiac S15 €5.77
29
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
30
 O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 7070250000 O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 €10.61
31
 Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 7071090000 Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 €5.77
32
 photo_cameraImage coming soon 5070260008 CARTER €137.43
33
 photo_cameraImage coming soon 7011970000 Screw 5/16 "25 UNF €1.48
34
 photo_cameraImage coming soon 7040510000 Ring €58.77
35
 Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 7051280000 Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 €2.84
36
 photo_cameraImage coming soon 7016100000 Screw M8x10 UNI-5923 €1.44
37
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
38
 Conrod for Pump Unit FIAC S15 5050160008 Conrod for Pump Unit FIAC S15 €27.40
39
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
40
 Valves Kit for Pump Unit Fiac S15 4081050000 Valves Kit for Pump Unit Fiac S15 €10.00
41
 photo_cameraImage coming soon 7084190000 Fitting "L" 3/8-1/2 MM €15.30
42
 photo_cameraImage coming soon 7382680000 Engine €1,014.82
43
 photo_cameraImage coming soon 7016190000 Screw M5X8 UNI-5923 €1.44
45
 Centering Ring for Petrol Engine Air Compressors S1506 7040200000 Centering Ring for Petrol Engine Air Compressors S1506 €69.42
46
 photo_cameraImage coming soon 7012080000 Screw Ø4,2X12,7 UNI-6954 €1.38
48
 photo_cameraImage coming soon 7210800000 Suction Filter €19.96
49
 photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
50
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
100
 Valve Plate Kit for Pump Unit Fiac S15 4082970000 Valve Plate Kit for Pump Unit Fiac S15 €102.29
101
 Conrod + Piston + Piston Ring Ass'y Set for Pump Unit Fiac S15 4191040000 Conrod + Piston + Piston Ring Ass'y Set for Pump Unit Fiac S15 €76.79
102
 photo_cameraImage coming soon 4280800000 GR.CARTER + TREE S-14 "HONDA" €243.89
103
 Gasket Set for Pump Unit Fiac S15 4082340000 Gasket Set for Pump Unit Fiac S15 €15.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Petrol Engine Air Compressors S1506 - S15 Honda

Genuine Parts FIAC for Air compressors with petrol engines S1506 for use where there is no available electric power supply.

In the following table, look for the type of the air compressor and the respective parts of the code.
S1506 - S15 Honda

Petrol Engine S 1506 - S15 Honda Pag.1
# Part Num. Description
1 5152300008 Tank
2 7382680000 Engine
3 7030030000 Washer Ø8 UNI-6592
4 7011350000 Screw M8x35 UNI-5739
5 7021030000 Nut M8 UNI-7473
6 7270080000 Sucker
7 7011040000 Screw M6X20 UNI-5739
8 7030020000 Ø6 Washer UNI-6592
9 7021010000 Nut M6 UNI-7473
10 7280030000 Knob
11 7081140000 Fitting 1/4 "MM
12 7086010000 Fitting FFFM 1/4
13 7110180000 Manometer
14 7192010000 Valve Sic. M1 / 4-10,5Bar
15 7100530000 Pressure Regulator
16 7110240000 Manometer Ø40-1 / 8 "
17 7130010000 Tap M1/4"
18 7080010000 3/8 MF
19 7195100000 Circuit Breaker
20 7084190000 Fitting "L" 3 / 8-1 / 2 MM
21 7239750000 Tube Feeding
22 7130090000 Drain Tap M1/4"
23 2022010000 Pumping Unit S-15
24 6002901438 NIPPLE M1 / 4XM3 / 8-CIL.FRL290
Pump Unit S 15 Pag.2
1 7011220000 Screw M6x40 UNI-5737
2 7210010000 Filter Element
3 5030150008 Head
5 7459530000 Kit Valve Plate
8 7575360000 Cylinder
10 4080240000 Piston Ring Kit
11 7220050000 Piston
12 7050030000 Pin Ø 13
13 7041030000 Seeger Ø13
14 7098120000 Stopper
15 7070010000 O-Ring 108
16 7090090000 Stopper M1/4" Brass
17 7072010000 Seal
18 7060060000 Bearing 6205
19 5041280008 Crank Shaft
20 7040040000 And Seeger 20
21 5040720008 Fan Shaft
22 7030030000 Washer Ø8 UNI-6592
23 7010420000 Screw M8x20 UNI-5931
24 5080060008 Cover
25 7200150000 Cooling Fan
26 7248060000 Grid
27 7012060000 Screw M4X12 UNI-8112
28 7071260000 Oil Seal SM 1728/7
29 7012290000 Screw M5X20 TAP-TITE
30 7070250000 O-Ring 4500
31 7071090000 Oil Seal 2552/10
32 5070260008 Carter
33 7011970000 Screw 5/16 "25 UNF
34 7040510000 Ring
35 7051280000 Woodruff Key 4,76X4,76X22 X GC135 S-13
36 7016100000 Screw M8x10 UNI-5923
37 7015020000 Prisoner M.8X35X14X16
38 5050160008 Piston ConRod
39 7020070000 Nut M8 UNI-5587
40 4081050000 Kit Valves
41 7084190000 Fitting "L" 3 / 8-1 / 2 MM
42 7382680000 Engine
43 7016190000 Screw M5X8 UNI-5923
44 7488011000 Plate
45 7040200000 Centering Ring
46 7012080000 Screw Ø4,2X12,7 UNI-6954
47 7030020000 Ø6 Washer UNI-6592
48 7210800000 Suction Filter
49 7090080000 Stopper M3 / 8 "
50 7458031000 Filter Plate
100 4082970000 Valve Plate Kit
101 4191040000 KIT ROD-PISTON-PISTON TINGS 55 / VX 304
102 4280800000 GR.CARTER + TREE S-14 "HONDA"
103 4082340000 Gasket Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
S1506 - S15 Honda
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Fiac S1506 - S15 Honda Drawing

Fiac S1506 - S15 Honda Drawing

Download (642.02KB)

You might also like

Head Gasket for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 7078490000
Head Gasket for Air Compressor Fiac ECU201-FB-210
Head Gasket for Air Compressor Fiac ECU201-FB-210 Genuine spare part FIAC, Head Gasket, for self-lubricated air compressors FIAC ECU 201 HP 1.5 - F206 - FB-210 Part for the following products: -  Air Compressor ECU 201 HP...
AVAILABLE €7.98
Details
Cilinder for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 5062000008
Cylinder for Air Compressor Fiac ECU201-FB-210
Cylinder for Air Compressor Fiac ECU201-FB-210 Genuine spare part FIAC, Cylinder, Entirely in aluminum, for self-lubricated air compressors FIAC ECU 201 HP 1.5 - F206 - FB-210 Parts for the following products: - Air Compressor ECU...
Last items in stock €22.41
Details
Piston Ring for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 7140580000
Piston Ring for Air Compressor Fiac ECU201-FB-210
Piston Ring for Air Compressor Fiac ECU201-FB-210 Genuine spare part FIAC, Piston Ring, for self-lubricated air compressors FIAC ECU 201 HP 1.5 - F206 - FB-210 Part for the following products: - Compressor ECU 201 1.5 HP F206 - ...
AVAILABLE €30.56
Details
Air Filter Element for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 7210590000
Air Filter Element for Air Compressor Fiac ECU201-FB-210
Air Filter Element for Air Compressor Fiac ECU201-FB-210 Genuine spare part FIAC, Air Filter Element, for self-lubricated air compressors FIAC ECU 201 HP 1.5 - F206 - FB-210 Parts for the following products: -  Air Compressor Leonardo...
AVAILABLE €1.87
Details
Rubber Holder for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 7360370000
Rubber Holder for Air Compressor Fiac ECU201-FB-210
Rubber Holder for Air Compressor Fiac ECU201-FB-210 Genuine part FIAC, Rubber Holder Ø25 - 60SH, for self-lubricated compressors FIAC ECU 201 HP 1.5 - F206 - FB-210. Parts for the following Air compressors: - Air Compressor ECU 201...
AVAILABLE €3.00
Details
Motor Fan for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 7200140000
Motor Fan for Air Compressor Fiac ECU201-FB-210
Motor Fan for Air Compressor Fiac ECU201-FB-210 Genuine part FIAC, Motor fan, for self-lubricated compressors FIAC ECU 201 HP 1.5 - F206 - FB-210. Part for the following products: -  AIR COMPRESSOR ECU 201 HP 1,5 F206 -  AIR...
AVAILABLE €8.84
Details
Pumping Unit S15 for Motor Compressors FIAC S15-06-020 - 1
FIAC spa SKU: 1122010011
Pumping Unit S15 for Motor Compressors FIAC S15-06-020
Pump Unit for Petrol Engine Air Compressors FIAC S15-06 - S15-20 Original part FIAC, Pump Unit for Petrol Engine Air Compressors FIAC S15-06 - S15-20 Petrol Engine Air Compressors FIAC S15-06 - S15-20 -...
Last items in stock €380.92
Details
O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520
FIAC spa SKU: 7070250000
O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520
O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 Genuine spare parts Fiac, O-Ring 4500 for Petrol Engine Air Compressors S1506 - S1520. Parts for the following products:  -  Fiac per Petrol Engine Air Compressors...
Last items in stock €10.61
Details
Piston for Pumping Unit FIAC AB 335
FIAC spa SKU: 7220050000
Piston for Pumping Unit FIAC AB 335
Piston for Pump Unit FIAC AB 335 Genuine replacement FIAC, Piston for Pump Units AB 335 - S 15 - GM 300 - VX 304 - Air Compressor Fiac GM 25 300 Part for the following products: - Pump...
AVAILABLE €29.18
Details
Oil Seal mm 25x52x10 for Pump Unit FIAC S 15
FIAC spa SKU: 7071090000
Oil Seal mm 25x52x10 for Pump Unit FIAC S 15
Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 Genuine spare part FIAC, Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 - Petrol Engine Air Compressor Fiac S 1506 - S 1520 Parts for the following...
AVAILABLE €5.77
Details
Motor Fan for Pump Unit Fiac S15
FIAC spa SKU: 7200150000
Motor Fan for Pump Unit Fiac S15
Motor Fan for Pump Unit Fiac S15 Genuine part FIAC, Motor fan for Pump Unit Fiac S15 Part for the following products: - Pump Unit Fiac S15 - Code: 1127200015 ex 7200150000
AVAILABLE €12.06
Details
Oil Seal 17x28x7 FP for Pump Unit Fiac S15
FIAC spa SKU: 7071260000
Oil Seal 17x28x7 FP for Pump Unit Fiac S15
Oil Seal 17x28x7 FP for Pump Unit Fiac S15 Genuine part FIAC, Oil Seal 17x28x7 FP for Pump Unit Fiac S15 Part for the following products: -  Pump Unit Fiac S15 -  Engine...
AVAILABLE €5.77
Details
Brass Cap M1/4" for Pump Units Fiac
FIAC spa SKU: 7090090000
Brass Cap M1/4" for Pump Units Fiac
Brass Cap M1/4" for Pump Units Fiac Genuine spare part FIAC, Chrome-Plated Brass Cap M1/4" for Pump Units, Engine Compressors, Air Compressors. Part for the following products: - Pump...
AVAILABLE €4.42
Details
Motor Fan Shaft for Pump Unit Fiac S15
FIAC spa SKU: 5040720008
Motor Fan Shaft for Pump Unit Fiac S15
Motor Fan Shaft for Pump Unit Fiac S15 Genuine replacement part FIAC, Motor Fan Shaft for Pump Unit Fiac S15 Part for the following products: -  Pump Unit Fiac S15 - Code: 1125040072 ex 5040720008
AVAILABLE €81.06
Details
Crank Shaft for Pump Unit Fiac S15
FIAC spa SKU: 5041280008
Crank Shaft for Pump Unit Fiac S15
Crank Shaft for Pump Unit Fiac S15 Genuine replacement part FIAC, Crank Shaft for Pump Unit Fiac S15, Engine Air Compressors S1506 - S1520 Powered Honda. Part for the following products: -  Pump Unit Fiac S15 -  Engine Air Compressor...
on 10 Business Days Approx €131.29
Details
Crank Shaft Ass'y for Pump Unit Fiac S15
FIAC spa SKU: 5041280008 - Assemblato
Crank Shaft Ass'y for Pump Unit Fiac S15
Crank Shaft Ass'y for Pump Unit Fiac S15 Genuine replacement part FIAC, Crank Shaft Complete Ass'y for Pump Unit Fiac S15, Engine Air Compressors S1506 - S1520 Powered Honda. Part for the following products: -  Pump Unit Fiac S15 -...
AVAILABLE €196.70
Details
Cylinder for Pump Unit Fiac S15
FIAC spa SKU: 7575360000
Cylinder for Pump Unit Fiac S15
Cylinder for Pump Unit Fiac S15 Genuine replacement part FIAC, Cylinder D.55 C.34 Aluminium for Pump Unit Fiac S15, Engine Air Compressors S1506 - S1520 Powered Honda. Part for the following products: -  Pump Unit Fiac S15 -  Engine...
AVAILABLE €80.09
Details
Gasket Set for Pump Unit Fiac S15
FIAC spa SKU: 4082340000
Gasket Set for Pump Unit Fiac S15
Gasket Set for Pump Unit Fiac S15 Genuine replacement part FIAC, Gasket Set for Pump Unit Fiac S15, Engine Air Compressors S1506 - S1520 Powered Honda. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €15.95
Details
Pressure Regulator for Air Compressor Apollo 100
FIAC spa SKU: 7100530000
Pressure Regulator for Air Compressor Apollo 100
Pressure Regulator for Air Compressor Apollo 100 Genuine part FIAC, Pressure regulator for air compressors single phase, Apollo 100 - Motocompressore S1506 - S1520 -  Gruppo Pompante CCS 245. Part for the following products: -  Air...
AVAILABLE €29.87
Details
Centering Ring for Petrol Engine Air Compressors S1506
FIAC spa SKU: 7040200000
Centering Ring for Petrol Engine Air Compressors S1506
Centering Ring for Petrol Engine Air Compressors S1506 Genuine spare parts Fiac, Centering Ring for Petrol Engine Air Compressors S1506 - S1520. Parts for the following products:  -  Fiac per Petrol Engine...
AVAILABLE €69.42
Details
Valves Kit for Pump Unit Fiac S15
FIAC spa SKU: 4081050000
Valves Kit for Pump Unit Fiac S15
Valves Kit for Pump Unit Fiac S15 Genuine part FIAC, Valves Kit for Pump Unit Fiac S15 Part for the following products: -  Pump Unit Fiac S15 -  Engine Compressor S1506 - ...
AVAILABLE €10.00
Details
Valve Plate Kit for Pump Unit Fiac S15
FIAC spa SKU: 4082970000
Valve Plate Kit for Pump Unit Fiac S15
Valve Plate Kit for Pump Unit Fiac S15 Genuine part FIAC, Valve Plate Kit for Pump Unit Fiac S15 Part for the following products: -  Pump Unit Fiac S15 -  Engine Compressor S1506...
AVAILABLE €102.29
Details
Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15
FIAC spa SKU: 7051280000
Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15
Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 Genuine part FIAC, Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S14 - S15. Part for the following products: -  Pump Unit Fiac S15 - ...
AVAILABLE €2.84
Details
Conrod for Pump Unit FIAC S15
FIAC spa SKU: 5050160008
Conrod for Pump Unit FIAC S15
Conrod for Pump Unit FIAC S15 Genuine replacement part FIAC, Conrod Entirely in aluminum, prepared with lubrication holes and whip oil for Pump Unit Fiac S15. Part for the following products: - Fiac S15 - Fiac GM25 300 - Fiac...
AVAILABLE €27.40
Details
FIAC Pump Unit S15 Piston Ring Kit
FIAC spa SKU: 4080240000
FIAC Pump Unit S15 Piston Ring Kit
FIAC Pump Unit S15 Piston Ring Kit Genuine replacement part FIAC, Piston Ring Kit , for Pump Unit S15. Parts for the following products: - Fiac S15 - Fiac GM25 300 - Fiac S15S1506 - S15 Honda - Fiac S1520 - S15 Honda - Fiac...
AVAILABLE €23.10
Details
FIAC S15 Pump Unit Head
FIAC spa SKU: 5030150008
FIAC S15 Pump Unit Head
FIAC S15 Pump Unit Head Genuine replacement part FIAC, Head GM191AS for Pump Unit Fiac S15. Part for the following products: - Fiac S15 - Fiac S15S1506 - S15 Honda - FIAC S1520 - S15 Honda - Code: 1125030015 ex 5030150008
AVAILABLE €29.86
Details
Comments (0)
