FIAC Spare Parts for Piston Air Compressor Airsplash 24

SKU: Fiac Airsplash 24
€180.53
VAT included

FIAC Spare Parts for Piston Air Compressor Airsplash 24

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Airsplash 24.
FIAC Spare Parts for Piston Air Compressor Airsplash 24
  • FIAC Spare Parts for Piston Air Compressor Airsplash 24
  • FIAC Spare Parts for Piston Air Compressor Airsplash 24
FIAC spa

FIAC Spare Parts for Piston Air Compressor Airsplash 24

SKU: Fiac Airsplash 24 Condition: New
€180.53
VAT included

FIAC Spare Parts for Piston Air Compressor Airsplash 24

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Airsplash 24.
settings 53 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

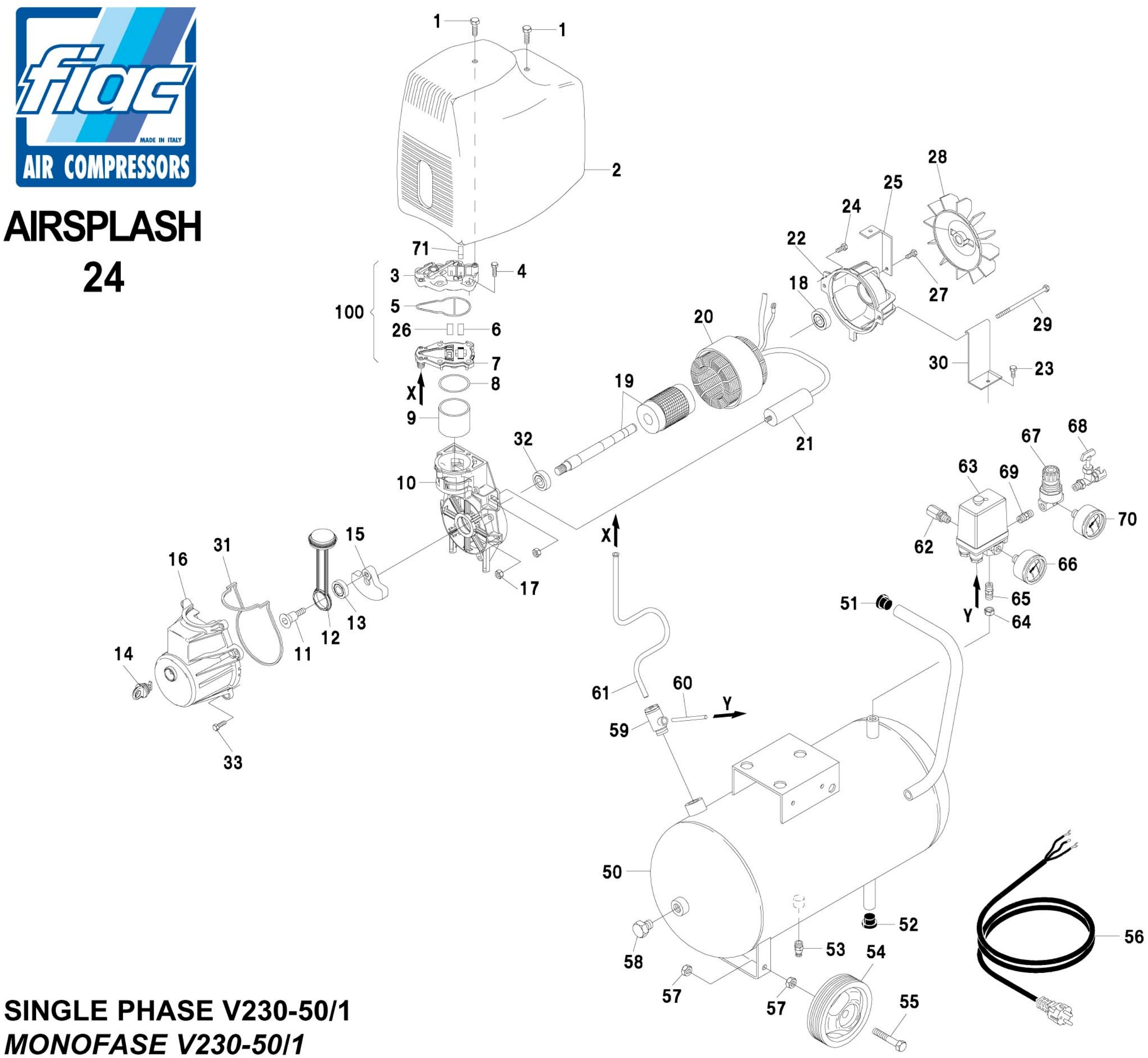

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
2
 photo_cameraImage coming soon 7151450000 CASING AIR SPLASH BLACK €19.87
3
 photo_cameraImage coming soon 7570620000 Head €10.92
4
 photo_cameraImage coming soon 7011880000 Lives €1.38
5
 Silicon OR for Head of Air Compressors Fiac Air Click-Airsplash 24 7078670000 Silicon OR for Head of Air Compressors Fiac Air Click-Airsplash 24 €7.89
6
 Flap Valve 32x10x0,010 for Air Compressors Fiac Air Click-Airsplash 24 7199160000 Flap Valve 32x10x0,010 for Air Compressors Fiac Air Click-Airsplash 24 €1.44 Not available for order
7
 Valve Plate for Air Compressor Fiac Air Click 7459360000 Valve Plate for Air Compressor Fiac Air Click €12.51
8
 O-Ring for Compressors Cylinder FIAC Air Splash 24-Air Click 7070420000 O-Ring for Compressors Cylinder FIAC Air Splash 24-Air Click €1.44
9
 Cilinder for Air Compressor Fiac Air Click-Airsplash 5062040008 Cilinder for Air Compressor Fiac Air Click-Airsplash €22.41 Not available for order
10
 photo_cameraImage coming soon 7670110000 Sump €28.53
11
 photo_cameraImage coming soon 7018500000 PIVOT ROD 203 F. €4.34
13
 photo_cameraImage coming soon 7060570000 Bearing 6301-2RS €16.57
15
 photo_cameraImage coming soon 7585030000 Crank BRASS GM 203-AIRSPLASH €23.33
16
 photo_cameraImage coming soon 7151460000 COVER CARTER AIRSPLASH €20.73
17
 photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
18
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
19
 photo_cameraImage coming soon 7584000000 GROUP TREE + ROTOR F-203-H 60- €51.96
20
 photo_cameraImage coming soon 4012910000 Stator €161.99
21
 Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
22
 photo_cameraImage coming soon 7640130000 Cover €17.64
24
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
26
 Flap Valve 32x10x0,015 for Air Compressors Fiac Air Click-Airsplash 24 7199170000 Flap Valve 32x10x0,015 for Air Compressors Fiac Air Click-Airsplash 24 €1.44
28
 Motor Fan for Pump Units GM 143-191 7201280000 Motor Fan for Pump Units GM 143-191 €15.06
31
 photo_cameraImage coming soon 7078700000 Gasket €6.70
32
 photo_cameraImage coming soon 7060230000 Bearing 6203 RS 2 - SKF €34.10
50
 photo_cameraImage coming soon 5152830008 Tank 24lt €257.39
52
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
53
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
54
 photo_cameraImage coming soon 7260380000 Wheel Ø125X35 F10 €5.00
56
 photo_cameraImage coming soon 7327540000 Power cable €13.14
57
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
58
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
59
 photo_cameraImage coming soon 7190240000 Check valve M3 / 8 "-Pipe Ø8 €21.28
60
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
61
 photo_cameraImage coming soon 7230670000 Tube feeding €21.28
62
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
63
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
64
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
65
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
66
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
67
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
68
 photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
69
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
70
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
100
 photo_cameraImage coming soon 4230150000 GR.TESTA-PLATE F-203 / GM-203 €44.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Airsplash 24

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Airsplash 24.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac Airsplash 24

Compressor Airsplash 24
# Part NUm. Description
1 7012240000 Screw M5X15 UNI-8112
2 7151450000 CASING AIR SPLASH BLACK
3 7570620000 Head
4 7011880000 Lives
5 7078670000 Gasket
6 7199160000 Valve
7 7459360000 Valve Plate
8 7070420000 O-Ring 476
9 5062040008 Cylinder - DISCONTINUED
10 7670110000 Sump
11 7018500000 PIVOT ROD 203 F.
12 4082910000 KIT ROD GM-203 X AIRSLASH - DISCONTINUED
13 7060570000 Bearing 6301-2RS
14 7181180000 OIL CAP AIRSPLASH OR GREEN +
15 7585030000 Crank BRASS GM 203-AIRSPLASH
16 7151460000 COVER CARTER AIRSPLASH
17 7020200000 Nut M6 UNI-5587
18 7060010000 Bearing 6203 ZZ 17:40:12 QE6
19 7584000000 GROUP TREE + ROTOR F-203-H 60-
20 4012910000 Stator
21 7310590000 Condenser MF.25 V450
22 7640130000 Cover
23 7012240000 Screw M5X15 UNI-8112
24 7013060000 Screw M4X8 UNI-8112
25 7459390000 SUPPORT CARENAT.AIRCLIK-ZINC
26 7199170000 Valve
27 7012240000 Screw M5X15 UNI-8112
28 7201280000 Fan Raff.
29 7011400000 Screw M6X100 UNI-5737
30 7459400000 Support
31 7078700000 Gasket
32 7060230000 Bearing 6203 RS 2 - SKF
33 7012240000 Screw M5X15 UNI-8112
50 5152830008 Tank 24lt
51 7091240000 Plastic Stopper
52 7360020000 Rubber Ø16
53 7130160000 Bleeding Tap M3 / 8 "
54 7260380000 Wheel Ø125X35 F10
55 7012780000 Screw M10x60 UNI-5737
56 7327540000 Alimentation Cable
57 7020080000 Nut M10 UNI-5588
58 7090030000 Cap 1/2
59 7190240000 Check Valve M3 / 8 "-Pipe Ø8
60 7230010000 Rilsan Tube Ø6X4
61 7230670000 Tube Feeding
62 7192020000 Valve Sic. M1 / 4-8,5Bar
63 7250740000 Pressure Switch
64 7023040000 Nut 1/4 "
65 7081140000 Fitting 1/4 "MM
66 7110300000 Ø50-1 Gauge / 4 "
67 7100640000 Pressure Reducer
68 7130010000 Tap M1 / ​​4 "
69 7081090000 Fitting 1/4 "MM
70 7110240000 Manometer Ø40-1 / 8 "
71 7210810000 Suction Filter
100 4230150000 GR.TESTA-PLATE F-203 / GM-203
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
