FIAC Spare Parts for Piston Air Compressor DE

SKU: Fiac DE204
€1,317.92
VAT included

FIAC Spare Parts for Piston Air Compressor DE

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type DE 204 - 24L - DE 204 50L.
FIAC Spare Parts for Piston Air Compressor DE
  • FIAC Spare Parts for Piston Air Compressor DE
  • FIAC Spare Parts for Piston Air Compressor DE - Drawing 24LT
  • FIAC Spare Parts for Piston Air Compressor DE - Drawing 50LT

FIAC Spare Parts for Piston Air Compressor DE

SKU: Fiac DE204 Condition: New
€1,317.92
VAT included

FIAC Spare Parts for Piston Air Compressor DE

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type DE 204 - 24L - DE 204 50L.
settings 24 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

23 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 7250360000 Pressure Switch €38.56
3
photo_cameraImage coming soon 7110020000 Manometer €19.55
4
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
5
photo_cameraImage coming soon 7130440000 MF ball valve 1/4 " €16.97
6
photo_cameraImage coming soon 7082050000 Fitting "T" fourth FFM €12.10
7
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
8
photo_cameraImage coming soon 7082280000 Fitting 1 / 4M 3PZ.IN LINE L = 58 €11.53
13
photo_cameraImage coming soon 7016150000 Silencer F 1/8 " €9.68
14
photo_cameraImage coming soon 7194240000 Solenoid €80.71
15
photo_cameraImage coming soon 7085180000 Fitting 1 / 4-1 / 8 MF €6.97
16
photo_cameraImage coming soon 7080180000 The 1/4 MF Connection €8.35
18
FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
25
photo_cameraImage coming soon 7230030000 TUBE RILSAN Ø10X8 €8.96
26
photo_cameraImage coming soon 7084560000 Fitting F3 / 8 "TUBE 10X8 €14.76
27
Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
30
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
31
photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
32
photo_cameraImage coming soon 7090060000 Cap M1 " €4.24
34
photo_cameraImage coming soon 7364310000 Antivibration Ø30X20 MM8 40 sh €12.85
35
photo_cameraImage coming soon 7085190000 3/8 "-1/4" MF €15.97
36
photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
37
photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
9
photo_cameraImage coming soon 7234760000 tube feeding €143.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor DE

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type DE 204 - 24L - DE 204 50L.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac DE 204

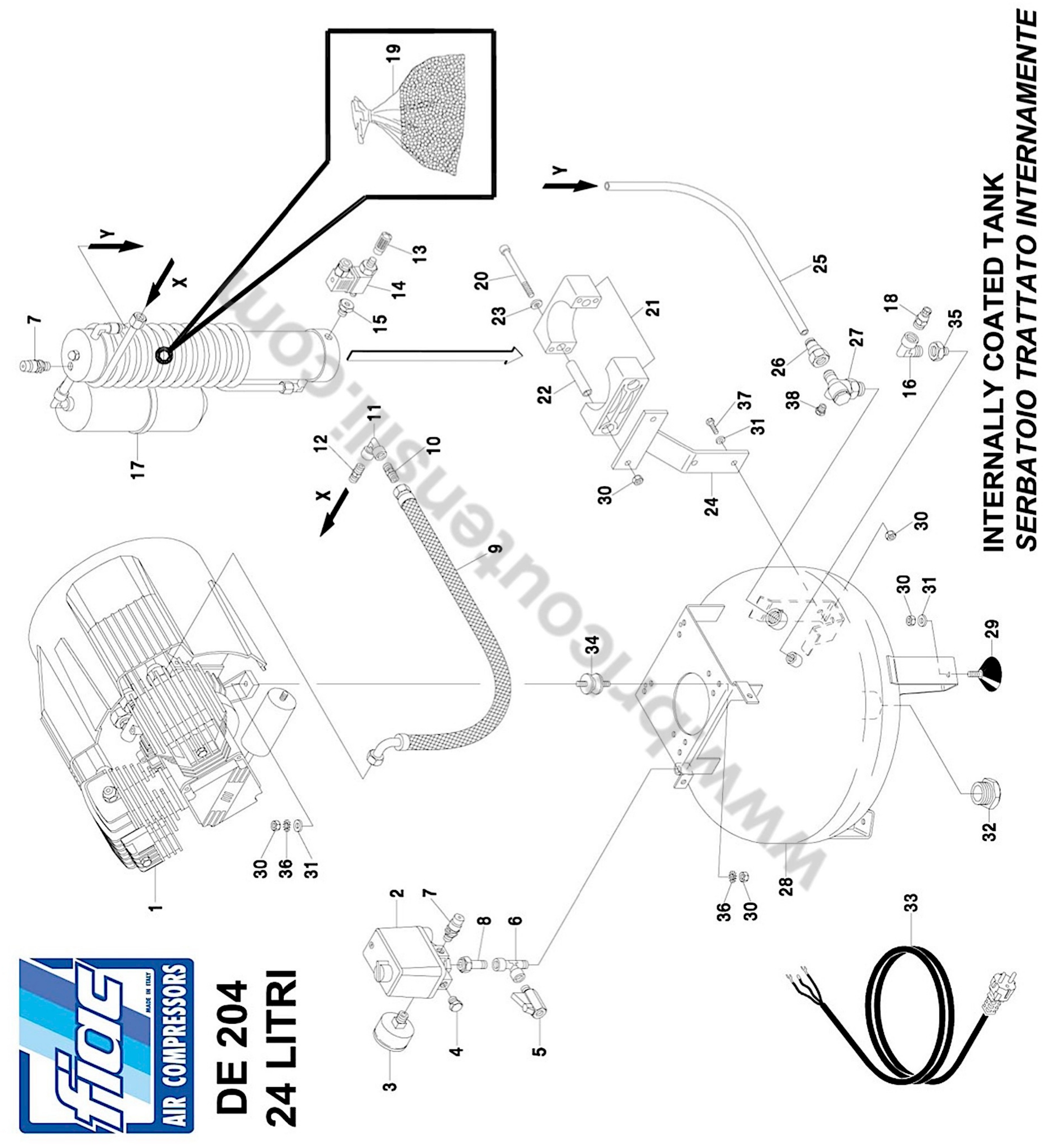

Compressor DE 204 - 24L Pag.1
1 2025111000 Pumping unit VS204
2 7250360000 Pressure switch
3 7110020000 manometer
4 7090070000 Cap M1/4"
5 7130440000 MF ball valve 1/4 "
6 7082050000 Fitting "T" 1/4 FFM
7 7192020000 Valve Sic. M1 / 4-8,5Bar
8 7082280000 Fitting 1 / 4M 3PZ.IN LINE L = 58
9 7234790000 tube feeding
10 7082870000 Fitting 3 / 8X3 / 8G
11 7080580000 Fitting "L" 3/8 FF
12 7084540000 Fitting 3 / 8M
13 7016150000 Silencer F 1/8 "
14 7194240000 solenoid
15 7085180000 Fitting 1 / 4-1 / 8 MF
16 7080180000 Fitting "L" 1/4 MF
17 7561930000 Dryer absorption
18 7130090000 Drain Tap M1/4"
19 7525550000 Salts for dryer
20 7010260000 Screw M8x90 UNI-5931
21 7024190000 Kit Collar CP4 D = 70
22 7043130000 BUSH CENTR.XCOLL. T.C.A. D14X60
23 7030540000 washer D.8x17
24 5163730008 support dryer
25 7230030000 Rilsan tube Ø10X8
26 7084560000 Fitting F3 / 8 "TUBE 10X8
27 7190180000 Check valve MM 1/2 "x3 / 8" -sX
28 5159520008 tank 24lt
29 7270040000 Rubber foot
30 7020070000 Nut M8 UNI-5587
31 7030030000 Washer Ø8 UNI-6592
32 7090060000 Cap M1 "
33 7328770000 C.ALIM.FR STRATOS C / PEG MT.3
34 7364310000 Antivibration Ø30X20 MM8 40 sh
35 7085190000 3/8 "-1/4" MF
36 7031010000 Washer Ø8 UNI-3703
37 7011090000 Screw M8x20 UNI-5739
38 7090010000 Cap M1 / 8 "

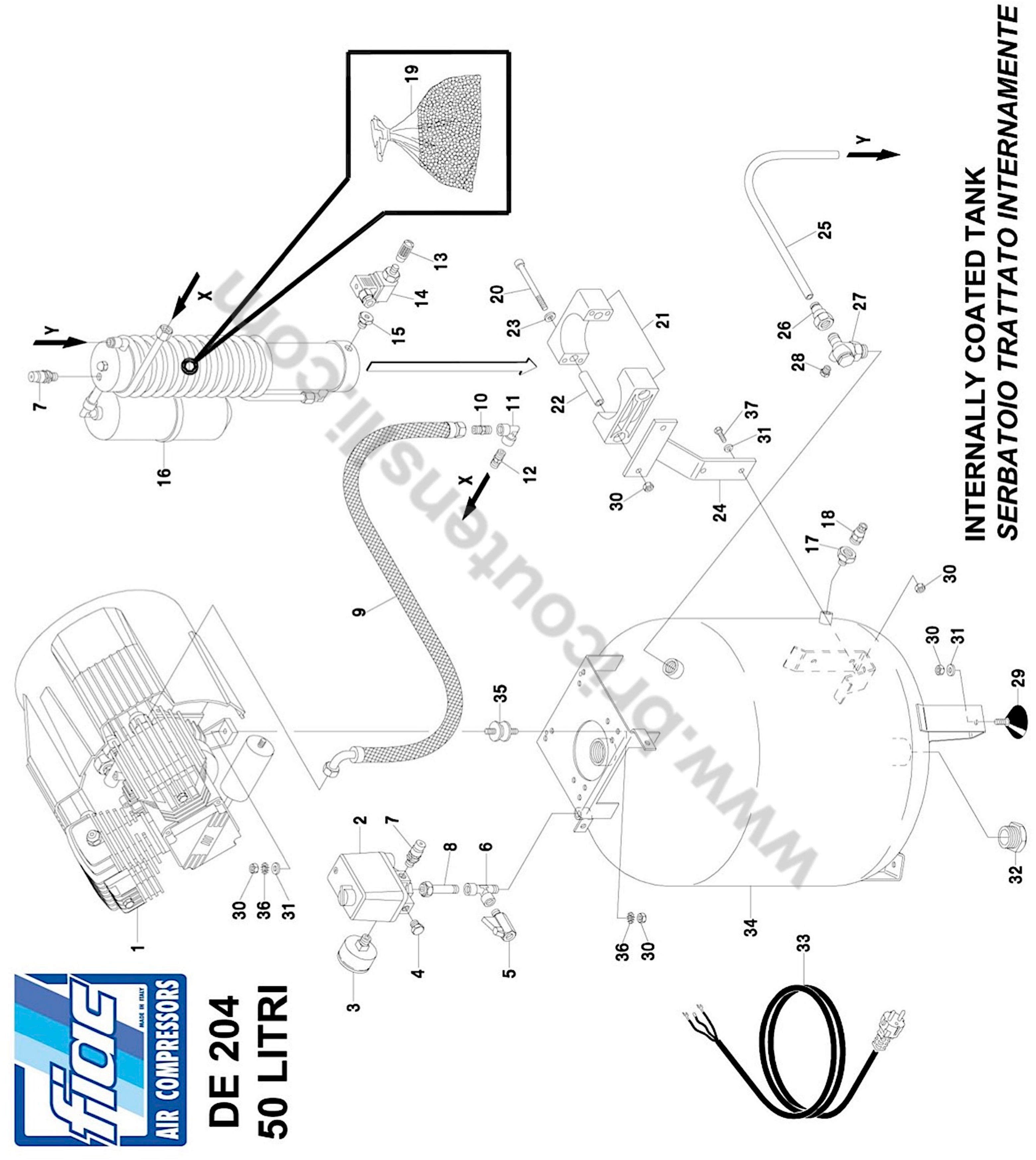

Compressor DE 204 - 50L Pag.2
1 2025111000 Pumping unit VS204
2 7250360000 Pressure switch
3 7110020000 manometer
4 7090070000 Cap M1/4"
5 7130440000 MF ball valve 1/4 "
6 7082050000 Fitting "T" 1/4 FFM
7 7192020000 Valve Sic. M1 / 4-8,5Bar
8 7082280000 Fitting 1 / 4M 3PZ.IN LINE L = 58
9 7234760000 tube feeding
10 7082870000 Fitting 3 / 8X3 / 8G
11 7080580000 Fitting "L" 3/8 FF
12 7084540000 Fitting 3 / 8M
13 7016150000 Silencer F 1/8 "
14 7194240000 solenoid
15 7085180000 Fitting 1 / 4-1 / 8 MF
16 7561930000 Dryer absorption
17 7085190000 3/8 "-1/4" MF
18 7130090000 Bleeding tap M1/4"
19 7525550000 Salts for dryer
20 7010260000 Screw M8x90 UNI-5931
21 7024190000 Kit Collar CP4 D = 70
22 7043130000 BUSH CENTR.XCOLL. T.C.A. D14X60
23 7030540000 washer D.8x17
24 5163730008 support dryer
25 7230030000 Rilsan tube Ø10X8
26 7084560000 Fitting F3 / 8 "TUBE 10X8
27 7190180000 Check valve MM 1/2 "x3 / 8" -sX
28 7090010000 Cap M1 / 8 "
29 7270040000 Rubber foot
30 7020070000 Nut M8 UNI-5587
31 7030030000 Washer Ø8 UNI-6592
32 7090060000 Cap M1 "
33 7328770000 C.ALIM.FR STRATOS C / PEG MT.3
34 5159530008 tank 50lt
35 7364310000 Antivibration Ø30X20 MM8 40 sh
36 7031010000 Washer Ø8 UNI-3703
37 7011090000 Screw M8x20 UNI-5739
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac DE204
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Fiac DE 204 24-50LT Drawing

Fiac DE 204 24-50LT Draw

Download (814.91KB)
