FIAC spa

FIAC Spare Parts for Piston Air Compressor FX 90 1300 W

SKU: Fiac FX90-1300W
€27.32
VAT included

FIAC Spare Parts for Piston Air Compressor FX 90 1300 W

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor FX 90 1300 W.

Fix Your Piston Air Compressor FX 90 1300 W. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
FIAC Spare Parts for Piston Air Compressor FX 90 1300 W
  • FIAC Spare Parts for Piston Air Compressor FX 90 1300 W
  • FIAC Spare Parts for Piston Air Compressor FX 90 1300 W
FIAC spa

FIAC Spare Parts for Piston Air Compressor FX 90 1300 W

SKU: Fiac FX90-1300W Condition: New
€27.32
VAT included

FIAC Spare Parts for Piston Air Compressor FX 90 1300 W

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor FX 90 1300 W.

Fix Your Piston Air Compressor FX 90 1300 W. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 65 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
  • 7110300000
  • 5157310008
  • 7011220000
  • 7012100000
  • 7012160000
  • 7012290000
  • 7013060000
  • 7018290000
  • 7020070000
  • 7020080000
  • 7023040000
  • 7024140000
  • 7041060000
  • 7060010000
  • 7060060000
  • 7081090000
  • 7081140000
  • 7090030000
  • 7100640000
  • 7110240000
  • 7130010000
  • 7130160000
  • 7190180000
  • 7192020000
  • 7210430000
  • 7220020000
  • 7230010000
  • 7230430000
  • 7260160000
  • 7310100000
  • 7329070000
  • 7360020000
  • 7650020000
  • 9100010010
  • 9100010020
  • 9100010030
  • 9100010040
  • 9100010050
  • 9100010060
  • 9100010070
  • 9100010080
  • 9100010100
  • 9100010130
  • 9100010140
  • 9100010150
  • 9100010170
  • 9100010190
  • 9100010200
  • 9100010210
  • 9100010240
  • 9100010280
  • 9100010290
  • 9100010300
  • 9100010310
  • 9100010320
  • 9100010370
  • 9100010430
  • 9100010470
  • 9100010480
  • 9100020150
  • 9100030090
  • 7458340000
  • 7250740000
  • 5050150008
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
63 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

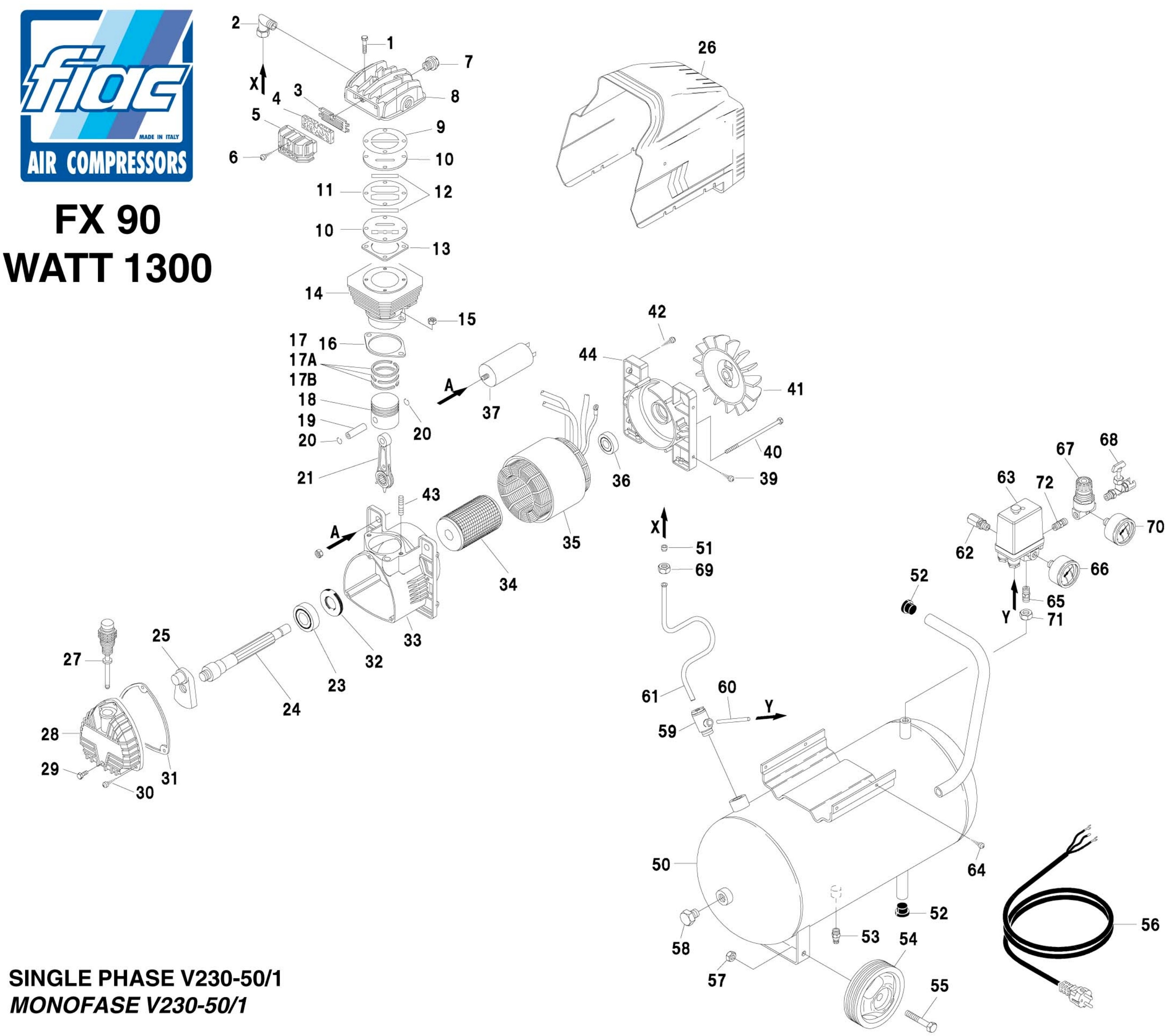

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 Fitting M3/8-Tube 10 for Compressors Head 9100010470 Fitting M3/8-Tube 10 for Compressors Head €14.34
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Air Compressor Fiac AB360 9100010210 Air Filter Element for Air Compressor Fiac AB360 €3.45
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve for Pumping Units GM 9100010190 Start Valve for Pumping Units GM €7.89
8
 Head for Air Compressors FIAC FX-90 Colibri' GM 192 9100010320 Head for Air Compressors FIAC FX-90 Colibri' GM 192 €33.32
9
 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 9100010310 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 €4.34
10
 photo_cameraImage coming soon 9100010240 plate €27.84
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
12
 photo_cameraImage coming soon 9100010370 valve €4.23
13
 Head Gasket for Pump Unit Fiac GM 192 9100020150 Head Gasket for Pump Unit Fiac GM 192 €11.48
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
 Cylinder Gasket for Pumping Unit FIAC GM 192 9100010300 Cylinder Gasket for Pumping Unit FIAC GM 192 €4.45
17
 photo_cameraImage coming soon 9100010130 PISTON RING AC50 GM192/244 €12.63
17A
 Piston Ring D.50 ROS for Air Compressor FIAC FX90 GM192 9100010140 Piston Ring D.50 ROS for Air Compressor FIAC FX90 GM192 €7.64
17B
 photo_cameraImage coming soon 9100010150 Ring ROF 50 GM192 / 244 €10.64
18
 Piston D.50 MM for Pump Units FIAC Series VX - GM 7220020000 Piston D.50 MM for Pump Units FIAC Series VX - GM €26.96
19
 photo_cameraImage coming soon 9100010070 Pin €4.11
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
23
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
24
 photo_cameraImage coming soon 9100010280 CRANKSHAFT GM-192 IMPORT €26.71
25
 Fiac GM192 Crankshaft 9100010290 Fiac GM192 Crankshaft €20.45
26
 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S 9100030090 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S €31.27
27
 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos 9100010170 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos €10.47
28
 photo_cameraImage coming soon 7650020000 crankcase cover €17.43
29
 photo_cameraImage coming soon 7012160000 screw €1.48
31
 Motor Cover Gasket for Pumping Units Fiac GM 192-193 9100010100 Motor Cover Gasket for Pumping Units Fiac GM 192-193 €9.07
32
 photo_cameraImage coming soon 9100010430 Oil Seal €4.05
33
 photo_cameraImage coming soon 9100010020 Crankcase €50.81
34
 photo_cameraImage coming soon 9100010040 Rotor €55.27
35
 photo_cameraImage coming soon 9100010010 Stator €208.79
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 Capacitor 20 mf for Air Compressors 7310100000 Capacitor 20 mf for Air Compressors €22.94
39
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
40
 photo_cameraImage coming soon 9100010060 prisoner M6x139 €1.48
41
 Motor Fan for Pumping Units GM 142-192 9100010200 Motor Fan for Pumping Units GM 142-192 €15.06
42
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
44
 photo_cameraImage coming soon 9100010030 Cover €26.71
50
 photo_cameraImage coming soon 5157310008 Tank 24lt €275.69
51
 FIAC FX90-1300W Ogive Pipe D.10 7041060000 FIAC FX90-1300W Ogive Pipe D.10 €0.69
52
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
53
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
54
 Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
55
 Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
56
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
57
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
58
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
59
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
60
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
61
 photo_cameraImage coming soon 7230430000 Tube Feeding €14.33
62
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
63
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
65
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
66
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
67
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
68
 photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
69
 photo_cameraImage coming soon 7024140000 Nut 3/8 " €4.11
70
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
71
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
72
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor FX 90 1300 W

Fix Your Piston Air Compressor FX 90 1300 W. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac FX 90 1300 W

Air Compressor FX 90 1300 W
# Part Num. Description
1 7011220000 Screw M6x40 UNI-5737
2 9100010470 The Fitting M3 / 8-Tube 10
3 7458340000 Filter Plate
4 9100010210 Filter Element
5 7210430000 Filter Cover
6 7012100000 Screw Ø3,9X16
7 9100010190 Valve Start
8 9100010320 Head
9 9100010310 Gasket
10 9100010240 Plate
11 9100010080 Gasket
12 9100010370 Valve
13 9100020150 Gasket
14 7575240000 Cylinder - DISCONTINUED
15 7020070000 Nut M8 UNI-5587
16 9100010300 Gasket
17 9100010130 PISTON RING AC50 GM192/244
17A 9100010140 PISTON RING ROS 50 GM192/244
17B 9100010150 Ring ROF 50 GM192 / 244
18 7220020000 Piston
19 9100010070 Pin
20 9100010480 Clip Ø12
21 5050150008 Piston Connecting Rod
23 7060060000 Bearing 6205
24 9100010280 CRANKSHAFT GM-192 IMPORT
25 9100010290 Crankshaft
26 9100030090 Plastic Cover
27 9100010170 Dipstick
28 7650020000 Crankcase Cover
29 7012160000 Screw
30 7012100000 Screw Ø3,9X16
31 9100010100 Gasket
32 9100010430 Oil Seal
33 9100010020 Crankcase
34 9100010040 Rotor
35 9100010010 Stator
36 7060010000 Bearing 6203 ZZ 17:40:12 QE6
37 7310100000 Capacitor MF.20 V450
39 7012290000 Screw M5X20 TAP-TITE
40 9100010060 Studbolt M6x139
41 9100010200 Cooling Fan
42 7013060000 Screw M4X8 UNI-8112
43 9100010050 Studbolt
44 9100010030 Cover
50 5157310008 Tank 24lt
51 7041060000 Ogive Tube Ø10
52 7360020000 Rubber Ø16
53 7130160000 Bleeding Tap M3 / 8 "
54 7260160000 Ø125X35 Wheel-F15
55 7018290000 Pin Wheel
56 7329070000 Power Cord
57 7020080000 Nut M10 UNI-5588
58 7090030000 Cap 1/2
59 7190180000 Check Valve MM 1/2 "X3 / 8" -Sx
60 7230010000 Rilsan Tube Ø6X4
61 7230430000 Tube Feeding
62 7192020000 Safety Valve M1 / ​​4-8,5Bar
63 7250740000 Pressure Switch
64 7012290000 Screw M5X20 TAP-TITE
65 7081140000 Fitting 1/4 "MM
66 7110300000 Ø50-1 Gauge 1/ 4 "
67 7100640000 Pressure Reducer
68 7130010000 Tap M1 / ​​4 "
69 7024140000 Nut 3/8 "
70 7110240000 Gauge Ø40-1/8 "
71 7023040000 Nut 1/4 "
72 7081090000 Fitting 1/4 "MM
017A 9100010140 Ring ROS 50 GM192 / 244
017B 9100010150 Ring ROF 50 GM192 / 244
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac FX90-1300W
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac FX 90 1300 W

Diagram Fiac FX 90 1300 W

Download (298.93KB)

You might also like

Pressure Regulator for Air Compressor 25/50 lt
FIAC spa SKU: 7100640000
Pressure Regulator for Air Compressor 25/50 lt
Pressure Regulator for Air Compressor 25/50 lt Genuine part FIAC, Pressure regulator for air compressors single phase, 25/50 liters. - Pressure connection: 1/4'' - Gauge: 1/8'' - Fittings Air connection : 1/4'' - Adjustable...
on 7/10 Business Days Approx €25.40
Details
Motor Fan for Pumping Units GM 142-192
FIAC spa SKU: 9100010200
Motor Fan for Pumping Units GM 142-192
Motor Fan for Pumping Units GM 142-192 Genuine part FIAC, Motor fan for pump units GM 142 - GM 145 - GM 192 - GM 193 - Air Compressors Colibri' GM 192 - FX 90 1300 W - COSMOS 225 S. Part...
Last items in stock €15.06
Details
Fitting M3/8-Tube 10 for Compressors Head
FIAC spa SKU: 9100010470
Fitting M3/8-Tube 10 for Compressors Head
Fitting M3/8-Tube 10 for Compressors Head Genuine part FIAC, L WV 3/8" Ax1 Elbow Connector for Head - Tank/Valve Pipe, for FIAC compressors with motors Lubricated FX90 - 142 GM - GM 192 - 244 GM and compatible. Parts for the...
AVAILABLE €14.34
Details
Conrod for Pump Units FIAC GM-VX
FIAC spa SKU: 5050150008
Conrod for Pump Units FIAC GM-VX
Conrod for Pump Units FIAC GM-VX Genuine part FIAC, Conrod Entirely Made in aluminum, for Pump Units FIAC GM-VX prepared with lubrication holes. Part for the following products: - GM 110 15 BAR validity date - from...
Last items in stock €27.33
Details
Head Plate Gasket for Pumping Units Fiac GM 192-193-244
FIAC spa SKU: 9100010310
Head Plate Gasket for Pumping Units Fiac GM 192-193-244
Head Plate Gasket for Pumping Units Fiac GM 192-193-244 Original part FIAC, Head plate gasket for Pumping Units FIAC GM 192 - GM 193 - GM 244 - Air Compressors FX 90 1300 W - Colibri' GM 192. Part for the following products: - ...
AVAILABLE €4.34
Details
Capacitor 20 mf for Air Compressors
FIAC spa SKU: 7310100000
Capacitor 20 mf for Air Compressors
Capacitor 20 mf for Air Compressors Original part FIAC, Capacitor 20 mf 450 V for Air Compressors 6-10-24-50 liters, with pumping units with electric motor 750-1300-1500W. Part for the following products: - For all types of...
Last items in stock €22.94
Details
Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5
FIAC spa SKU: 7230170000
Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5
Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5 Original parts FIAC, Aluminum pipe for joining the head of the compressor to the air intake valve on the tank. Parts for the following products: -Compressore FIAC FX 95 - HP 1.5 -...
AVAILABLE €22.94
Details
Motor Cover Gasket for Pumping Units Fiac GM 192-193 - Diagram
FIAC spa SKU: 9100010100
Motor Cover Gasket for Pumping Units Fiac GM 192-193
Motor Cover Gasket for Pump Units Fiac GM 192-193 Original part FIAC, Motor Cover gasket for Pump Units FIAC GM 192 - GM 193 - Air Compressors FX 90 1300 W - Colibri' GM 192. Part for the following items: -  Air Compressor FX 90 1300...
AVAILABLE €9.07
Details
Head for Air Compressors FIAC FX-90 Colibri' GM 192
FIAC spa SKU: 9100010320
Head for Air Compressors FIAC FX-90 Colibri' GM 192
Head for Air Compressors FIAC FX-90 Colibri' GM 192 Genuine part FIAC, Head for Air Compressors FX 90 1300 W - Colibri 'GM 192 - Pump unit GM 143 data validity - from 16/02/2011 - GM 192 data validity - from 06/11/2006. Part for the...
Last items in stock €33.32
Details
Air Filter Element for Air Compressor Fiac AB360
FIAC spa SKU: 9100010210
Air Filter Element for Air Compressor Fiac AB360
Air Filter Element for Air Compressor Fiac AB360 Genuine part FIAC, Air Filter Element, for Air Pumping Units AB 360 - GM 142-143 - 192-193 - Compressors FX 90 1300 W - Colibrì. Parts for the following compressors: - Pumping unit FIAC...
AVAILABLE €3.45
Details
Cylinder Gasket for Pumping Unit FIAC GM 192
SKU: 9100010300
Cylinder Gasket for Pumping Unit FIAC GM 192
Cylinder Gasket for Pumping Unit FIAC GM 192 Original spare parts FIAC, Cylinder gasket for Pumping Units FIAC GM 192 - GM 244 - Colibri' GM 192 - FX 90 1300 W Part for the following products: - Pumping...
Last items in stock €4.45
Details
Head Gasket for Pump Unit Fiac GM 192
FIAC spa SKU: 9100020150
Head Gasket for Pump Unit Fiac GM 192
Head Gasket for Pump Unit Fiac GM 192 Genuine part FIAC, Head Gasket for Air Compressors FX 90 1300 W - Colibri 'GM 192 - Pump unit GM 192 data validity - from 06/11/2006. Part for the following air compressors: -  Pump Unit GM 192...
AVAILABLE €11.48
Details
Piston Ring Set for Air Compressor FIAC FX 90 1300 W
FIAC spa SKU: 9100010130SET
Piston Ring Set for Air Compressor FIAC FX 90 1300 W
Piston Ring Set for Air Compressor FIAC FX 90 1300 W Genuine part FIAC, Piston Ring Set (9100010130 - 9100010140 - 9100010150) for Air Compressor FX 90 1300 W.  Part for the following air...
Last items in stock €17.10
Details
Piston D.50 MM for Pump Units FIAC Series VX - GM
FIAC spa SKU: 7220020000
Piston D.50 MM for Pump Units FIAC Series VX - GM
Piston D. 50 MM for Pump Units FIAC Series VX - GM Genuine part FIAC, Piston D. 50 MM for Pump Units FIAC Series VX - GM. Parts for the following products: -  Pump Unit FIAC VX 194 -  Pump Unit...
on 7/10 Business Days Approx €26.96
Details
Piston Ring D.50 ROS for Air Compressor FIAC FX90 GM192
FIAC spa SKU: 9100010140
Piston Ring D.50 ROS for Air Compressor FIAC FX90 GM192
Piston Ring D.50 ROS for Air Compressor FIAC FX90 GM192 Genuine part FIAC, Piston Ring D.50 ROS GM 192/244 for Air Compressor FX 90 1300 W.  Part for the following air compressors: -  Air Compressor...
on 7/10 Business Days Approx. €7.64
Details
Fiac GM192 Crankshaft
FIAC spa SKU: 9100010290
Fiac GM192 Crankshaft
Fiac GM 192 Crankshaft Genuine part FIAC, Crankshaft for Air Compressors FX 90 1300 W - Colibri 'GM 192 - Pump Unit GM 192. Part for the following air compressors: - Pump unit GM 192 data validity - by 06/11/2006 -  Air...
Last items in stock €20.45
Details
FIAC FX90-1300W Ogive Pipe Ø10
FIAC spa SKU: 7041060000
FIAC FX90-1300W Ogive Pipe D.10
FIAC FX90-1300W Ogive Pipe Ø10 FIAC Genuine Part, Ogive Pipe Ø10 for Air Compressor Air Compressor FX90-1300W. Part for the following products: -  Air Compressor FX90-1300 W - Code...
AVAILABLE €0.69
Details
Comments (0)
