FIAC Spare Parts for Piston Air Compressor Air Click

SKU: Fiac AirClick
€1.52
VAT included

FIAC Spare Parts for Piston Air Compressor Air Click

We are FIAC original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AIR CLICK.
FIAC Spare Parts for Piston Air Compressor AirClick
  • FIAC Spare Parts for Piston Air Compressor AirClick
  • FIAC Spare Parts for Piston Air Compressor AirClick

FIAC Spare Parts for Piston Air Compressor Air Click

SKU: Fiac AirClick Condition: New
€1.52
VAT included

FIAC Spare Parts for Piston Air Compressor Air Click

We are FIAC original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AIR CLICK.
settings 54 spare parts

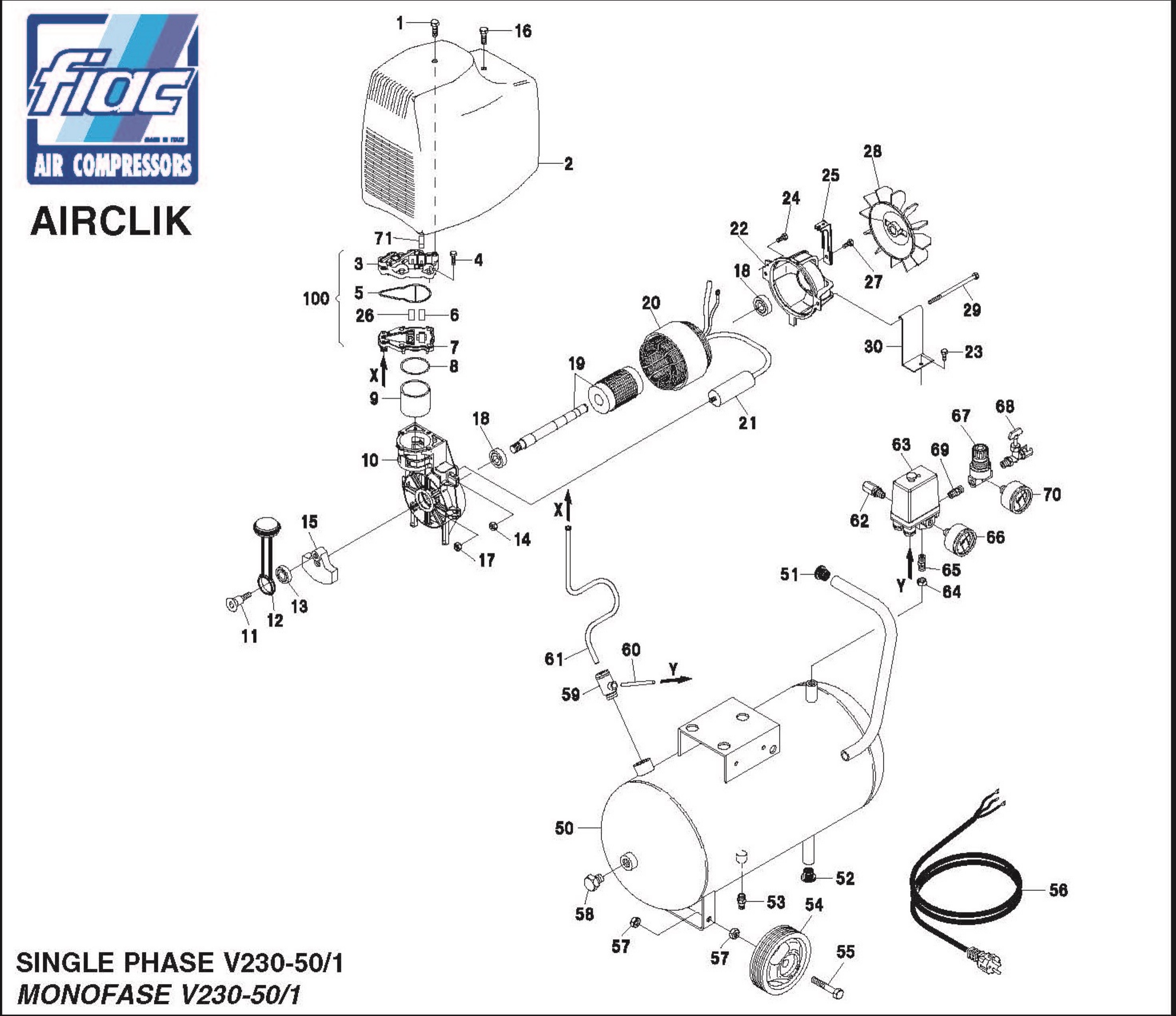

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
2
Motor Cover Black for Air Compressor Fiac Air Click 7151430000 Motor Cover Black for Air Compressor Fiac Air Click €24.42
3
photo_cameraImage coming soon 7570620000 Head €10.92
5
Silicon OR for Head of Air Compressors Fiac Air Click-Airsplash 24 7078670000 Silicon OR for Head of Air Compressors Fiac Air Click-Airsplash 24 €7.89
6
Flap Valve 32x10x0,010 for Air Compressors Fiac Air Click-Airsplash 24 7199160000 Flap Valve 32x10x0,010 for Air Compressors Fiac Air Click-Airsplash 24 €1.44 Not available for order
7
Valve Plate for Air Compressor Fiac Air Click 7459360000 Valve Plate for Air Compressor Fiac Air Click €12.51
8
O-Ring for Compressors Cylinder FIAC Air Splash 24-Air Click 7070420000 O-Ring for Compressors Cylinder FIAC Air Splash 24-Air Click €1.44
9
Cilinder for Air Compressor Fiac Air Click-Airsplash 5062040008 Cilinder for Air Compressor Fiac Air Click-Airsplash €22.41 Not available for order
10
photo_cameraImage coming soon 7670070000 Sump €29.18
11
photo_cameraImage coming soon 7018500000 PIVOT ROD 203 F. €4.34
13
photo_cameraImage coming soon 7060420000 6201 2RS1 bearing 12X32X10 - SKF €8.34
15
Brass Crank F-203 for Air Compressor Fiac Air Click 7585050000 Brass Crank F-203 for Air Compressor Fiac Air Click €35.93
17
photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
18
photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
19
photo_cameraImage coming soon 7584020000 GROUP TREE + ROTOR F-203 H 50- €47.34
20
photo_cameraImage coming soon 4013490000 Stator €146.33
21
Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
22
photo_cameraImage coming soon 7640130000 Cover €17.64
23
photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
24
photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
26
Flap Valve 32x10x0,015 for Air Compressors Fiac Air Click-Airsplash 24 7199170000 Flap Valve 32x10x0,015 for Air Compressors Fiac Air Click-Airsplash 24 €1.44
27
photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
28
Motor Fan for Pump Units GM 143-191 7201280000 Motor Fan for Pump Units GM 143-191 €15.06
50
photo_cameraImage coming soon 5152830008 Tank 24lt €257.39
52
photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
53
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
54
photo_cameraImage coming soon 7260380000 Wheel Ø125X35 F10 €5.00
56
photo_cameraImage coming soon 7327540000 Power cable €13.14
57
photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
58
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
59
photo_cameraImage coming soon 7190240000 Check valve M3 / 8 "-Pipe Ø8 €21.28
60
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
61
photo_cameraImage coming soon 7230670000 Tube feeding €21.28
62
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
63
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
64
photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
65
photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
66
Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
67
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
68
photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
69
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
70
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
100
photo_cameraImage coming soon 4230150000 GR.TESTA-PLATE F-203 / GM-203 €44.13
501
Conrod + Cylinder + Crank Set F-203 for Air Compressor Fiac Air Click 4082830000 Conrod + Cylinder + Crank Set F-203 for Air Compressor Fiac Air Click €117.85 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Air Click

We are FIAC original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AIR CLICK.

In the following table , look for the type of the air compressor and the respective parts of the code .
Fiac Air Click

Compressor Air Click
# Part Num. Description
1 7012060000 Screw M4X12 UNI-8112
2 7151430000 plastic top Motor Cover
3 7570620000 Head
4 7012790000 Screw M6X35 UNI-8112
5 7078670000 Gasket
6 7199160000 Flap Valve
7 7459360000 Valve plate
8 7070420000 O-Ring 476
9 5062040008 Cylinder
10 7670070000 Sump
11 7018500000 PIVOT ROD 203 F.
12 4082900000 ROD KIT F-203 X AIRCLIK
13 7060420000 6201 2RS1 bearing 12X32X10 - SKF
14 7020240000 Nut M8 DIN-6923
15 7585050000 Crank BRASS F-203 AIRCLIK
16 7012490000 Screw M6X40 UNI-7686
17 7020200000 Nut M6 UNI-5587
18 7060010000 Bearing 6203 ZZ 17:40:12 QE6
19 7584020000 GROUP TREE + ROTOR F-203 H 50-
20 4013490000 Stator
21 7310320000 Capacitor MF.30 V450
22 7640130000 Cover
23 7012240000 Screw M5X15 UNI-8112
24 7013060000 Screw M4X8 UNI-8112
25 7459590000 SUPPORT PLASTIC H50-CAREN.AIRCLIK
26 7199170000 Flap Valve
27 7012090000 Screw M5X12 UNI-8112
28 7201280000 Fan raff.
29 7012880000 Screw M6x90 UNI-5739
30 7459400000 Support
50 5152830008 Tank 24lt
51 7091240000 Plastic stopper
52 7360020000 Rubber Ø16
53 7130160000 Bleeding tap M3 / 8 "
54 7260380000 Wheel Ø125X35 F10
55 7012780000 Screw M10x60 UNI-5737
56 7327540000 Power cable
57 7020080000 Nut M10 UNI-5588
58 7090030000 cap 1/2
59 7190240000 Check valve M3 / 8 "-Pipe Ø8
60 7230010000 Rilsan tube Ø6X4
61 7230670000 Tube feeding
62 7192020000 Valve Sic. M1 / 4-8,5Bar
63 7250740000 Pressure Switch
64 7023040000 Nut 1/4 "
65 7081140000 Fitting 1/4 "MM
66 7110300000 Manometer Ø50-1 / 4 "
67 7100640000 Pressure reducer
68 7130010000 Tap M1 / ​​4 "
69 7081090000 Fitting 1/4 "MM
70 7110240000 Manometer Ø40-1 / 8 "
71 7210810000 Suction filter
100 4230150000 GR.TESTA-PLATE F-203 / GM-203
501 4082830000 SET CONROD+CYLINDER+CRANK
